Model Electrolux CGD2M4WSTC RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

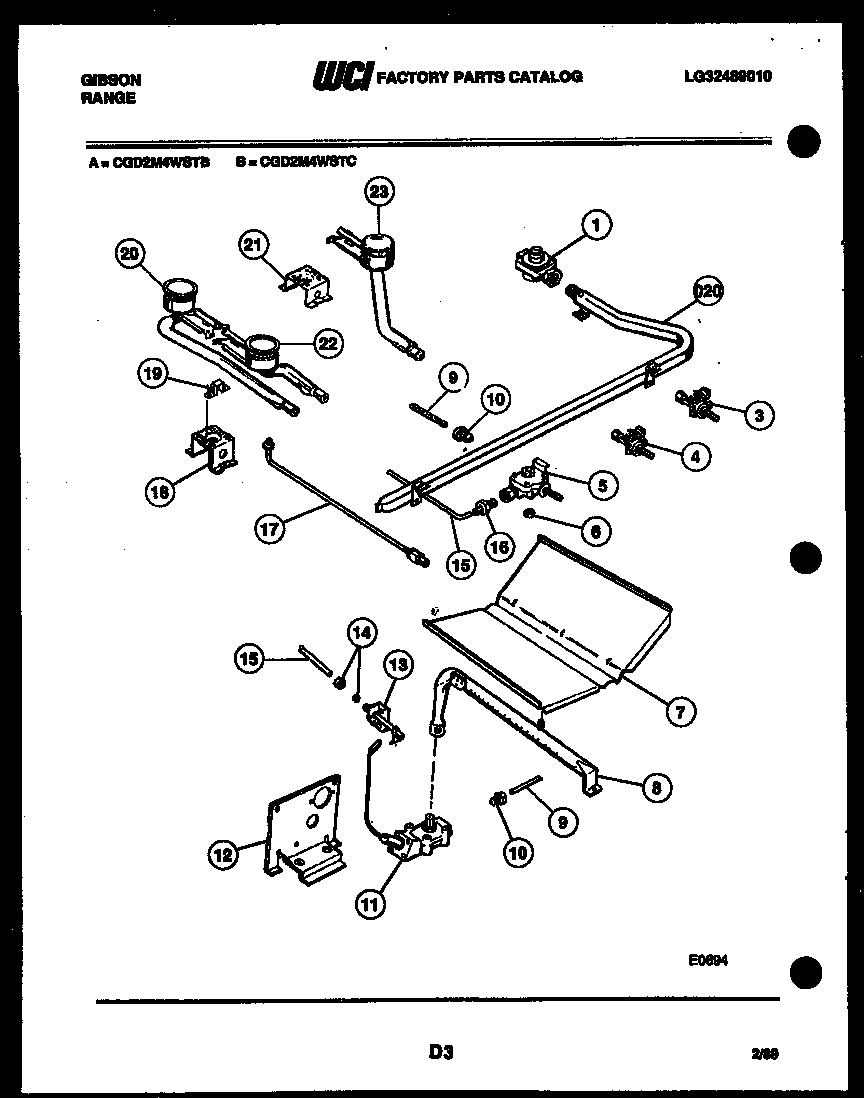

04 - BURNER PARTS

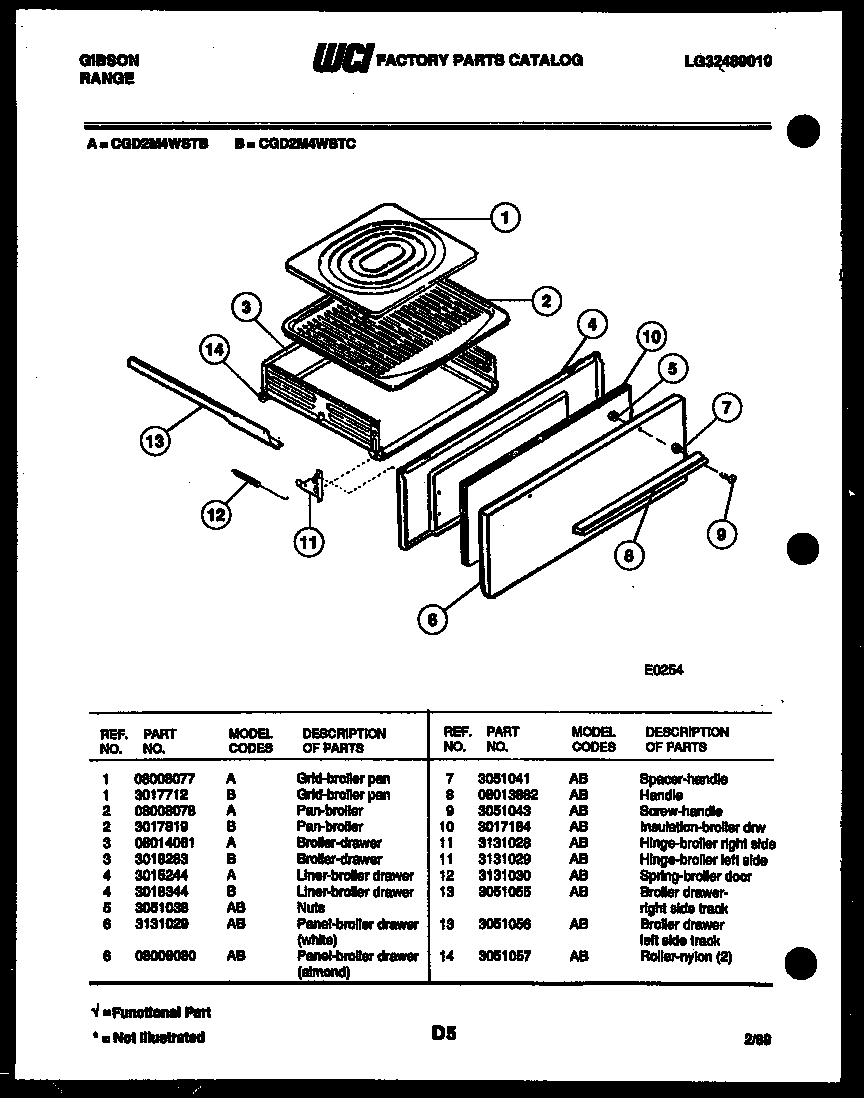

05 - BROILER DRAWER PARTS

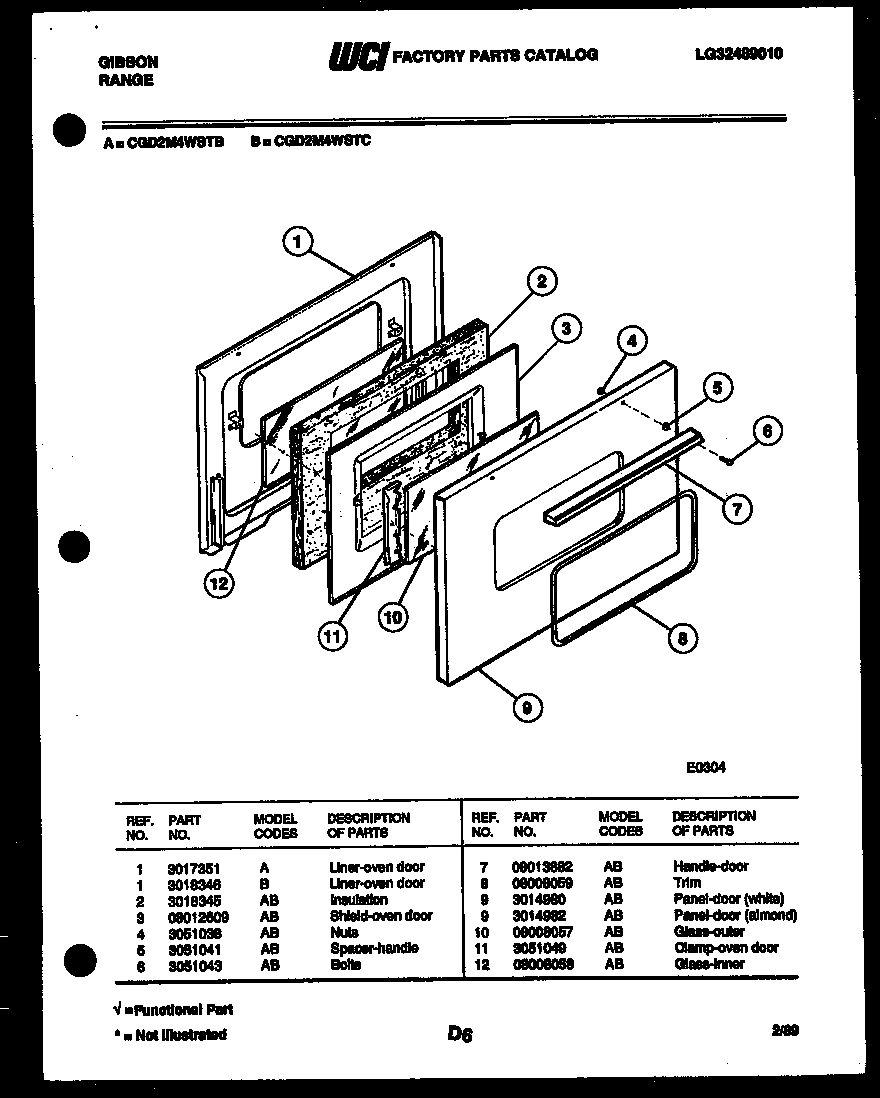

06 - DOOR PARTS

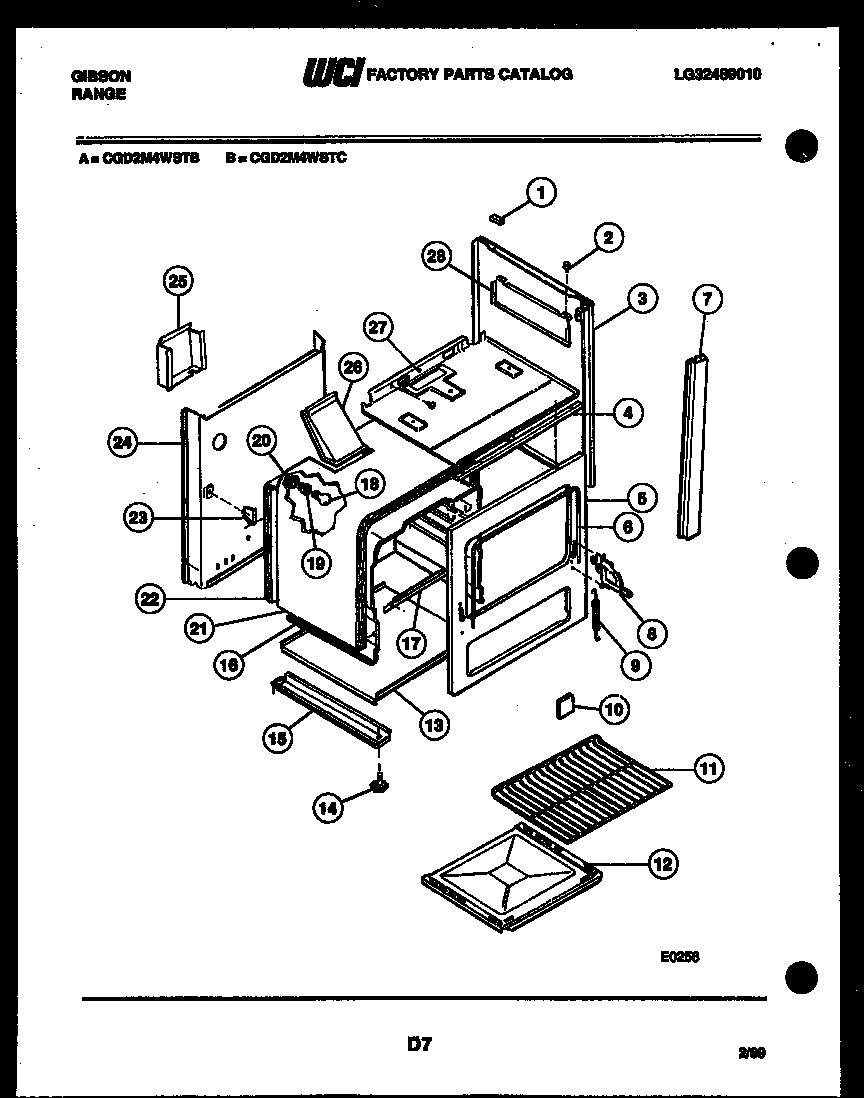

07 - BODY PARTS
Common parts from model Electrolux CGD2M4WSTC RANGE
*15766
CLIP-BODY SIDE WCI 3009582 Contact Us For Availability
*15766
WCI 3018339 WCI 3018339 Contact Us For Availability
1
PAN AERATIION WCI 08013991 Contact Us For Availability
1
GRID-BROILER PAN WCI 3017712 Contact Us For Availability
1
LINER-OVEN DOOR WCI 3018346 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
2
WCI 3018343 WCI 3018343 Contact Us For Availability
2
WCI 08013949 WCI 08013949 Contact Us For Availability
2
WCI 08013951 WCI 08013951 Contact Us For Availability
2
WCI AP254185 WCI AP254185 Contact Us For Availability
2
WCI 3017819 WCI 3017819 Contact Us For Availability
2
WCI 3018345 WCI 3018345 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
GRIDDLE WCI 08013877 Contact Us For Availability
3
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
3
SHIELD-OVEN DOOR WCI 08012609 Contact Us For Availability
3
WCI 08014019 WCI 08014019 Contact Us For Availability
3
PANEL - B/S (WHITE) WCI 3051061 Contact Us For Availability
4
WCI 08013963 WCI 08013963 Contact Us For Availability
4
WCI 08014034 WCI 08014034 Contact Us For Availability
4
WCI 08014035 WCI 08014035 Contact Us For Availability
4
WCI 3131058 WCI 3131058 Contact Us For Availability
4
WCI 3018344 WCI 3018344 Contact Us For Availability
4
WCI 08014025 WCI 08014025 Contact Us For Availability
5
WCI 08013857 WCI 08013857 Contact Us For Availability
5
KNOB-THERMOMETER WCI 3131018 Contact Us For Availability
5
WCI 08013927 WCI 08013927 Contact Us For Availability
5
SPACER-HANDLE WCI 3051041 Contact Us For Availability
5
FRAME - FRONT WCI 3017790 Contact Us For Availability
6
WCI 3131756 WCI 3131756 Contact Us For Availability
6
KNOB-GRIDDLE WCI 08013894 Contact Us For Availability
6
NUT - WING WCI 08007979 Contact Us For Availability
6
WCI 08008080 WCI 08008080 Contact Us For Availability
6
SEAL-OVEN DOOR WCI 08008022 Contact Us For Availability
7
TRIM BACKGUARD GLASS WCI 08013930 Contact Us For Availability
7
KNOB - TOP VALVE WCI 08013898 Contact Us For Availability
7
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
7
HANDLE DOOR WCI 08013882 Contact Us For Availability
7
FILLER-PANEL B/S (WHITE) WCI 08013993 Contact Us For Availability
7
FILLER-PANEL B/S (ALMD) WCI 08013994 Contact Us For Availability
8
WCI 3202334 WCI 3202334 Contact Us For Availability
8
WCI 08014004 WCI 08014004 Contact Us For Availability
8
WCI 08014005 WCI 08014005 Contact Us For Availability
8
WCI 3131062 WCI 3131062 Contact Us For Availability
8
WCI 08008059 WCI 08008059 Contact Us For Availability
8
OVEN DOOR HINGE (RT) WCI 3051078 Contact Us For Availability
9
WCI 3051008 WCI 3051008 Contact Us For Availability
9
GRATES WCI 3009309 Contact Us For Availability
9
FEED TUBE 3/8 WCI 08008364 Contact Us For Availability
9
PANEL-DOOR (WHITE) WCI 3014980 Contact Us For Availability
9
PANEL-DOOR (ALMOND) WCI 3014982 Contact Us For Availability
9
SPRING - OVEN DOOR WCI 08008028 Contact Us For Availability
10
WCI 3009576 WCI 3009576 Contact Us For Availability
10
NUT-LOXIT 3/8 WCI AP269017 Contact Us For Availability
10
INSULATION-BROILER DRW WCI 3017184 Contact Us For Availability
10
WCI 08008057 WCI 08008057 Contact Us For Availability
10
WCI 08014023 WCI 08014023 Contact Us For Availability
11
CORD - POWER WCI 3015249 Contact Us For Availability
11
VALVE-OVEN SAFETY WCI 3131068 Contact Us For Availability
11
HINGE-BROILER LEFT SIDE WCI 3131029 Contact Us For Availability
11
HINGE-BROILER RIGHT SIDE WCI 3131028 Contact Us For Availability
11
CLAMP-OVEN DOOR WCI 3051049 Contact Us For Availability
11
WCI 3014714 WCI 3014714 Contact Us For Availability
12
WCI 3131007 WCI 3131007 Contact Us For Availability
12
SUPT-OVEN SAFETY VLV. WCI 3131069 Contact Us For Availability
12
SPRING-BROILER DOOR WCI 3131030 Contact Us For Availability
12
WCI 08008058 WCI 08008058 Contact Us For Availability
12
BOTTOM OVEN LINER WCI 3018282 Contact Us For Availability
13
BRACKET-CLOCK MTG WCI 08014140 Contact Us For Availability
13
PILOT - OVEN WCI 3131071 Contact Us For Availability
13
BROILER DRAWER-RIGHT SIDE TRACK WCI 3051055 Contact Us For Availability
13
BROILER DRAWER LEFT SIDE TRACK WCI 3051056 Contact Us For Availability
13
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
14
WCI 08007925 WCI 08007925 Contact Us For Availability
14
NUT-3/16 COMPR. WITH SLEEVE WCI AP269015 Contact Us For Availability
14
ROLLER - NYLON (2) WCI 3051057 Contact Us For Availability
14
LEG LEVELER WCI 3051080 Contact Us For Availability
15
PILOT TUBE-OVEN 3/16 WCI 3009490 Contact Us For Availability
15
BASE-RAIL WCI 3051081 Contact Us For Availability
16
NUT-LOXIT 3/16 WCI AP269018 Contact Us For Availability
16
LINER - SIDE RT WCI 3018284 Contact Us For Availability
16
LINER - SIDE LT WCI 3018285 Contact Us For Availability
16
WCI 3018286 WCI 3018286 Contact Us For Availability
16
WCI 3018347 WCI 3018347 Contact Us For Availability
17
PILOT - TOP BURNER WCI 3131075 Contact Us For Availability
17
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
17A
PILOT-TOP GRIDDLE (NON-ILLUSTRATED) WCI AP288035 Contact Us For Availability
18
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
19
SHIELD-PILOT WCI 3131078 Contact Us For Availability
20
WCI 3051511 WCI 3051511 Contact Us For Availability
20
BURNER - TOP REAR WCI 3131079 Contact Us For Availability
21
SUPPORT - GRID BURNER WCI 3018342 Contact Us For Availability
21
WCI 3017171 WCI 3017171 Contact Us For Availability
22
BURNER - TOP FRONT WCI 3131080 Contact Us For Availability
22
WCI 3017172 WCI 3017172 Contact Us For Availability
23
WCI 3131882 WCI 3131882 Contact Us For Availability
23
Support,oven rear WCI 3051096 Contact Us For Availability
24
WCI 08013945 WCI 08013945 Contact Us For Availability
25
WCI 3018340 WCI 3018340 Contact Us For Availability
26
VENT BOX WCI 3017173 Contact Us For Availability
27
WCI 3017993 WCI 3017993 Contact Us For Availability
28
SHIELD BURNER BOX RT. WCI 3051053 Contact Us For Availability
28
SHIELD BURNER BOX LT. WCI 3051054 Contact Us For Availability
× ![]()
