Model Electrolux CGC4S8WXA RANGE – Common Parts & Diagrams

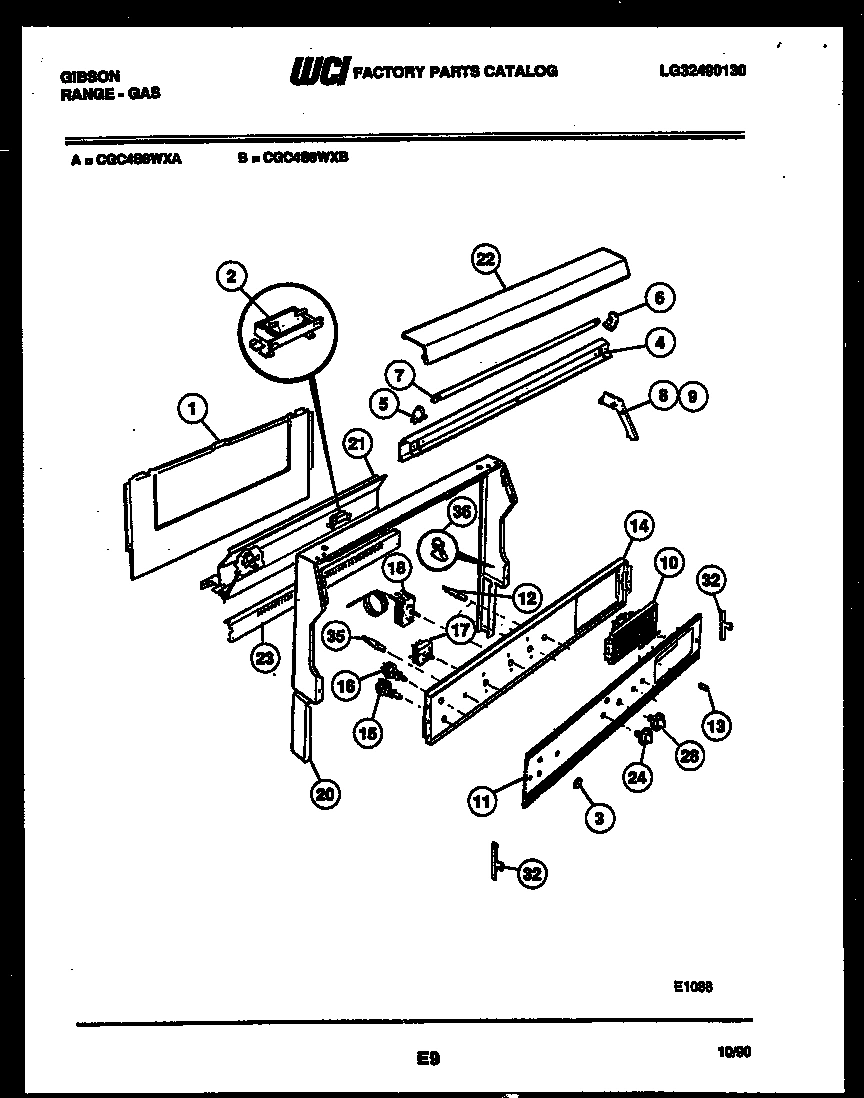

02 - BACKGUARD

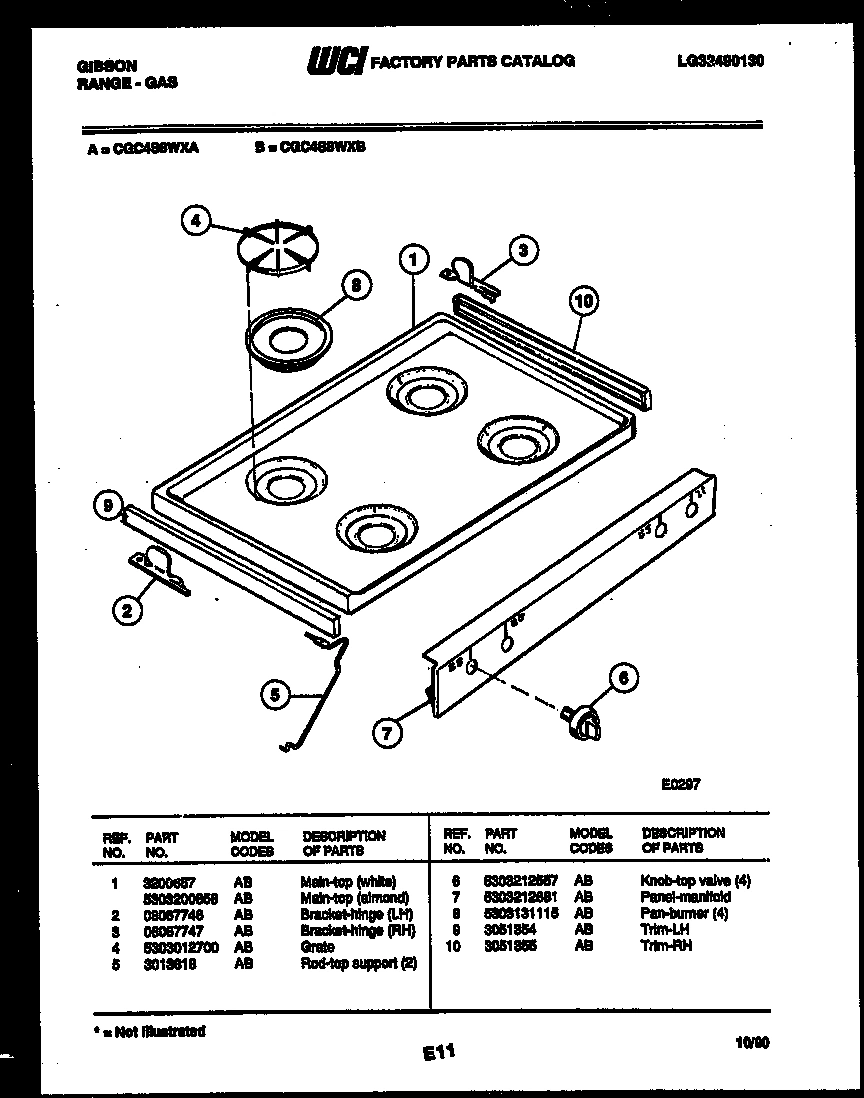

03 - COOKTOP PARTS

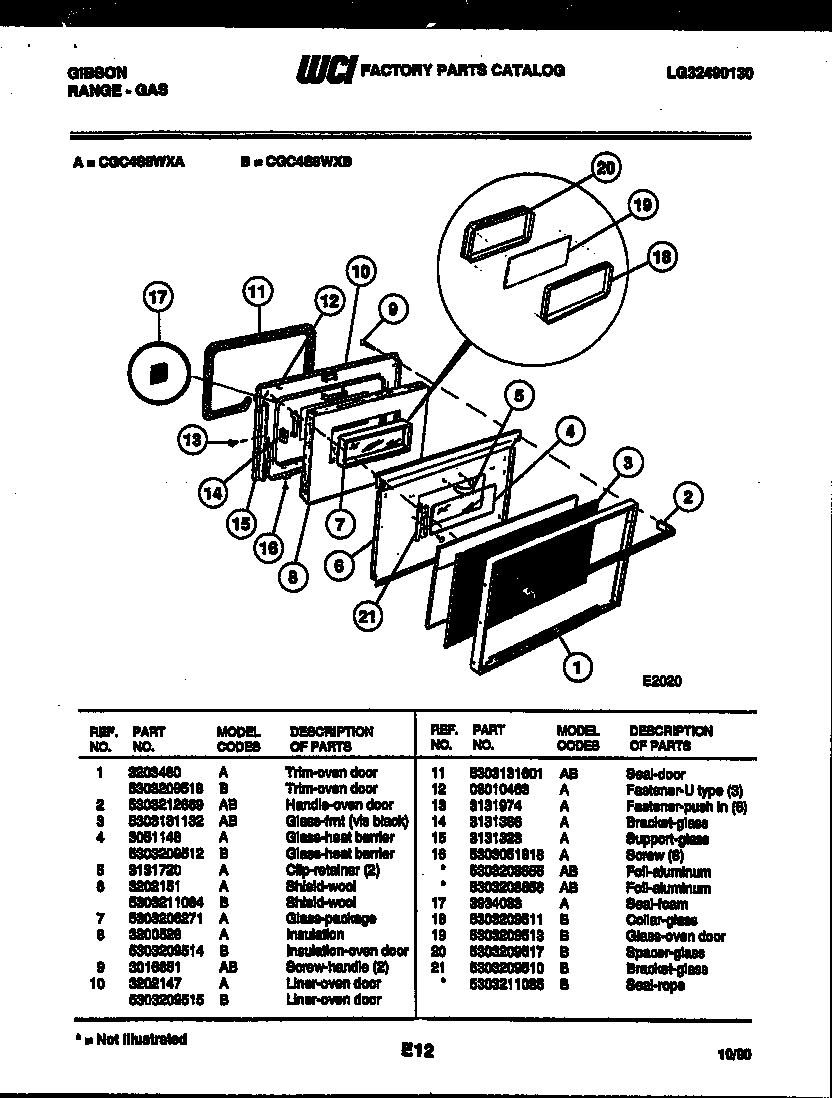

04 - DOOR PARTS

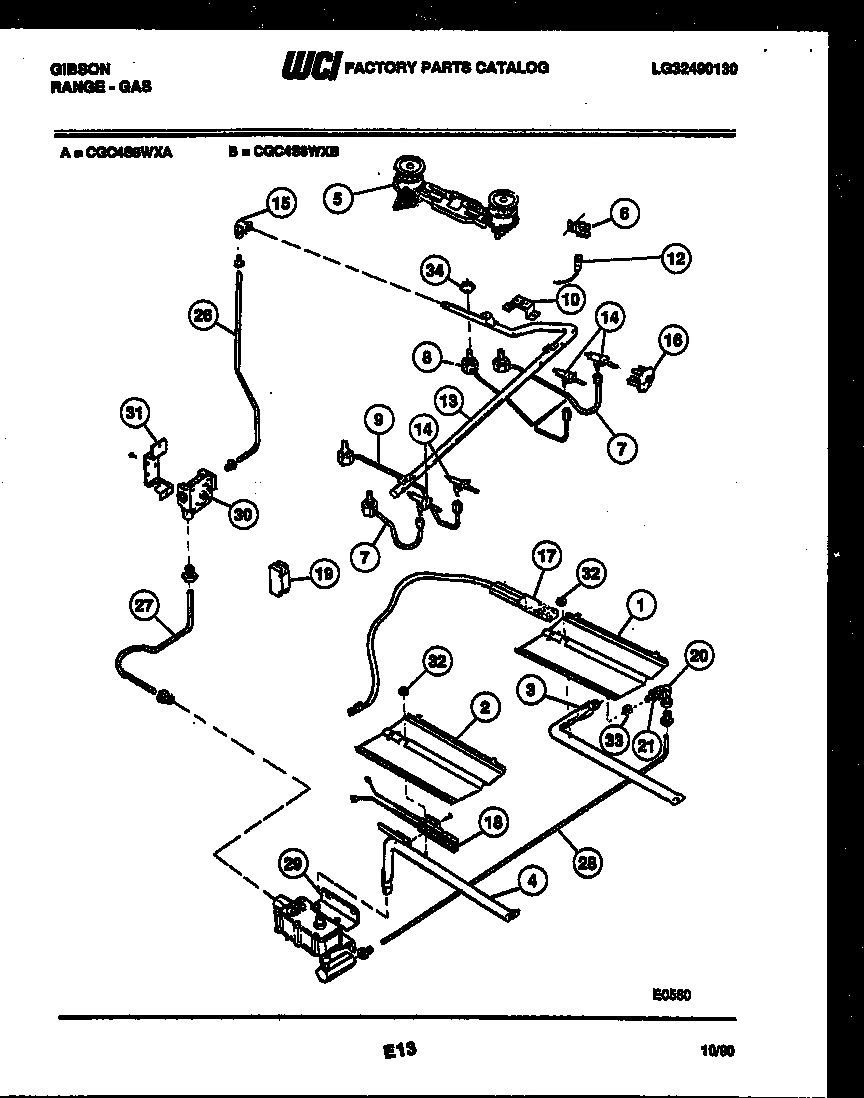

05 - BURNER PARTS

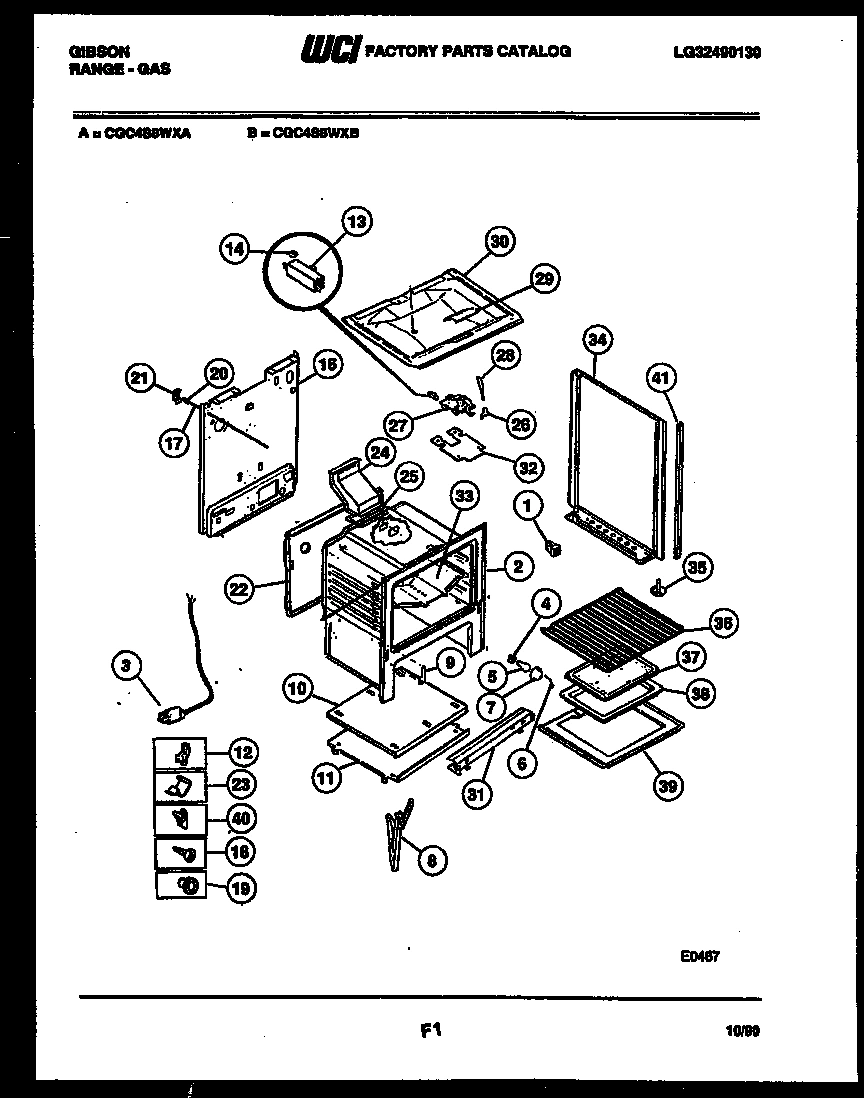

06 - BODY PARTS

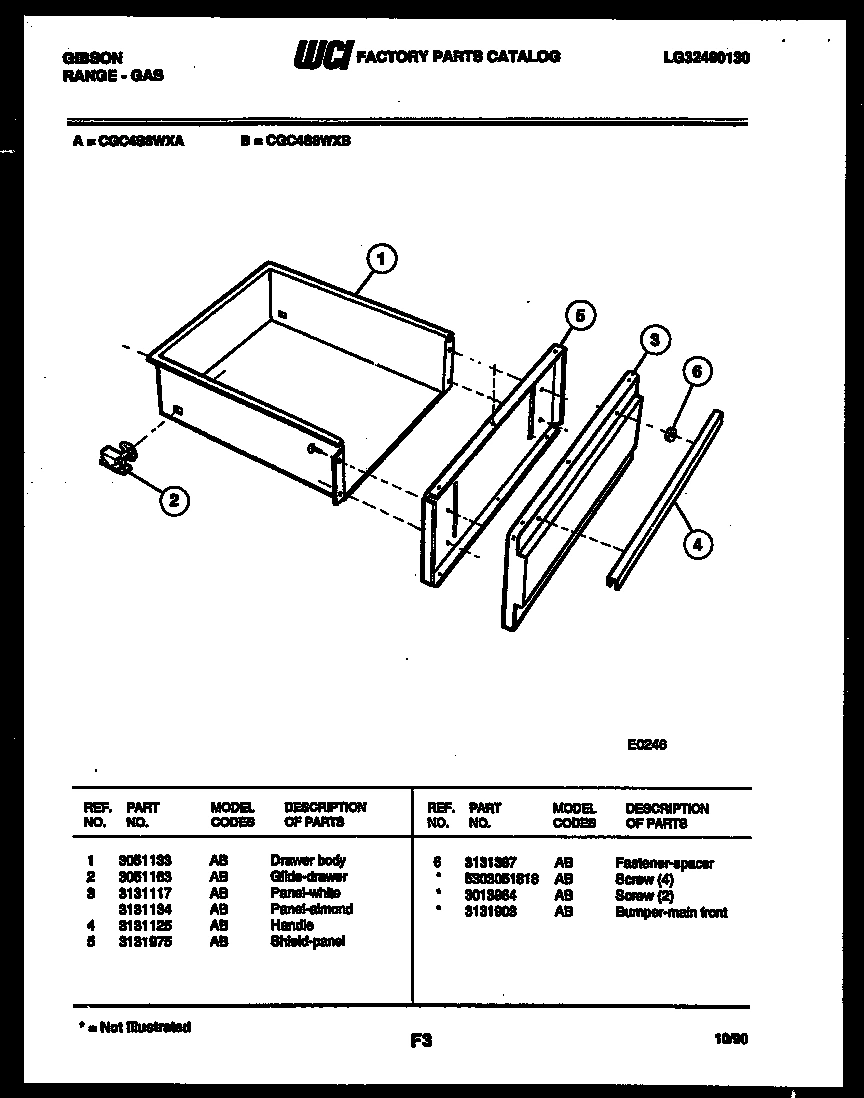

07 - DRAWER PARTS
Common parts from model Electrolux CGC4S8WXA RANGE
*29773
WCI 3013964 WCI 3013964 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3200657 WCI 3200657 Contact Us For Availability
1
WCI 5303200658 WCI 5303200658 Contact Us For Availability
1
WCI 3203480 WCI 3203480 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
2
WCI 08067746 WCI 08067746 Contact Us For Availability
2
HANDLE-OVEN DOOR WCI 5303212669 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
WCI 08067747 WCI 08067747 Contact Us For Availability
3
GLASS-FRNT (VIS BLACK) WCI 5303131132 Contact Us For Availability
3
PANEL-WHITE WCI 3131117 Contact Us For Availability
3
PANEL-ALMOND WCI 3131134 Contact Us For Availability
4
WCI 3051148 WCI 3051148 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
ROD-TOP SUPPORT (2) WCI 3013818 Contact Us For Availability
5
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303131147 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 5303212557 WCI 5303212557 Contact Us For Availability
6
WCI 3202151 WCI 3202151 Contact Us For Availability
6
WIRE, GLASS RETAINER WCI 3204483 Contact Us For Availability
6
FASTENER, SPACER WCI 3131387 Contact Us For Availability
7
WCI 3131275 WCI 3131275 Contact Us For Availability
7
WCI 5303212681 WCI 5303212681 Contact Us For Availability
7
GLASS PACKAGE WCI 5303206271 Contact Us For Availability
7
BURNER - TUBE LF, RF WCI 5303131970 Contact Us For Availability
8
CHANNEL-DR HINGE (2) WCI 316007002 No Longer Available
8
WCI 3200528 WCI 3200528 Contact Us For Availability
8
WCI 5303011569 WCI 5303011569 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
TRIM-LH WCI 3051354 Contact Us For Availability
9
SCREW, HANDLE (2) WCI 3016851 Contact Us For Availability
9
WCI 5303011570 WCI 5303011570 Contact Us For Availability
10
TRIM-RH WCI 3051355 Contact Us For Availability
10
WCI 3202147 WCI 3202147 Contact Us For Availability
10
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 655T437F01 WCI 655T437F01 Contact Us For Availability
12
WCI 08010463 WCI 08010463 Contact Us For Availability
12
IGNITOR TOP WCI 3200276 Contact Us For Availability
13
FASTENER, PUSH IN (6) WCI 3131974 Contact Us For Availability
13
WCI 3018861 WCI 3018861 Contact Us For Availability
13
SWITCH-LATCH WCI 3131672 Contact Us For Availability
14
WCI 3131366 WCI 3131366 Contact Us For Availability
14
VALVE-TOP POS (4) WCI 5303017542 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
STUD SPACER (NON-ILLUSTRTED) WCI 08067978 Contact Us For Availability
15
WCI 5303200479 WCI 5303200479 Contact Us For Availability
15
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
15
ELBOW 1/2 NP 9/16-24 WCI 08067948 Contact Us For Availability
15A
NUT COMPRESSOR (4) (NON-ILLUSTRATED) WCI 3131148 Contact Us For Availability
16
SWITCH IGNITOR (4) WCI 5303207999 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
16A
FOIL-ALUMINUM (NON-ILLUSTRATED) WCI 5303208656 Contact Us For Availability
17
WCI 3934033 WCI 3934033 Contact Us For Availability
17
WCI 3051495 WCI 3051495 Contact Us For Availability
20
WCI 3131280 WCI 3131280 Contact Us For Availability
20
WCI 5303208640 WCI 5303208640 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
TRIM-LWR SPLASHER (WHITE) WCI 5303212534 Contact Us For Availability
21
TRIM-LWR SPLASHER (ALMD) WCI 5303212535 Contact Us For Availability
21
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
22
WCI 5303212668 WCI 5303212668 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
23
WCI 3131241 WCI 3131241 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
WCI 5303212679 WCI 5303212679 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25A
SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
TUBE ALUM 3/8 W/ FITTING WCI 5303208495 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
WCI 5303015453 WCI 5303015453 Contact Us For Availability
27
TUBE ALUM 3/8 W/ FITTING WCI 5303208494 Contact Us For Availability
28
KNOB-SELECTOR SW WCI 5303212680 Contact Us For Availability
28
TUBE ALUM 3/8 W/ FITTING WCI 5303208493 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
SHIELD, MAIN FRONT WCI 3200835 Contact Us For Availability
32
TRIM-GLASS RETAINER, (2) WCI 3131240 Contact Us For Availability
32
WCI 3051413 WCI 3051413 Contact Us For Availability
33
SPUD-50 WCI 08068015 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
34
NUT, SPECIAL WCI 3013279 Contact Us For Availability
34
PANEL BODYSIDE-RH-WHITE WCI 3205623 Contact Us For Availability
34
PANEL BODYSIDE-RH-ALMOND WCI 3205624 Contact Us For Availability
34A
PANEL BODYSIDE-LH-WHITE WCI 3205620 Contact Us For Availability
34A
PANEL BODYSIDE-LH-ALMOND WCI 3205621 Contact Us For Availability
35
INDICATOR LIGHT-LOCK (1) WCI 3201728 Contact Us For Availability
35
SCREW-LEVELING WCI 3203397 Contact Us For Availability
35A
BUSHING-CONTROL SHAFT (NON-ILLUSTRATED) WCI 3204745 Contact Us For Availability
36
SUPPORT-BACKGUARD,(2) WCI 5303131237 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 3011519 WCI 3011519 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
WCI 3204582 WCI 3204582 Contact Us For Availability
39E
INSULATION-TOP WRAP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
39F
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
39G
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
40A
SHIELD, OVEN TOP (NON-ILLUSTRATED) WCI 3131314 Contact Us For Availability
40B
SHIELD, WALL REAR (NON-ILLUSTRATED) WCI 3131590 Contact Us For Availability
40C
WCI 08068018 WCI 08068018 Contact Us For Availability
40D
ANTI, TIP BRACKET (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
41
TRIM-VERTICAL (2) WCI 5303051326 Contact Us For Availability
× ![]()
