Model Electrolux CGC4M6DXG RANGE – Common Parts & Diagrams

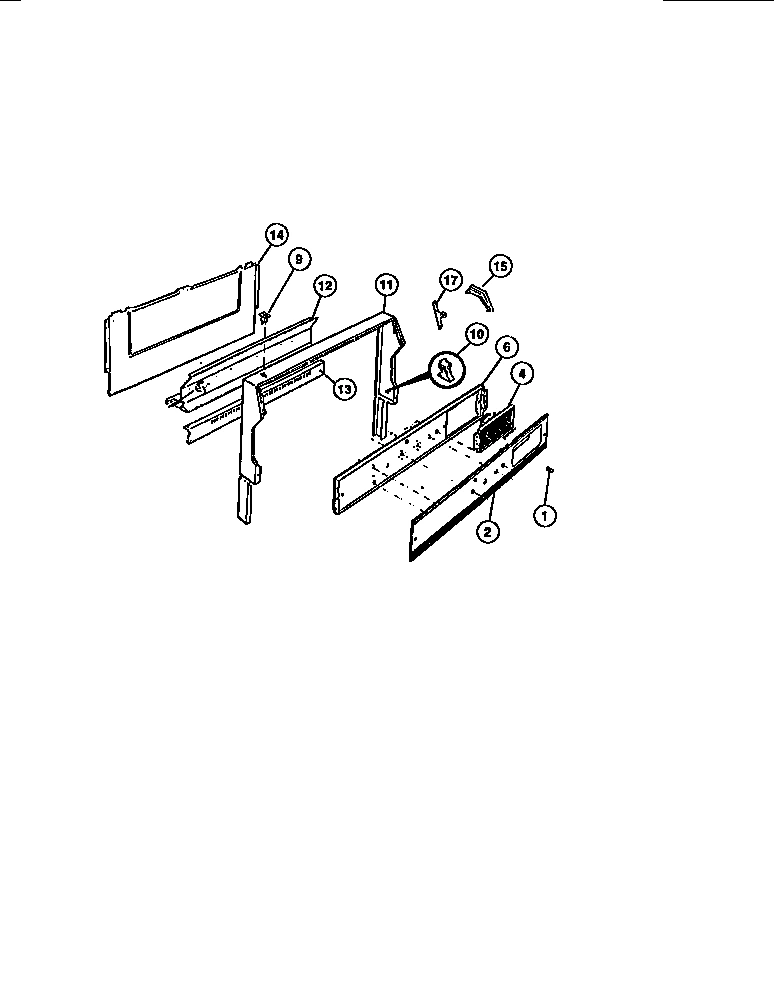

02 - BACKGUARD

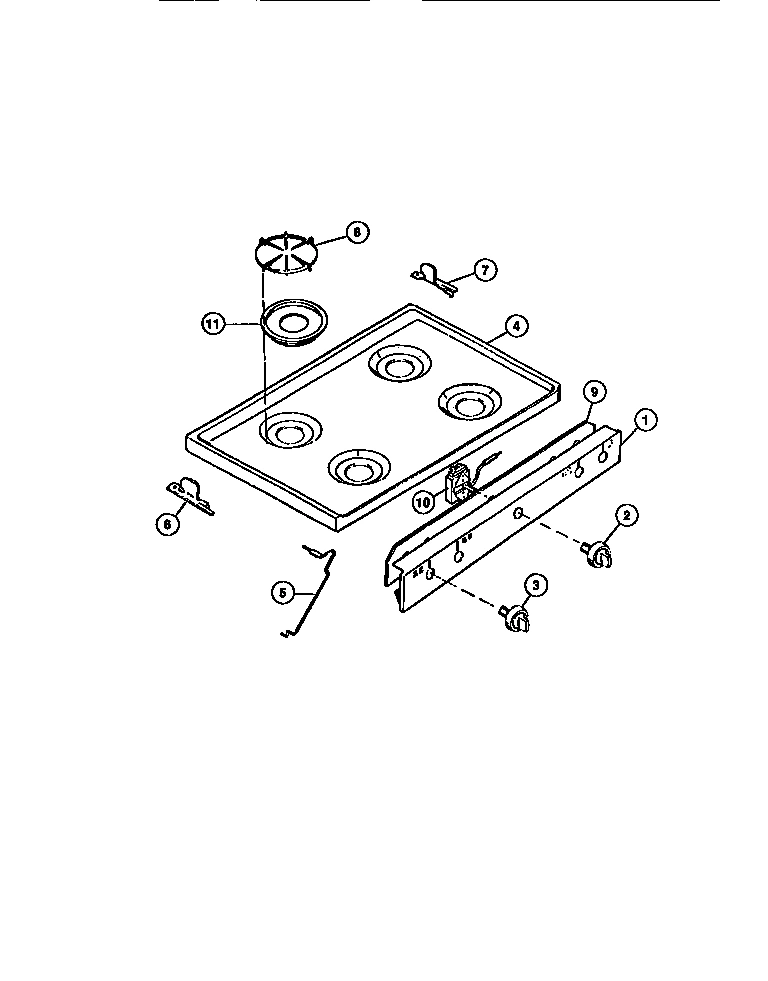

03 - COOKTOP

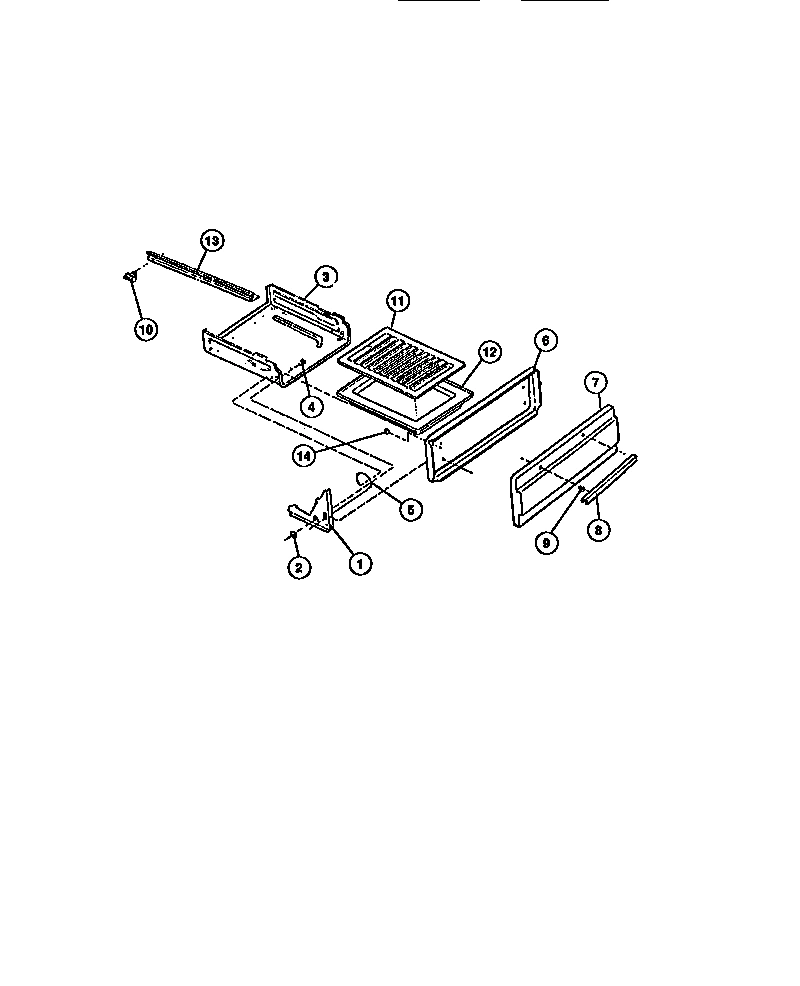

04 - BROILER DRAWER

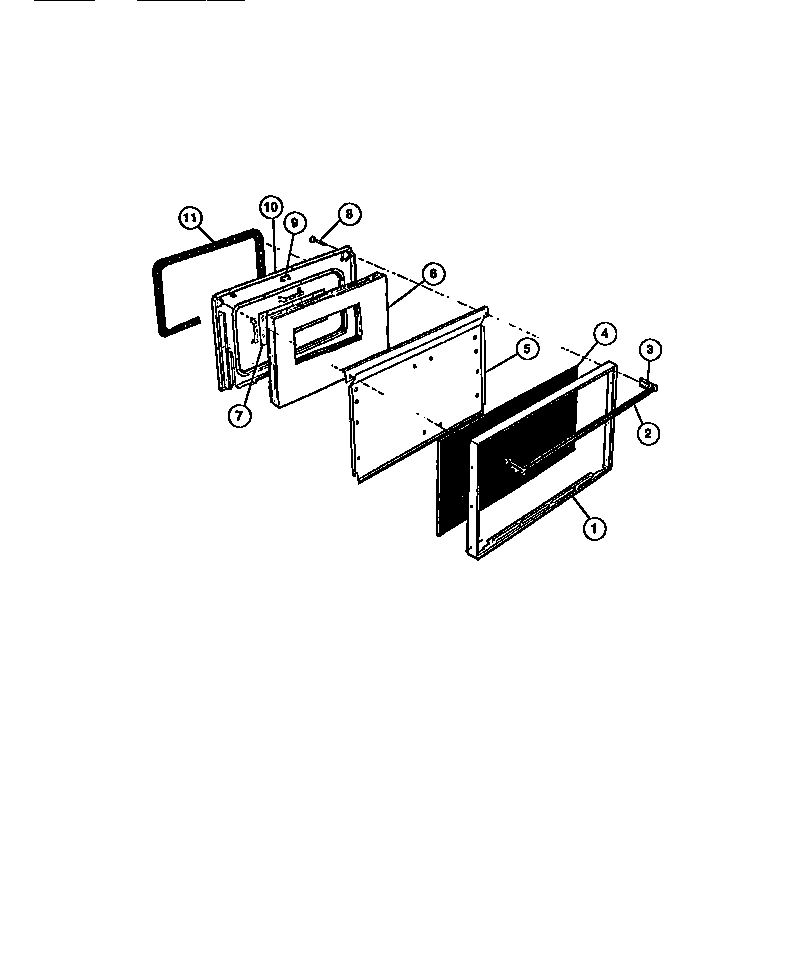

05 - OVEN DOOR

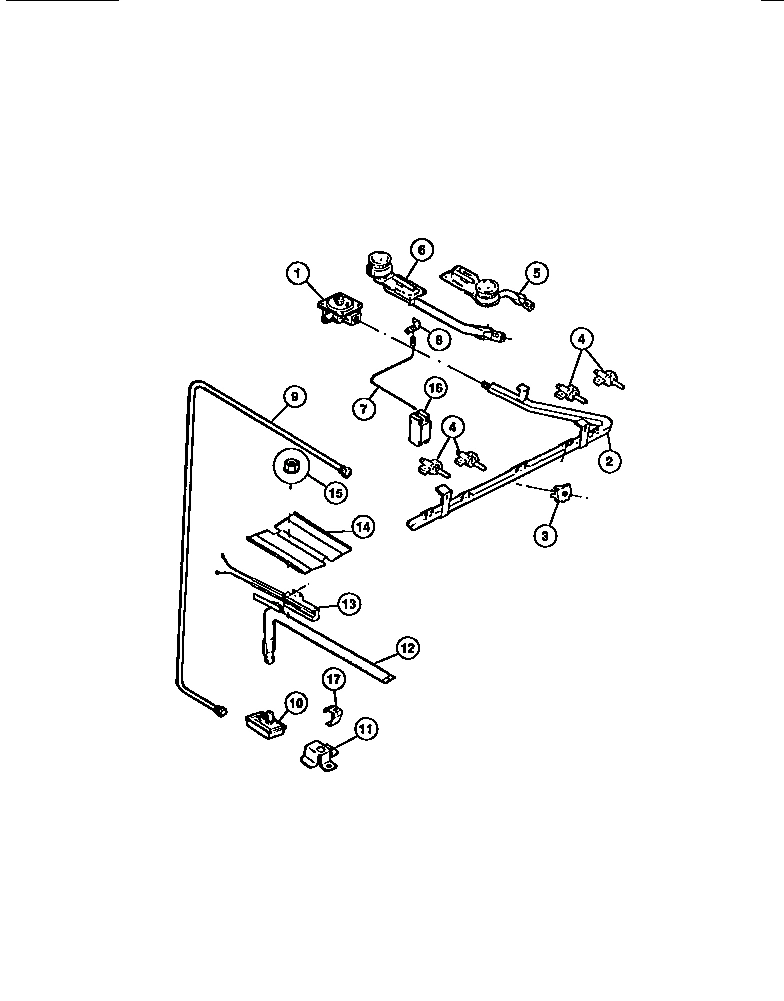

06 - BURNERS

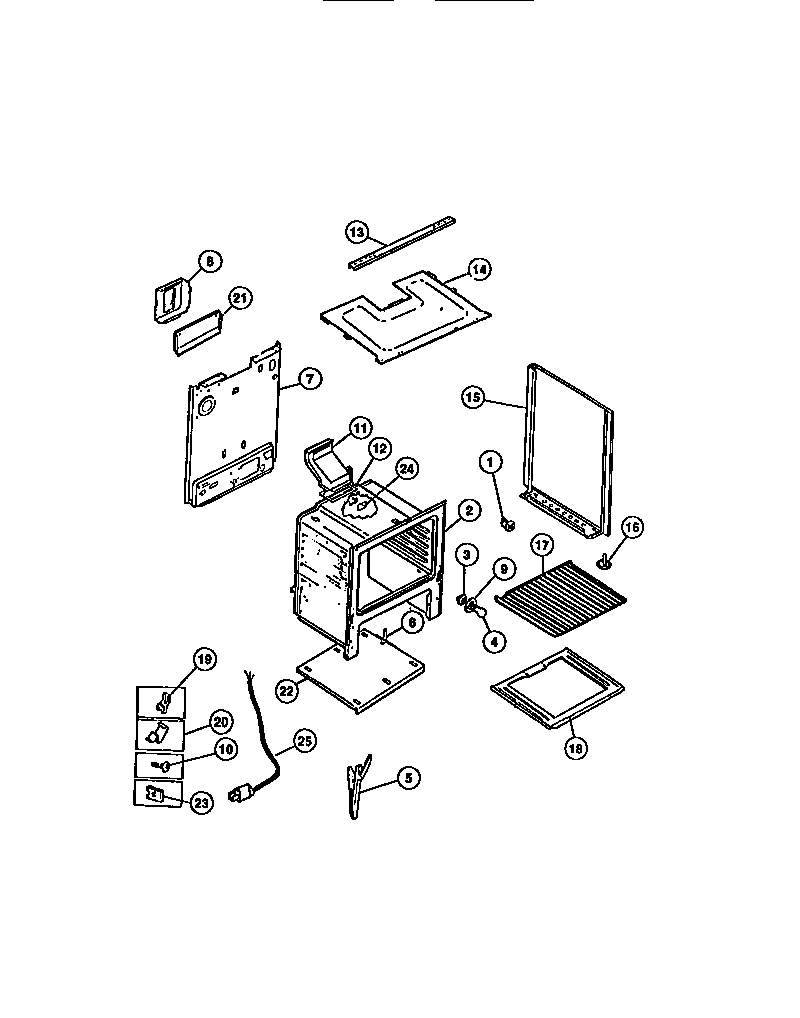

07 - BODY
Common parts from model Electrolux CGC4M6DXG RANGE
*48200
WCI 08010570 WCI 08010570 Contact Us For Availability
*48201
DIAGRAM, WIRING (NOT FOR PURCHASE) WCI 19100180225 Contact Us For Availability
*48202
WCI 08067961 WCI 08067961 Contact Us For Availability
*48205
WCI 3934056 WCI 3934056 Contact Us For Availability
*48206
WCI 3131244 WCI 3131244 Contact Us For Availability
*48207
WCI 5303015372 WCI 5303015372 Contact Us For Availability
*48208
WCI 3202799 WCI 3202799 Contact Us For Availability
*48209
SHIELD-TOP WCI 3203455 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3200673 WCI 3200673 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
1
WCI 5303280293 WCI 5303280293 Contact Us For Availability
1A
WCI 3018860 WCI 3018860 Contact Us For Availability
2
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 5303273127 WCI 5303273127 Contact Us For Availability
2
WCI 5303272435 WCI 5303272435 Contact Us For Availability
3
SWITCH-IGNITOR WCI 316032001 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
WCI 3051152 WCI 3051152 Contact Us For Availability
4
VALVE, TOP, 2 POSITION WCI 316031700 Contact Us For Availability
5
CHANNEL-DOOR HINGE (2) WCI 316007001 Contact Us For Availability
5
WCI 3018618 WCI 3018618 Contact Us For Availability
5
WCI 5303210608 WCI 5303210608 Contact Us For Availability
5A
WCI 3018619 WCI 3018619 Contact Us For Availability
6
BRACKET, MAIN TOP, LH WCI 08067746 Contact Us For Availability
6
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
6
WCI 3202803 WCI 3202803 Contact Us For Availability
6
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
7
PANEL-BROILER-ALMOND WCI 3131134 Contact Us For Availability
7
GLASS-OVEN DOOR (REAR) WCI 3018609 Contact Us For Availability
7
BASE IGNITOR (2) WCI 3200276 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
SCREW, HANDLE (2) WCI 5303281378 Contact Us For Availability
8
HANDLE WCI 5303280334 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
WCI 3203443 WCI 3203443 Contact Us For Availability
9
FASTENER-NYLON SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 5303015373 WCI 5303015373 Contact Us For Availability
9
TUBE, ALUMINUM, 3/8 WCI 3203458 Contact Us For Availability
9
WCI 5303271606 WCI 5303271606 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
10
WCI 5303209515 WCI 5303209515 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12A
INSULATION, BROILER DRAWER (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12C
SCREW (2) (NON-ILLUSTRATED) WCI 5303281651 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
CHANNEL-BURNER BOX WCI 3203441 Contact Us For Availability
14
WCI 3206216 WCI 3206216 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14
WCI 3204962 WCI 3204962 Contact Us For Availability
15
WCI 5303269543 WCI 5303269543 Contact Us For Availability
15A
WCI 5303269545 WCI 5303269545 Contact Us For Availability
16
WCI 5303203397 WCI 5303203397 Contact Us For Availability
17
BRACKET, OVEN BURNER SUPPORT WCI 3018603 Contact Us For Availability
18
WCI 5303212540 WCI 5303212540 Contact Us For Availability
18A
WCI 3017142 WCI 3017142 Contact Us For Availability
18B
INSULATION, OVEN BACK (NON-ILLUSTRATED) WCI 3203541 Contact Us For Availability
19
CLIP-THERMOSTAT WCI 08010556 Contact Us For Availability
21
WCI 5303280614 WCI 5303280614 Contact Us For Availability
22
WCI 5303270160 WCI 5303270160 Contact Us For Availability
24
WCI 3018607 WCI 3018607 Contact Us For Availability
× ![]()
