Model Electrolux CGC4M5WSTE RANGE – Common Parts & Diagrams

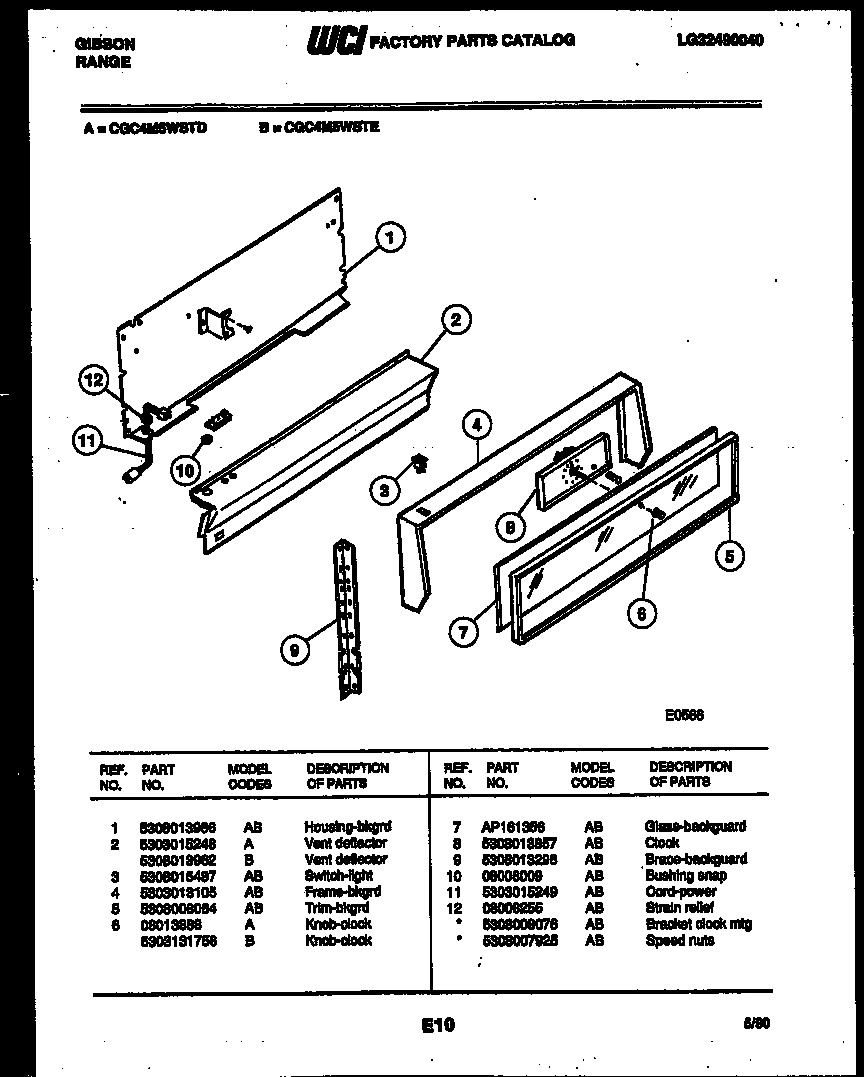

02 - BACKGUARD

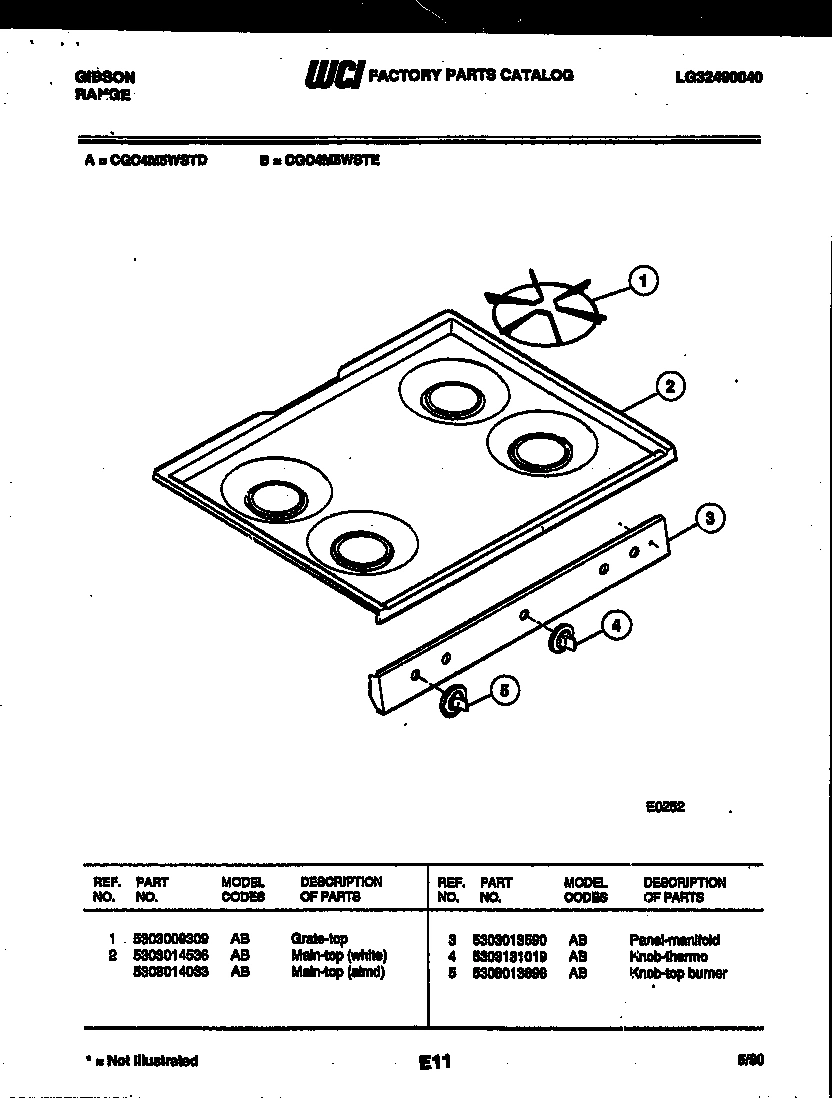

03 - COOKTOP PARTS

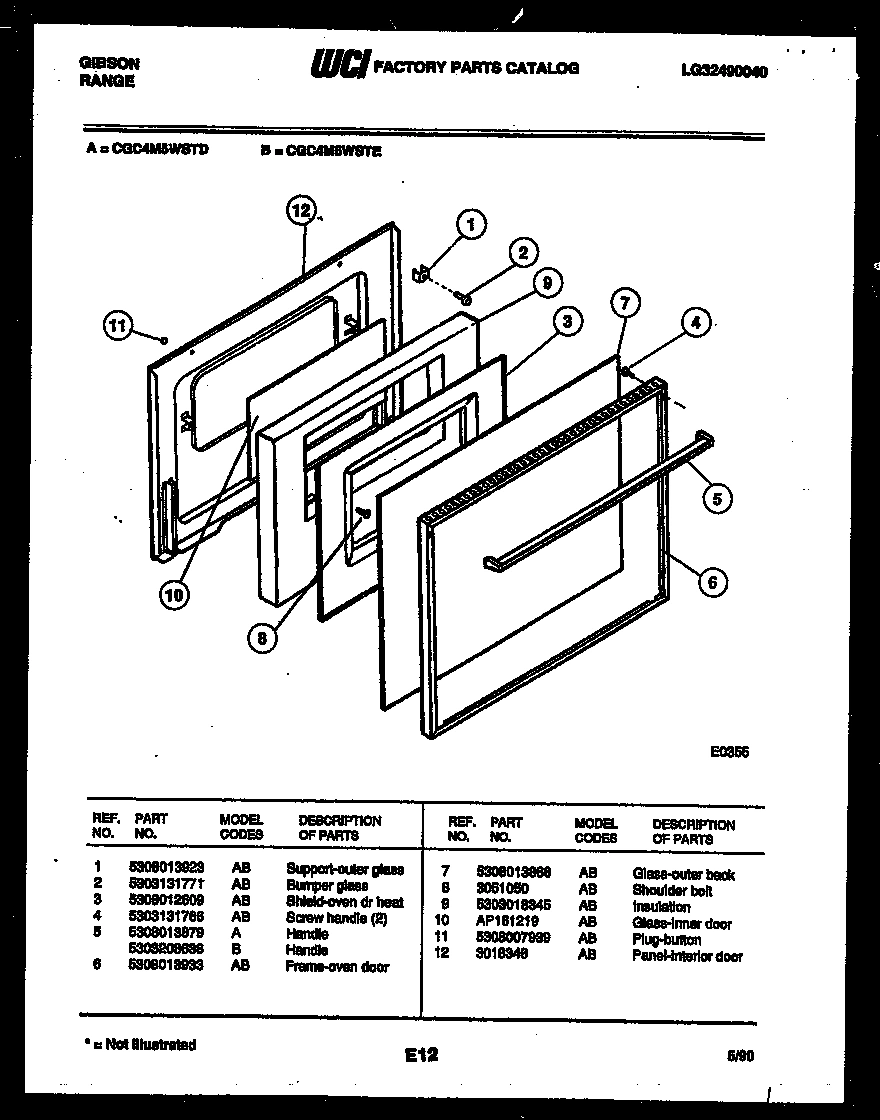

04 - DOOR PARTS

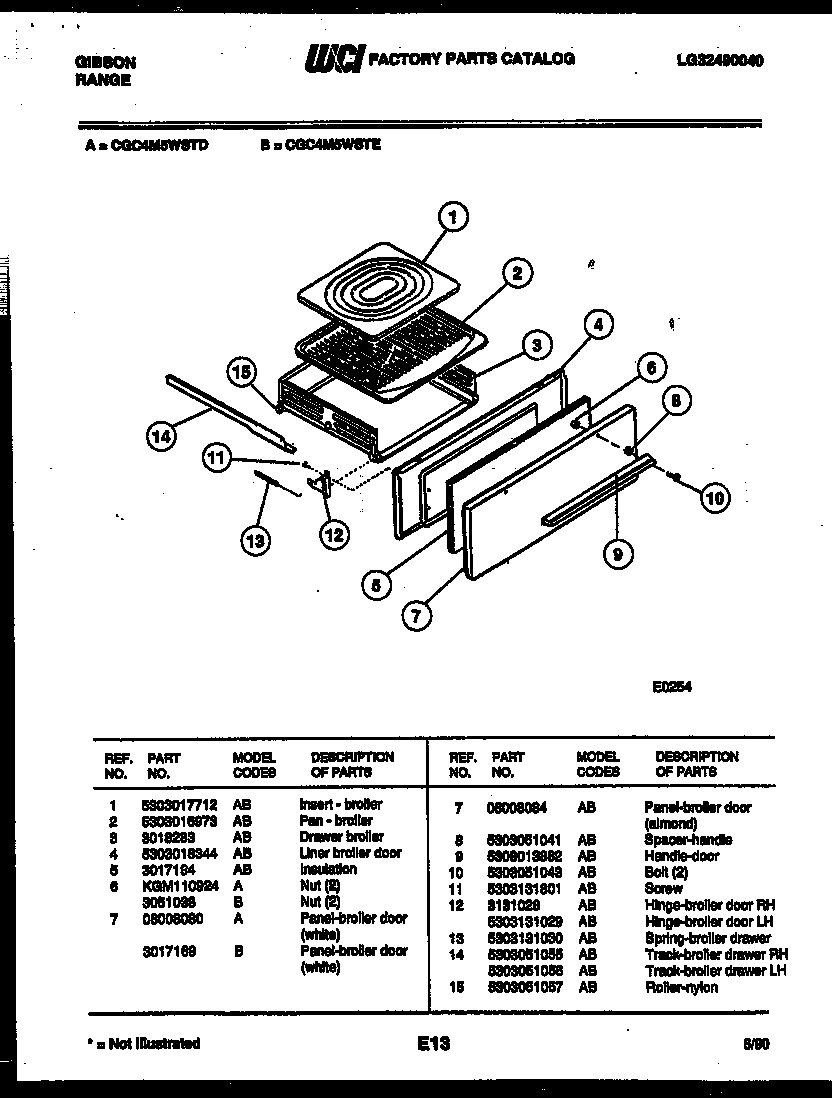

05 - BROILER DRAWER PARTS

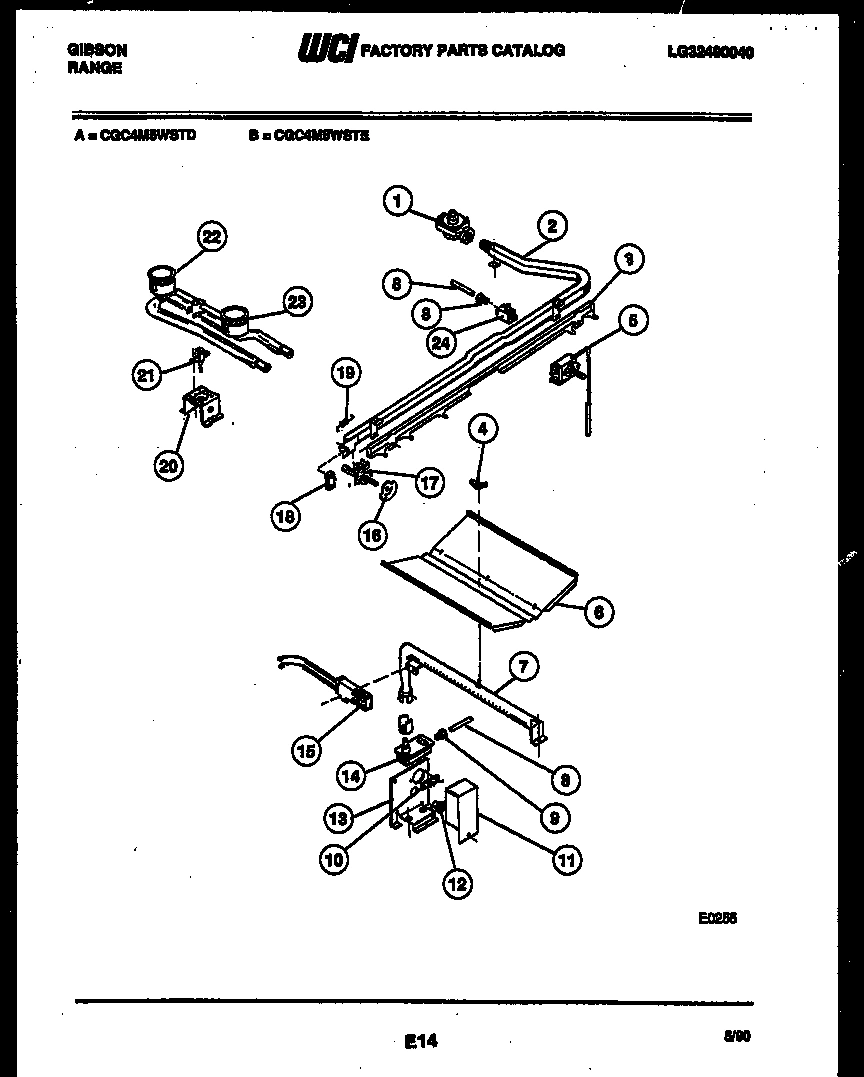

06 - BURNER PARTS

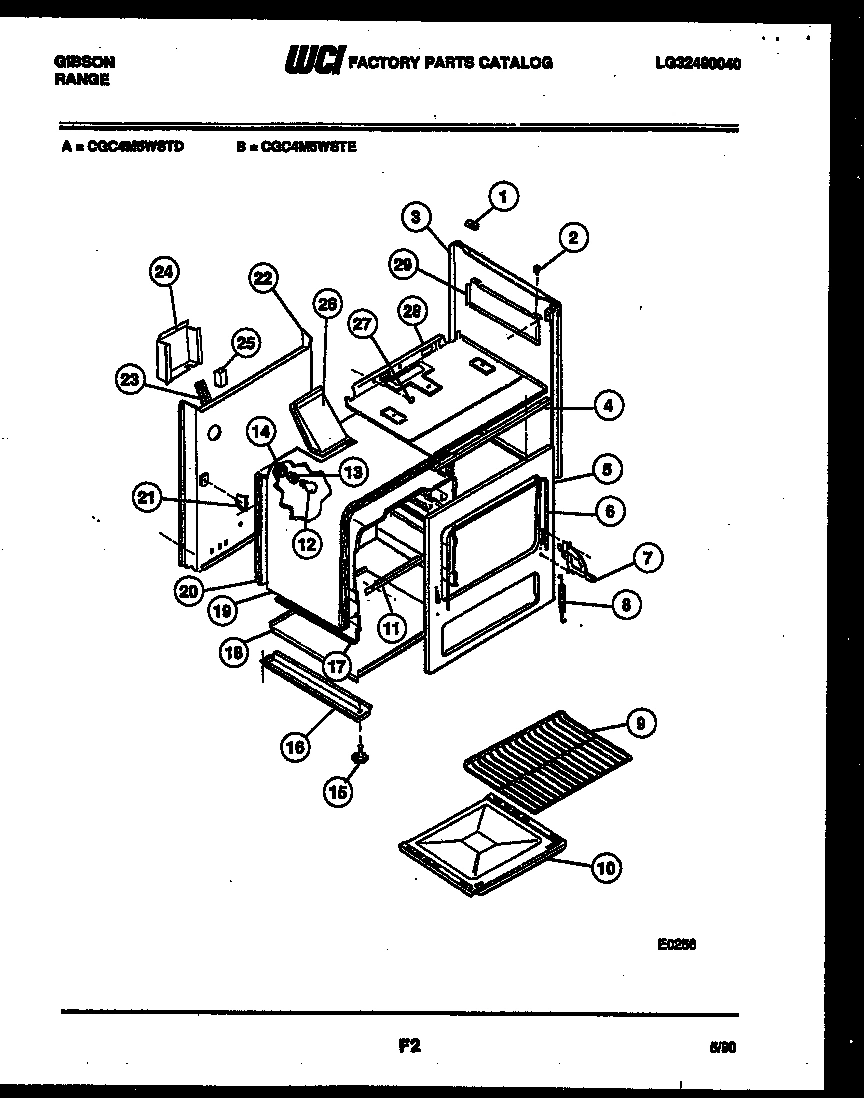

07 - BODY PARTS
Common parts from model Electrolux CGC4M5WSTE RANGE
*24349
WCI 5300009126 WCI 5300009126 Contact Us For Availability
*24357
CLIP,BODYSIDE WCI 3131791 Contact Us For Availability
1
SUPPORT-OUTER GLASS WCI 5308013923 Contact Us For Availability
1
INSERT-BROILER WCI 5303017712 Contact Us For Availability
1
WCI 5303016129 WCI 5303016129 Contact Us For Availability
2
WCI 5303014536 WCI 5303014536 Contact Us For Availability
2
MAIN-TOP (ALMD) WCI 5308014033 Contact Us For Availability
2
BUMPER GLASS WCI 5303131771 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
2
WCI 5308013906 WCI 5308013906 Contact Us For Availability
2
GROMMET WCI 3205587 Contact Us For Availability
3
WCI 5303013590 WCI 5303013590 Contact Us For Availability
3
SHIELD OVEN DR HEAT WCI 5308012609 Contact Us For Availability
3
SLIDE PIPE WCI 3131856 Contact Us For Availability
3
PANEL-BODY SIDE (WHITE) WCI 5303051061 Contact Us For Availability
3
PANEL-BODY SIDE (ALMOND) WCI 5364013004 Contact Us For Availability
4
SCREW HANDLE (2) WCI 5303131766 Contact Us For Availability
4
KNOB-THERMO WCI 5303131019 Contact Us For Availability
4
LINER BROILER DOOR WCI 5303018344 Contact Us For Availability
4
WCI 08007979 WCI 08007979 Contact Us For Availability
4
SUPPORT CONTROL PNL WCI 3131811 Contact Us For Availability
5
KNOB-TOP BURNER WCI 5308013898 Contact Us For Availability
5
HANDLE WCI 5303208638 Contact Us For Availability
5
WCI 3017184 WCI 3017184 Contact Us For Availability
5
WCI 5308013926 WCI 5308013926 Contact Us For Availability
5
WCI 3205578 WCI 3205578 Contact Us For Availability
6
Seal,oven door WCI 5308008022 Contact Us For Availability
6
WCI 5308013933 WCI 5308013933 Contact Us For Availability
6
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
7
WCI 5303202752 WCI 5303202752 Contact Us For Availability
7
WCI 5308013866 WCI 5308013866 Contact Us For Availability
7
WCI 08008084 WCI 08008084 Contact Us For Availability
7
PANEL-BROILER DOOR-(WHITE) WCI 3017169 Contact Us For Availability
7
HINGE-OVEN DOOR RH WCI 5303204670 Contact Us For Availability
8
SHOULDER BOLT WCI 3051050 Contact Us For Availability
8
SPACER HANDLE WCI 5303051041 Contact Us For Availability
8
TUBE-OVEN FEE WCI 5303009495 Contact Us For Availability
8
SPRING-OVEN DOOR WCI 5308008028 Contact Us For Availability
9
RACK OVEN (2) WCI 5303015714 Contact Us For Availability
9
WCI 5303018345 WCI 5303018345 Contact Us For Availability
9
HANDLE-DOOR WCI 5308013882 Contact Us For Availability
9
NUT-LOXIT WCI 5303131064 Contact Us For Availability
10
WCI AP161219 WCI AP161219 Contact Us For Availability
10
TERMINAL BLOCK WCI 5308007985 Contact Us For Availability
10
LINER-OVEN-BOTTOM WCI 3018282 Contact Us For Availability
11
PLUG-BUTTON WCI 5308007939 Contact Us For Availability
11
SCREW WCI 5303131801 Contact Us For Availability
11
COVER - OVEN SAFETY VALVE WCI 3131088 Contact Us For Availability
11
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
12
PANEL-INTERIOR DOOR WCI 3018346 Contact Us For Availability
12
HINGE-BROILER DOOR RH WCI 3131028 Contact Us For Availability
12
HINGE-BROILER DOOR LH WCI 5303131029 Contact Us For Availability
13
SPRING-BROILER DRAWER WCI 5303131030 Contact Us For Availability
13
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
14
VALVE-SAFETY WCI 5308009419 Contact Us For Availability
14
WCI 3051511 WCI 3051511 Contact Us For Availability
14
TRACK-BROILER DRAWER RH WCI 5303051055 Contact Us For Availability
14A
TRACK-BROILER DRAWER LH WCI 5303051056 Contact Us For Availability
15
ROLLER-NYLON WCI 5303051057 Contact Us For Availability
15
LEVELING LEG WCI 5303051080 Contact Us For Availability
16
WCI 5308008002 WCI 5308008002 Contact Us For Availability
16
BASE RAIL WCI 5308068047 Contact Us For Availability
17
VALVE-TOP BURNER WCI 5303131057 Contact Us For Availability
17
LINER RH WCI 3018284 Contact Us For Availability
17A
LINER LH WCI 3018285 Contact Us For Availability
17B
WCI 3018347 WCI 3018347 Contact Us For Availability
17C
WCI 3018286 WCI 3018286 Contact Us For Availability
18
WCI 5303131094 WCI 5303131094 Contact Us For Availability
18
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
19
SPRING - SLIDE BAR WCI 5303131096 Contact Us For Availability
19
WCI 3017171 WCI 3017171 Contact Us For Availability
20
WCI 3203964 WCI 3203964 Contact Us For Availability
20
WCI 3017172 WCI 3017172 Contact Us For Availability
21
IGNITOR-TOP BURNER WCI 3203970 Contact Us For Availability
21
Support,oven rear WCI 3051096 Contact Us For Availability
22
Burner,top ,rear WCI 5303131079 Contact Us For Availability
22
MAIN BACK WCI 5303013340 Contact Us For Availability
23
BURNER-TOP FRONT WCI 5303131080 Contact Us For Availability
23
CHANNEL - WIRE WCI 3131046 Contact Us For Availability
24
WCI 5303131099 WCI 5303131099 Contact Us For Availability
24
WCI 08013953 WCI 08013953 Contact Us For Availability
26
VENT BOX WCI 3017173 Contact Us For Availability
27
WCI 08008051 WCI 08008051 Contact Us For Availability
28
WCI 3017174 WCI 3017174 Contact Us For Availability
29
SHIELD-BURNER BOX RH WCI 5303131053 Contact Us For Availability
29
SHIELD-BURNER BOX LH WCI 5303131054 Contact Us For Availability
× ![]()
