Model Electrolux CGC3M6WXB RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

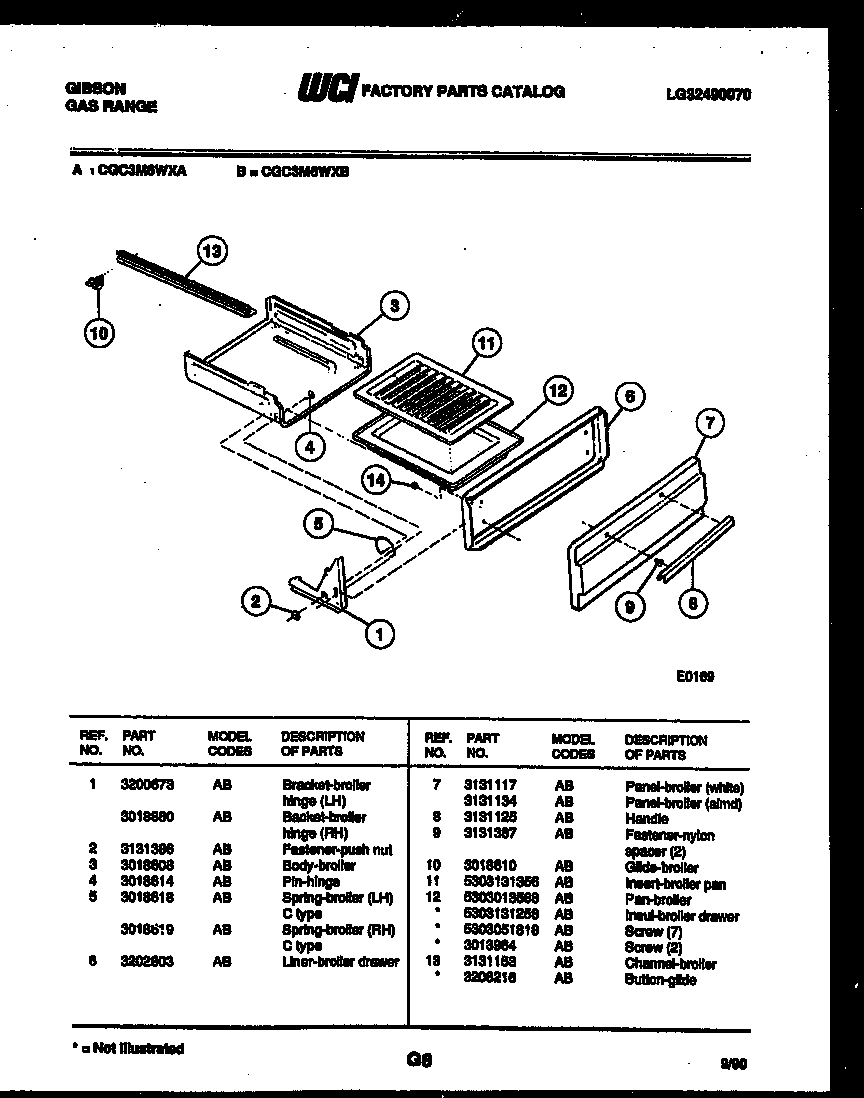

04 - BROILER DRAWER PARTS

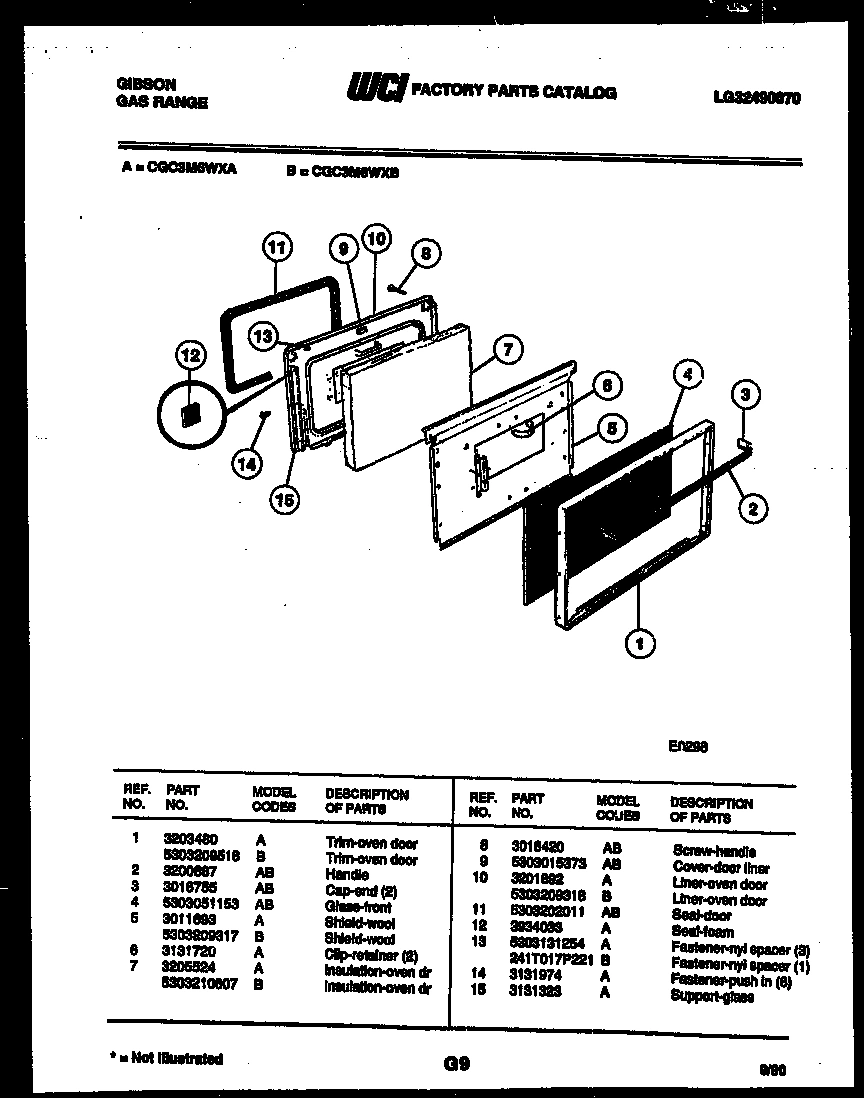

05 - DOOR PARTS

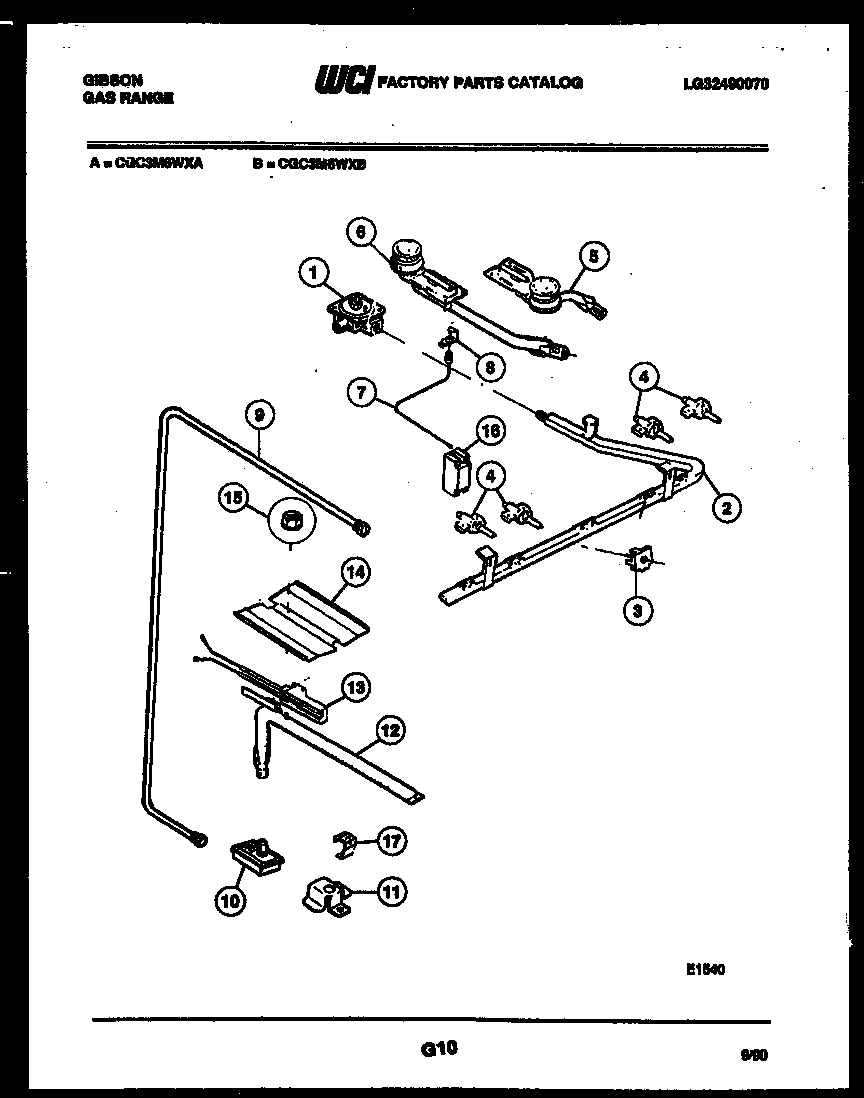

06 - BURNER PARTS

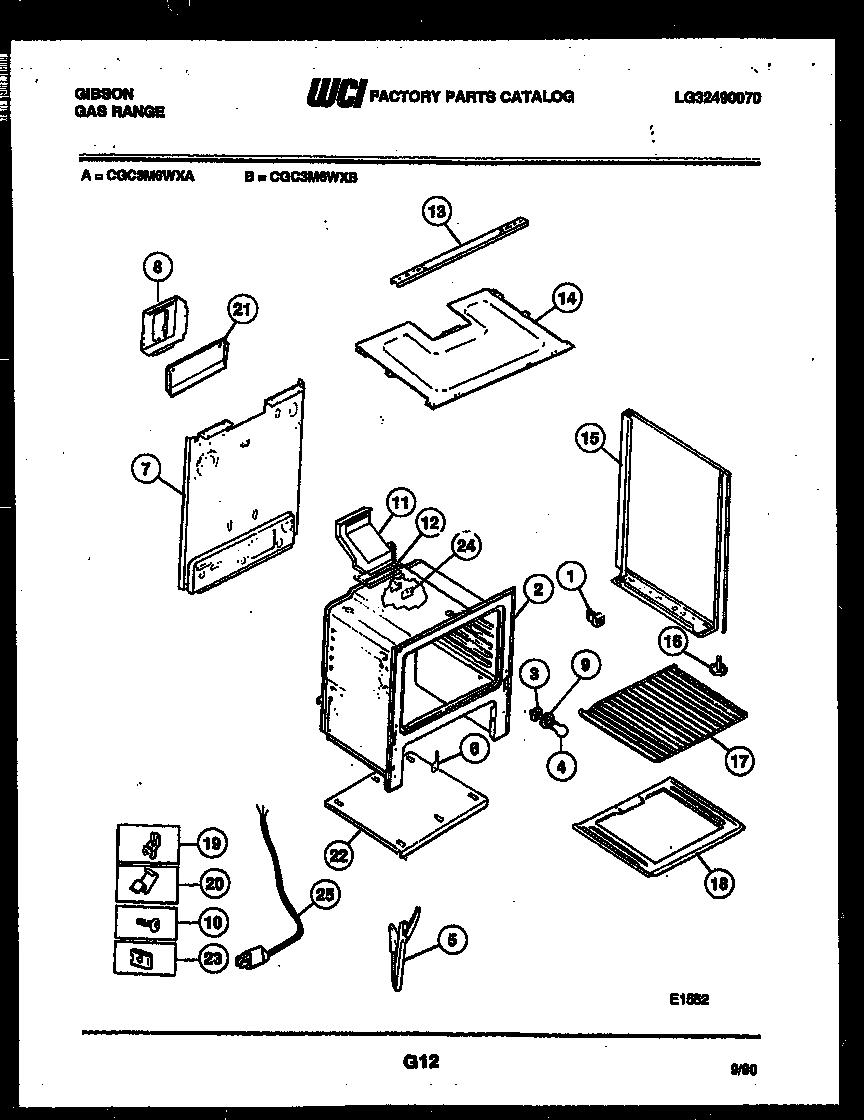

07 - BODY PARTS
Common parts from model Electrolux CGC3M6WXB RANGE
*29079
WCI 3206216 WCI 3206216 Contact Us For Availability
*29097
WCI 3131252 WCI 3131252 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 3200673 WCI 3200673 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
1
CONTROL REGUL WCI 5303208384 Contact Us For Availability
1A
WCI 3018860 WCI 3018860 Contact Us For Availability
2
WCI 5303212558 WCI 5303212558 Contact Us For Availability
2
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 3200887 WCI 3200887 Contact Us For Availability
2
WCI 3205046 WCI 3205046 Contact Us For Availability
3
WCI 5303212557 WCI 5303212557 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
SWITCH-IGNITOR (4) WCI 5303208397 Contact Us For Availability
4
WCI 3200657 WCI 3200657 Contact Us For Availability
4
MAIN TOP (ALMD) WCI 5303200658 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
GLASS-FRONT WCI 5303051153 Contact Us For Availability
4
WCI 3202796 WCI 3202796 Contact Us For Availability
4A
SCREW-VALVE MTG (8) (NON-ILLUSTRATED) WCI 3204499 Contact Us For Availability
5
WCI 3013818 WCI 3013818 Contact Us For Availability
5
WCI 3018618 WCI 3018618 Contact Us For Availability
5
WCI 5303209317 WCI 5303209317 Contact Us For Availability
5
CHANNEL-DR HNG (2) WCI 5303131569 Contact Us For Availability
5A
WCI 3018619 WCI 3018619 Contact Us For Availability
6
BRACKET, MAIN TOP, LH WCI 08067746 Contact Us For Availability
6
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
WCI 3202803 WCI 3202803 Contact Us For Availability
7
BRACKET, MAIN TOP, RH WCI 08067747 Contact Us For Availability
7
PANEL - BROILER WHITE WCI 3131117 Contact Us For Availability
7
PANEL - BROILER ALMD WCI 3131134 Contact Us For Availability
7
INSULATION-OVEN DR WCI 5303210607 Contact Us For Availability
7
WCI 3200276 WCI 3200276 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
8
WCI 3016420 WCI 3016420 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
HOUSING-OVEN LIGHT WCI 3051511 Contact Us For Availability
9
WCI 3203443 WCI 3203443 Contact Us For Availability
9
FASTENER-NYLON SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 5303015373 WCI 5303015373 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
10
WCI 3203457 WCI 3203457 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
10
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12A
INSUL - BROILER DRAWER (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12C
SCREW (2) (NON-ILLUSTRATED) WCI 3013964 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
FASTENER-NYL SPACER (1) WCI 241T017P221 Contact Us For Availability
13
CHANNEL-BURNER BOX WCI 3203441 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14
WCI 3204962 WCI 3204962 Contact Us For Availability
15
BACKSPLASH-PANEL (WHITE) (RH) WCI 3205623 Contact Us For Availability
15
BACKSPLASH-PANEL (ALMOND) (RH) WCI 3205624 Contact Us For Availability
15A
BACKSPLASH-PANEL (WHITE) (LH) WCI 3205620 Contact Us For Availability
15A
BACKSPLASH-PANEL (ALMOND) (LH) WCI 3205621 Contact Us For Availability
16
SCREW-LEVELLING (4) WCI 5303203397 Contact Us For Availability
17
BRACKET, OVEN BURNER SUPPORT WCI 3018603 Contact Us For Availability
18
WCI 5303212540 WCI 5303212540 Contact Us For Availability
18A
WCI 3017142 WCI 3017142 Contact Us For Availability
18B
INSULATION, OVEN BACK (NON-ILLUSTRATED) WCI 3203541 Contact Us For Availability
19A
WCI 08067961 WCI 08067961 Contact Us For Availability
21
WCI 3131348 WCI 3131348 Contact Us For Availability
22
WCI 3131180 WCI 3131180 Contact Us For Availability
22A
ANTI, TIP BRACKET (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23A
COVER, FRONT MAIN (NON-ILLUSTRATED) WCI 5303015372 Contact Us For Availability
24
WCI 3018607 WCI 3018607 Contact Us For Availability
24A
SHIELD-FLUE, (NON-ILLUSTRATED) WCI 3202799 Contact Us For Availability
24B
SHIELD-TOP (NON-ILLUSTRATED) WCI 3203455 Contact Us For Availability
× ![]()
