Model Electrolux CGC3M5WSTB RANGE – Common Parts & Diagrams

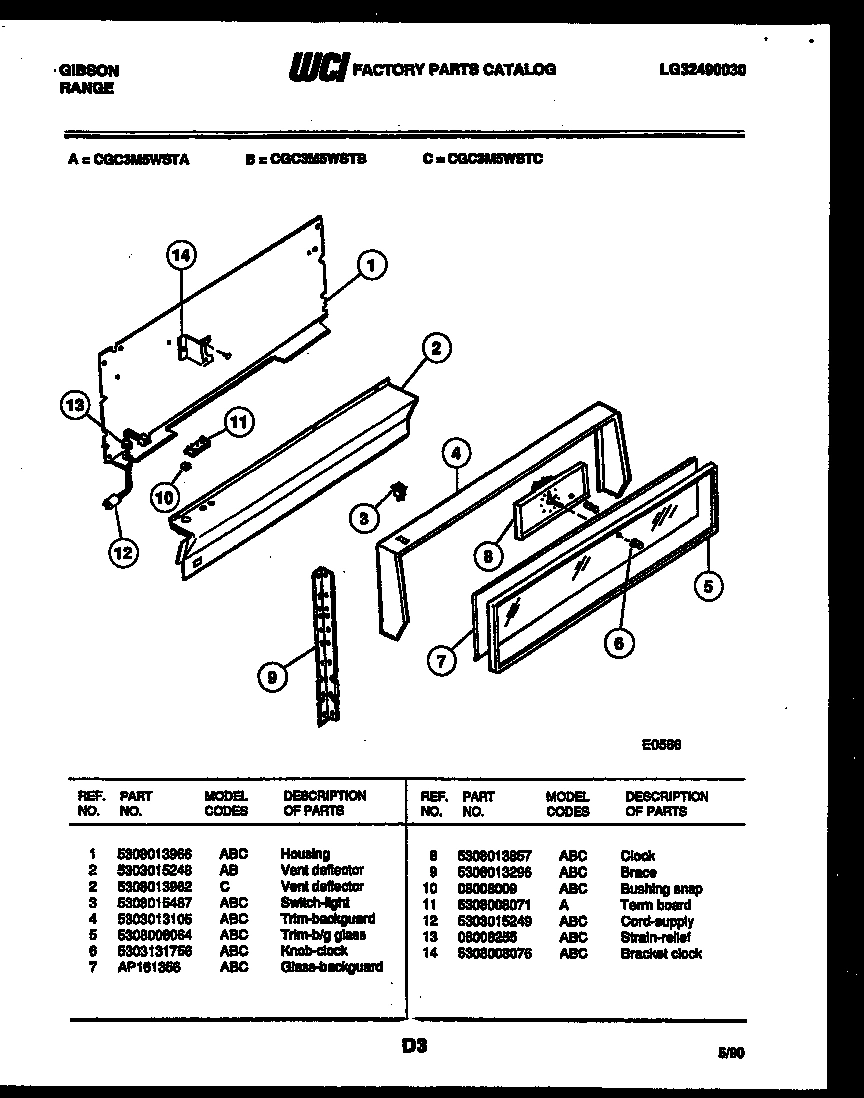

02 - BACKGUARD

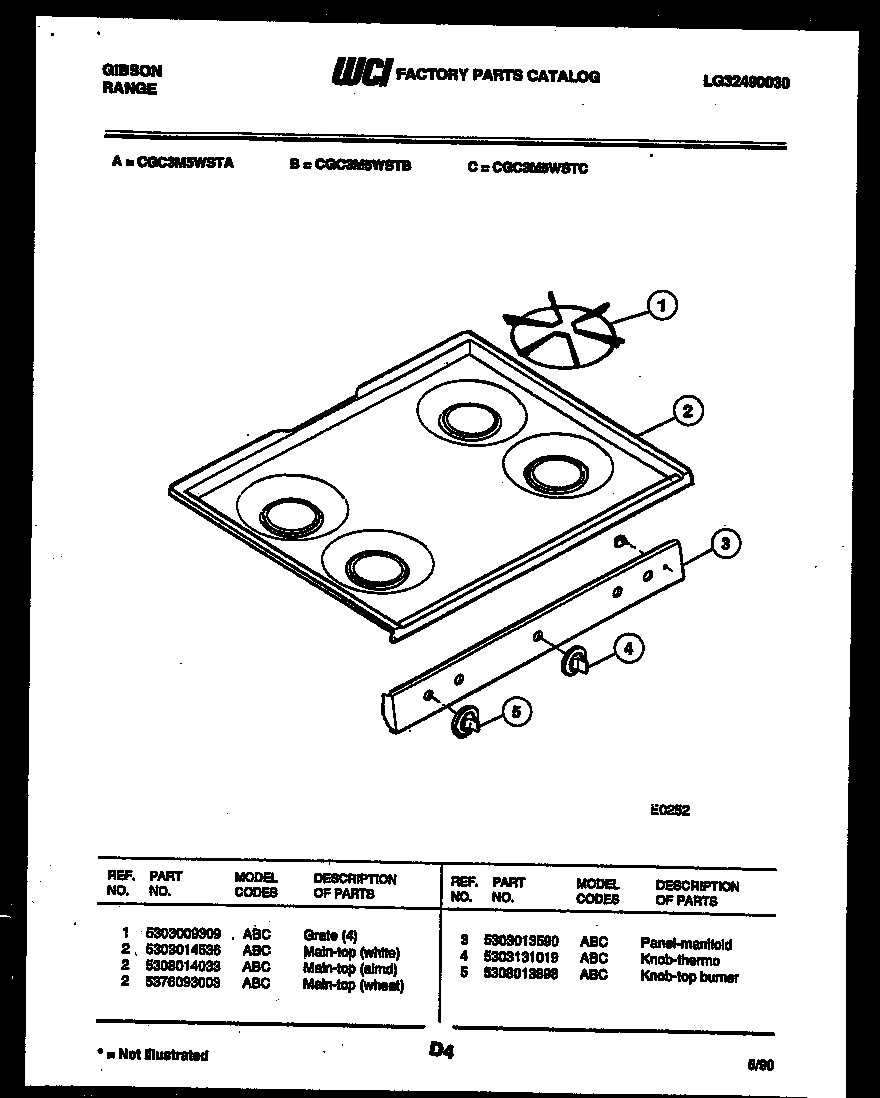

03 - COOKTOP PARTS

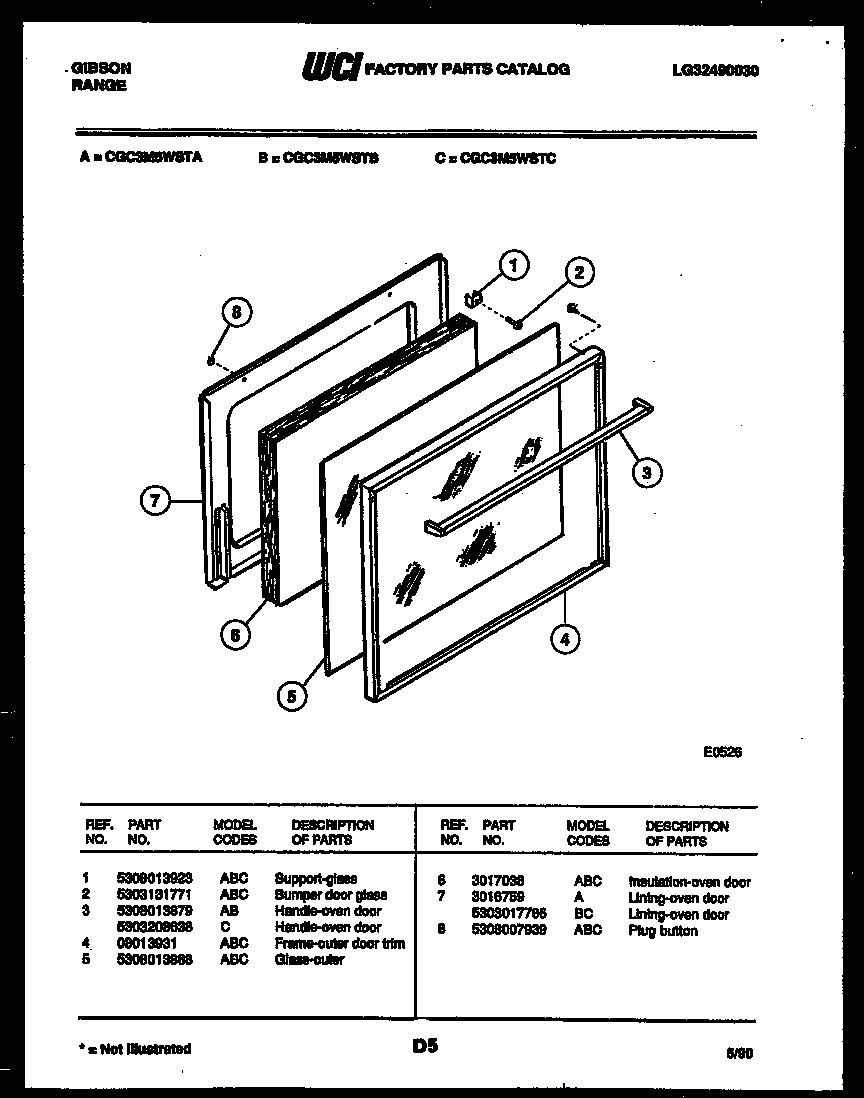

04 - DOOR PARTS

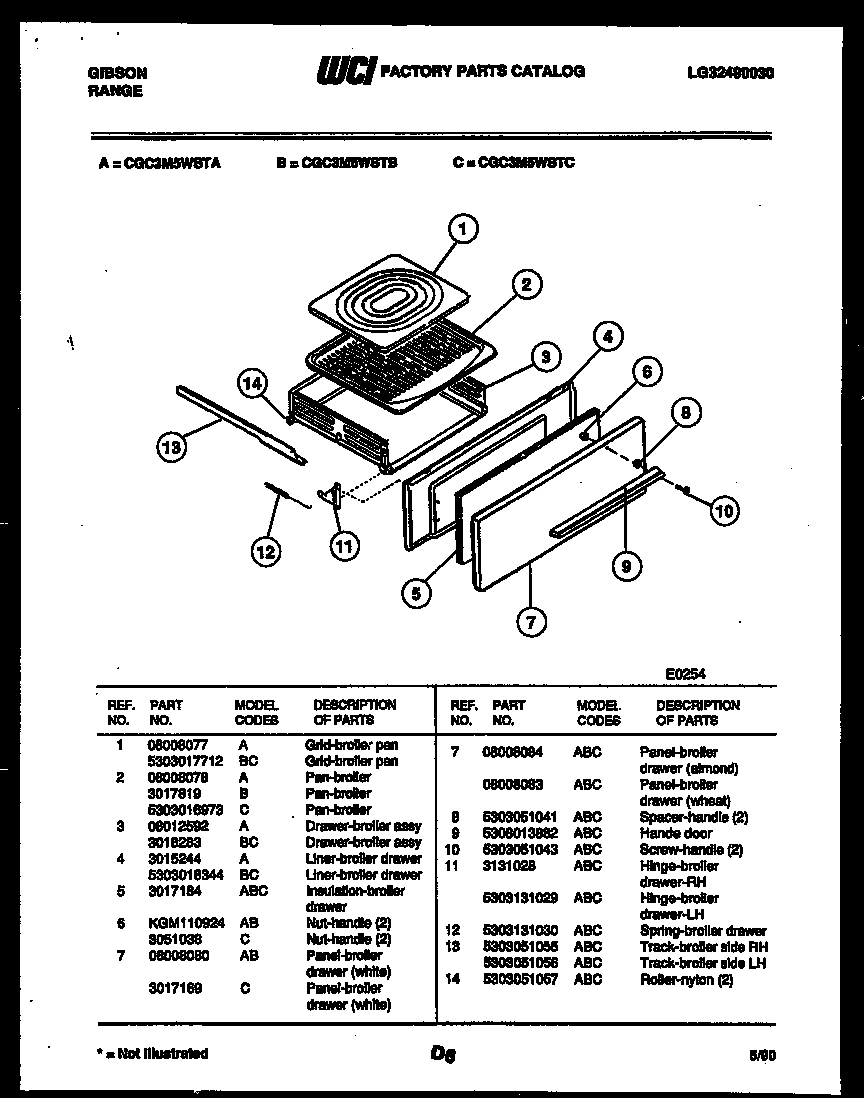

05 - BROILER DRAWER PARTS

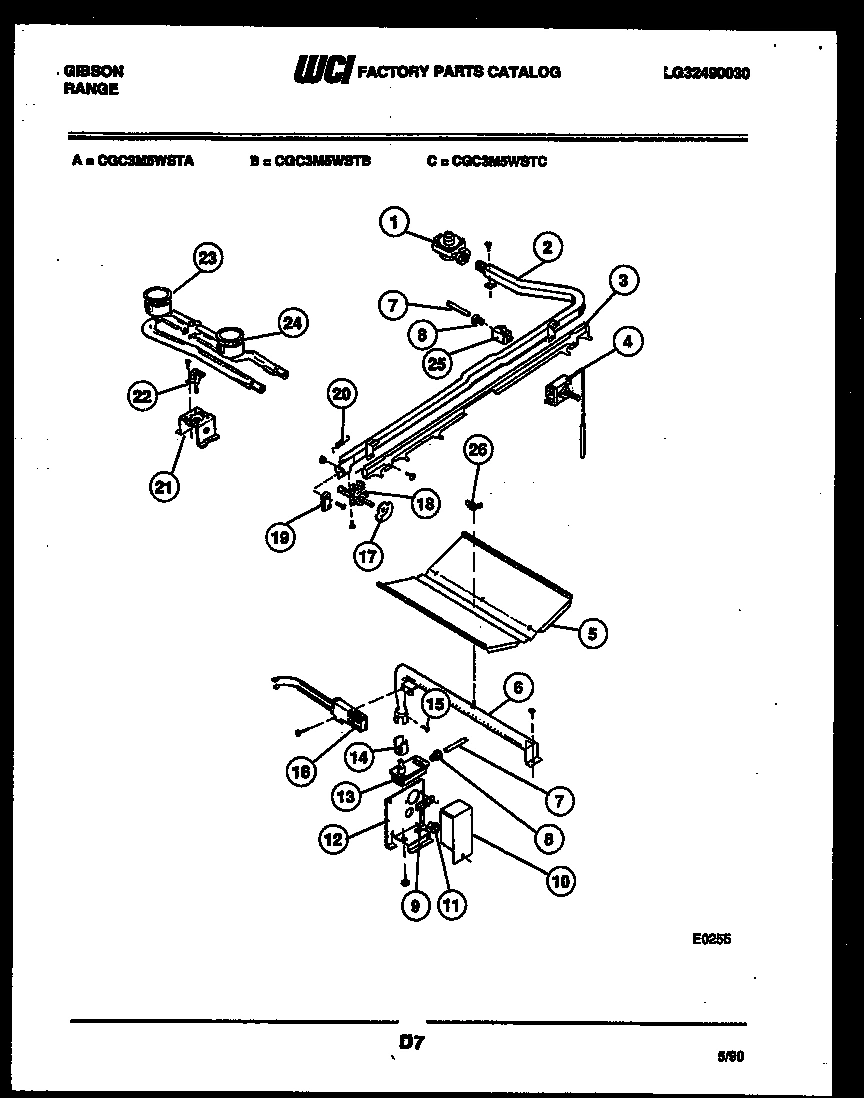

06 - BURNER PARTS

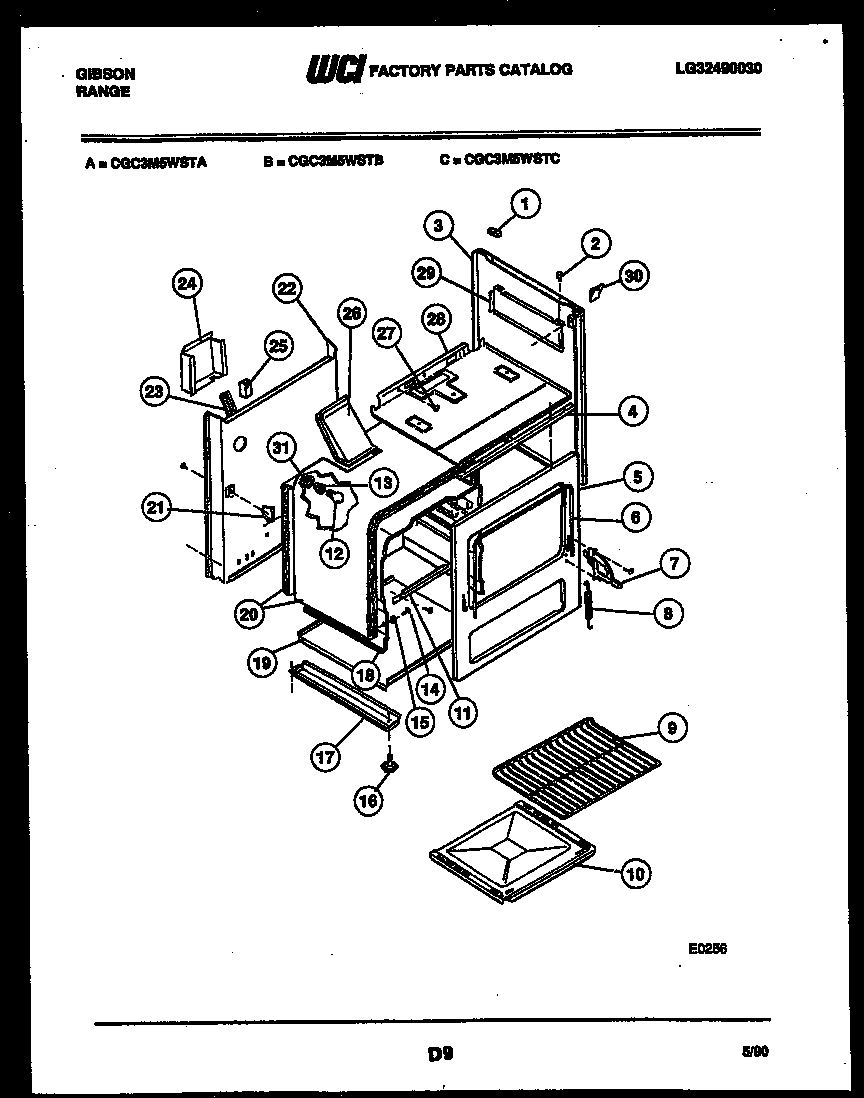

07 - BODY PARTS
Common parts from model Electrolux CGC3M5WSTB RANGE
1
WCI 5303009309 WCI 5303009309 Contact Us For Availability
1
WCI 5308013923 WCI 5308013923 Contact Us For Availability
1
GRID-BROILER PAN WCI 5303017712 Contact Us For Availability
1
GROMMET-MAIN TP (2) WCI 3051063 Contact Us For Availability
2
WCI 5303014536 WCI 5303014536 Contact Us For Availability
2
MAIN-TOP (ALMD) WCI 5308014033 Contact Us For Availability
2
WCI 5376093003 WCI 5376093003 Contact Us For Availability
2
WCI 5303131771 WCI 5303131771 Contact Us For Availability
2
WCI 3017819 WCI 3017819 Contact Us For Availability
2
WCI 5308013906 WCI 5308013906 Contact Us For Availability
2
GROMMET (2) WCI 3016129 Contact Us For Availability
3
WCI 5303013590 WCI 5303013590 Contact Us For Availability
3
WCI 5308013879 WCI 5308013879 Contact Us For Availability
3
SLIDE BAR WCI 3131856 Contact Us For Availability
3
BODYSIDE PANEL-WHITE WCI 5303051061 Contact Us For Availability
3
WCI 5364013004 WCI 5364013004 Contact Us For Availability
3
WCI A64013003 WCI A64013003 Contact Us For Availability
4
KNOB-THERMO WCI 5303131019 Contact Us For Availability
4
WCI 08013931 WCI 08013931 Contact Us For Availability
4
WCI 5303018344 WCI 5303018344 Contact Us For Availability
4
WCI 5308013926 WCI 5308013926 Contact Us For Availability
4
SUPPORT CONTROL PNL WCI 3131811 Contact Us For Availability
4A
WCI 5300009126 WCI 5300009126 Contact Us For Availability
5
KNOB-TOP BURNER WCI 5308013898 Contact Us For Availability
5
WCI 5308013868 WCI 5308013868 Contact Us For Availability
5
INSULATION, BROILER DRAWER WCI 3017184 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
5
WCI 3017790 WCI 3017790 Contact Us For Availability
6
Seal,oven door WCI 5308008022 Contact Us For Availability
6
WCI 3017038 WCI 3017038 Contact Us For Availability
6
NUT-HANDLE (2) WCI KGM110924 Contact Us For Availability
6
WCI 08009418 WCI 08009418 Contact Us For Availability
7
LINING-OVEN DOOR WCI 5303017786 Contact Us For Availability
7
WCI 08008080 WCI 08008080 Contact Us For Availability
7
WCI 08008083 WCI 08008083 Contact Us For Availability
7
WCI 08008084 WCI 08008084 Contact Us For Availability
7
WCI 5303131085 WCI 5303131085 Contact Us For Availability
7
OVEN DOOR HINGE-RH WCI 5303204670 Contact Us For Availability
8
PLUG-BUTTON WCI 5308007939 Contact Us For Availability
8
WCI 5303051041 WCI 5303051041 Contact Us For Availability
8
NUT-3/8 LOXIT WCI 5303131064 Contact Us For Availability
8
SPRING OVEN DOOR (2) WCI 5303009435 Contact Us For Availability
9
RACK OVEN (2) WCI 5303015714 Contact Us For Availability
9
HANDLE-DOOR WCI 5308013882 Contact Us For Availability
9
TERMINAL BLOCK WCI 5308007985 Contact Us For Availability
10
COVER - OVEN SAFETY VALVE WCI 3131088 Contact Us For Availability
10
OVEN BOTTOM WCI 3018282 Contact Us For Availability
11
HINGE-BROILER DRAWER-RH WCI 3131028 Contact Us For Availability
11
HINGE-BROILER DRAWER-LH WCI 5303131029 Contact Us For Availability
11
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
12
SPRING-BROILER DRAWER WCI 5303131030 Contact Us For Availability
12
SUPPORT-OVEN SAFETY VALVE WCI 3131069 Contact Us For Availability
13
VALVE-SAFETY WCI 5308009419 Contact Us For Availability
13
WCI 08008255 WCI 08008255 Contact Us For Availability
13
TRACK-BROILER SIDE RH WCI 5303051055 Contact Us For Availability
13
TRACK-BROILER SIDE LH WCI 5303051056 Contact Us For Availability
14
BRACKET - CLOCK WCI 5308008076 Contact Us For Availability
14
ROLLER-NYLON (2) WCI 5303051057 Contact Us For Availability
14
WCI 5308008010 WCI 5308008010 Contact Us For Availability
14
SHOULDER-BOLT WCI 08008037 Contact Us For Availability
15
WCI AP325005 WCI AP325005 Contact Us For Availability
15
WCI 3131040 WCI 3131040 Contact Us For Availability
16
LEVELING LEG WCI 5308008041 Contact Us For Availability
17
CAM-VALVE WCI 5308008002 Contact Us For Availability
17
BASE RAIL WCI 5308068047 Contact Us For Availability
18
VALVE-TOP BURNER WCI 5303131057 Contact Us For Availability
18
LINING-OVEN RH WCI 3018284 Contact Us For Availability
18A
LINING-OVEN LH WCI 3018285 Contact Us For Availability
18B
LINING-OVEN TOP WCI 3018347 Contact Us For Availability
18C
LINING-OVEN-BACK WCI 3018286 Contact Us For Availability
19
MICRO SWITCH WCI 5303131094 Contact Us For Availability
19
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
20
SPRING - SLIDE BAR WCI 5303131096 Contact Us For Availability
20
WCI 3017171 WCI 3017171 Contact Us For Availability
20A
WCI 3017172 WCI 3017172 Contact Us For Availability
21
SUPPORT-TOP BURNER WCI 5303016870 Contact Us For Availability
21
SUPPORT-OVEN WCI 3051096 Contact Us For Availability
22
WCI 3016405 WCI 3016405 Contact Us For Availability
22
MAIN BACK WCI 5303013340 Contact Us For Availability
22A
WCI 5303015196 WCI 5303015196 Contact Us For Availability
23
Burner,top ,rear WCI 5303131079 Contact Us For Availability
23
WIRE CHANNEL-MAIN BACK WCI 3131046 Contact Us For Availability
24
BURNER-TOP FRONT WCI 5303131080 Contact Us For Availability
24
WCI 08013953 WCI 08013953 Contact Us For Availability
25
WCI 5303131099 WCI 5303131099 Contact Us For Availability
25A
ANTI - TIP KIT (NON-ILLUSTRATED) WCI 3934059 Contact Us For Availability
26
WCI 08007979 WCI 08007979 Contact Us For Availability
26
VENT BOX WCI 3017173 Contact Us For Availability
27
WCI 08008051 WCI 08008051 Contact Us For Availability
28
WCI 3017174 WCI 3017174 Contact Us For Availability
29
SHIELD-HEAT RH SIDE WCI 5303131053 Contact Us For Availability
29A
SHIELD-HEAT LH SIDE WCI 5303131054 Contact Us For Availability
30
CLIP-BACKSPLASH WCI 3131791 Contact Us For Availability
31
WCI 3051511 WCI 3051511 Contact Us For Availability
× ![]()
