Model Electrolux CGC3M4WXE RANGE – Common Parts & Diagrams

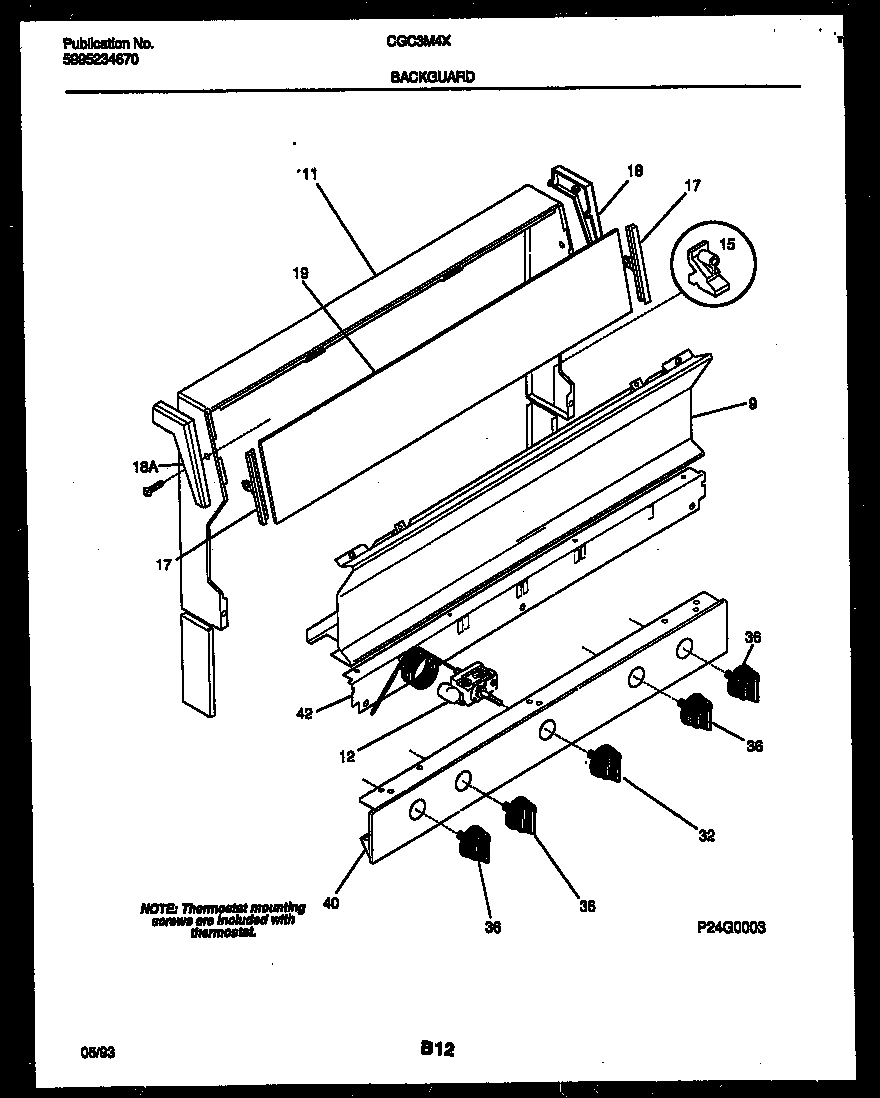

02 - BACKGUARD

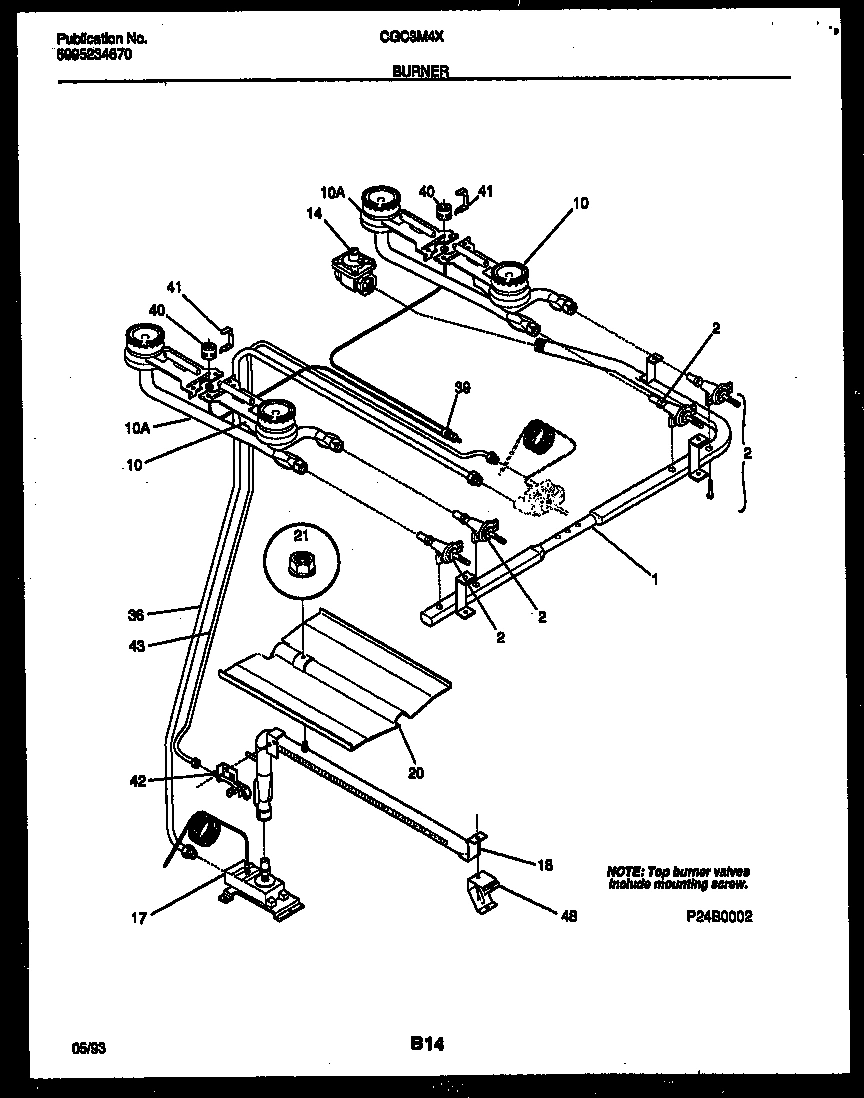

03 - BURNER PARTS

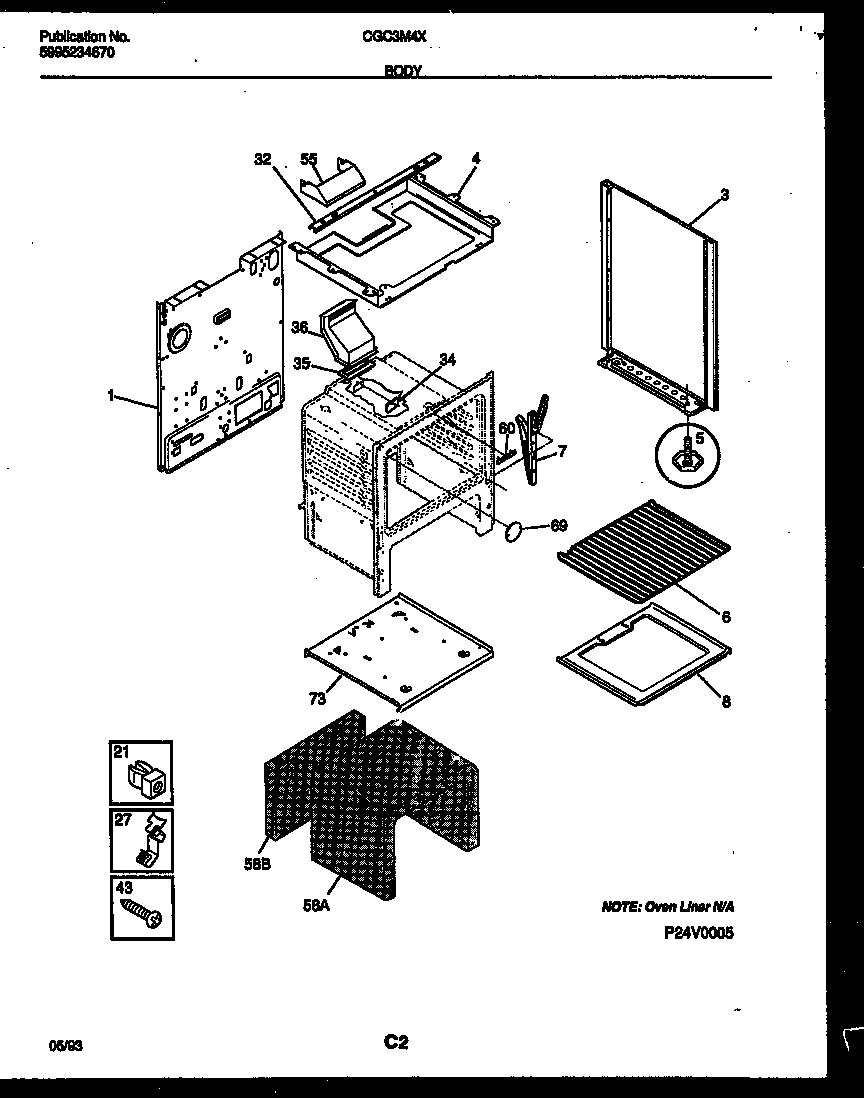

04 - BODY PARTS

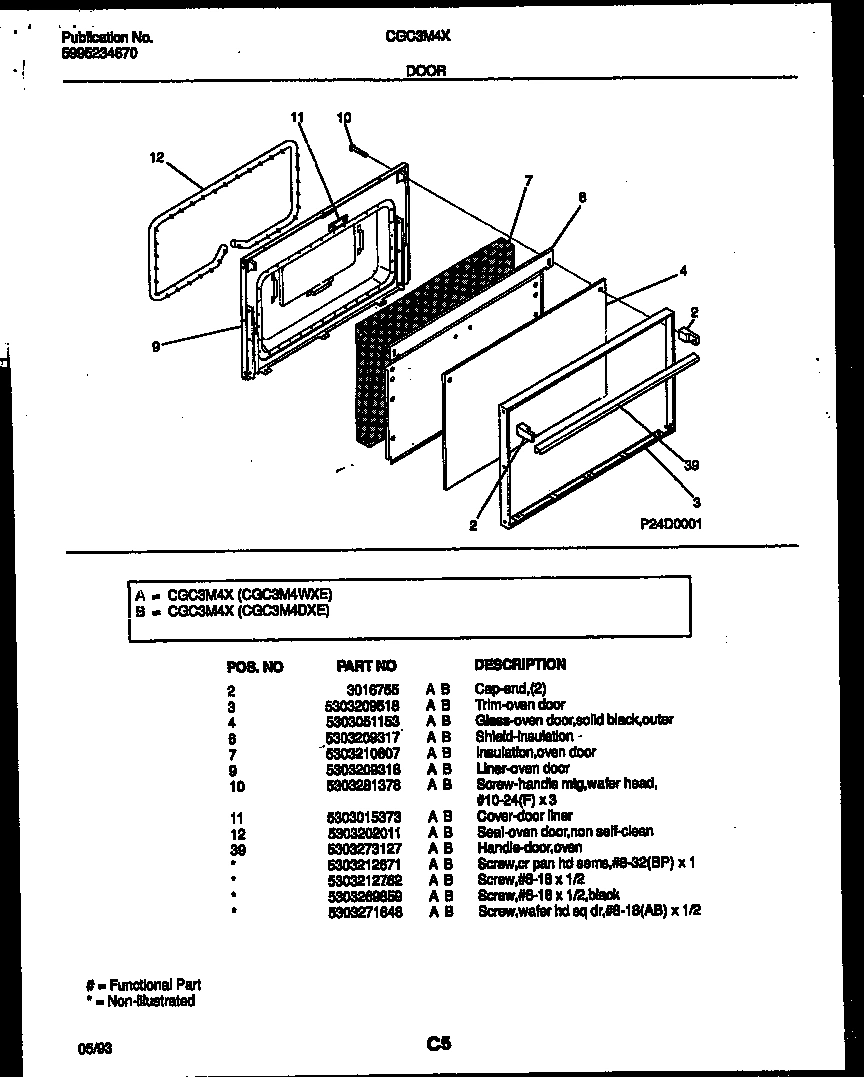

05 - DOOR PARTS
Common parts from model Electrolux CGC3M4WXE RANGE
*62142
DRAWER-BROILER WCI 3018608 Contact Us For Availability
*62142
WCI 3131117 WCI 3131117 Contact Us For Availability
*62142
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
*62143
SCREW,HEX WASHER HEAD, 8-18(AB) X 1/2 WCI 08067785 Contact Us For Availability
*62143
GLIDE-BROILER WCI 3018610 Contact Us For Availability
*62143
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
*62143
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
*62144
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
*62144
BRACKET-HINGE, BROILER, RH WCI 3018860 Contact Us For Availability
*62144
BRACKET-HINGE, BROILER, LH, (4) WCI 3200673 Contact Us For Availability
*62144
PAN-BROILER WCI 5303013568 Contact Us For Availability
*62144
WCI 5303131356 WCI 5303131356 Contact Us For Availability
*62145
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
*62145
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
*62145
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
*62145
WCI 3206214 WCI 3206214 Contact Us For Availability
*62146
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
*62146
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
*62146
ROD-MAINTOP SUPPORT WCI 5303271609 Contact Us For Availability
*62147
WCI 3018614 WCI 3018614 Contact Us For Availability
*62147
WCI 3131190 WCI 3131190 Contact Us For Availability
*62147
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
*62148
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
*62148
HANDLE-DRAWER/DOOR, BRUSHED CHROME WCI 5303280334 Contact Us For Availability
*62151
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*62151
WCI 5303269859 WCI 5303269859 Contact Us For Availability
3
WCI 5303209518 WCI 5303209518 Contact Us For Availability
4
GLASS-OVEN DOOR, SOLID BLACK, OUTER WCI 5303051153 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303209317 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
14
REGULATOR-PRESSURE WCI 5303016997 Contact Us For Availability
17
WCI 5303280593 WCI 5303280593 Contact Us For Availability
18
WCI 5303280585 WCI 5303280585 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
32
WCI 3203394 WCI 3203394 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
39
TUBING-TOP PILOT, DUAL WCI 5303211133 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303273127 Contact Us For Availability
42
WCI 5303280589 WCI 5303280589 Contact Us For Availability
43
Tubing`thermo/pilot `3/16 ,alum WCI 3203398 Contact Us For Availability
55
WCI 3131191 WCI 3131191 Contact Us For Availability
55A
SHIELD-FLUE, (NON-ILLUSTRATED) WCI 3202799 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73
WCI 5303281627 WCI 5303281627 Contact Us For Availability
× ![]()
