Model Electrolux CGC3M3WSTD RANGE – Common Parts & Diagrams

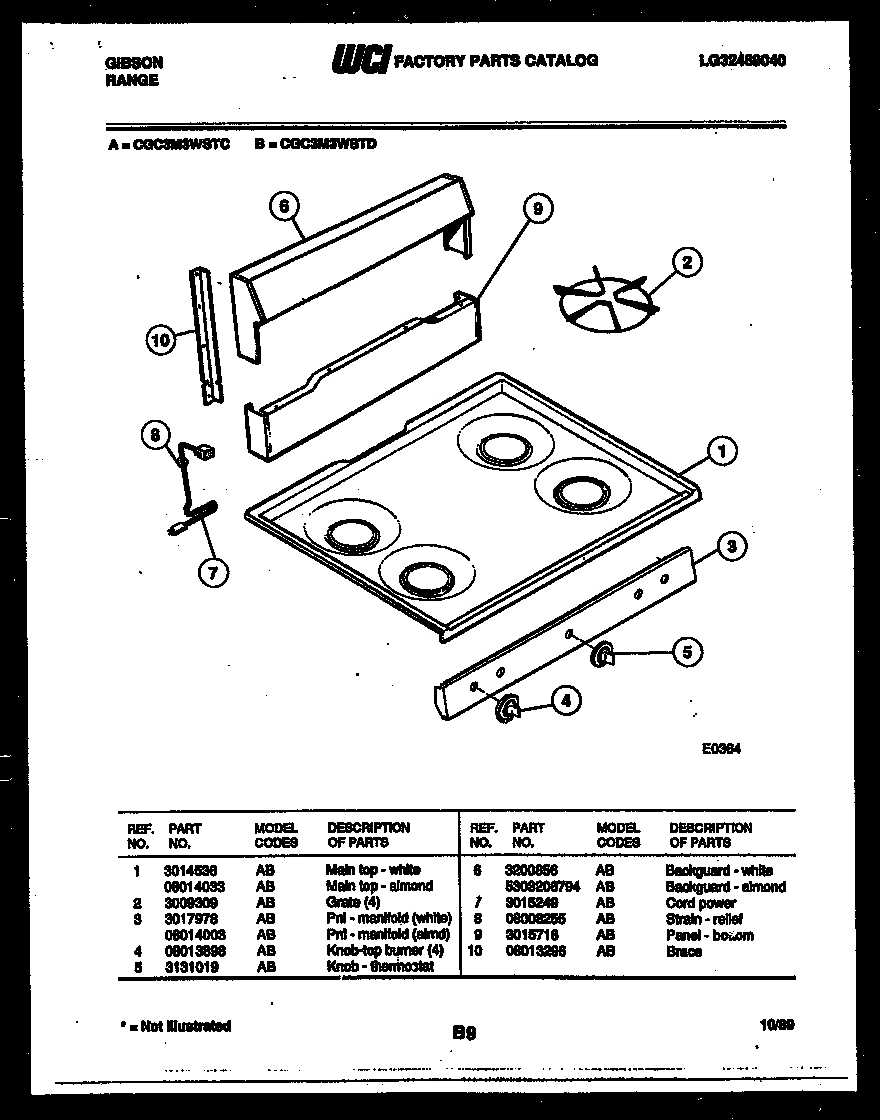

02 - BACKGUARD AND COOKTOP PARTS

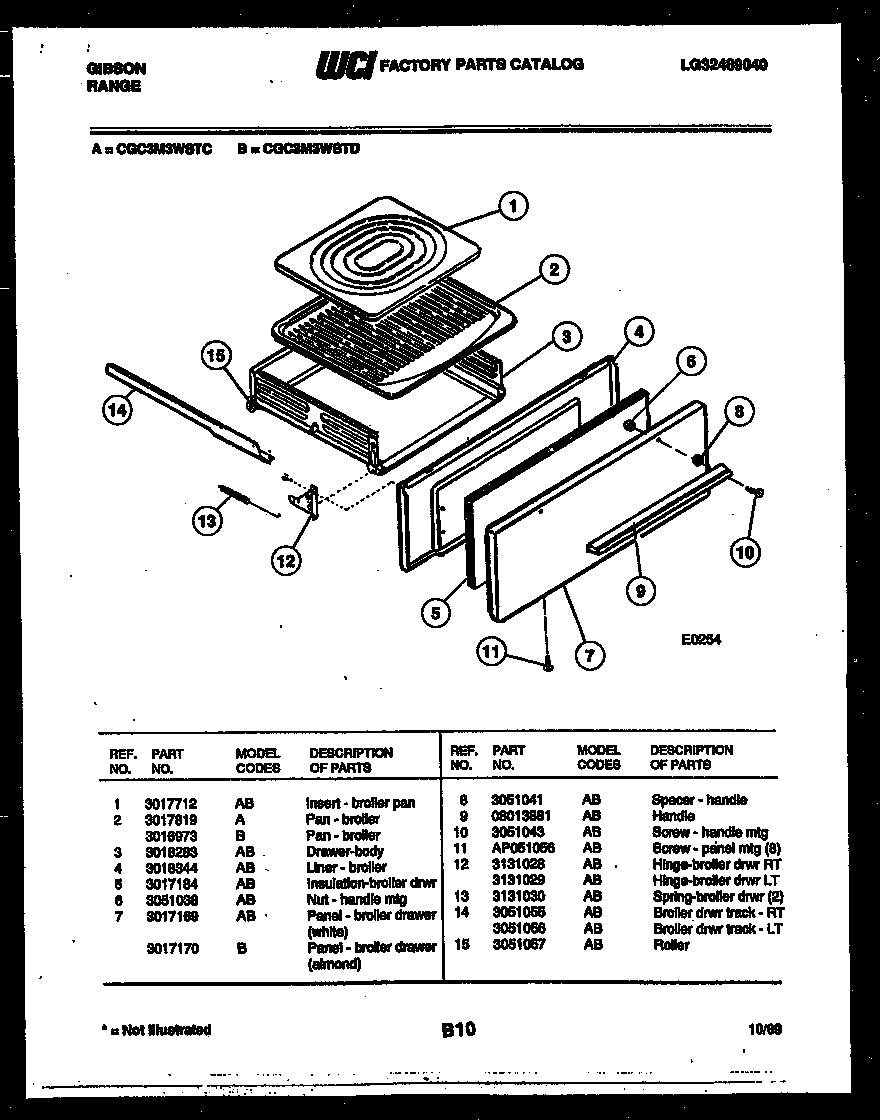

03 - BROILER DRAWER PARTS

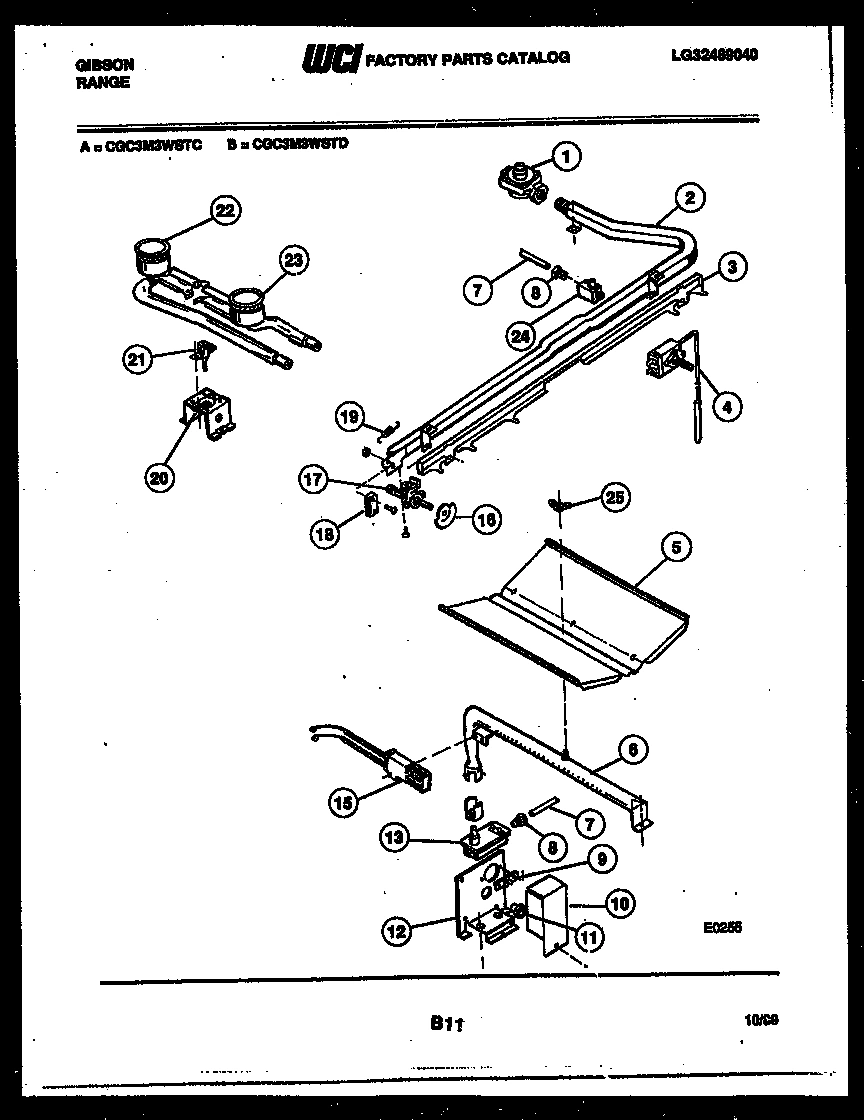

04 - BURNER PARTS

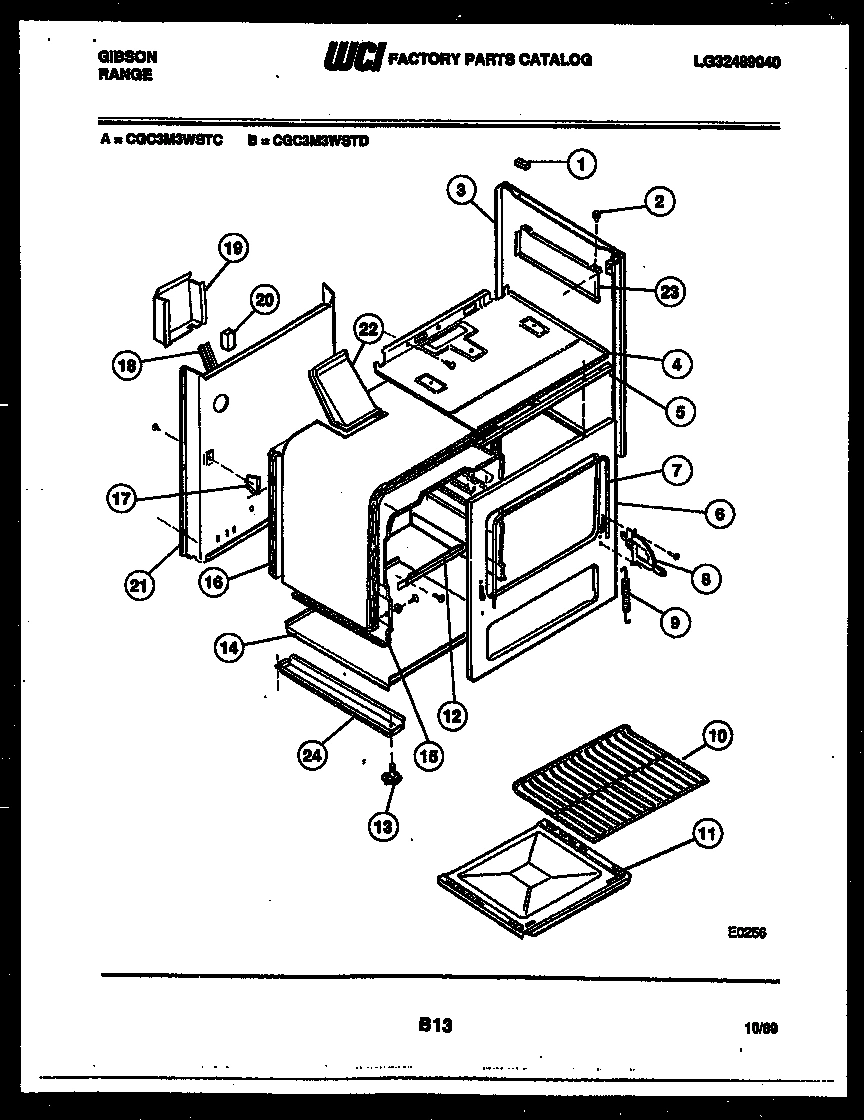

05 - BODY PARTS

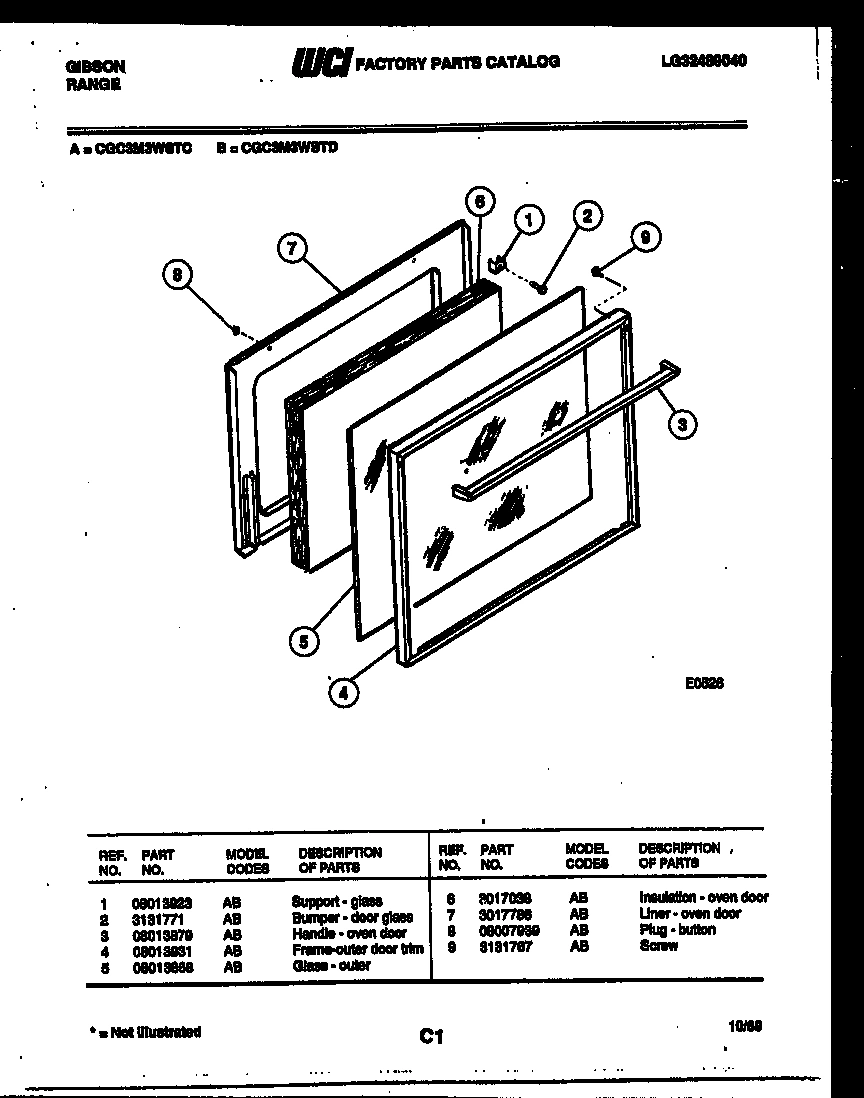

06 - DOOR PARTS
Common parts from model Electrolux CGC3M3WSTD RANGE
*16530
CLIP - BACKSPLASH (2) WCI 3131791 Contact Us For Availability
*16531
WCI 3934059 WCI 3934059 Contact Us For Availability
1
WCI 08014033 WCI 08014033 Contact Us For Availability
1
WCI 3014536 WCI 3014536 Contact Us For Availability
1
INSERT-BROILER PAN WCI 3017712 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
1
WCI 08013923 WCI 08013923 Contact Us For Availability
2
GRATE (4) WCI 3009309 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
2
WCI 3131771 WCI 3131771 Contact Us For Availability
3
WCI 08014003 WCI 08014003 Contact Us For Availability
3
PNL - MANIFOLD (WHITE) WCI 3017978 Contact Us For Availability
3
SLIDE BAR WCI 3131856 Contact Us For Availability
3
WCI 08014019 WCI 08014019 Contact Us For Availability
3
B/S L & R (WHITE) WCI 3051061 Contact Us For Availability
3
WCI 08013879 WCI 08013879 Contact Us For Availability
4
KNOB - TOP BURNER (4) WCI 08013898 Contact Us For Availability
4
LINER BROILER WCI 3018344 Contact Us For Availability
4
THERMOSTAT WCI 08013926 Contact Us For Availability
4
WCI 3017174 WCI 3017174 Contact Us For Availability
4
WCI 08013931 WCI 08013931 Contact Us For Availability
4A
CLIP - CAPILLARY BULB (NON-ILLUSTRATED) WCI 9126 Contact Us For Availability
5
WCI 3131019 WCI 3131019 Contact Us For Availability
5
INSULATION-BROILER DRWR WCI 3017184 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
SUPPORT-CONTROL PANEL WCI 3131811 Contact Us For Availability
5
WCI 08013868 WCI 08013868 Contact Us For Availability
6
BACKGUARD - WHITE WCI 3200856 Contact Us For Availability
6
WCI 5303206794 WCI 5303206794 Contact Us For Availability
6
WCI 3202752 WCI 3202752 Contact Us For Availability
6
FRONT - FRAME (BZ) WCI 3205578 Contact Us For Availability
6
WCI 3017038 WCI 3017038 Contact Us For Availability
7
CORD - POWER WCI 3015249 Contact Us For Availability
7
PANEL-BROILER DRAWER WHITE WCI 3017169 Contact Us For Availability
7
PANEL-BROILER DRAWER ALMOND WCI 3017170 Contact Us For Availability
7
TUBING - OVEN SUPPLY WCI 3009495 Contact Us For Availability
7
SEAL-OVEN DOOR WCI 08008022 Contact Us For Availability
7
LINER - OVEN DOOR WCI 3017786 Contact Us For Availability
8
WCI 08008255 WCI 08008255 Contact Us For Availability
8
SPACER-HANDLE WCI 3051041 Contact Us For Availability
8
NUT 3/8 LOXIT WCI 3131064 Contact Us For Availability
8
PLUG BUTTON WCI 08007939 Contact Us For Availability
8A
HINGE ASSY RH WCI 3204670 Contact Us For Availability
9
PANEL - BOTTOM WCI 3015718 Contact Us For Availability
9
WCI 08013881 WCI 08013881 Contact Us For Availability
9
WCI 08007985 WCI 08007985 Contact Us For Availability
9
SPRING OVEN DOOR (2) WCI 3009435 Contact Us For Availability
10
BRACE WCI 08013296 Contact Us For Availability
10
Cover,safety valve WCI 3131088 Contact Us For Availability
10
WCI 3015714 WCI 3015714 Contact Us For Availability
11
SCREW PANEL MTG. (8) WCI AP051056 Contact Us For Availability
11
WCI 08008051 WCI 08008051 Contact Us For Availability
11
LINER-OVEN-BOTTOM WCI 3018282 Contact Us For Availability
12
HINGE-BROILER DRWR RT WCI 3131028 Contact Us For Availability
12
SUPPORT SAFETY VALVE WCI 3131069 Contact Us For Availability
12
WCI 3131038 WCI 3131038 Contact Us For Availability
12A
HINGE-BROILER DRWR LT WCI 3131029 Contact Us For Availability
13
SPRING-BROILER DRWR (2) WCI 3131030 Contact Us For Availability
13
WCI 08009419 WCI 08009419 Contact Us For Availability
13
LEVELING LEG WCI 3051080 Contact Us For Availability
14
BROILER DRWR TRACK - RT WCI 3051055 Contact Us For Availability
14
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
14A
BROILER DRWR TRACK - LT WCI 3051056 Contact Us For Availability
15
ROLLER WCI 3051057 Contact Us For Availability
15
LINER LH WCI 3018285 Contact Us For Availability
15A
LINER RH WCI 3018284 Contact Us For Availability
15B
WCI 3018347 WCI 3018347 Contact Us For Availability
15C
WCI 3018995 WCI 3018995 Contact Us For Availability
16
WCI 08008002 WCI 08008002 Contact Us For Availability
16
WCI 3017171 WCI 3017171 Contact Us For Availability
16A
WCI 3017172 WCI 3017172 Contact Us For Availability
17
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
17
SUPPORT-OVEN REAR (2) WCI 3051096 Contact Us For Availability
18
WCI 3131094 WCI 3131094 Contact Us For Availability
18
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
19
WCI 3131096 WCI 3131096 Contact Us For Availability
19
WCI 08013953 WCI 08013953 Contact Us For Availability
20
WCI 3203964 WCI 3203964 Contact Us For Availability
21
IGNITER 36`` WCI 3203970 Contact Us For Availability
21
MAIN BACK WCI 3013340 Contact Us For Availability
22
TOP BURNER - REAR WCI 3131080 Contact Us For Availability
22
VENT BOX WCI 3017173 Contact Us For Availability
23
TOP BURNER - FRONT WCI 3131079 Contact Us For Availability
23
SHIELD-BURNER BOX RH WCI 3131053 Contact Us For Availability
23A
SHIELD-BURNER BOX LH WCI 3131054 Contact Us For Availability
24
WCI 3131099 WCI 3131099 Contact Us For Availability
24
BASE RAIL WCI 08068047 Contact Us For Availability
× ![]()
