Model Electrolux CGC1M1WXC RANGE – Common Parts & Diagrams

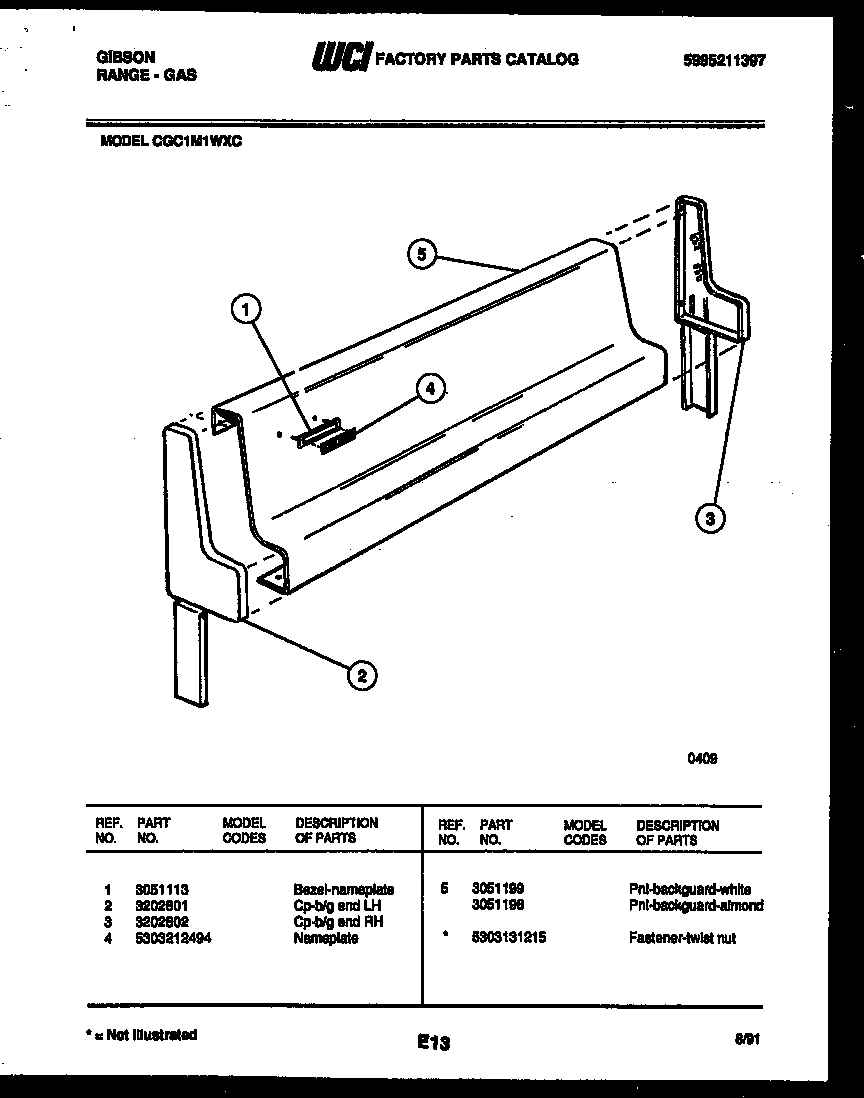

02 - BACKGUARD

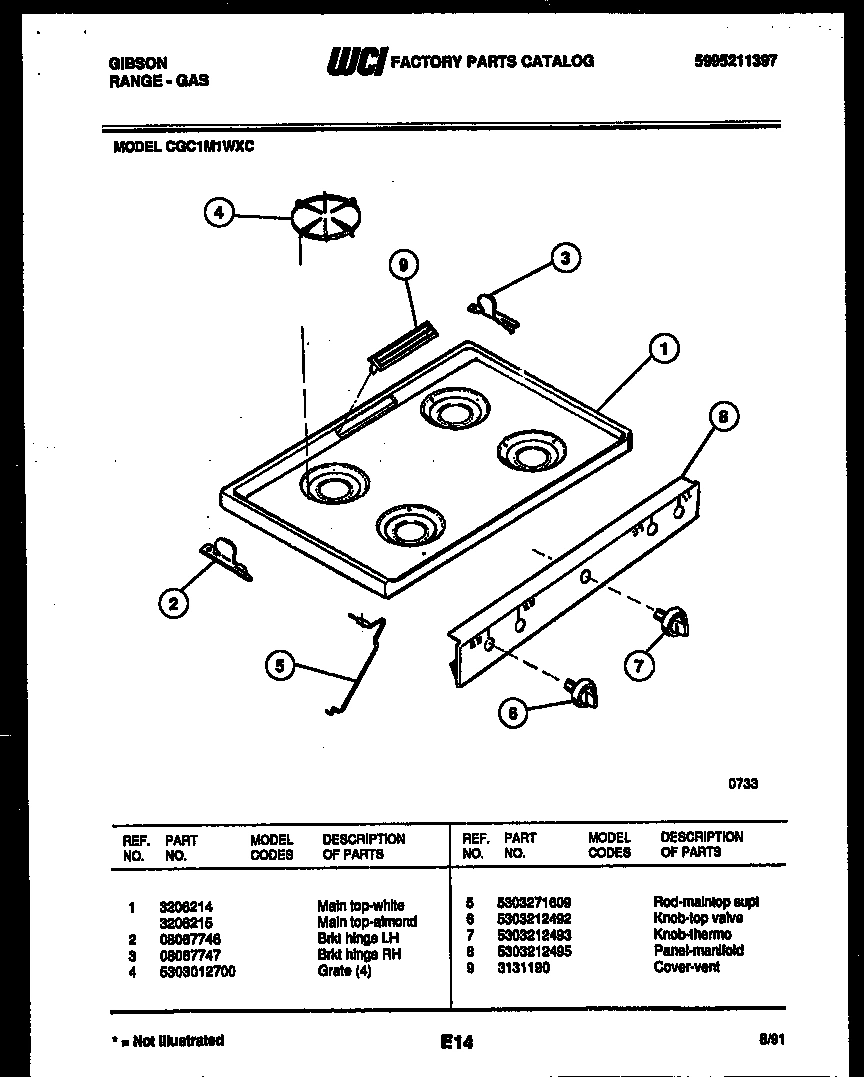

03 - COOKTOP PARTS
04 - DOOR PARTS
05 - BROILER DRAWER PARTS
06 - BURNER PARTS
07 - BODY PARTS
Common parts from model Electrolux CGC1M1WXC RANGE
*45537
WCI 3013964 WCI 3013964 Contact Us For Availability
*45537
INSULATION-BRLR DRWR WCI 5303131258 Contact Us For Availability
*45547
WCI 3202799 WCI 3202799 Contact Us For Availability
*45547
WCI 3934056 WCI 3934056 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303016997 WCI 5303016997 Contact Us For Availability
1
BRKT-BROILER HNG (LH) WCI 3200673 Contact Us For Availability
1A
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
2
CP-B/G END LH WCI 3202801 Contact Us For Availability
2
BRKT HINGE-LH WCI 08067746 Contact Us For Availability
2
HANDLE - DOOR WCI 5303273127 Contact Us For Availability
2
FSTNR - PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 3204972 WCI 3204972 Contact Us For Availability
3
CHANNEL-DOOR HINGE WCI 316007002 No Longer Available
3
CP-B/G END RH WCI 3202802 Contact Us For Availability
3
WCI 5303015373 WCI 5303015373 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
WCI 3204974 WCI 3204974 Contact Us For Availability
4
INSULATION, DOOR WCI 5303210607 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
WCI 3202796 WCI 3202796 Contact Us For Availability
4
WCI 3203394 WCI 3203394 Contact Us For Availability
4A
SCREW - VALVES (10) (NON-ILLUSTRATED) WCI 3204499 Contact Us For Availability
5
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
5
SPR - BRLR-LH-C TYPE WCI 3018618 Contact Us For Availability
5
WCI 3203082 WCI 3203082 Contact Us For Availability
5A
SPR - BRLR-RH-C TYPE WCI 3018619 Contact Us For Availability
6
TUBE-TOP PILOT-DUAL WCI 5303211133 Contact Us For Availability
6
WCI 5303209317 WCI 5303209317 Contact Us For Availability
6
WCI 3202803 WCI 3202803 Contact Us For Availability
6
WCI 5303015372 WCI 5303015372 Contact Us For Availability
7
WCI 3202315 WCI 3202315 Contact Us For Availability
7
PANEL, DOOR (ALMOND) WCI 3202316 Contact Us For Availability
7
WCI 3131117 WCI 3131117 Contact Us For Availability
7
WCI 3131134 WCI 3131134 Contact Us For Availability
7
WCI 5303211191 WCI 5303211191 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
9
WCI 3018607 WCI 3018607 Contact Us For Availability
9
WCI 3203398 WCI 3203398 Contact Us For Availability
9
WCI 3131190 WCI 3131190 Contact Us For Availability
9
WCI 5303273126 WCI 5303273126 Contact Us For Availability
9
FASTENER, SPACER WCI 3131387 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
10
WCI 3203395 WCI 3203395 Contact Us For Availability
10
WCI 3204962 WCI 3204962 Contact Us For Availability
11
SHIELD-BROILER DRWR WCI 5303131487 Contact Us For Availability
11
BRKT-OVEN BURNER WCI 3018603 Contact Us For Availability
11
PNL-B/S-RH-WHITE WCI 5303269518 Contact Us For Availability
11
PNL-B/S-LH-WHITE WCI 5303269519 Contact Us For Availability
11
WCI 5303269543 WCI 5303269543 Contact Us For Availability
11
WCI 5303269545 WCI 5303269545 Contact Us For Availability
12
SCREW, LEVELER (4) WCI 5303203397 Contact Us For Availability
12
WCI 5303201269 WCI 5303201269 Contact Us For Availability
12
WCI 3203391 WCI 3203391 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
WCI 3203265 WCI 3203265 Contact Us For Availability
14
WCI 5303212540 WCI 5303212540 Contact Us For Availability
14A
WCI 3203541 WCI 3203541 Contact Us For Availability
14B
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
15
TUBE - ALUM THERMO/SAFETY VALVE W/ FIT. WCI 5303211134 Contact Us For Availability
15A
COVER, FLUE (NON-ILLUSTRATED) WCI 3131191 Contact Us For Availability
16
WCI 3204583 WCI 3204583 Contact Us For Availability
17
WCI 5303270160 WCI 5303270160 Contact Us For Availability
19
SHIELD-PILOT (2) WCI 3202798 Contact Us For Availability
× ![]()
