Model Whirlpool CGA4D59TSZK GAS RANGE – Common Parts & Diagrams

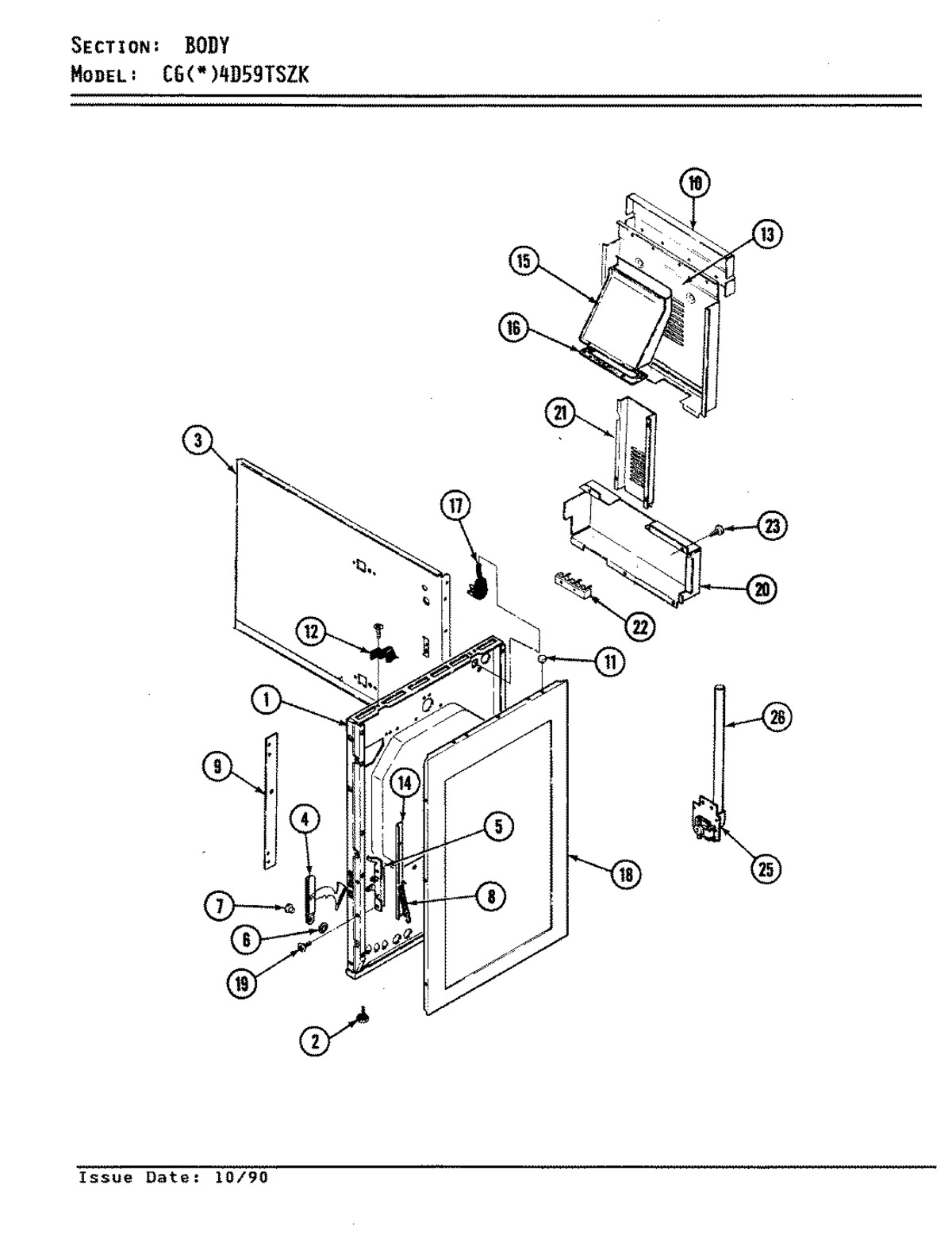

01 - BODY

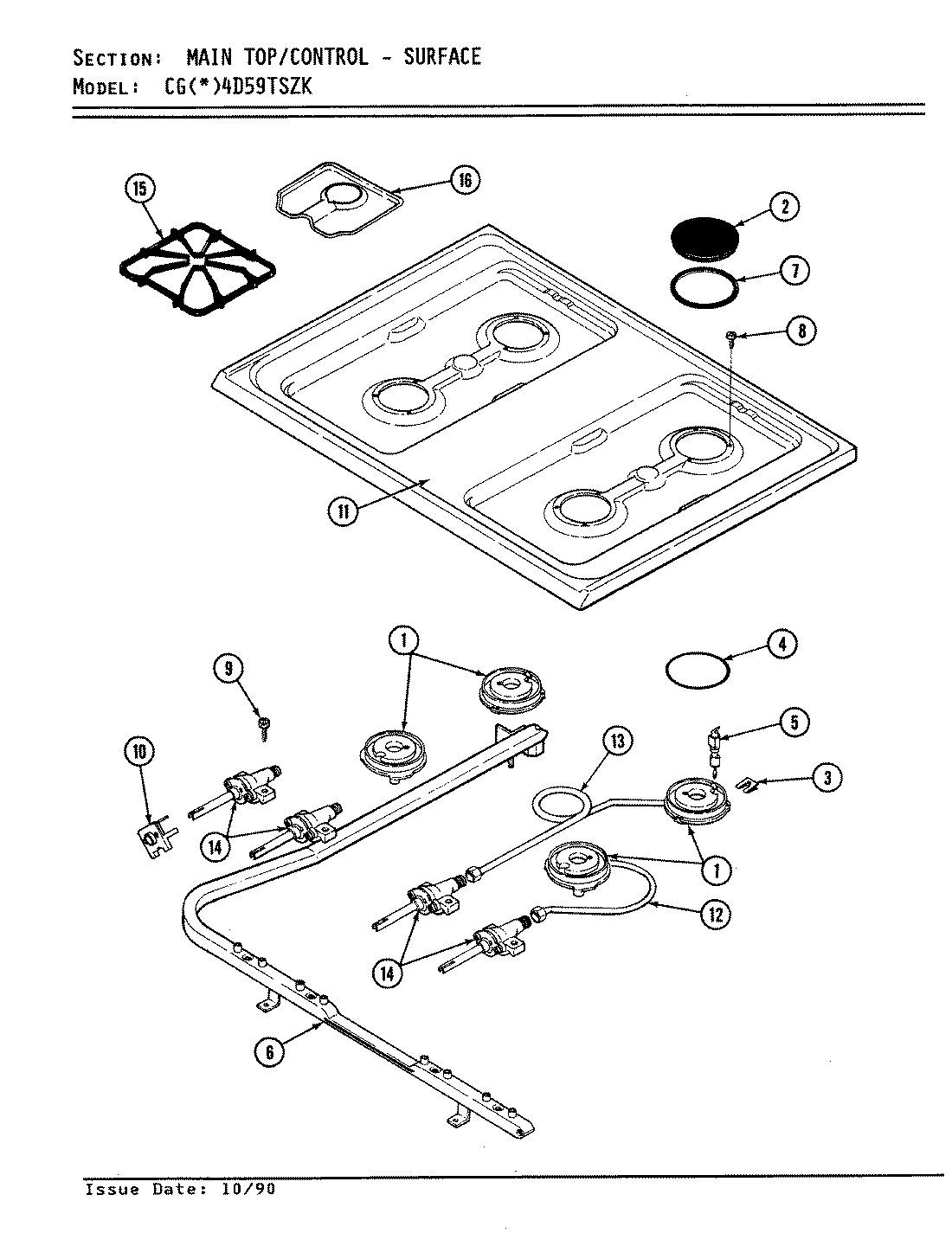

08 - TOP ASSEMBLY

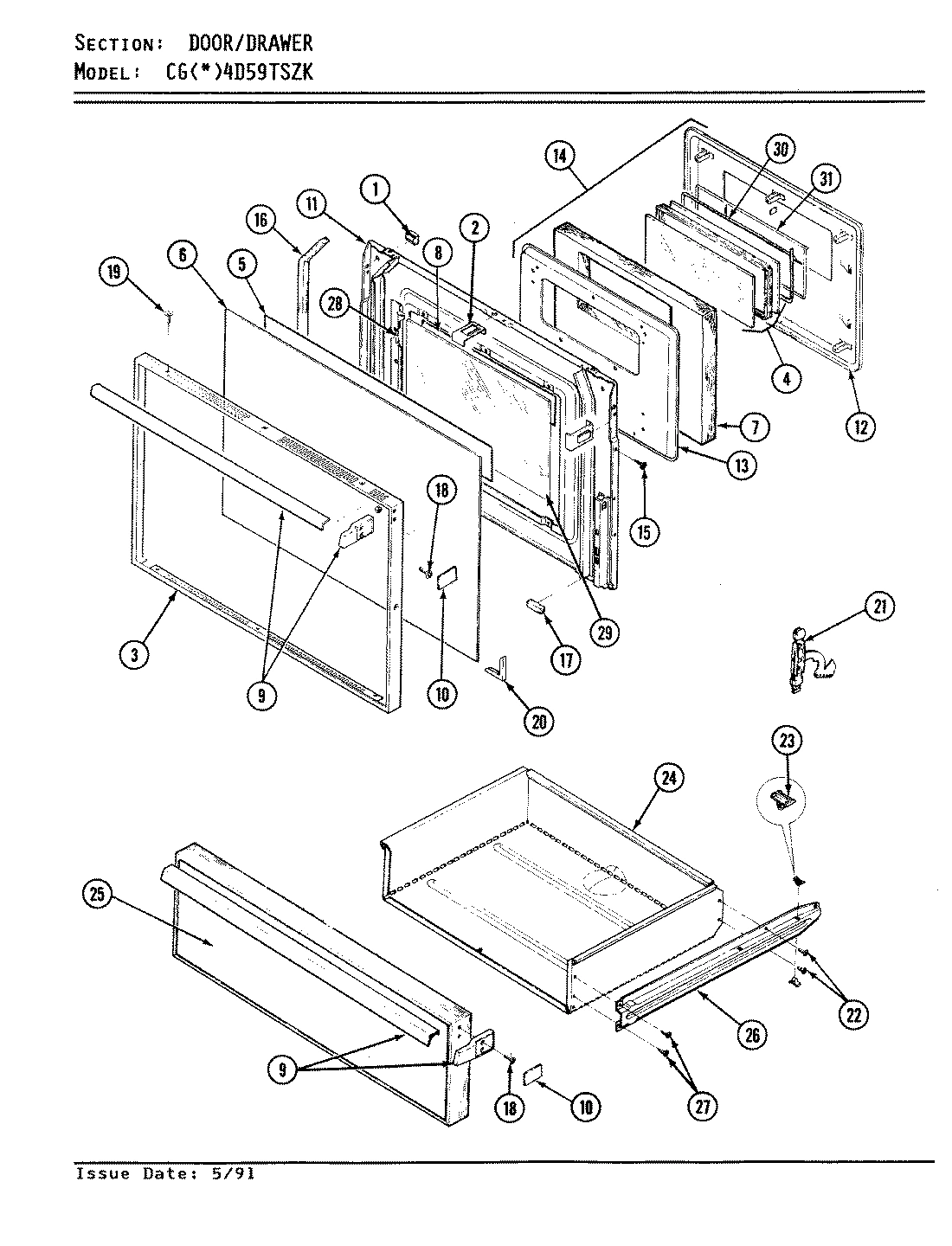

05 - DOOR/DRAWER

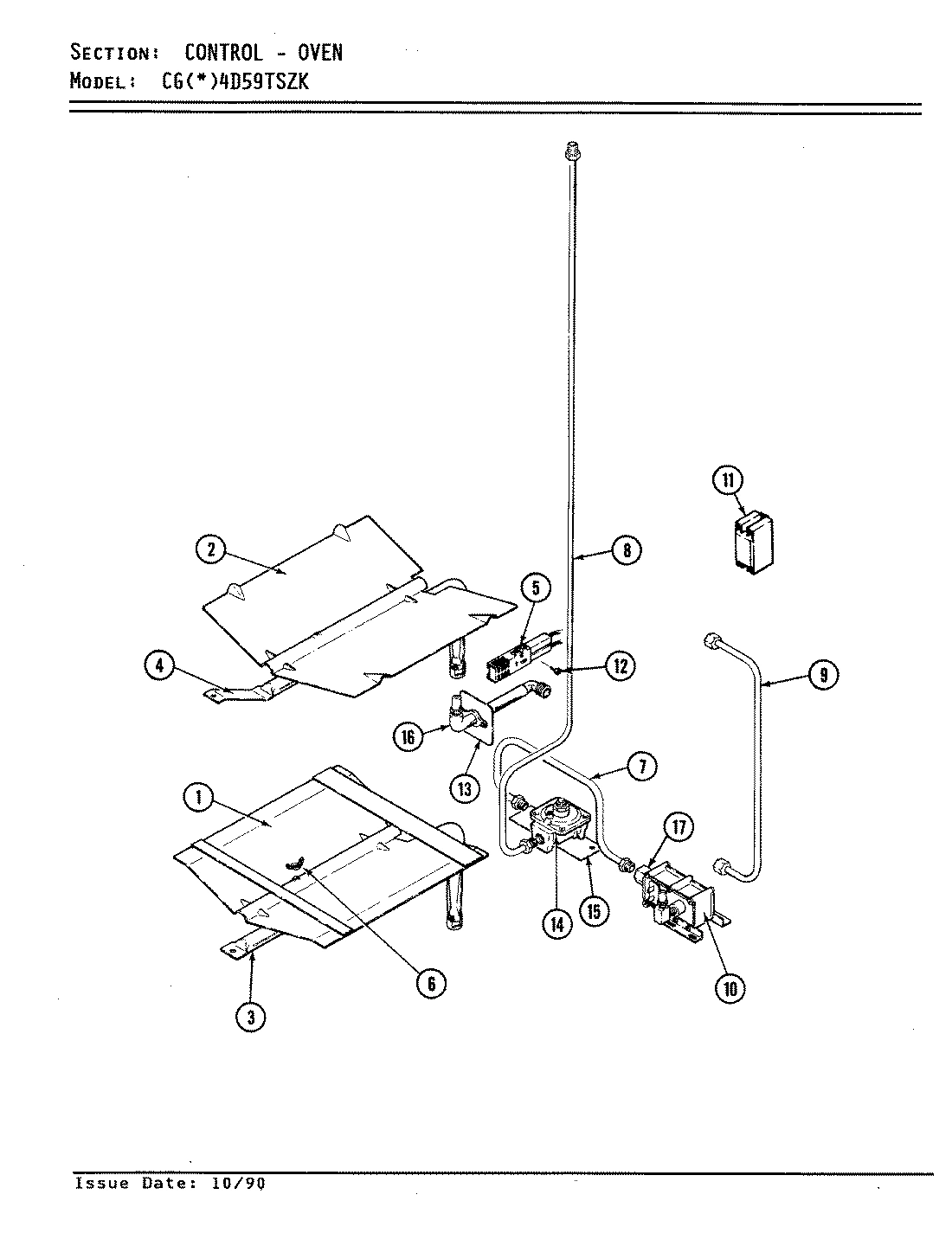

06 - GAS CONTROLS

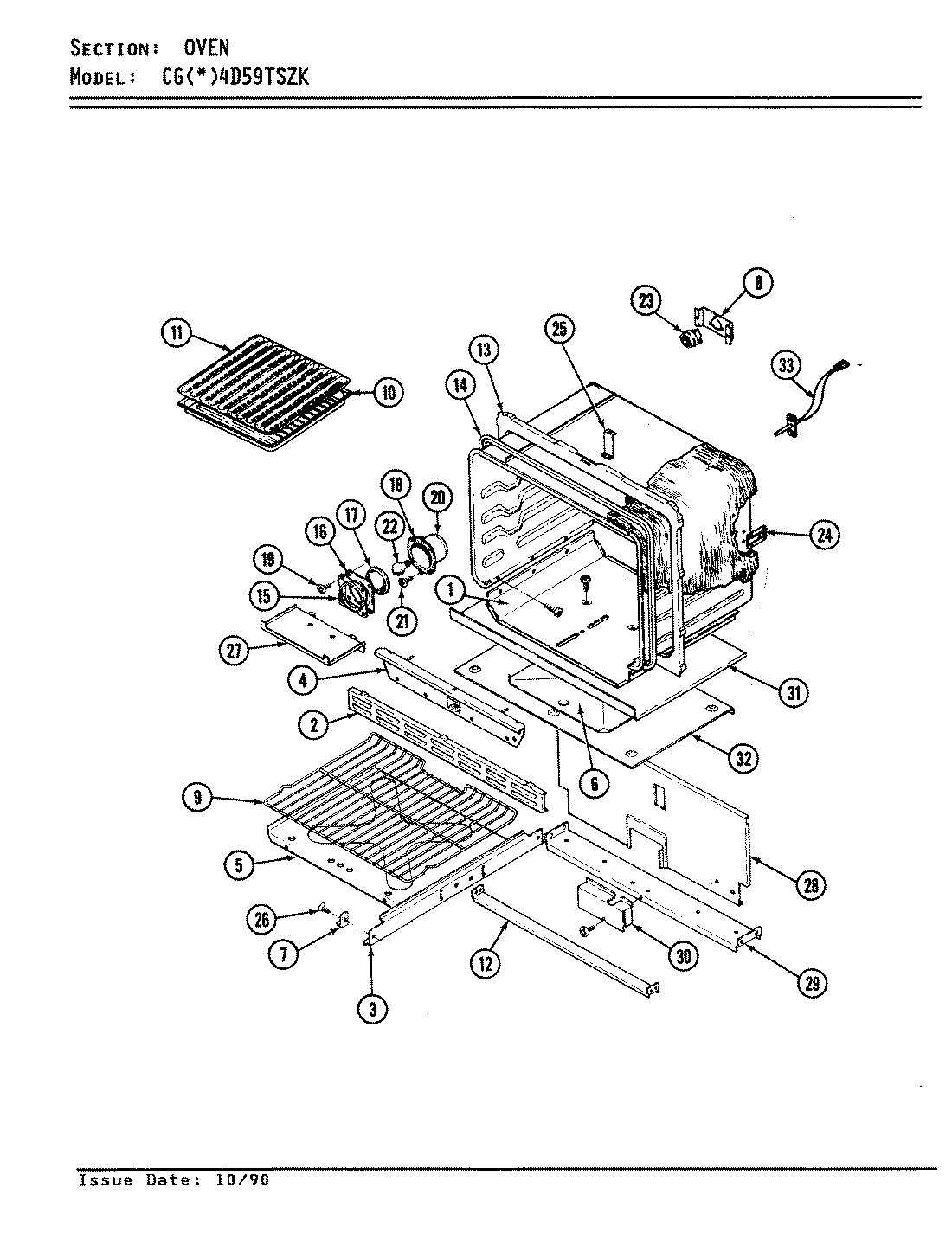

07 - OVEN

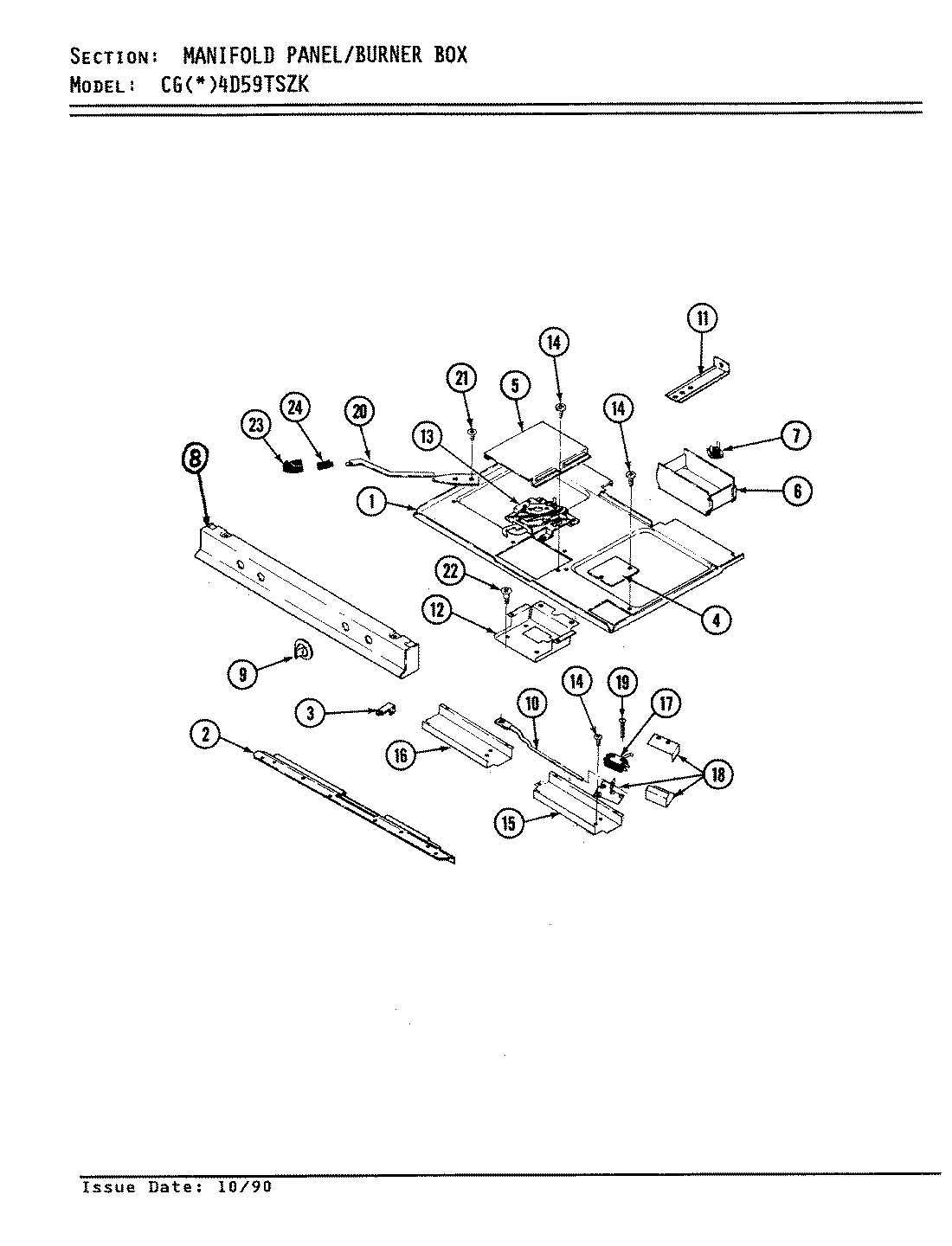

02 - BURNER BOX

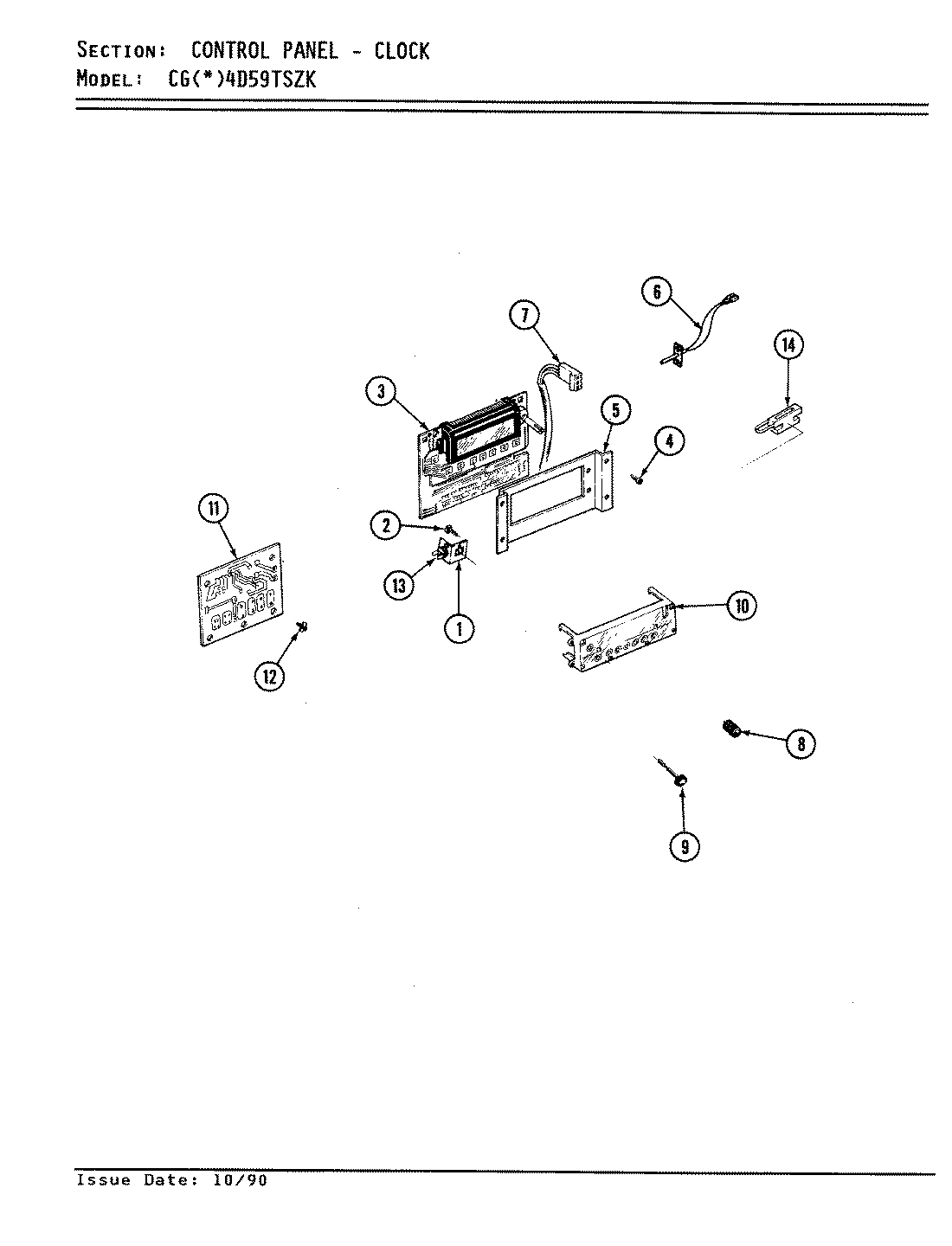

04 - CONTROL PANEL (CLOCK)

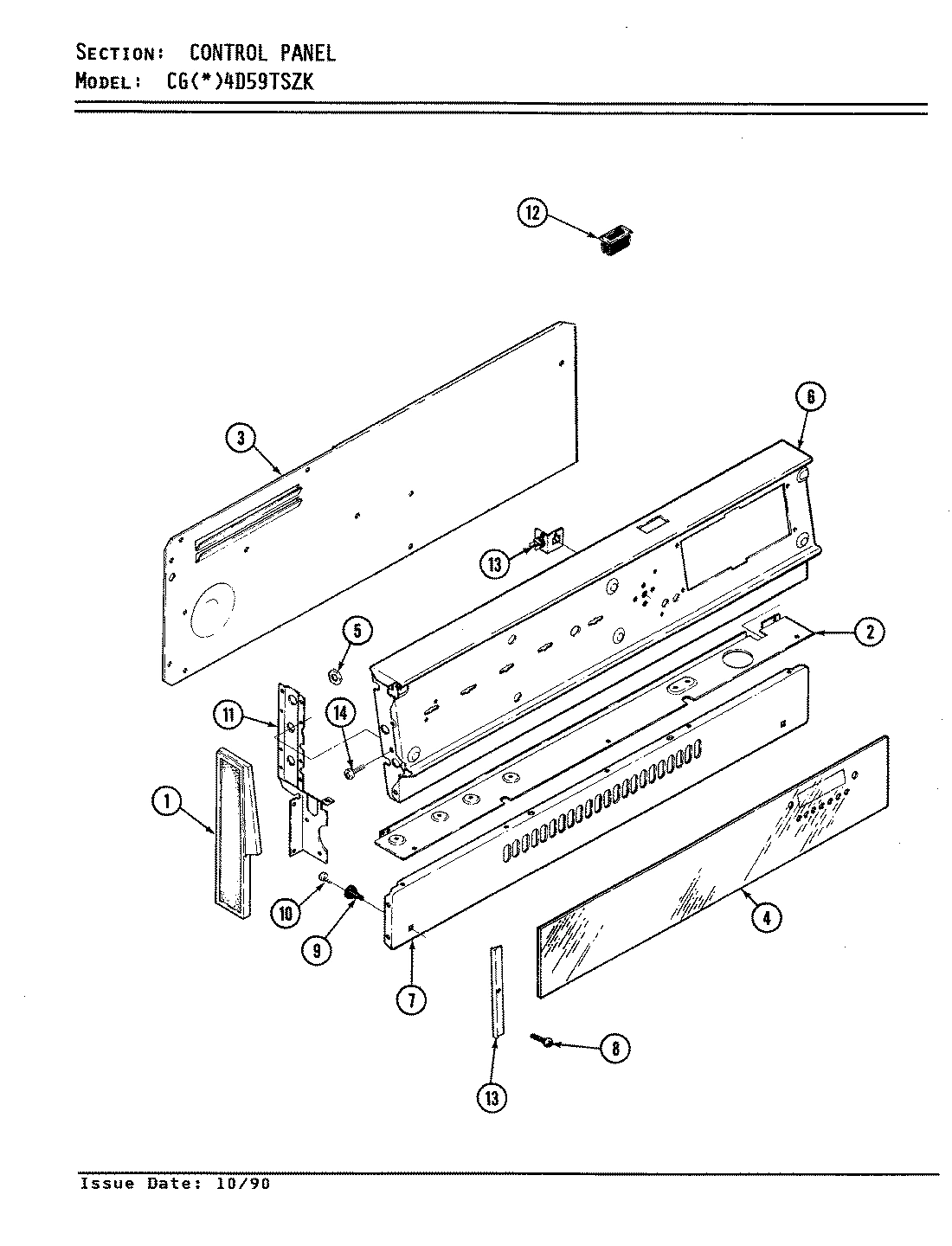

03 - CONTROL PANEL
Common parts from model Whirlpool CGA4D59TSZK GAS RANGE
1
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
1
NUT, NYLON WPL 7103P04560 Contact Us For Availability
1
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
1
WIRE, IGNITER FRONT WPL 5110A82460 Contact Us For Availability
1
WIRE, IGNITER REAR WPL 5110A82560 Contact Us For Availability
1
+ NAT. GAS CONVERSION KIT WPL 5415A01560 Contact Us For Availability
1
LP CONVERSION KIT WPL 5415A01660 Contact Us For Availability
1
BURNER, TOP COMPLETE WPL 7505A15560 Contact Us For Availability
1
BURNER, TOP WPL 7505P18760 Contact Us For Availability
1
ORIFICE, SEALED BURNER-NAT WPL 7509P03460 Contact Us For Availability
1
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
1
BAFFLE WPL 3601W18415 Contact Us For Availability
1
HOUSING, BAKE BURNER WPL 4001F06045 Contact Us For Availability
1
BOTTOM, BURNER BOX WPL 4011F15780 Contact Us For Availability
1
BOTTOM, BURNER BOX WPL 4011F17880 Contact Us For Availability
1
BOTTOM BURNER BOX WPL 4011F20080 Contact Us For Availability
1
BRACKET WPL 3801F21345 Contact Us For Availability
1
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
1
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
2
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
2
CAP, SURFACE BURNER, BLACK WPL 7504P00760 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
2
PANEL, LOWER FRONT WPL 2614F00880 Contact Us For Availability
2
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
2
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
2
COVER, BOTTOM BKDG WIRE WPL 4005F15580 Contact Us For Availability
3
GROMMET, NYLON WPL 8008P01260 Contact Us For Availability
3
BACK, MAIN WPL 4002F13080 Contact Us For Availability
3
GROMMET, NYLON WPL 8008P01460 Contact Us For Availability
3
SCREW WPL 7101P06160 Contact Us For Availability
3
CLIP WPL 7112P07260 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
3
BURNER OVEN WPL 3403A01545 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
3
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
3
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
3
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
3
CLOCK WPL 7601P10160 Contact Us For Availability
3
CLOCK WPL 7601P15560 Contact Us For Availability
3
CLOCK WPL 7601P16360 Contact Us For Availability
3
CLOCK, ELECTRONIC WPL 7601P18160 Contact Us For Availability
3
COVER, BACKGUARD WPL 4005F19480 Contact Us For Availability
4
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
4
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
4
WINDOW PAK WPL 7902S30360 Contact Us For Availability
4
BURNER ASSY BROIL WPL 3403A01645 Contact Us For Availability
4
BURNER, BROIL WPL 3403D02845 Contact Us For Availability
4
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
4
BAFFLE, OVN FRONT WPL 3601W12515 Contact Us For Availability
4
BAFFLE OVEN FRONT WPL 3601W12519 Contact Us For Availability
4
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
4
GLASS, BKGD WPL 7910P09260 Contact Us For Availability
4
GLASS, BKGD WPL 7910P13360 Contact Us For Availability
5
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
5
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
5
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
5
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
5
TAPE, FOIL 3`` X 60 YRDS WPL 8270P03360 Contact Us For Availability
5
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F02015 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
5
BOTTOM, OVEN WPL W10124403 Contact Us For Availability
5
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
5
BRACKET, CLOCK MTG WPL 3801F11845 Contact Us For Availability
5
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
6
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
6
MANIFOLD PIPE WPL 7513P09360 Contact Us For Availability
6
PIPE, MANIFOLD WPL 7513P10460 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
6
NUT, WING WPL 7103P03060 Contact Us For Availability
6
BAFFLE WPL 3601F11645 Contact Us For Availability
6
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
6
CONNECTOR, PIN WPL 7417P00260 Contact Us For Availability
6
OVEN SENSOR WPL 7430P00760 Contact Us For Availability
6
PANEL, BACKGUARD WPL 2601W19984 Contact Us For Availability
6
PANEL, CONTROL (ALMOND) WPL 2601W32884 Contact Us For Availability
7
PIN, HINGE WPL 7113P00260 Contact Us For Availability
7
RING, BLACK WPL 2014F00100 Contact Us For Availability
7
INSULATION DOOR PAD WPL 4804F00660 Contact Us For Availability
7
TUBE, REGULATOR----NA WPL 7506P07560 Contact Us For Availability
7
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
7
SWITCH, HI LIMIT WPL 7403P18760 Contact Us For Availability
7
BUMPER WPL 8003P00360 Contact Us For Availability
7
HARNESS, SENSOR WPL 5170A00760 Contact Us For Availability
7
HARNESS, OVEN SENSOR WPL 5170P08760 Contact Us For Availability
7
HARNESS, OVEN SENSOR WPL 5170P10060 Contact Us For Availability
7
BACKGUARD PANEL WPL 2620W05390 Contact Us For Availability
8
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
8
SCREW WPL 7101P25660 Contact Us For Availability
8
TAPE, 2`` X 60 YD ROLL WPL 8270P07160 Contact Us For Availability
8
TUBE, MANIFOLD FEED----NA WPL 7506P10160 Contact Us For Availability
8
BRACKET WPL 3801F02451 Contact Us For Availability
8
CLIP, TOP RETAINER WPL 7112P04260 Contact Us For Availability
8
TRIM MANIFOLD PNL WPL 7712P08360 Contact Us For Availability
8
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
8
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
8
SCREW WPL 7101P00860 Contact Us For Availability
9
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
9
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
9
SCREW WPL 7101P29660 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
9
TUBING, 3/8 X 20-3/4 WPL 3414F05744 Contact Us For Availability
9
RACK, OVEN WPL 7801P03160 Contact Us For Availability
9
KNOB, VALVE WPL 7733P04060 Contact Us For Availability
9
KNOB, BURNER WPL 7733P06760 Contact Us For Availability
9
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
9
BUTTON, CLOCK SET WPL 7711P45260 Contact Us For Availability
9
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
10
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
10
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
10
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
10
SWITCH WPL 7403P25860 Contact Us For Availability
10
SWITCH WPL 7403P25960 Contact Us For Availability
10
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
10
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
10
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
10
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
10
VALVE, BROIL & BAKE WPL 7501P09160 Contact Us For Availability
10
VALVE, BROIL & BAKE - NAT WPL 7501P09560 Contact Us For Availability
10
PAN, BROIL WPL 3401F00423 Contact Us For Availability
10
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
10
LINK, DOOR LOCK WPL 7807P01260 Contact Us For Availability
10
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
11
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
11
SCREW WPL 7101P05860 Contact Us For Availability
11
TOP, MAIN ALMOND WPL 2001F06384 Contact Us For Availability
11
BRACKET, SPARK MODULE WPL 3801F22645 Contact Us For Availability
11
MODULE, SPARK WPL 7431P01660 Contact Us For Availability
11
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
11
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
11
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
11
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
11
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
11
WIRE HARNESS, CLOCK WPL 5170A06760 Contact Us For Availability
11
RELAY, BOARD ASSY. WPL 7428P00660 Contact Us For Availability
11
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
11
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
12
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
12
TUBE, FRONT BURNER WPL 7506P07660 Contact Us For Availability
12
PAD, DOOR WPL 2410W04115 Contact Us For Availability
12
PAD, DOOR WPL 2410W04119 Contact Us For Availability
12
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
12
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
12
SCREW WPL 7101P04560 Contact Us For Availability
12
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
13
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
13
TUBE, REAR BURNER WPL 7506P07760 Contact Us For Availability
13
PAD, INNER WPL 2410F01651 Contact Us For Availability
13
PLATE, FITTING WPL 3605F01945 Contact Us For Availability
13
NOT REQUIRED PART OR SEE NOTE FRONT,OVEN (NOT WPL W10124350 Contact Us For Availability
13
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
13
SWITCH, H.L. FAN WPL 7403P08760 Contact Us For Availability
13
SWITCH WPL 7403P18860 Contact Us For Availability
13
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
13
TRIM, RETAINER GLASS WPL 7742P00960 Contact Us For Availability
14
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
14
PAD, ASSY. WPL 2410A04115 Contact Us For Availability
14
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P02860 Contact Us For Availability
14
REGULATOR WPL 7510P04060 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P04860 Contact Us For Availability
14
GASKET, FLUE BOX WPL 7201P02660 Contact Us For Availability
14
SCREW WPL 7101P07460 Contact Us For Availability
15
BOX, FLUE ASSY WPL 4006W02623 Contact Us For Availability
15
RIVET WPL 7107P01760 Contact Us For Availability
15
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
15
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
15
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
16
GASKET WPL 7201P01360 Contact Us For Availability
16
SEAL WPL 7208P00260 Contact Us For Availability
16
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
16
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
16
CHANNEL, AIR WPL 3818F02545 Contact Us For Availability
17
BLOCK WPL 7401P01860 Contact Us For Availability
17
CORD, POWER WPL 7402P02460 Contact Us For Availability
17
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
17
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
17
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
17
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
17
INSULATION, SWITCH WPL 7003P03960 Contact Us For Availability
17
SWITCH----NA WPL 7403P07760 Contact Us For Availability
18
PANEL, SIDE (BLACK) WPL 2618F07370 Contact Us For Availability
18
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
18
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
18
SCREW WPL 7101P12360 Contact Us For Availability
18
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
18
SUPPORT, CATCH ASSY. WPL 3807F19545 Contact Us For Availability
18
SUPPORT, CATCH ASSY. WPL 3807F40845 Contact Us For Availability
19
SCREW WPL 7101P11260 Contact Us For Availability
19
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
19
SCREW WPL 7101P06460 Contact Us For Availability
19
SCREW WPL 7101P03160 Contact Us For Availability
20
COVER, MODULE WPL 4005F17480 Contact Us For Availability
20
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
20
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
20
LEVER, DOOR LOCK WPL 8009P01060 Contact Us For Availability
20
LEVER, DOOR LOCK WPL 8009P01960 Contact Us For Availability
21
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
21
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
21
SCREW WPL 7101P01860 Contact Us For Availability
22
BULB, OVEN WPL 7407P02660 Contact Us For Availability
22
BOLT WPL 7116P00360 Contact Us For Availability
23
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
23
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
23
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
23
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
24
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
24
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
24
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
25
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
25
DRAWER, SERVICE WPL 5425A02170 Contact Us For Availability
25
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
26
TUBE, AIR WPL 8026P00660 Contact Us For Availability
26
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
26
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
27
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
27
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
27
SCREW WPL 7101P27360 Contact Us For Availability
28
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
28
BACK, BROIL SECTION WPL 4002F14545 Contact Us For Availability
29
GLASS, INNER WPL 7902P09760 Contact Us For Availability
29
SUPPORT, VALVE WPL 3807F32945 Contact Us For Availability
30
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
30
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
31
RETAINER WPL 3804F02245 Contact Us For Availability
31
SUPPORT, OVEN BOTTOM WPL 3807F38845 Contact Us For Availability
32
SHIELD, SERVICE DRAWER WPL 3604F16245 Contact Us For Availability
33
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
NI
BRACKET WPL 3801F02145 Contact Us For Availability
NI
SLEEVE WPL 7214P00360 Contact Us For Availability
NI
VALVE, TOP BURNER WPL 7502P10060 Contact Us For Availability
NI
VALVE, TOP BURNER WPL 7502P14160 Contact Us For Availability
NI
VALVE, TOP BURNER WPL 7502P22060 Contact Us For Availability
NI
GRATE, BLACK WPL 7518P01460 Contact Us For Availability
NI
LINING WPL 2402W17315 Contact Us For Availability
NI
LINING WPL 2402W17319 Contact Us For Availability
NI
NUT, SNAP WPL 7103P11460 Contact Us For Availability
× ![]()
Login and Registration Form
