Model Electrolux CGA3M2WSTD RANGE – Common Parts & Diagrams

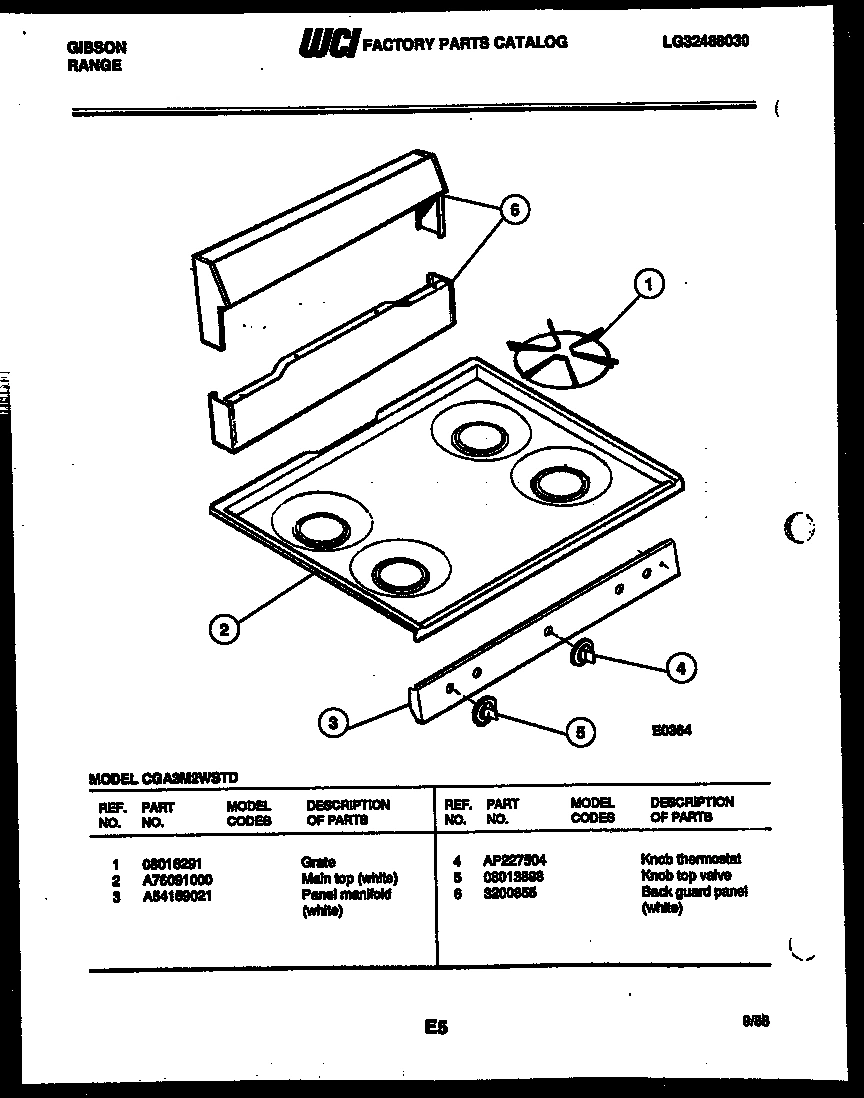

02 - BACKGUARD AND COOKTOP PARTS

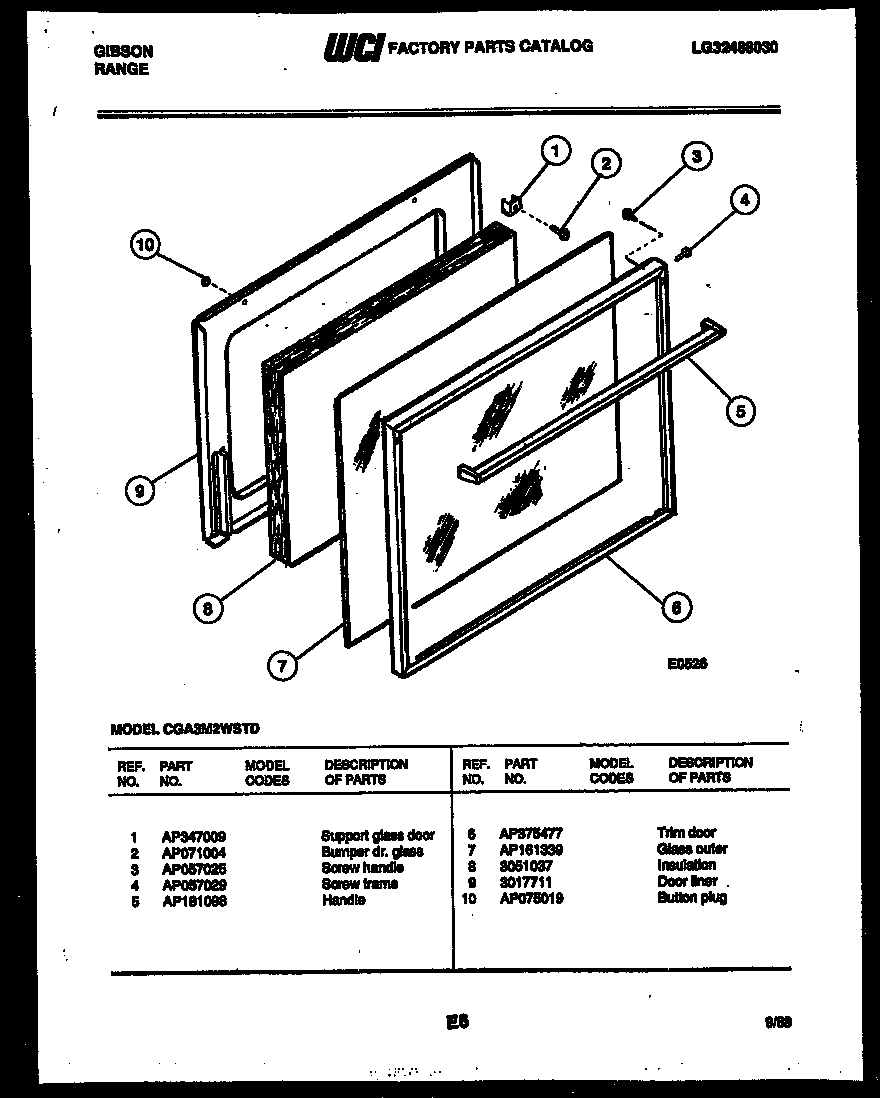

03 - DOOR PARTS

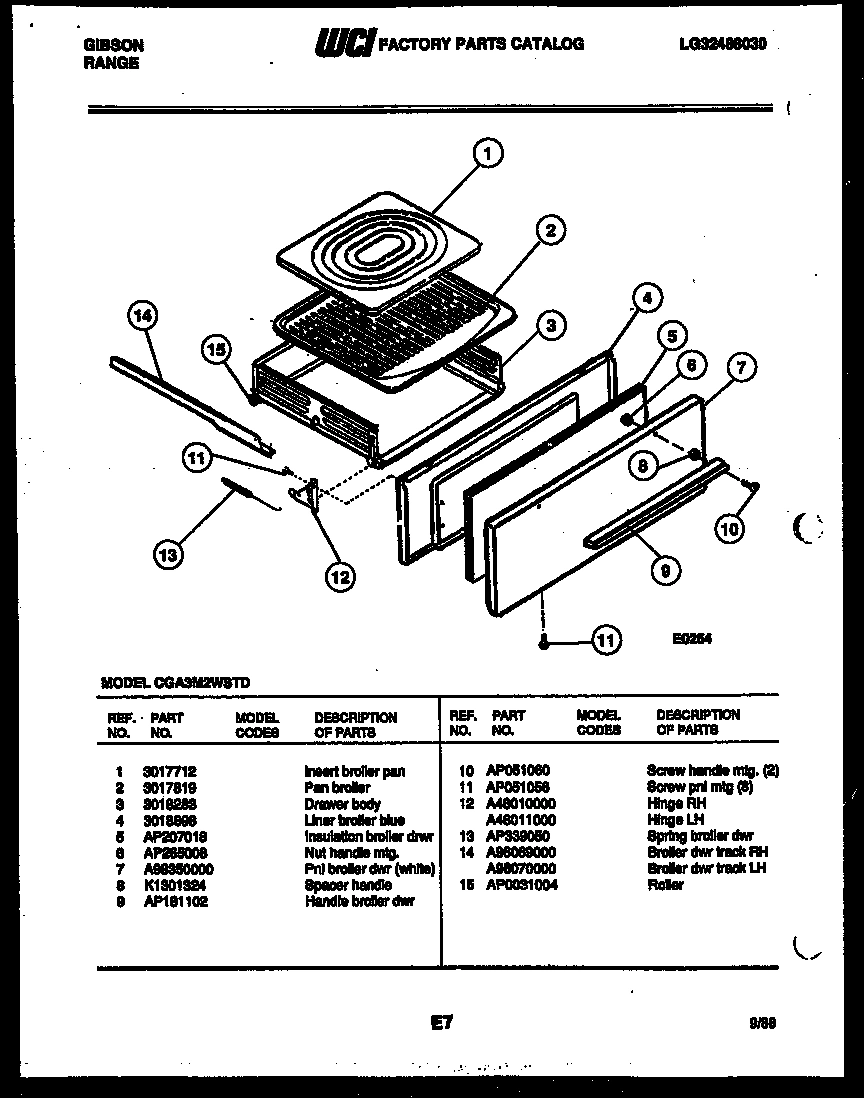

04 - BROILER DRAWER PARTS

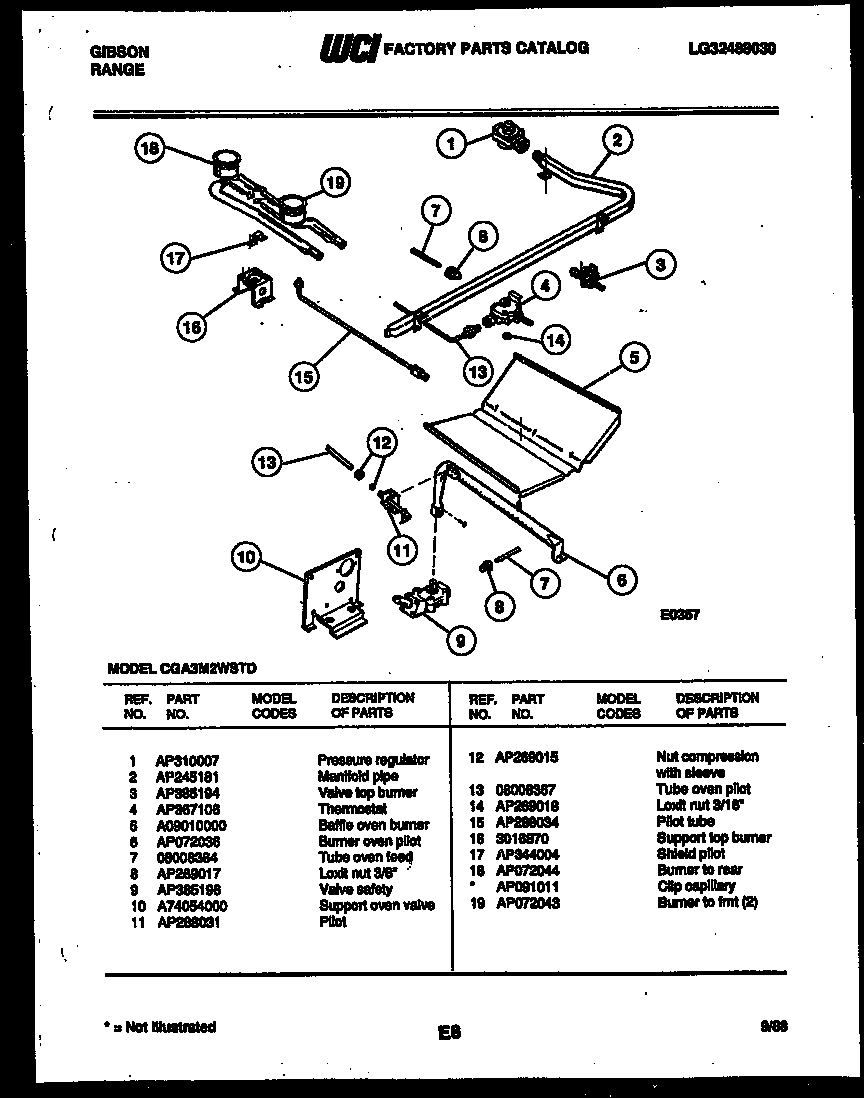

05 - BURNER PARTS

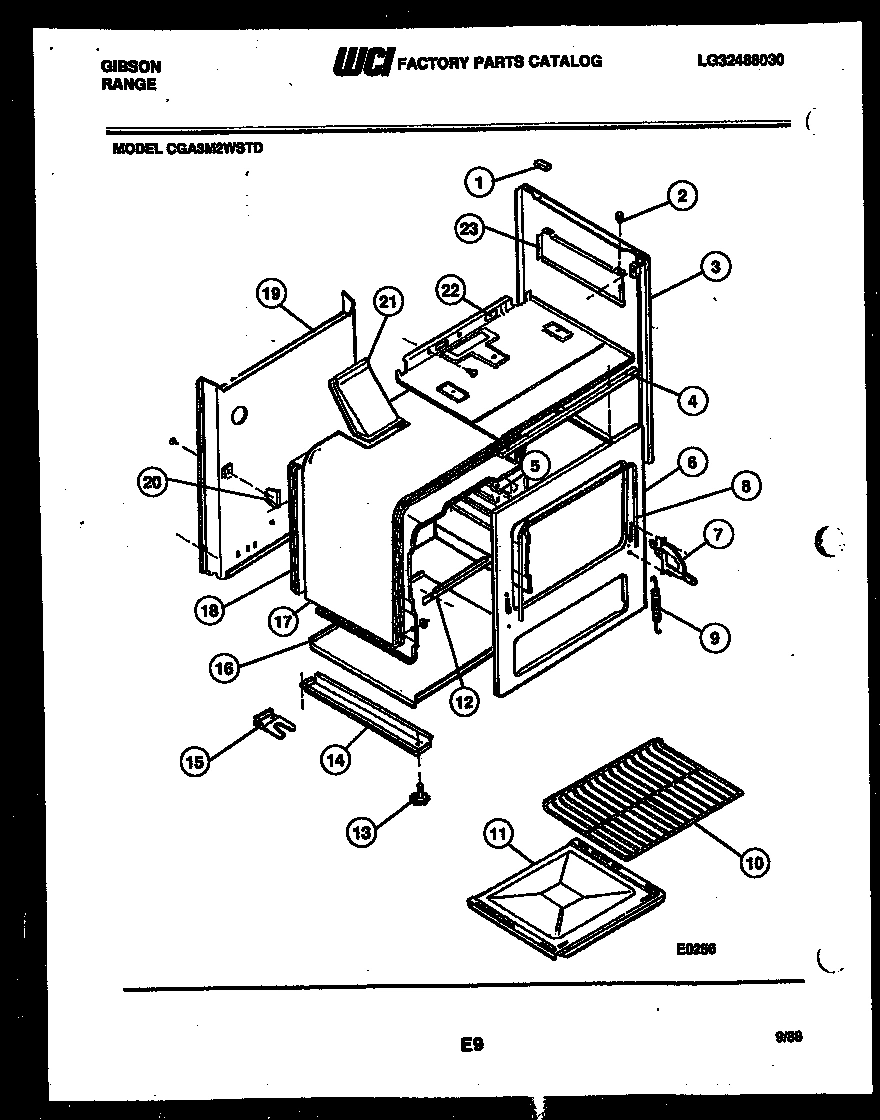

06 - BODY PARTS
Common parts from model Electrolux CGA3M2WSTD RANGE
*14138
CLIP BACKSPLASH CORNER WCI 3131791 Contact Us For Availability
1
WCI 08016291 WCI 08016291 Contact Us For Availability
1
SUPPORT GLASS DOOR WCI AP347009 Contact Us For Availability
1
INSERT-BROILER PAN WCI 3017712 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
2
WCI A76091000 WCI A76091000 Contact Us For Availability
2
BUMPER DR. GLASS WCI AP071004 Contact Us For Availability
2
WCI 3017819 WCI 3017819 Contact Us For Availability
2
WCI AP245181 WCI AP245181 Contact Us For Availability
2
WCI AP172002 WCI AP172002 Contact Us For Availability
3
WCI A54159021 WCI A54159021 Contact Us For Availability
3
SCREW HANDLE WCI AP057025 Contact Us For Availability
3
VALVE-TOP BURNER WCI AP385194 Contact Us For Availability
3
BODYSIDE (WHITE) LH & RH WCI A64013000 Contact Us For Availability
4
WCI AP227504 WCI AP227504 Contact Us For Availability
4
LINER BROILER BLUE WCI 3018698 Contact Us For Availability
4
THERMOSTAT WCI AP367106 Contact Us For Availability
4
SUPPORT-CONTROL PNL WCI A74062000 Contact Us For Availability
5
KNOB - TOP VALVE WCI 08013898 Contact Us For Availability
5
WCI AP181098 WCI AP181098 Contact Us For Availability
5
INSULATION BROILER DRWR WCI AP207018 Contact Us For Availability
5
WCI A09010000 WCI A09010000 Contact Us For Availability
5
OVEN LINER-SIDE RH WCI 3018284 Contact Us For Availability
5A
OVEN LINER-SIDE LH WCI 3018285 Contact Us For Availability
5B
OVEN LINER-TOP WCI 3018700 Contact Us For Availability
5C
OVEN LINER-BACK WCI 3018699 Contact Us For Availability
6
BACK GUARD PANEL (WHITE) WCI 3200855 Contact Us For Availability
6
TRIM DOOR WCI AP375477 Contact Us For Availability
6
NUT HANDLE MTG. WCI AP265008 Contact Us For Availability
6
BURNER OVEN PILOT WCI AP072036 Contact Us For Availability
6
WCI 3017713 WCI 3017713 Contact Us For Availability
7
GLASS-OUTER WCI AP161339 Contact Us For Availability
7
PNL-BROILER DWR. (WHITE) WCI A98350000 Contact Us For Availability
7
WCI 08008364 WCI 08008364 Contact Us For Availability
7A
HINGE DOOR RH WCI A96068000 Contact Us For Availability
8
WCI 3051037 WCI 3051037 Contact Us For Availability
8
WCI K1301324 WCI K1301324 Contact Us For Availability
8
LOXIT NUT 3/8`` WCI AP269017 Contact Us For Availability
8
WCI AP326050 WCI AP326050 Contact Us For Availability
9
DOOR LINER WCI 3017711 Contact Us For Availability
9
HANDLE BROILER DWR WCI AP181102 Contact Us For Availability
9
VALVE SAFETY WCI AP385196 Contact Us For Availability
9
SPRING HINGE LH/RH WCI AP339053 Contact Us For Availability
10
BUTTON-PLUG WCI AP075019 Contact Us For Availability
10
SUPPORT OVEN VALVE WCI A74054000 Contact Us For Availability
10
RACK-OVEN WCI 3016158 Contact Us For Availability
11
SCREW PNL MTG. (8) WCI AP051056 Contact Us For Availability
11
PILOT WCI AP288031 Contact Us For Availability
11
OVEN-BOTTOM WCI 3018697 Contact Us For Availability
12
HINGE-RH WCI A46010000 Contact Us For Availability
12
NUT COMPRESSION WITH SLEEVE WCI AP269015 Contact Us For Availability
12
SUPPORT OVEN BTTM WCI A74055000 Contact Us For Availability
12A
HINGE-LH WCI A46011000 Contact Us For Availability
13
SPRING BROILER DWR WCI AP339050 Contact Us For Availability
13
WCI 08008367 WCI 08008367 Contact Us For Availability
13
LEVELLING LEG WCI 3051080 Contact Us For Availability
14
BROILER DWR TRACK RH WCI A96069000 Contact Us For Availability
14
LOXIT NUT 3/16`` WCI AP269018 Contact Us For Availability
14
RAIL BASE LH/RH WCI 3051081 Contact Us For Availability
14A
BROILER DWR TRACK LH WCI A96070000 Contact Us For Availability
15
WCI AP0031004 WCI AP0031004 Contact Us For Availability
15
PILOT TUBE WCI AP288034 Contact Us For Availability
15
WCI 3131041 WCI 3131041 Contact Us For Availability
16
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
16
WCI A11049000 WCI A11049000 Contact Us For Availability
17
WCI AP344004 WCI AP344004 Contact Us For Availability
17
WCI 3131043 WCI 3131043 Contact Us For Availability
18
BURNER TO REAR WCI AP072044 Contact Us For Availability
18
WCI 3131044 WCI 3131044 Contact Us For Availability
18A
CLIP CAPILLARY (NON-ILLUSTRATED) WCI AP091011 Contact Us For Availability
19
WCI AP072043 WCI AP072043 Contact Us For Availability
19
BACK MAIN WCI A05085000 Contact Us For Availability
20
SUPPORT-OVEN REAR WCI A74060000 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
22
BURNER BOX WCI 3017573 Contact Us For Availability
23
SHIELD HEAT B/B RH WCI A61044000 Contact Us For Availability
23A
SHIELD HEAT B/B LH WCI A61074000 Contact Us For Availability
× ![]()
