Model Whirlpool CG3231XUW GAS RANGE – Common Parts & Diagrams

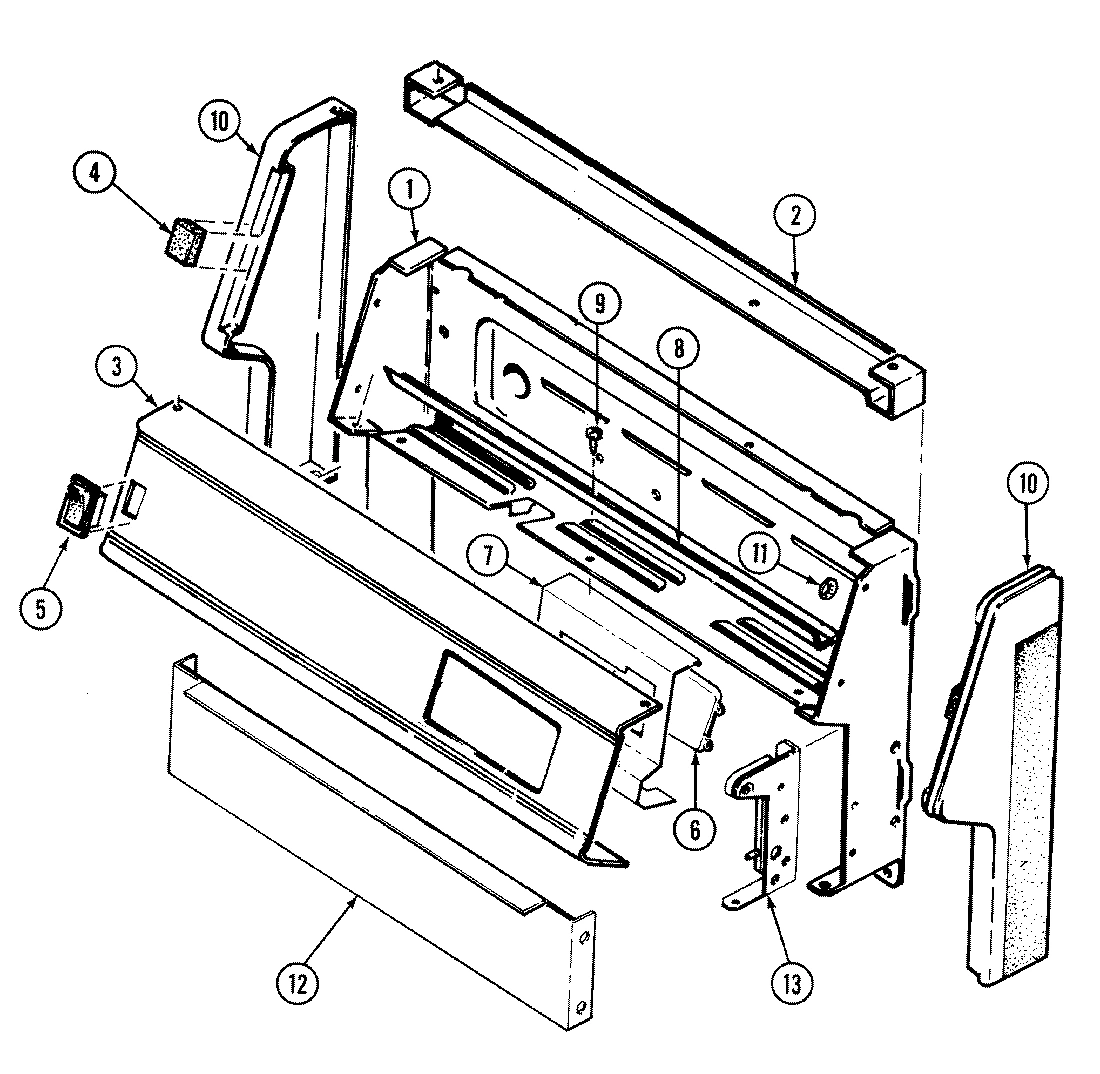

01 - CONTROL PANEL

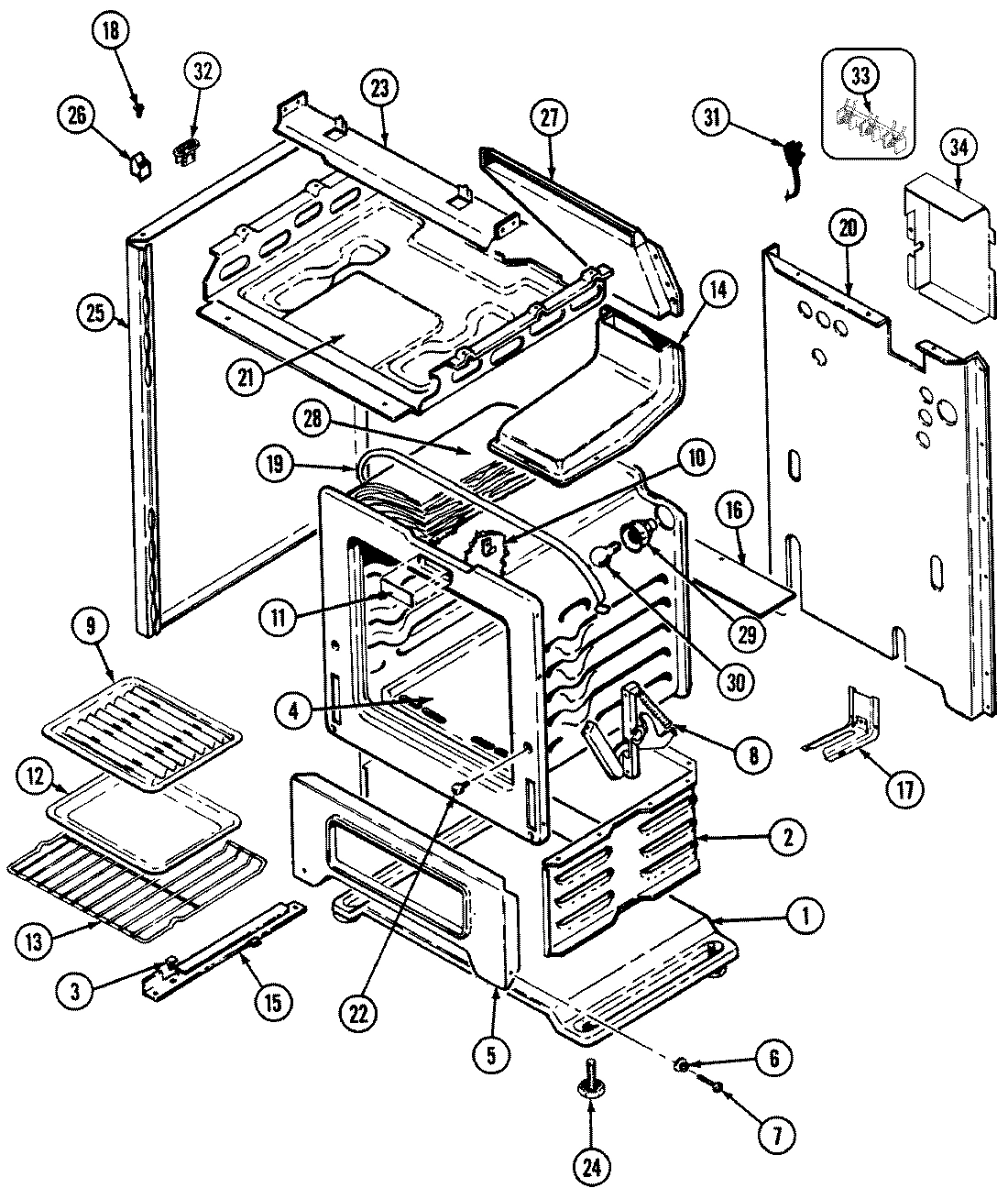

04 - OVEN

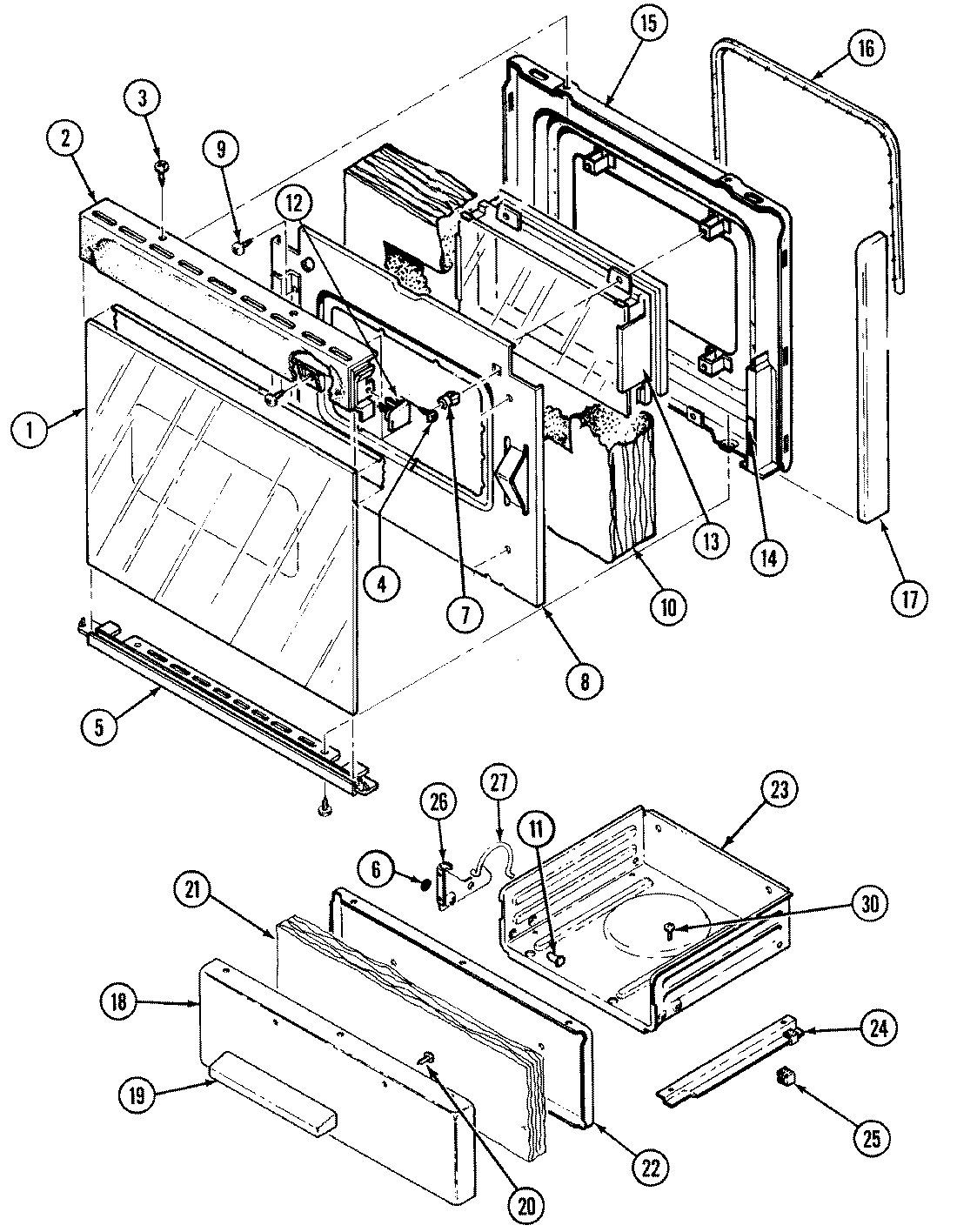

02 - DOOR/DRAWER

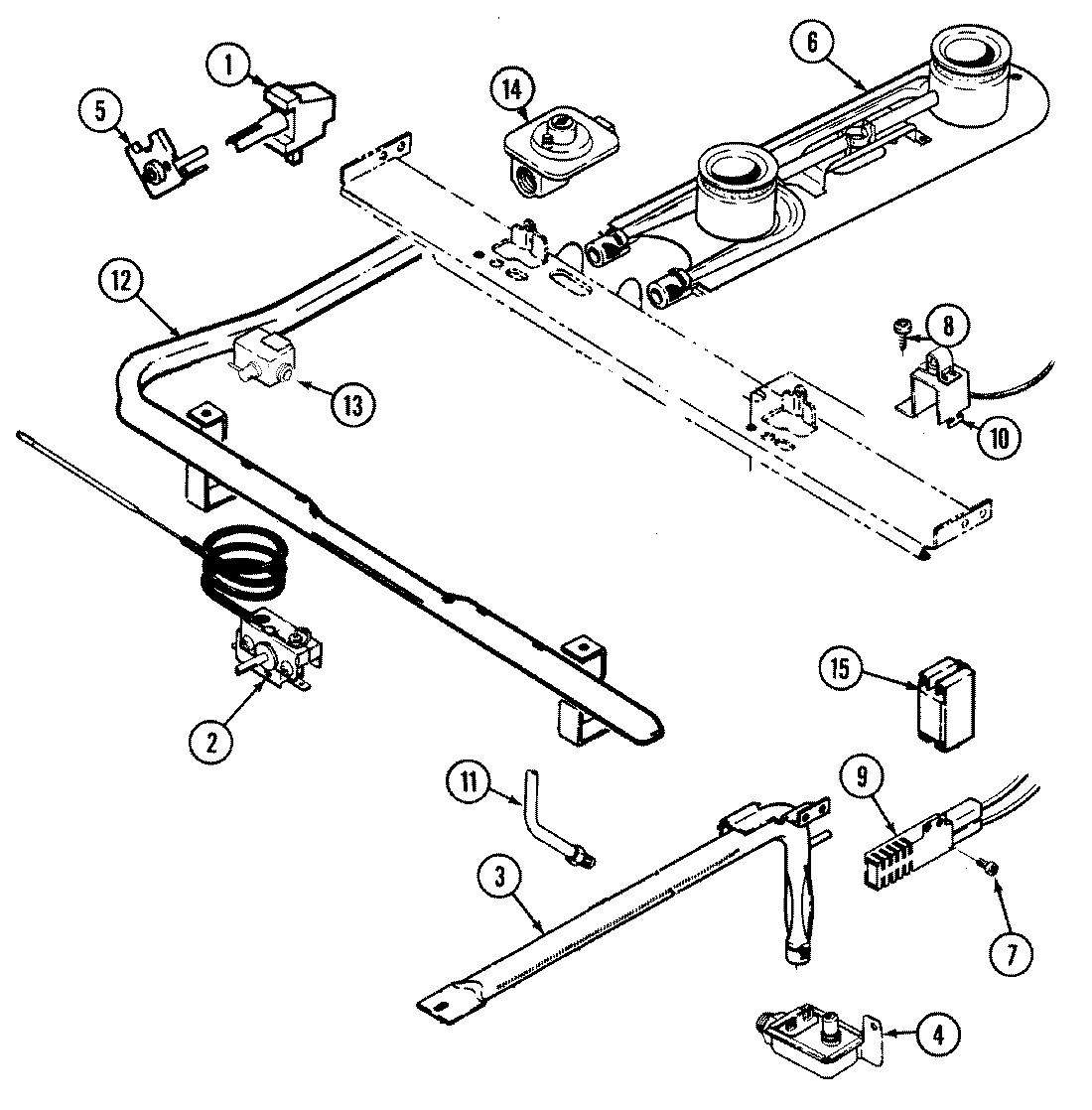

03 - GAS CONTROLS

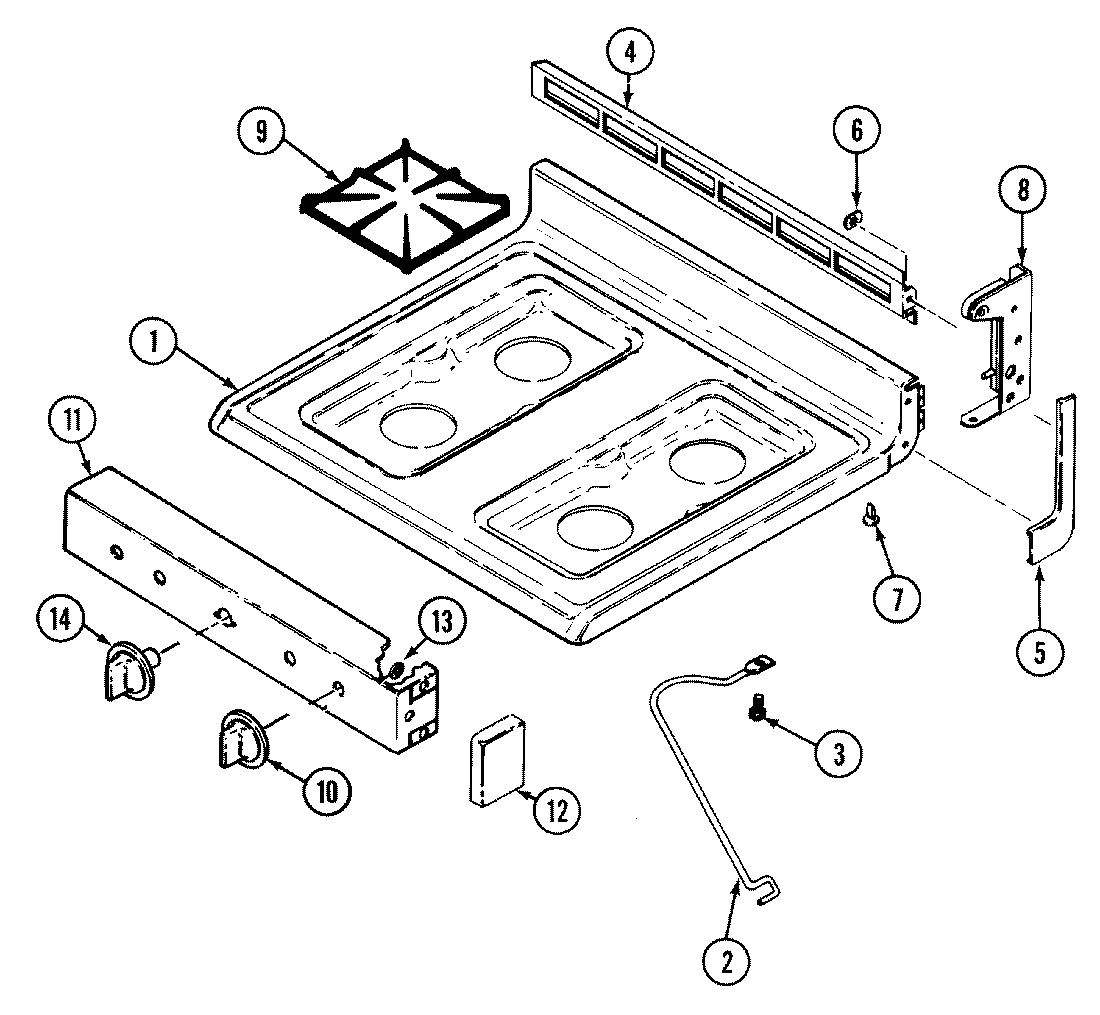

05 - TOP ASSEMBLY
Common parts from model Whirlpool CG3231XUW GAS RANGE
1
BASE, MAIN WPL 4003W02880 Contact Us For Availability
1
NUT WPL 7103P12560 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001W08681 Contact Us For Availability
2
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
2
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
2
SHIELD, THERMOSTAT WPL 3604F17751 Contact Us For Availability
2
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
2
THERMOSTAT WPL 7404P08760 Contact Us For Availability
2
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P63360 Contact Us For Availability
3
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
3
SCREW 3/8`` WPL 7101P14160 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
4
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
4
SCREW WPL 7101P29160 Contact Us For Availability
4
COVER, VALVE WPL 4005F43351 Contact Us For Availability
4
VALVE, OVEN WPL 7501P14460 Contact Us For Availability
4
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
4
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
5
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
5
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
5
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
5
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
5
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
5
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
6
CLOCK (BLK) WPL 7602P11860 Contact Us For Availability
6
NUT, SPEED WPL 7103P12960 Contact Us For Availability
6
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
6
NUT, GRIP WPL 7103P02260 Contact Us For Availability
6
BURNER, TOP WPL 3412A00419 Contact Us For Availability
7
SCREW WPL 7101P14760 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F34045 Contact Us For Availability
7
SCREW WPL 7101P33460 Contact Us For Availability
7
SPACER WPL 8010P07560 Contact Us For Availability
7
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
7
GLIDE WPL 8016P01660 Contact Us For Availability
8
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
8
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
8
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
8
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
8
HINGE WPL 7106P05560 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
8
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
9
SCREW, SHIELD WPL 7101P30360 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
10
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
10
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
10
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
10
IGNITER, TOP (RT) WPL 7432P03160 Contact Us For Availability
10
KNOB, VALVE WPL 7733P05760 Contact Us For Availability
11
COVER LOCK SLOT WPL 8114P33660 Contact Us For Availability
11
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
11
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
11
TUBING WPL 3414F11444 Contact Us For Availability
11
PANEL, MANIFOLD (BLK) WPL 2616F10209 Contact Us For Availability
11
SCREW----NA WPL 7101P31160 Contact Us For Availability
12
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P15960 Contact Us For Availability
12
END CAP, PANEL (BLK) WPL 7713P01860 Contact Us For Availability
13
HARNESS, CONTROL PANEL WPL 5180D13860 Contact Us For Availability
13
HARNESS, SUPPLY WPL 5185D25060 Contact Us For Availability
13
MANUAL, USE & CARE WPL 8113P04260 Contact Us For Availability
13
RACK, OVEN WPL 7801P04760 Contact Us For Availability
13
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
13
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
13
CLIP, SPRING GRIP WPL 7112P09260 Contact Us For Availability
14
BOX, VENT WPL 4006W11345 Contact Us For Availability
14
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
14
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
14
KNOB, THERMOSTAT WPL 7731P09560 Contact Us For Availability
15
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
15
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
15
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
15
LINING, DOOR WPL 2402W20319 Contact Us For Availability
15
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
15
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
15
HARNESS, BURNER BOX WPL 5195D07860 Contact Us For Availability
15
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
16
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
16
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
17
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
17
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
17
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
18
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
18
PANEL, DRAWER (WHT) WPL 2403F02871 Contact Us For Availability
18
PANEL, DRAWER (ALM) WPL 2403F02874 Contact Us For Availability
19
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
19
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
20
BACK, MAIN WPL 4002F19980 Contact Us For Availability
20
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
21
BOX, BURNER WPL 4011F23080 Contact Us For Availability
21
INSULATION WPL 4804F02560 Contact Us For Availability
22
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
22
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
23
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
23
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
24
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
24
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
24
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
24
SCREW WPL 7101P06160 Contact Us For Availability
25
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
25
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
25
GLIDE WPL 8016P01360 Contact Us For Availability
26
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
26
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
26
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
26
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
27
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
27
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
27
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
28
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
28
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
29
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
30
BULB, OVEN WPL 7407P02660 Contact Us For Availability
31
CORD, POWER WPL 7402P04360 Contact Us For Availability
32
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
33
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
34
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
× ![]()
