Model Whirlpool CG3177VUV GAS RANGE – Common Parts & Diagrams

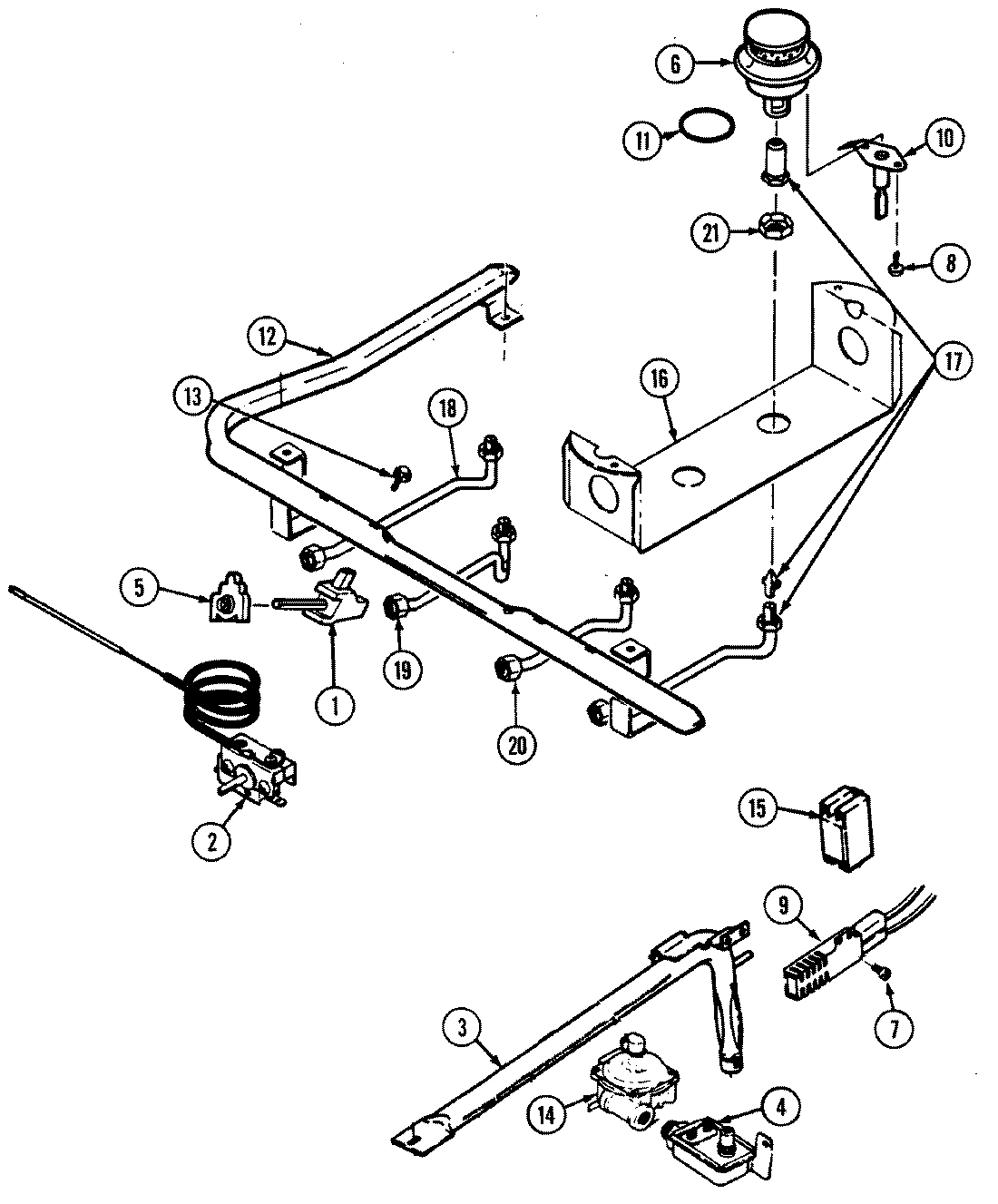

03 - GAS CONTROLS

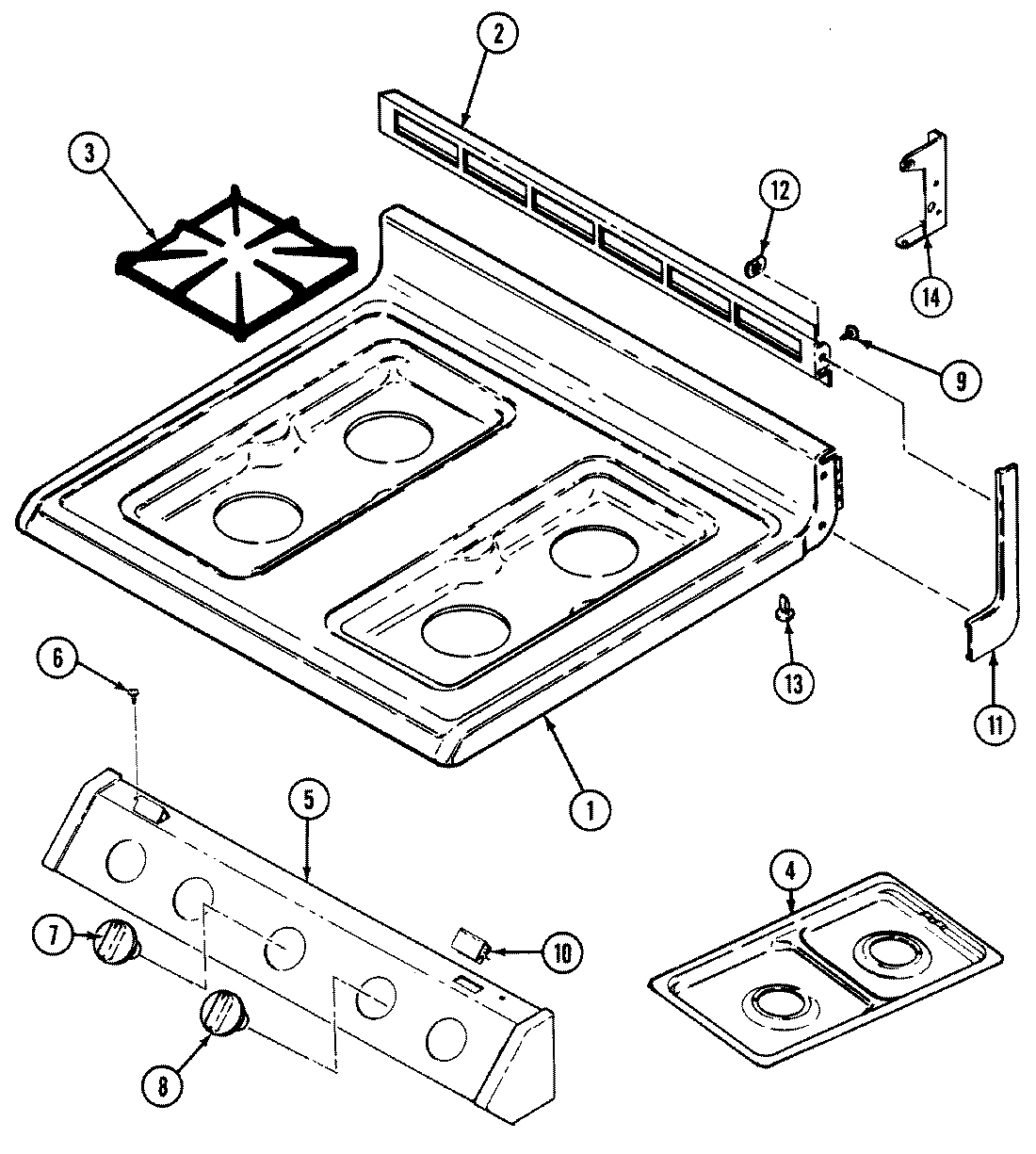

04 - TOP ASSEMBLY

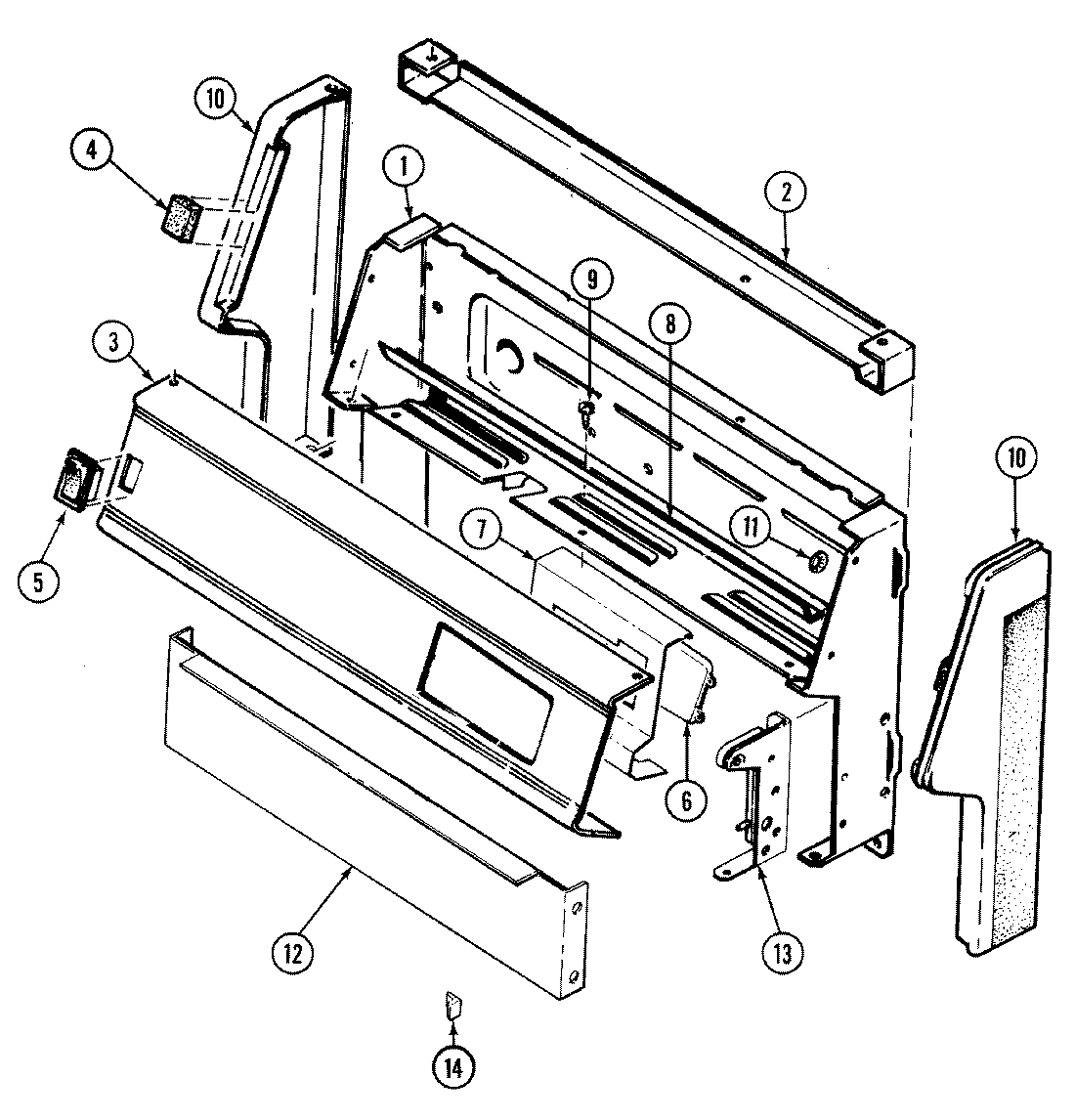

02 - CONTROL PANEL

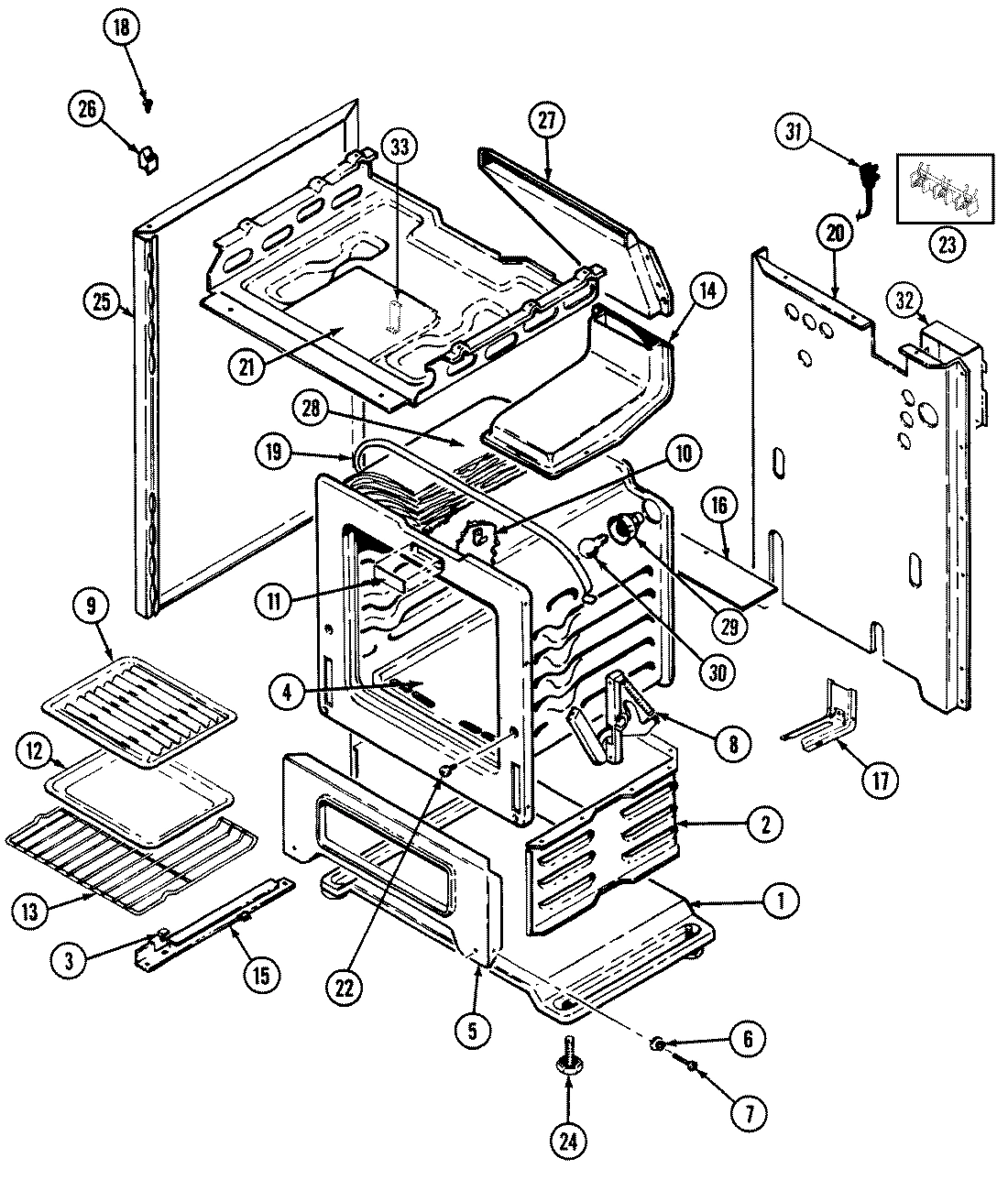

01 - BODY
Common parts from model Whirlpool CG3177VUV GAS RANGE
1
VALVE, BURNER WPL 7502P25060 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001W08581 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09751 Contact Us For Availability
1
BASE, MAIN WPL 4003W02880 Contact Us For Availability
1
NUT WPL 7103P12560 Contact Us For Availability
2
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
2
THERMOSTAT WPL 7404P08760 Contact Us For Availability
2
TRIM, VENT (DARK GRAY) WPL 3608F04226 Contact Us For Availability
2
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
2
SIDES, BROILER WPL 4016F04445 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
3
GRATE (GRY) WPL 2003W02726 Contact Us For Availability
3
SCREW (WHT) WPL 7101P33360 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P63760 Contact Us For Availability
3
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
4
COVER, VALVE WPL 4005F43351 Contact Us For Availability
4
VALVE, OVEN WPL 7501P09960 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
5
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
5
PANEL, MANIFOLD (WHITE) WPL 7712P16360 Contact Us For Availability
5
SWITCH, ROCKER (WHT) WPL 7403P31460 Contact Us For Availability
5
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
6
SEALED BURNER ASSY. (GRY) WPL 3412D01826 Contact Us For Availability
6
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
6
CLOCK (WHT) WPL 7602P11760 Contact Us For Availability
6
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
7
SCREW WPL 7101P32860 Contact Us For Availability
7
KNOB, THERMOSTAT (WHT) WPL 7731P09160 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F34045 Contact Us For Availability
7
SCREW WPL 7101P14760 Contact Us For Availability
7
SCREW WPL 7101P34560 Contact Us For Availability
8
SCREW WPL 7101P31560 Contact Us For Availability
8
KNOB, VALVE WPL 7733P09160 Contact Us For Availability
8
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
8
HINGE WPL 7106P05560 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
SCREW, SHIELD WPL 7101P30360 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
10
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
10
END CAP (LT-WHT) WPL 7726P08560 Contact Us For Availability
10
END CAP (RT-WHT) WPL 7726P08660 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
11
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
11
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
11
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
11
NUT, SPEED WPL 7103P12960 Contact Us For Availability
11
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
12
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
12
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
13
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
13
GLIDE WPL 8016P01560 Contact Us For Availability
13
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
13
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
13
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
13
RACK, OVEN WPL 7801P04760 Contact Us For Availability
14
REGULATOR, PRESSURE W/FITTING WPL 7510P05060 Contact Us For Availability
14
HARNESS, CONTROL PANEL WPL 5180D13860 Contact Us For Availability
14
SPACER WPL 8010P08360 Contact Us For Availability
14
BOX, VENT WPL 4006W11345 Contact Us For Availability
14
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
15
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
15
MODULE, SPARK WPL 7431P02460 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
15
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
16
SUPPORT, ORIFICE FITTING WPL 3807F45145 Contact Us For Availability
16
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
17
FITTING, ORIFICE (R.R.) WPL 7507P08560 Contact Us For Availability
17
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
17
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
18
FITTING, ORIFICE (L.R.) WPL 7507P11360 Contact Us For Availability
18
SCREW WPL 7118P01360 Contact Us For Availability
19
FITTING, ORIFICE (L.F. 9,200) WPL 7507P08460 Contact Us For Availability
19
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
20
FITTING, ORIFICE (R.F.) WPL 7507P09160 Contact Us For Availability
20
BACK, MAIN WPL 4002F19980 Contact Us For Availability
20
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
21
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
21
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
21
HARNESS, BURNER BOX WPL 5195D07860 Contact Us For Availability
21
PALNUT WPL 7103P11960 Contact Us For Availability
21
BOX, BURNER WPL 4011F23080 Contact Us For Availability
22
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
23
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
24
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
25
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
25
PANEL, SIDE (ALM) WPL 2618F11074 Contact Us For Availability
26
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
26
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
27
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
28
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
28
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
29
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
30
BULB, OVEN WPL 7407P09560 Contact Us For Availability
31
CORD, POWER WPL 7402P04360 Contact Us For Availability
32
HARNESS, SUPPLY WPL 5185D25060 Contact Us For Availability
32
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
33
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P04360 Contact Us For Availability
× ![]()
