Model Whirlpool CG31400ADW GAS RANGE – Common Parts & Diagrams

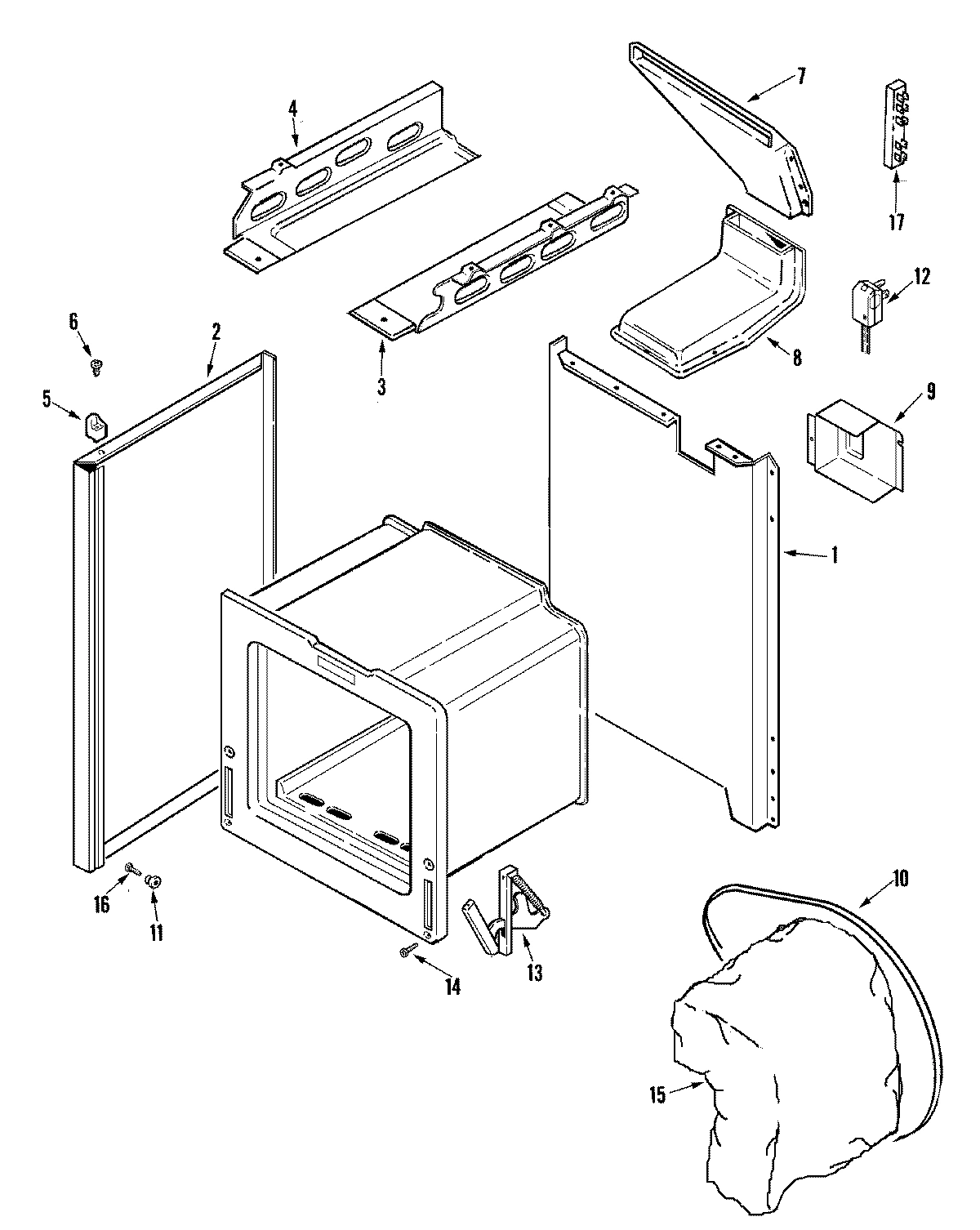

01 - BODY
06 - SUPPLEMENTAL INFORMATION
07 - WIRING INFORMATION

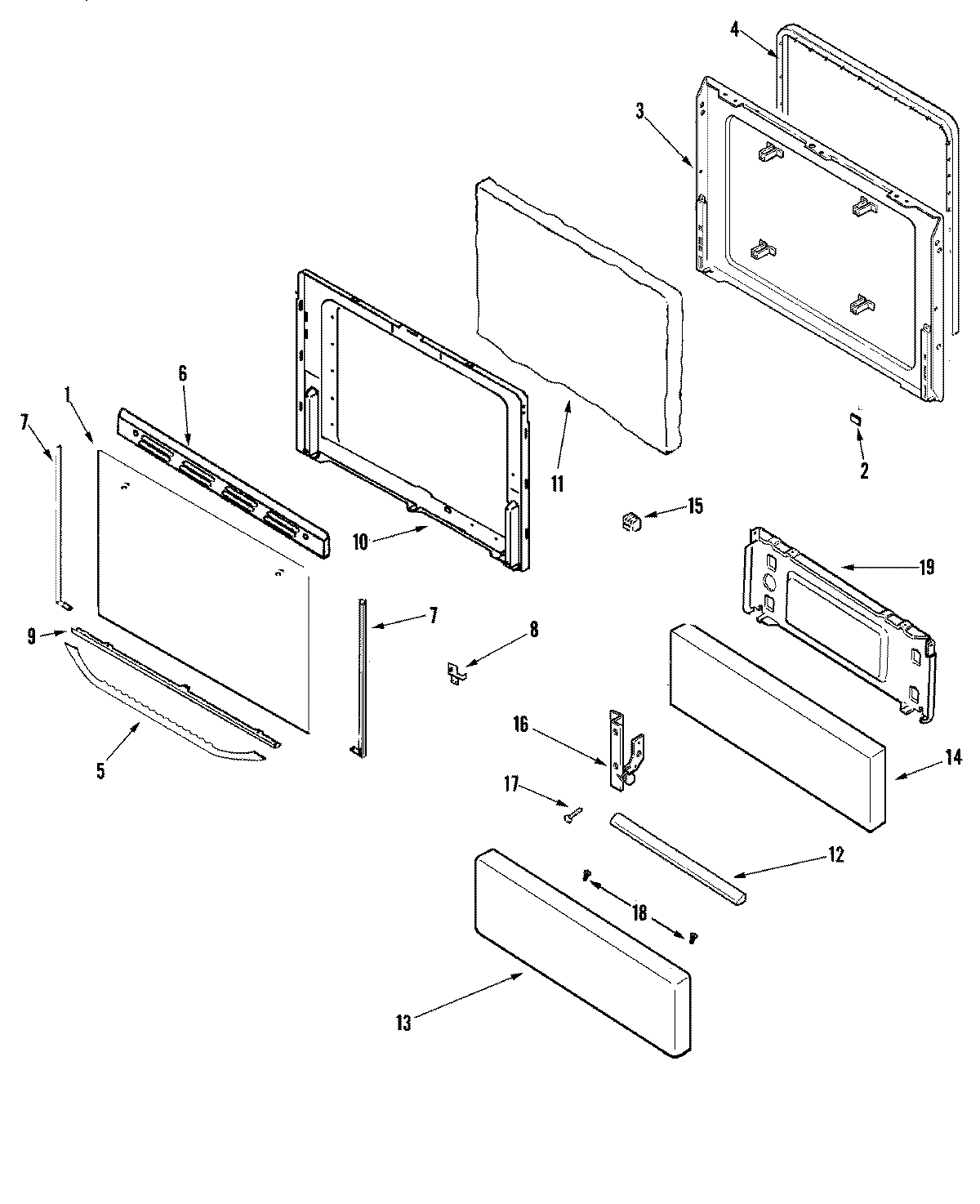

03 - DOOR/DRAWER

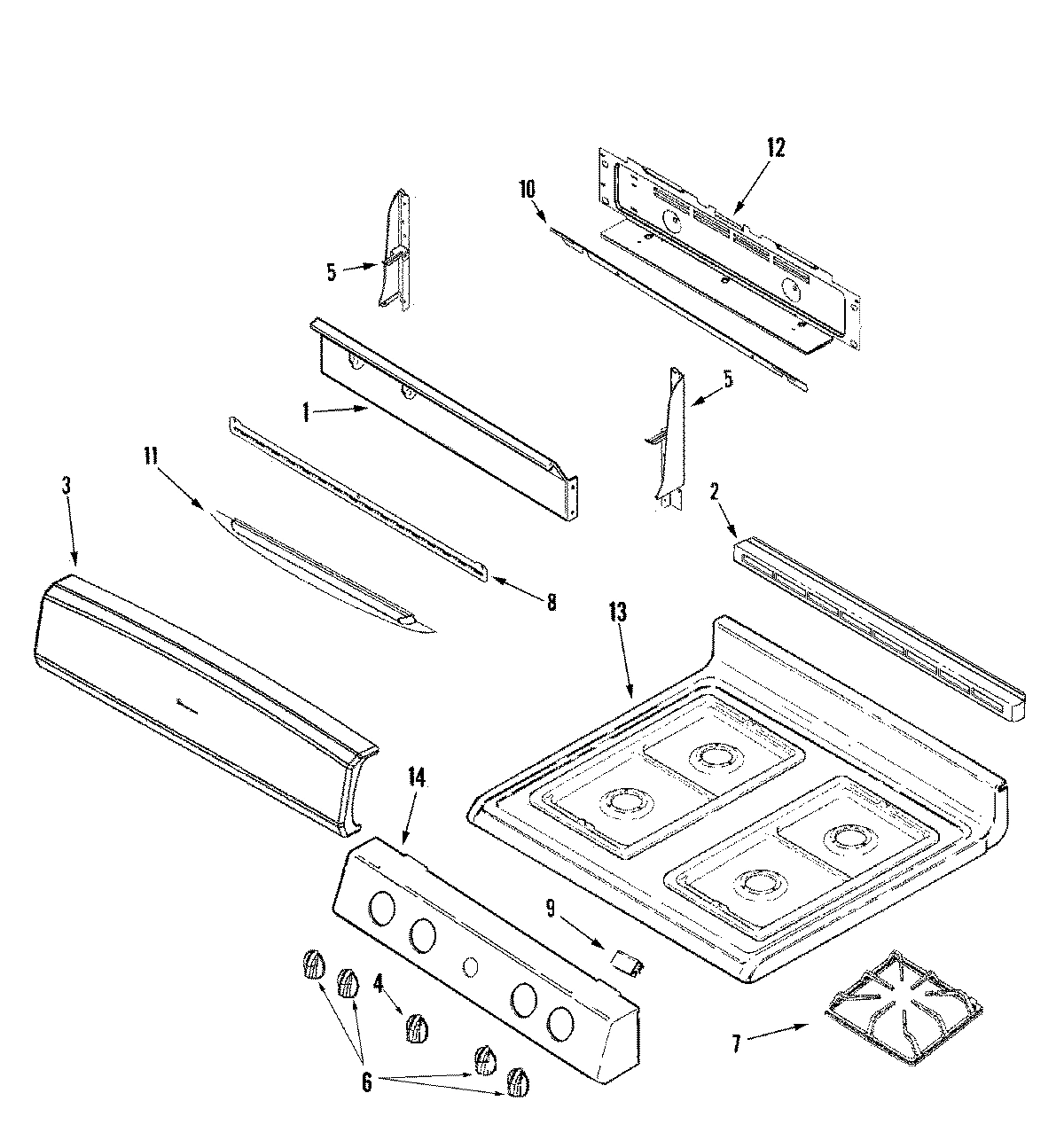

02 - CONTROL PANEL/TOP ASSEMBLY

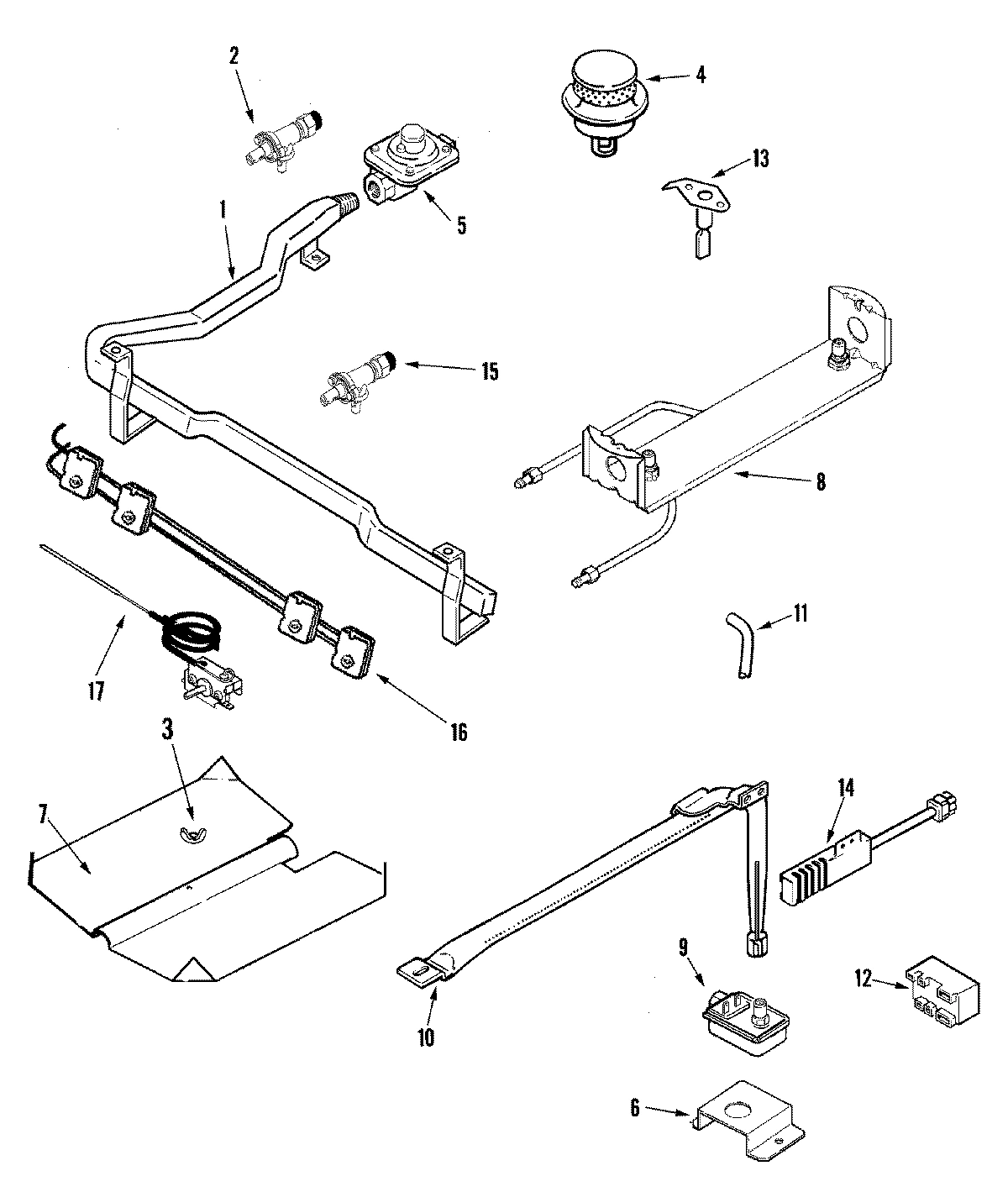

04 - GAS CONTROLS

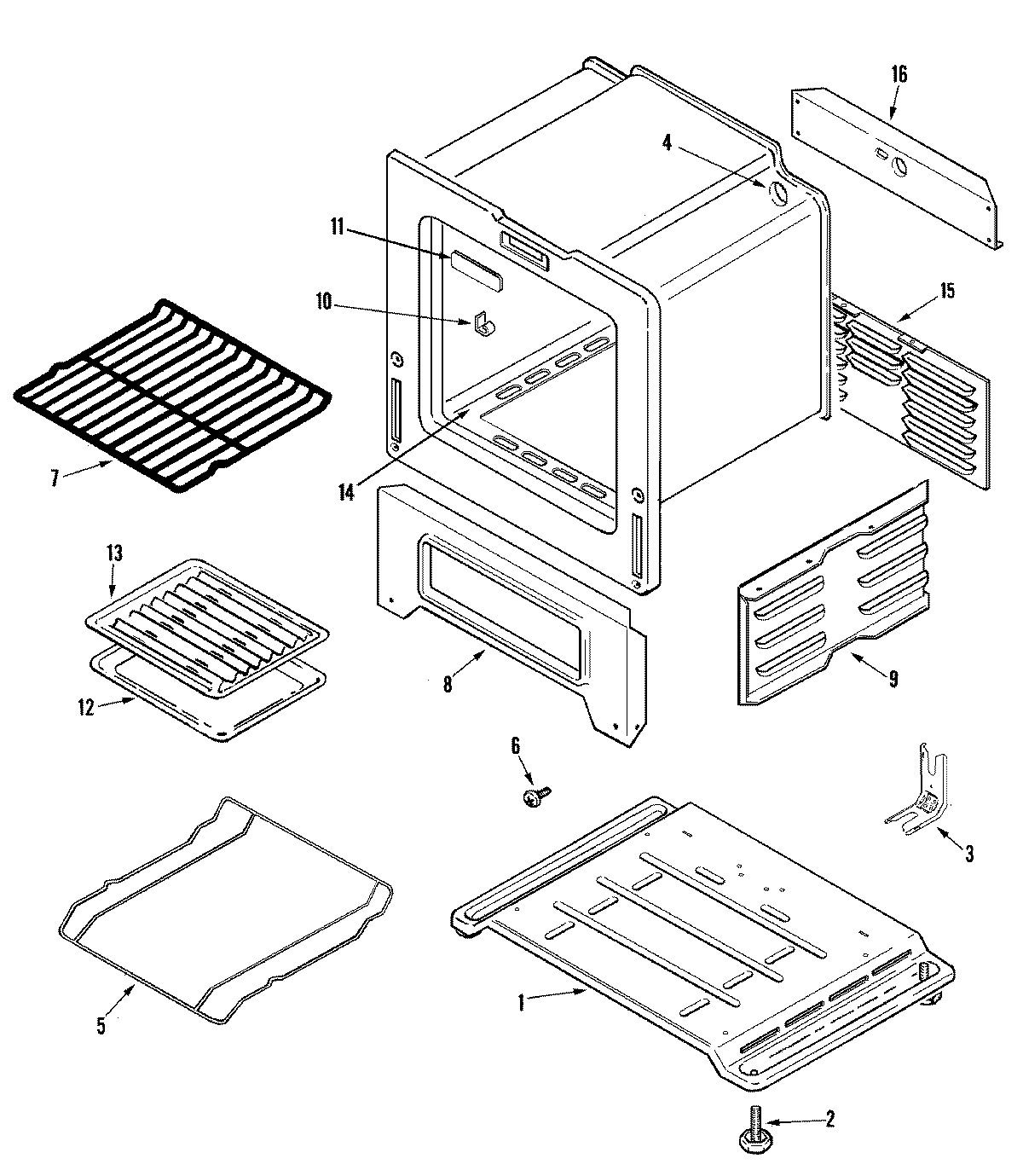

05 - OVEN/BASE
Common parts from model Whirlpool CG31400ADW GAS RANGE
1
GLASS, DOOR (BLK) WPL 74010335 Contact Us For Availability
1
CLIP, FRAMELESS DOOR WPL 74010447 Contact Us For Availability
1
SCREW WPL 7101P14760 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74009779 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74009886 Contact Us For Availability
1
BASE, MAIN WPL 74005215 Contact Us For Availability
2
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 74009797 Contact Us For Availability
2
VALVE (MUELLER) WPL 74009462 Contact Us For Availability
2
VALVE (MUELLER 7.2) WPL 74009770 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74009767 Contact Us For Availability
3
LINING, OVEN DOOR WPL 74009377 Contact Us For Availability
3
PANEL, BACKGUARD (BLK) WPL 74010464 Contact Us For Availability
3
NUT, WING WPL 7103P03060 Contact Us For Availability
3
SCREW WPL 7101P35260 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74009768 Contact Us For Availability
4
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
4
KNOB, THERMOSTAT (BLK) WPL 74010444 Contact Us For Availability
4
COVER, HOLE WPL 74002380 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
HANDLE, DOOR (BLK) WPL 74010338 Contact Us For Availability
5
Handle, Door (BLK) WPL 7701P53960 Contact Us For Availability
5
SUPPORT, BACKGUARD (RT-BLK) WPL 74010201 Contact Us For Availability
5
SUPPORT, BACKGUARD (LT-BLK) WPL 74010202 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 74006282 Contact Us For Availability
5
RACK, BROILER WPL 74002381 Contact Us For Availability
6
TRIM, DOOR TOP (BLK) WPL 74010239 Contact Us For Availability
6
KNOB, VALVE (BLK) WPL 74010432 Contact Us For Availability
6
BRACKET, OVEN VALVE WPL 74005051 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
7
SCREW, (8 X 1/4) (BLK) WPL 74009801 Contact Us For Availability
8
BOX, VENT WPL 74006420 Contact Us For Availability
8
SHIELD, SIGHT WPL 74009780 Contact Us For Availability
8
FRONT, OVEN (LWR) WPL 74002327 Contact Us For Availability
9
COVER, ACCESS WPL 74004591 Contact Us For Availability
9
CLIP, TOP LOCKING WPL 74004827 Contact Us For Availability
9
SCREW WPL 74009416 Contact Us For Availability
9
VALVE, SAFETY WPL 74009891 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
10
SHIELD, WIRE WPL 74009708 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
SHIELD, VENT (BLK) WPL 74009800 Contact Us For Availability
11
TUBING, OVEN BURNER WPL 74006417 Contact Us For Availability
11
PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability
12
CORD, POWER WPL 74007556 Contact Us For Availability
12
COVER, WIRE (2 5/8`` X 2) WPL 74006536 Contact Us For Availability
12
COVER, REAR WIRE (UPR) WPL 74009943 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
13
TOP, MAIN (WHT) WPL 74003512 Contact Us For Availability
13
IGNITER WPL 74004410 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
14
PANEL, MANIFOLD (BLK) WPL 74010465 Contact Us For Availability
14
BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability
14
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
14
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
14
BOTTOM, OVEN ASSY. WPL 74011347 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 74002634 Contact Us For Availability
15
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
16
BACK, BROILER WPL 74002379 Contact Us For Availability
17
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
19
SPACER, RUBBER (BLK-SQUARE) WPL 74010267 Contact Us For Availability
19
LINING, DRAWER WPL 74007553 Contact Us For Availability
NI
HARNESS, SUPPLY WPL 74006924 Contact Us For Availability
NI
HARNESS, BURNER BOX WPL 74007262 Contact Us For Availability
NI
BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability
NI
HARNESS, GAS WPL 74009888 Contact Us For Availability
NI
HARNESS, IGNITOR WPL 74009889 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P44860 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P51460 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P56060 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001767 Contact Us For Availability
× ![]()
