Model Electrolux CG301SP2W2 RANGE – Common Parts & Diagrams

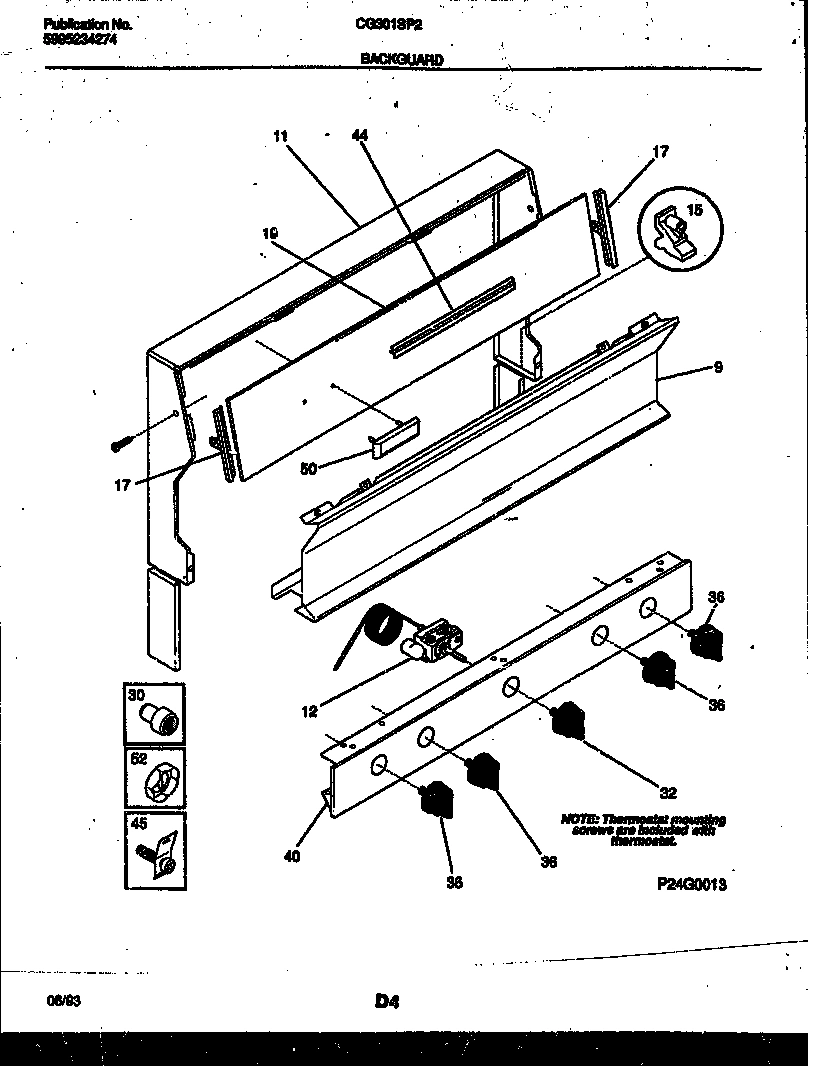

02 - BACKGUARD

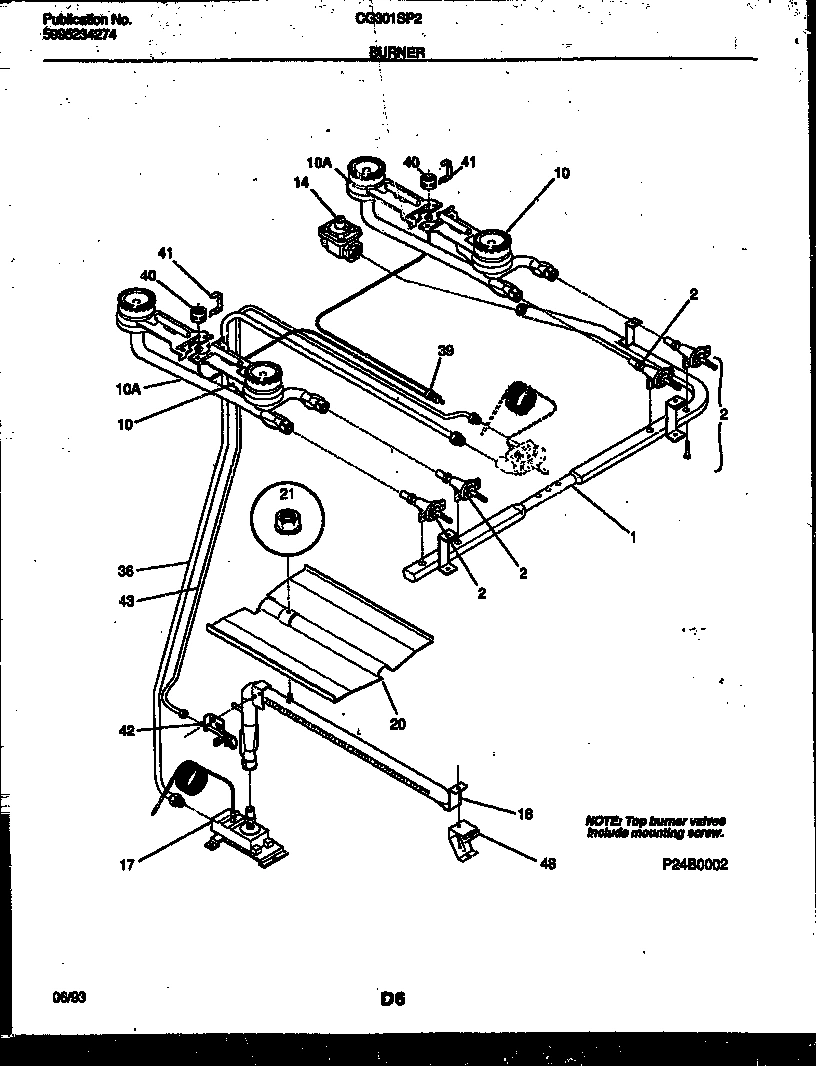

03 - BURNER PARTS

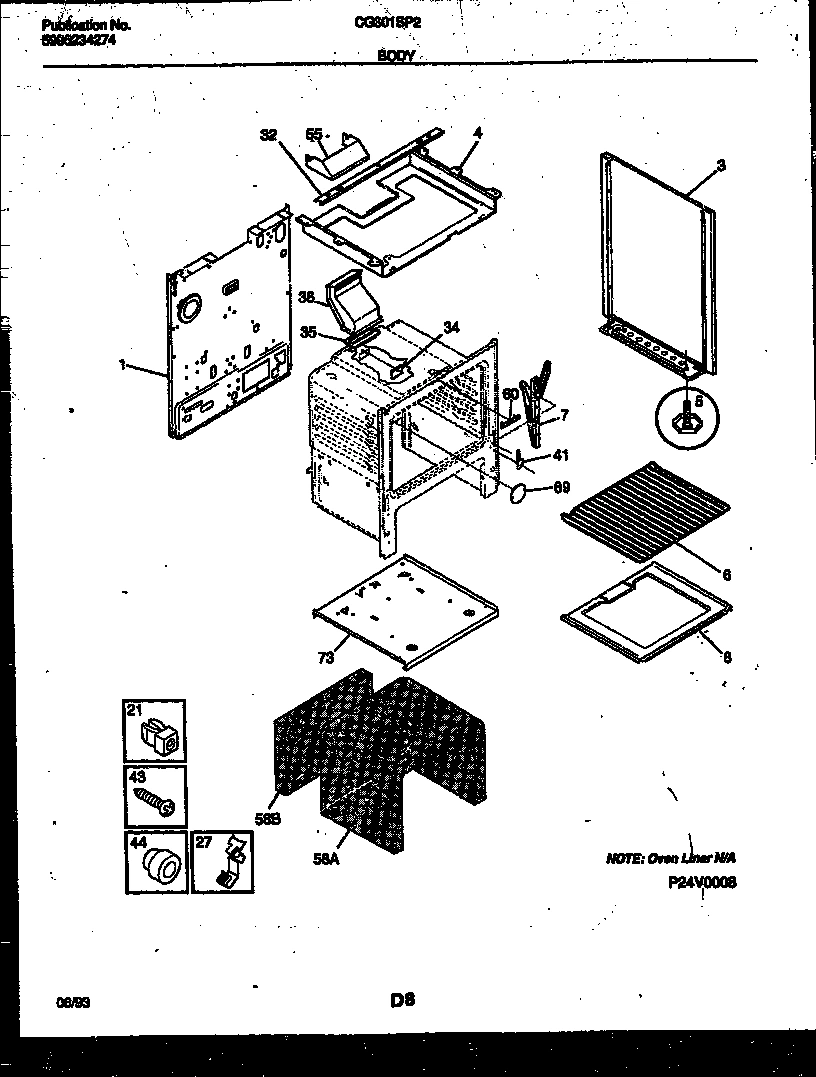

04 - BODY PARTS

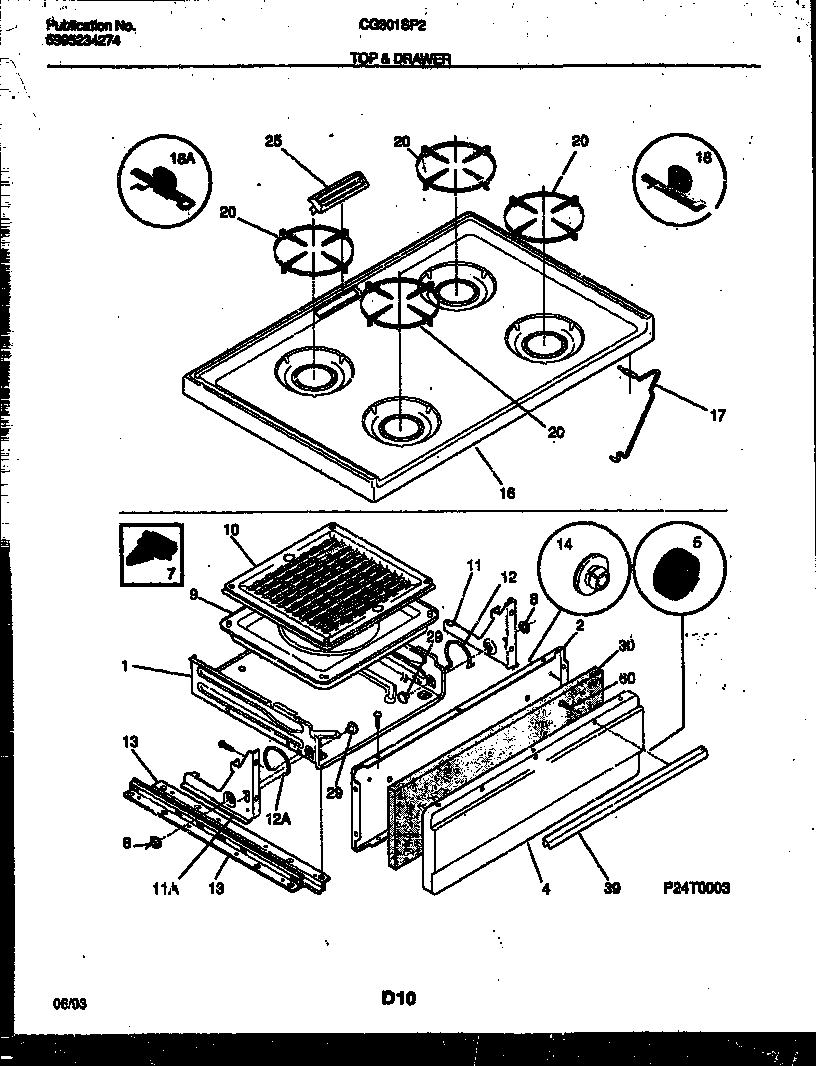

05 - COOKTOP AND BROILER DRAWER PARTS

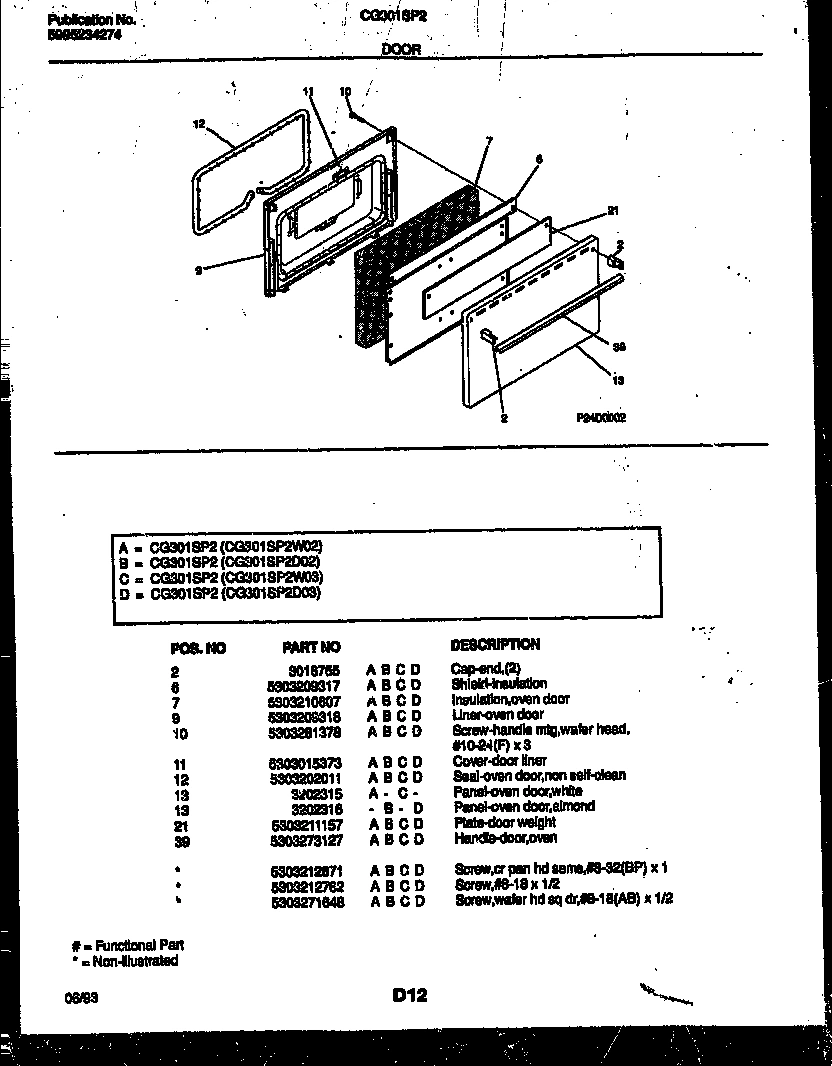

06 - DOOR PARTS
Common parts from model Electrolux CG301SP2W2 RANGE
*78484
WCI 5303212671 WCI 5303212671 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
4
WCI 3131117 WCI 3131117 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5B
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303209317 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
8
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
BRACKET-HINGE, BROILER, RH WCI 3018860 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11A
BRACKET-HINGE, BROILER, LH, (4) WCI 3200673 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
12A
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 3202315 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
14
REGULATOR-PRESSURE WCI 5303016997 Contact Us For Availability
16
WCI 3206214 WCI 3206214 Contact Us For Availability
17
WCI 5303280593 WCI 5303280593 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 5303271609 Contact Us For Availability
18
WCI 5303280585 WCI 5303280585 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
WCI 5303211157 WCI 5303211157 Contact Us For Availability
25
WCI 3131190 WCI 3131190 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
32
WCI 3203394 WCI 3203394 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
39
TUBING-TOP PILOT, DUAL WCI 5303211133 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303273127 Contact Us For Availability
42
WCI 5303280589 WCI 5303280589 Contact Us For Availability
43
Tubing`thermo/pilot `3/16 ,alum WCI 3203398 Contact Us For Availability
55
WCI 3131191 WCI 3131191 Contact Us For Availability
55A
SHIELD-FLUE, (NON-ILLUSTRATED) WCI 3202799 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73
WCI 5303281627 WCI 5303281627 Contact Us For Availability
× ![]()
