Model Electrolux CG300SP2D3 RANGE – Common Parts & Diagrams
02 - BACKGUARD
04 - BURNER, MANIFOLD AND GAS CONTROL

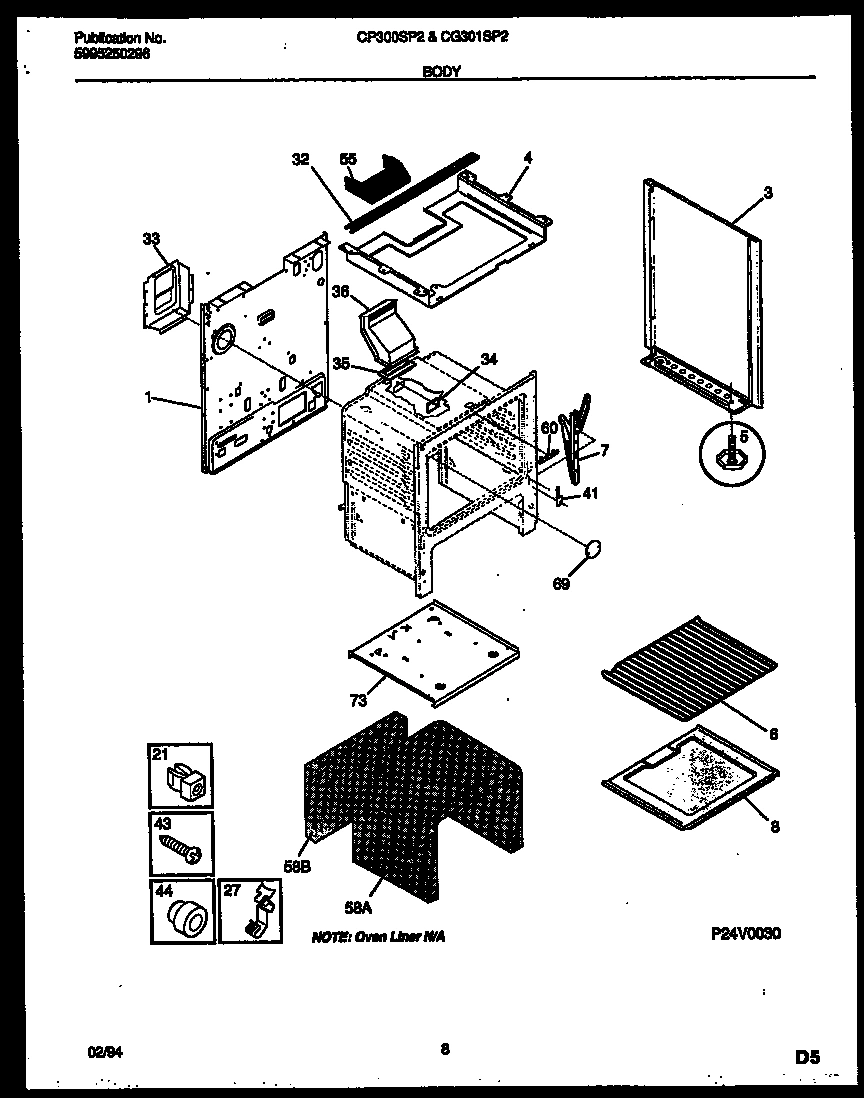

05 - BODY PARTS

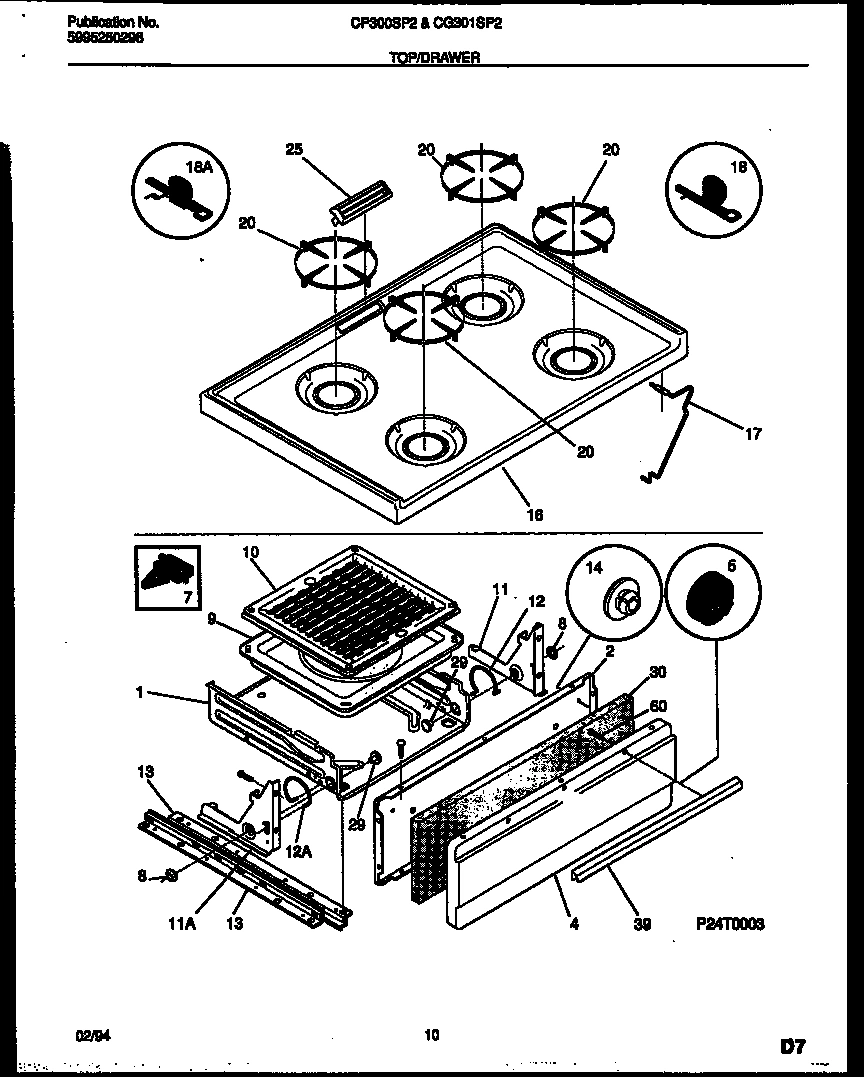

06 - COOKTOP AND BROILER DRAWER PARTS

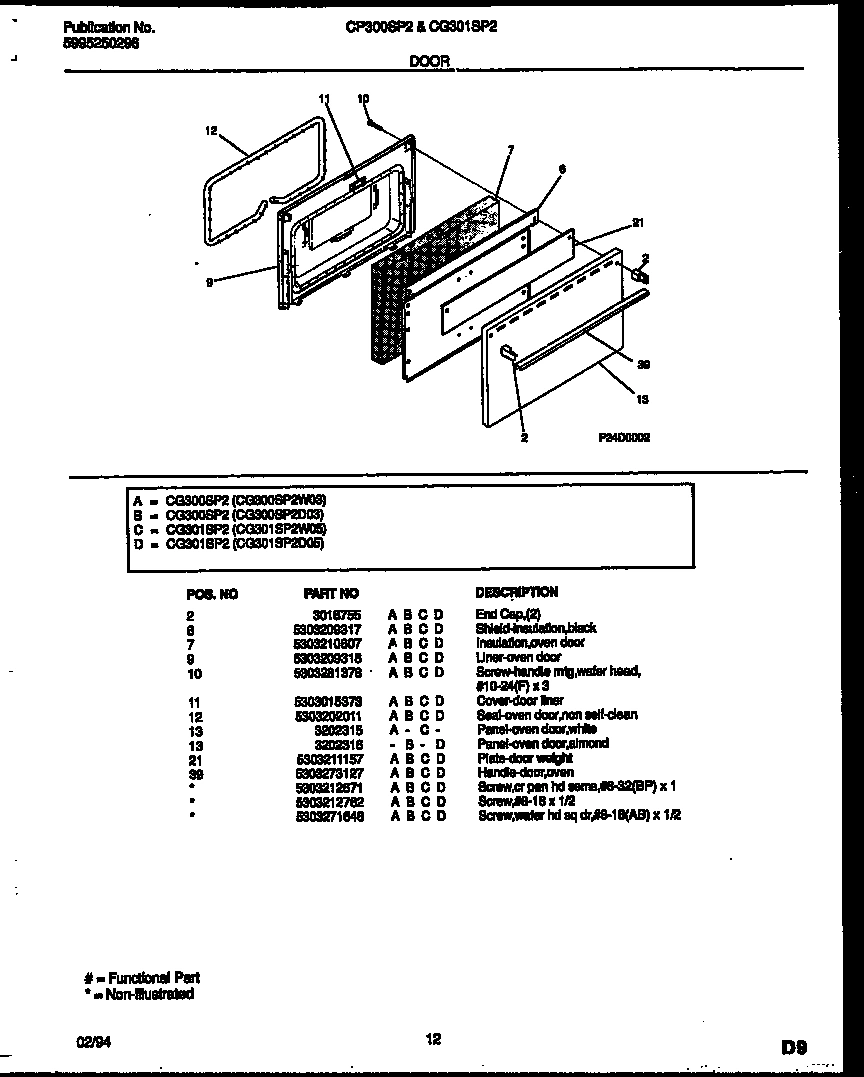

07 - DOOR PARTS
Common parts from model Electrolux CG300SP2D3 RANGE
*91275
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*91276
WCI 5303212671 WCI 5303212671 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
8
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 316066301 WCI 316066301 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11A
WCI 316066300 WCI 316066300 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
12A
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
Panel,oven door ,almond WCI 3202316 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
14
REGULATOR-PRESSURE WCI 5303016997 Contact Us For Availability
16
WCI 3206215 WCI 3206215 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
17
WCI 5303280593 WCI 5303280593 Contact Us For Availability
18
End Cap,black ,RH WCI 3202802 Contact Us For Availability
18
WCI 5303280585 WCI 5303280585 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
End Cap,black ,LH WCI 3202801 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
WCI 5303211157 WCI 5303211157 Contact Us For Availability
25
WCI 3131190 WCI 3131190 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 316060800 WCI 316060800 Contact Us For Availability
39
TUBING-TOP PILOT, DUAL WCI 5303211133 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303273127 Contact Us For Availability
42
WCI 5303280589 WCI 5303280589 Contact Us For Availability
43
Tubing`thermo/pilot `3/16 ,alum WCI 3203398 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73
WCI 5303281627 WCI 5303281627 Contact Us For Availability
× ![]()
