Model Whirlpool CG200B GAS COOK-TOP – Common Parts & Diagrams

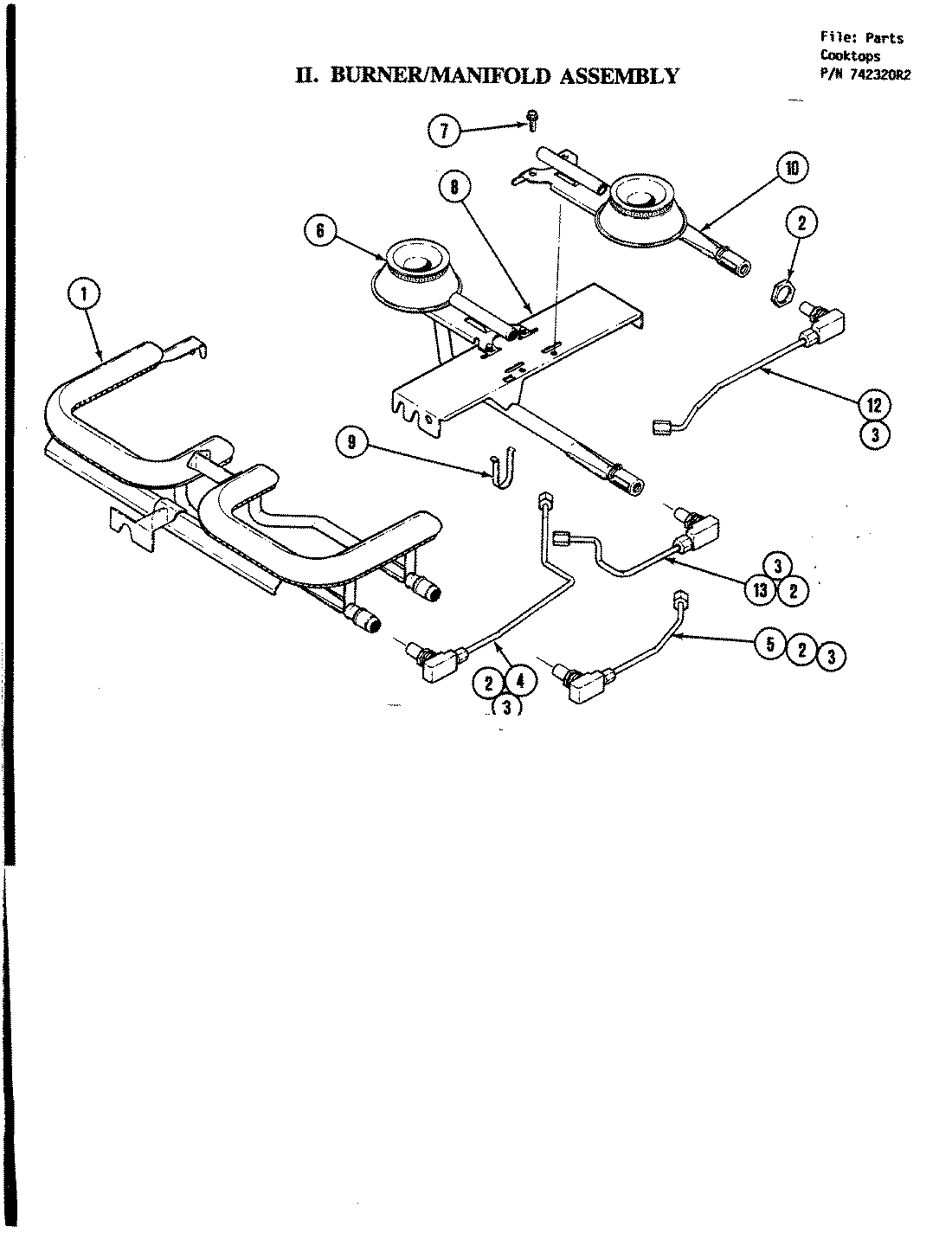

02 - BURNER ASSEMBLY

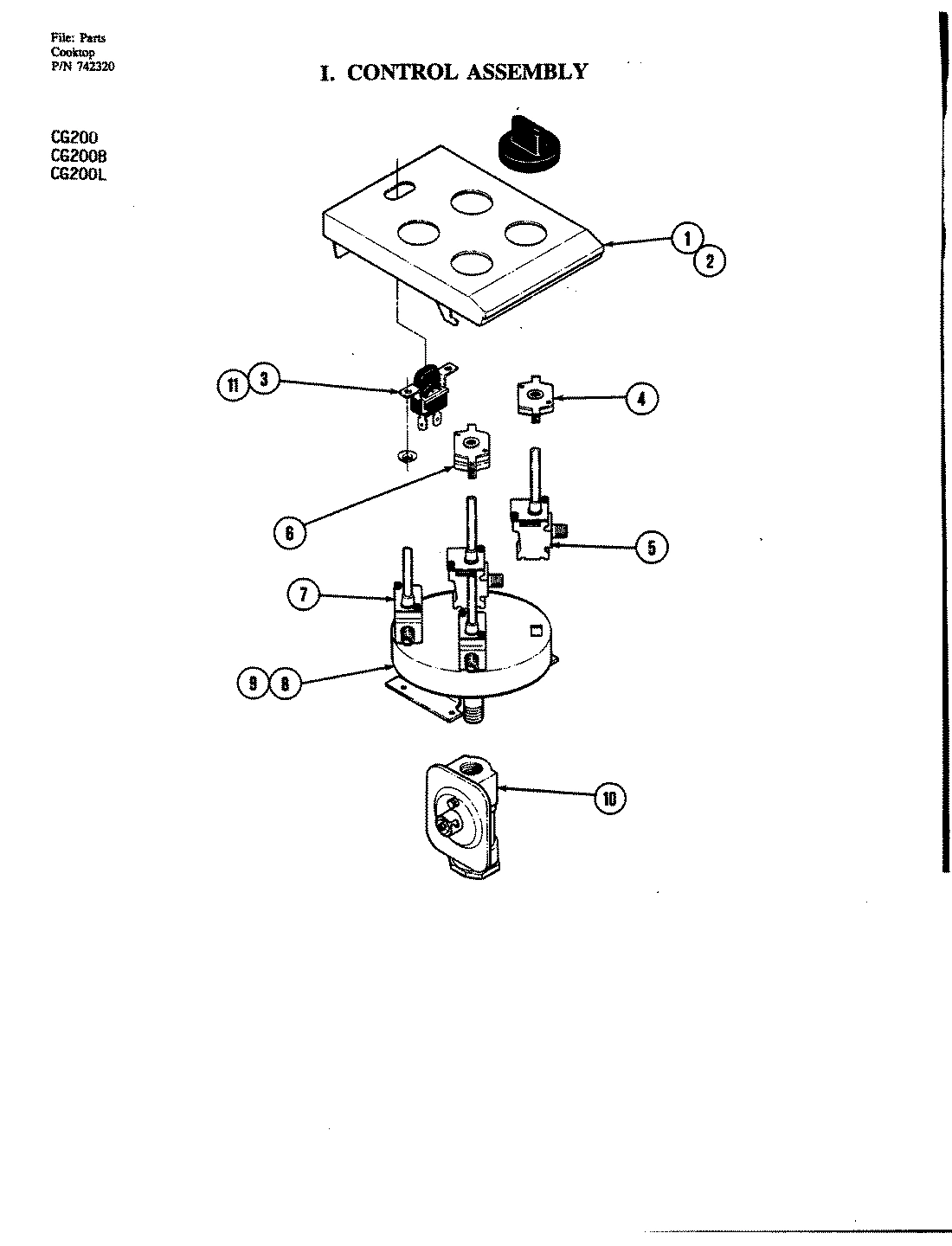

03 - CONTROL ASSEMBLY

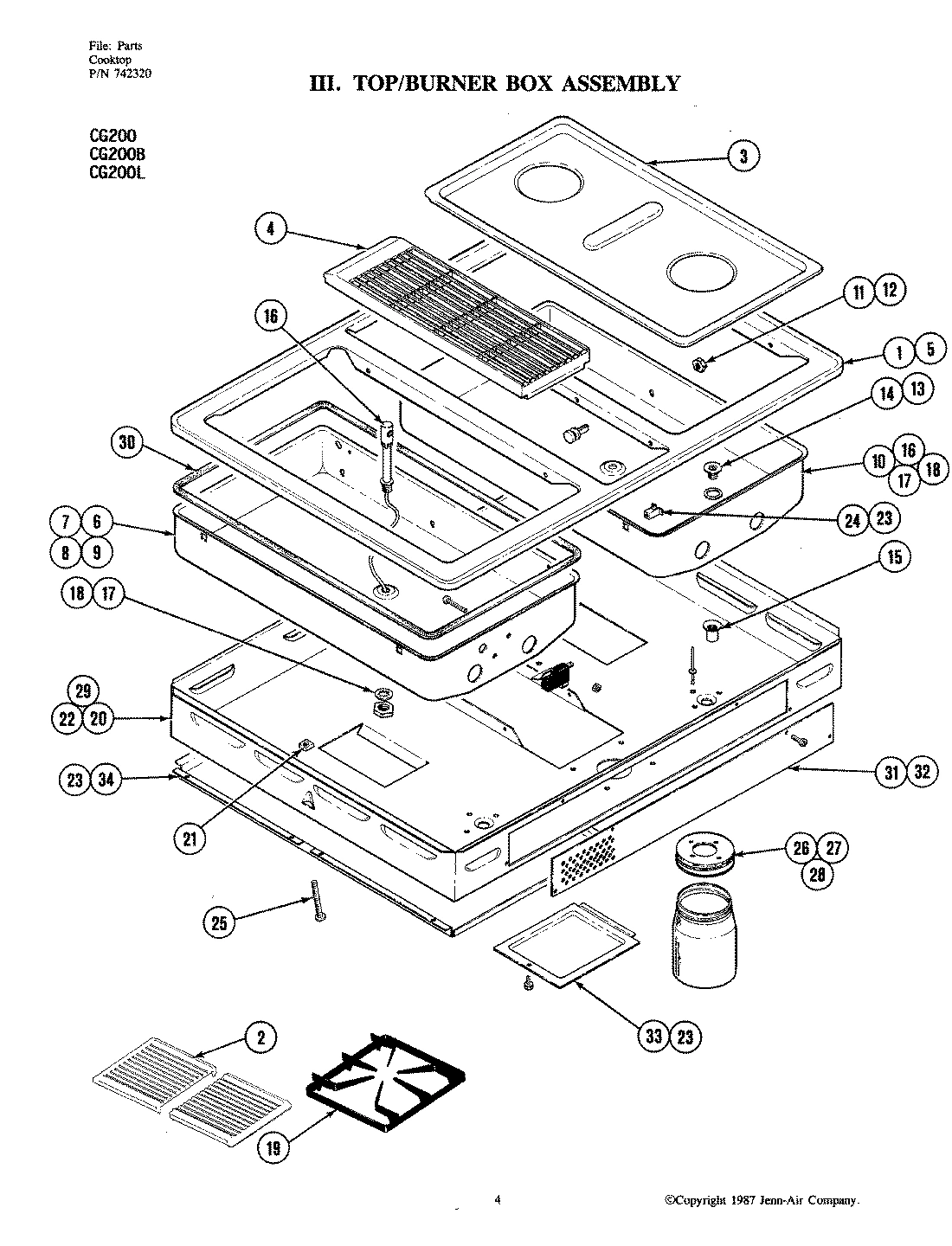

04 - TOP ASSEMBLY

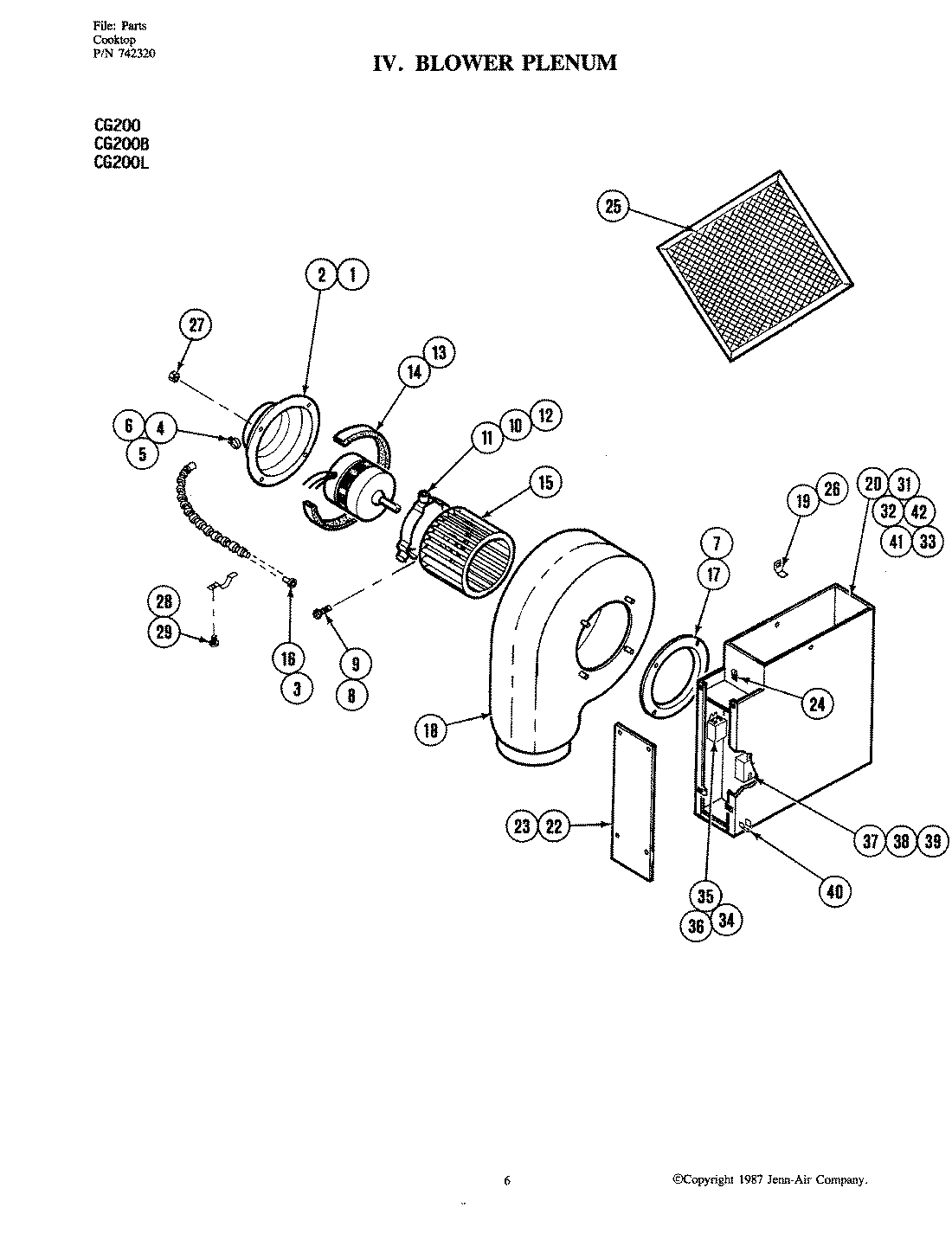

01 - BLOWER PLENUM
Common parts from model Whirlpool CG200B GAS COOK-TOP
1
ESCUTCHEON WPL 704503 Contact Us For Availability
1
TOP ASSEMBLY, STAINLESS STEEL WPL 712309 Contact Us For Availability
1
TOP, BLACK WPL 712313 Contact Us For Availability
1
TOP ASSEMBLY (ALMOND) WPL 712314 Contact Us For Availability
1
TOP, BLACK WPL 712519 Contact Us For Availability
1
TOP, STAINLESS STEEL WPL 712522 Contact Us For Availability
1
ALMOND WPL 712523 Contact Us For Availability
1
MOTOR COVER ASSEMBLY WPL 700027 Contact Us For Availability
2
GRATE, GRILL WPL Y704544 Contact Us For Availability
2
COVER,MOTOR WPL 708863 Contact Us For Availability
3
SWITCH, FAN (BLK) WPL Y704573 Contact Us For Availability
3
CONDUIT WPL Y707758 Contact Us For Availability
4
TUBE, REAR WPL 704701 Contact Us For Availability
4
GRILL, AIR (BLK) WPL Y704570 Contact Us For Availability
4
CONNECTOR WPL 707766 Contact Us For Availability
5
TUBE, FRONT (LF) WPL Y704702 Contact Us For Availability
5
VALVE (RT) WPL 704504 Contact Us For Availability
5
CLAMP, CABLE WPL 715780 Contact Us For Availability
6
BURNER, REAR WPL Y704518 Contact Us For Availability
6
PAN, GRILL WPL 704528 Contact Us For Availability
6
CLIP WPL Y707335 Contact Us For Availability
7
VALVE (LT) WPL Y704505 Contact Us For Availability
7
SCREW WPL 702380 Contact Us For Availability
7
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
8
MANIFOLD WPL Y712273 Contact Us For Availability
8
NUT WPL 707161 Contact Us For Availability
9
CLIP, SPRING WPL 704549 Contact Us For Availability
9
HARNESS, WIRE WPL 704556 Contact Us For Availability
9
WASHER (TEFLON) WPL 715617 Contact Us For Availability
9
SCREW WPL Y707402 Contact Us For Availability
10
BURNER, FRONT WPL Y704517 Contact Us For Availability
10
PAN, GRILL (RT) WPL 704529 Contact Us For Availability
11
SCREW WPL 707407 Contact Us For Availability
12
TUBE (RF) WPL 704700 Contact Us For Availability
12
PIN, LOCATOR WPL 704536 Contact Us For Availability
12
BAND, MOTOR WPL Y707393 Contact Us For Availability
13
TUBE (RR) WPL 704699 Contact Us For Availability
13
WASHER, TEFLON WPL 702747 Contact Us For Availability
14
NUT, DRAIN TUBE WPL 702748 Contact Us For Availability
14
FOAM, URETHANE WPL Y715957 Contact Us For Availability
15
TUBE, DRAIN WPL 704546 Contact Us For Availability
16
BUSHING WPL 708185 Contact Us For Availability
17
LOCKWASHER WPL 704568 Contact Us For Availability
17
ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability
18
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
19
GRATE, SURFACE WPL Y704543 Contact Us For Availability
19
RETAINER, FILTER WPL Y707688 Contact Us For Availability
20
BOX, BURNER WPL Y704500 Contact Us For Availability
20
PLENUM WPL 712312 Contact Us For Availability
22
PLATE, COVER WPL 704547 Contact Us For Availability
24
CLIP, RETAINER WPL Y700503 Contact Us For Availability
24
CLIP WPL Y707831 Contact Us For Availability
25
SCREW WPL Y707121 Contact Us For Availability
26
LID, JAR WPL Y707870 Contact Us For Availability
28
TINNERMAN WPL 712310 Contact Us For Availability
30
SEAL, FOAM WPL 704526 Contact Us For Availability
31
COVER, FRONT WPL Y704538 Contact Us For Availability
31
RELIEF, STRAIN WPL 704554 Contact Us For Availability
33
COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability
33
CORD, POWER WPL 704548 Contact Us For Availability
34
BAFFLE, BOTTOM (LT) WPL 704527 Contact Us For Availability
34
CLIP, J WPL Y700556 Contact Us For Availability
35
RELAY WPL Y704541 Contact Us For Availability
37
MODULE, SPARK WPL Y704540 Contact Us For Availability
40
PLUG, MALE LOAD WPL 704542 Contact Us For Availability
42
WIRE, GREEN WPL 704514 Contact Us For Availability
NI
SLEEVE WPL 704590 Contact Us For Availability
NI
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
× ![]()
