Model Whirlpool CG106S GAS COOK-TOP – Common Parts & Diagrams

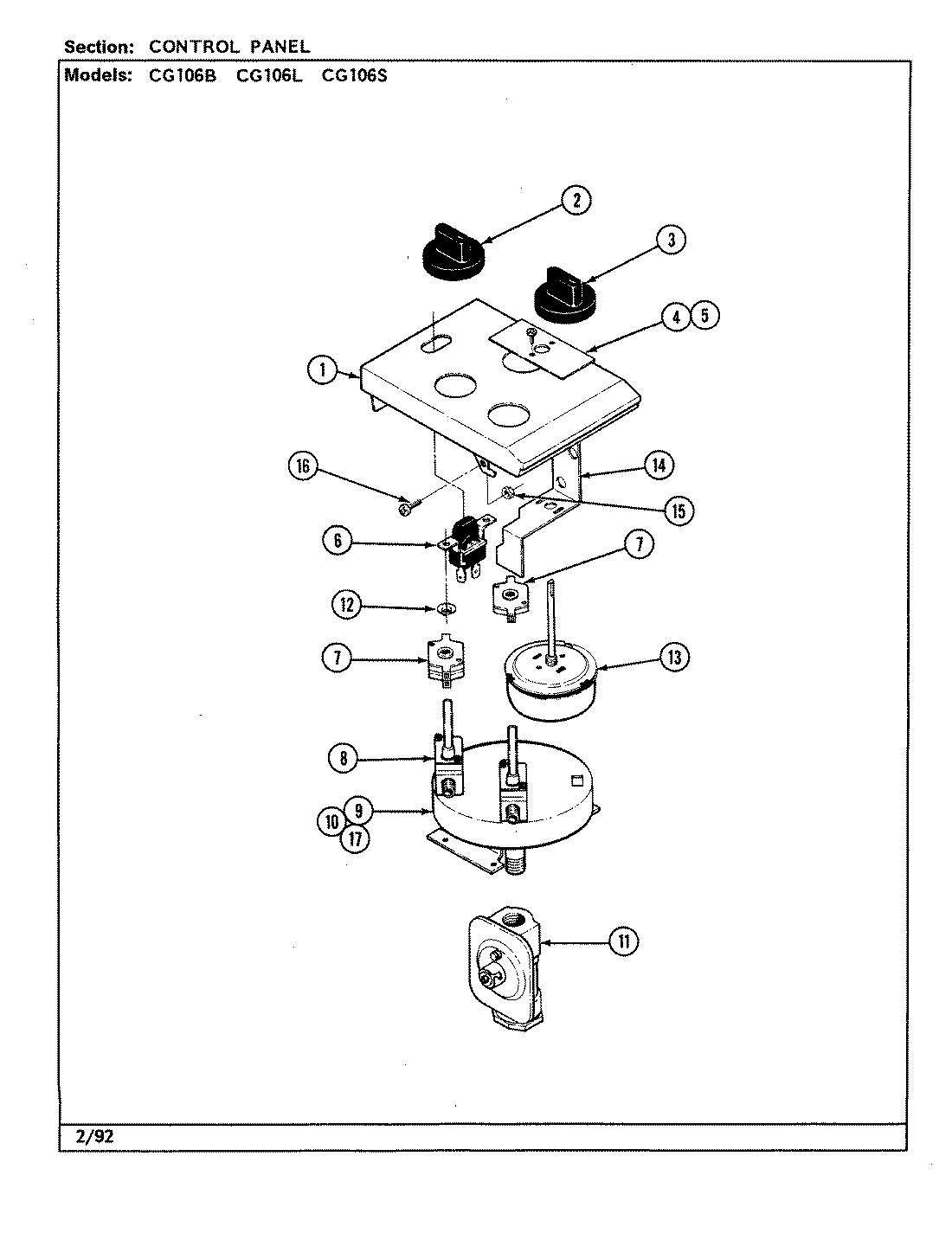

03 - CONTROL PANEL
01 - BLOWER MOTOR ASSEMBLY
02 - BODY

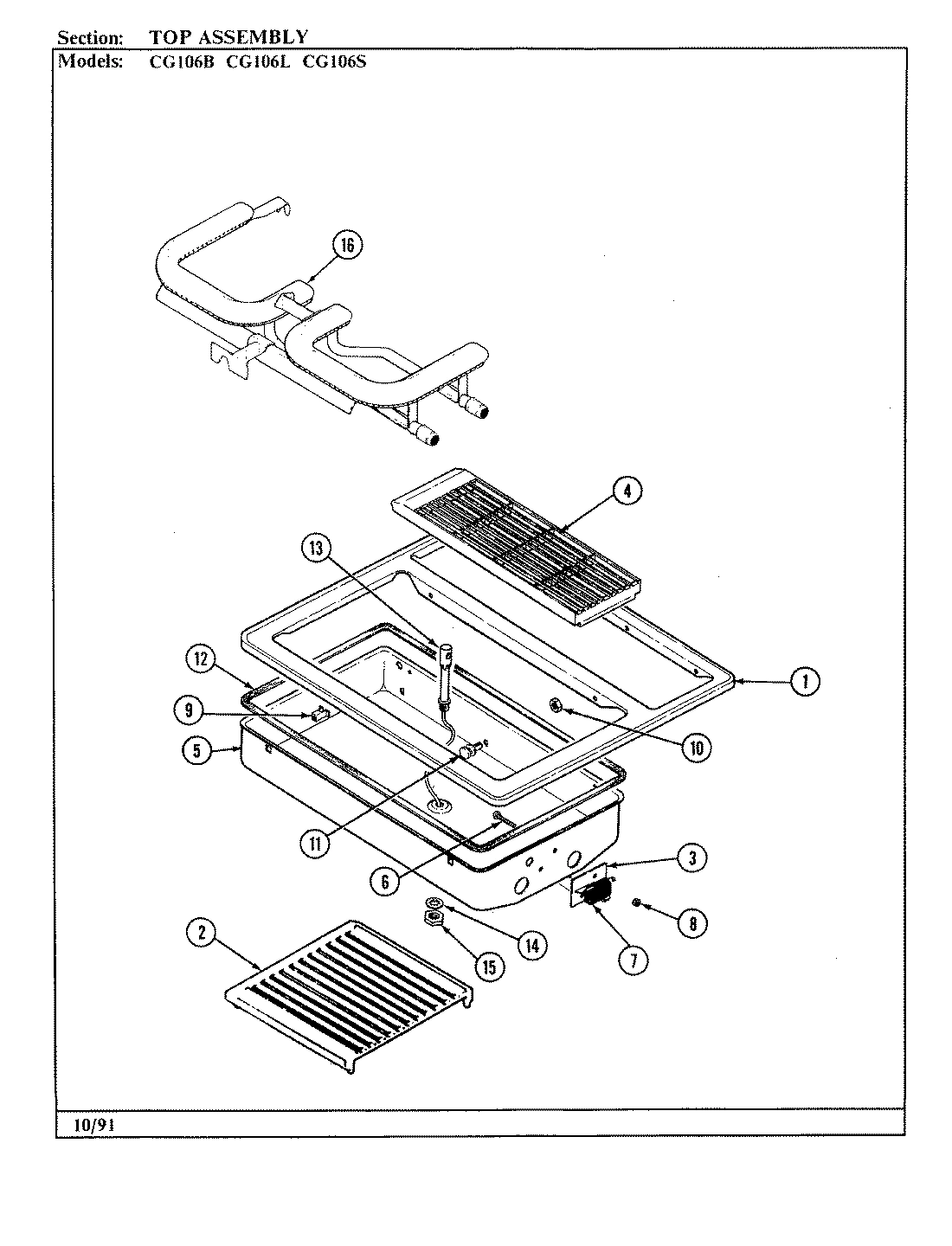

04 - TOP ASSEMBLY
Common parts from model Whirlpool CG106S GAS COOK-TOP
1
MOTOR COVER ASSY WPL Y712550 Contact Us For Availability
1
BOX, BURNER ASSEMBLY WPL 712474 Contact Us For Availability
1
TOP WPL 704983 Contact Us For Availability
2
COVER, MOTOR WPL Y704968 Contact Us For Availability
2
NUT, 3/4`` HEX WPL Y704588 Contact Us For Availability
2
NUT, 5/8`` HEX WPL Y704977 Contact Us For Availability
2
GRATE, GRILL WPL Y704544 Contact Us For Availability
3
CONDUIT WPL Y707758 Contact Us For Availability
3
TUBE, REAR WPL 704701 Contact Us For Availability
3
TUBE (RR) WPL Y04100206 Contact Us For Availability
3
TUBE, REAR WPL Y705162 Contact Us For Availability
3
INSULATOR, SWITCH WPL Y704534 Contact Us For Availability
4
PLATE, TIMER WPL 704738 Contact Us For Availability
4
CONNECTOR WPL 707766 Contact Us For Availability
4
TUBE (LF) WPL Y04100207 Contact Us For Availability
4
TUBE, FRONT (LF) WPL Y704702 Contact Us For Availability
4
TUBE, FRONT WPL Y705163 Contact Us For Availability
4
GRILL, AIR (BLK) WPL Y704570 Contact Us For Availability
5
SCREW WPL 703534 Contact Us For Availability
5
CLAMP, CABLE WPL 715780 Contact Us For Availability
5
COVER, FRONT WPL Y704385 Contact Us For Availability
5
PAN, GRILL WPL 704528 Contact Us For Availability
5
PAN, GRILL WPL Y704924 Contact Us For Availability
6
SWITCH, FAN (BLK) WPL Y704573 Contact Us For Availability
6
CLIP WPL Y707335 Contact Us For Availability
6
SCREW WPL 702380 Contact Us For Availability
7
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
7
BAFFLE, BOTTOM (LT) WPL 704527 Contact Us For Availability
8
VALVE WPL 704505K Contact Us For Availability
8
SCREW & WASHER WPL Y712320 Contact Us For Availability
8
NUT WPL 707161 Contact Us For Availability
8
WASHER (TEFLON) WPL 715617 Contact Us For Availability
8
NUT WPL Y704522 Contact Us For Availability
9
MANIFOLD, COMPLETE WPL 712470 Contact Us For Availability
9
SCREW WPL Y707402 Contact Us For Availability
9
CLIP, RETAINER WPL Y700503 Contact Us For Availability
10
HARNESS, WIRE WPL 704384 Contact Us For Availability
10
SCREW WPL Y707121 Contact Us For Availability
11
SCREW WPL 707407 Contact Us For Availability
11
LID, JAR WPL Y707870 Contact Us For Availability
11
PIN, LOCATOR WPL 704536 Contact Us For Availability
12
BAND, MOTOR WPL Y707393 Contact Us For Availability
12
SEAL, PAN WPL Y704979 Contact Us For Availability
13
TIMER WPL 704381 Contact Us For Availability
13
MOTOR, BLOWER WPL Y705032 Contact Us For Availability
14
BRACKET, TIMER WPL 704439 Contact Us For Availability
14
FOAM, URETHANE WPL Y715957 Contact Us For Availability
14
LOCKWASHER WPL 704568 Contact Us For Availability
16
BUSHING WPL 712311 Contact Us For Availability
17
RING, INLET WPL Y704758 Contact Us For Availability
18
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
19
RETAINER, FILTER WPL Y707688 Contact Us For Availability
20
PLENUM WPL 712312 Contact Us For Availability
22
PLATE, COVER WPL 704547 Contact Us For Availability
24
CLIP WPL Y700834 Contact Us For Availability
32
CORD, POWER WPL 704548 Contact Us For Availability
32
CORD, POWER WPL Y04100253 Contact Us For Availability
33
CLIP, J WPL Y700556 Contact Us For Availability
34
RELAY WPL Y704541 Contact Us For Availability
36
MODULE, SPARK WPL Y704540 Contact Us For Availability
38
SCREW WPL Y707150 Contact Us For Availability
39
PLUG, MALE LOAD WPL 704542 Contact Us For Availability
41
WIRE, GREEN WPL 704380 Contact Us For Availability
41
WIRE, GREEN WPL 715564 Contact Us For Availability
42
TINNERMAN WPL 712310 Contact Us For Availability
43
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
NI
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
NI
RELIEF, STRAIN WPL 704554 Contact Us For Availability
NI
RELIEF, STRAIN WPL Y04100254 Contact Us For Availability
× ![]()
