Model Electrolux CFUMC21QW3 FREEZER, UPRIGHT – Common Parts & Diagrams

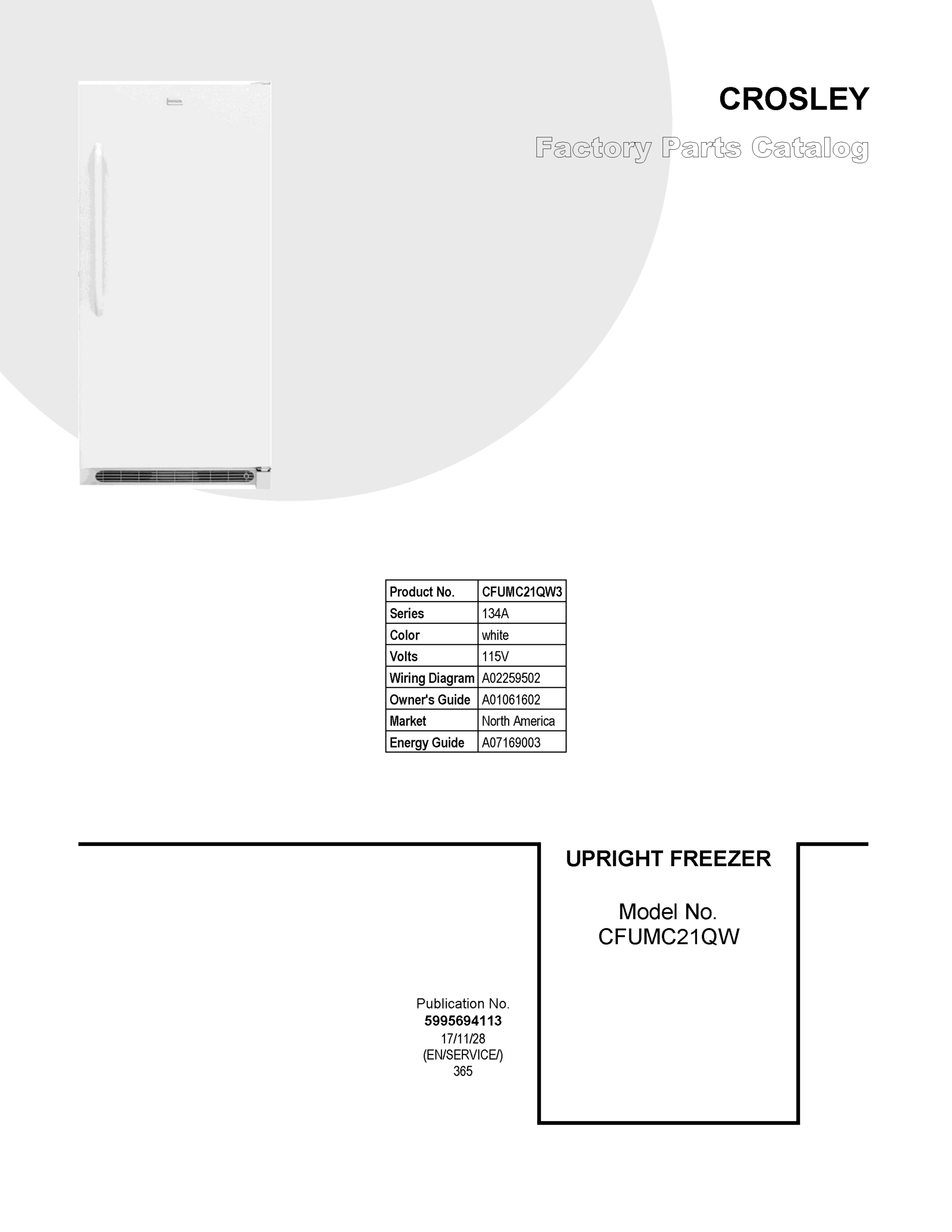

01 - COVER SHEET

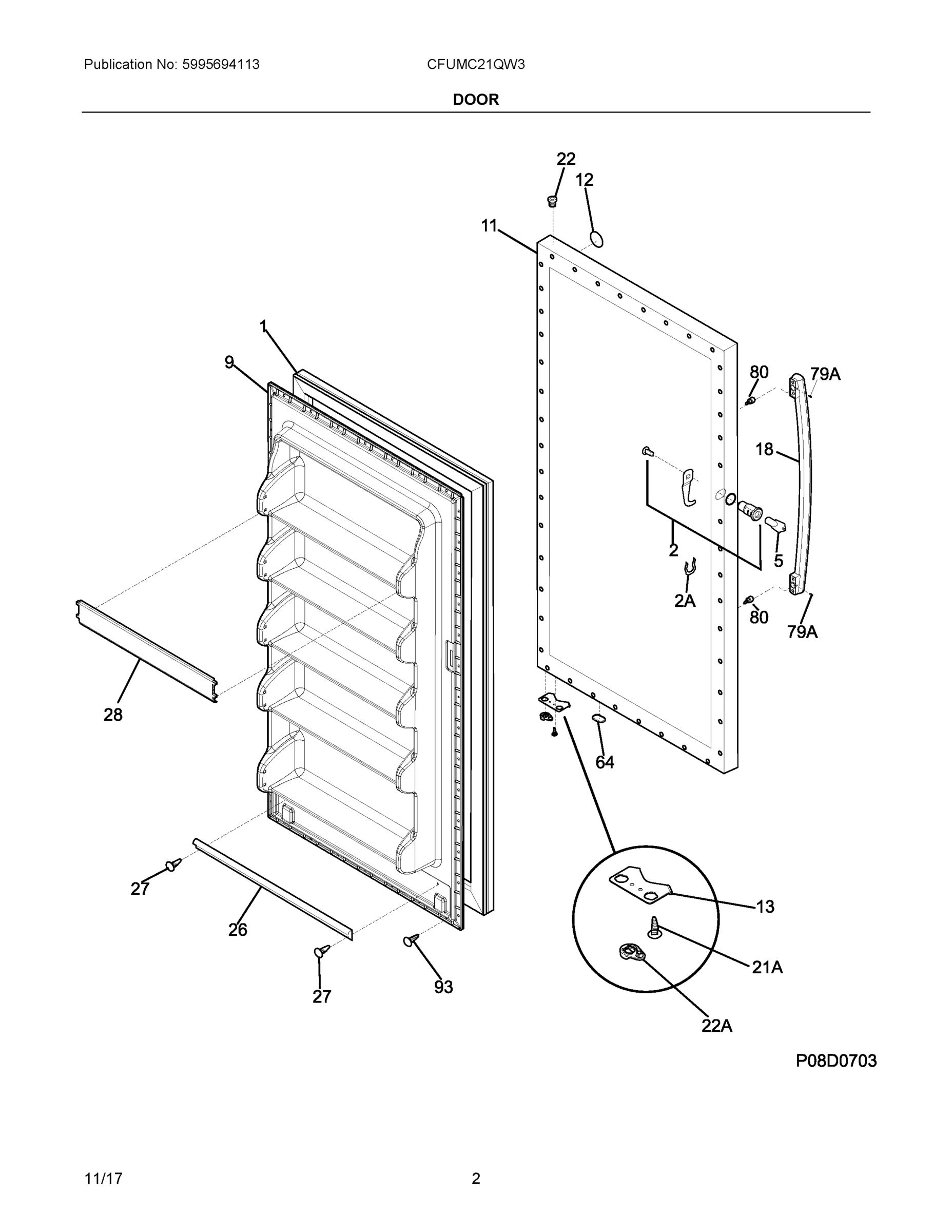

02 - DOOR
03 - CABINET
04 - SYSTEM
Common parts from model Electrolux CFUMC21QW3 FREEZER, UPRIGHT
2
LOCK ASSY WCI 297318600 Contact Us For Availability
2A
CLIP, SPRING WCI 297213300 Contact Us For Availability
3
PLUG, DRAIN, INTERIOR WCI 216502600 Contact Us For Availability
3
TRIM, SHELF, EVAP WCI 5304509723 Contact Us For Availability
5
KEY, LOCK WCI 297147700 Contact Us For Availability
5
HARNESS-MAIN, W/LIGHT WCI 297171900 Contact Us For Availability
6
SUPPORT-SHELF, FRONT LH WCI 297001600 Contact Us For Availability
6
BREAKER, U21, W/LOCK WCI 297435604 Contact Us For Availability
7
SUPPORT-SHELF, FRONT RH WCI 297001500 Contact Us For Availability
9
PANEL, DOOR LINER WCI 297382900 Contact Us For Availability
9
BREAKER, TOP WCI 297403901 Contact Us For Availability
10
BREAKER, BOTTOM WCI 297403902 Contact Us For Availability
11
SUPPORT-REAR SHELF WCI 216474600 Contact Us For Availability
11
PANEL-OUTER DOOR, WHITE WCI 297316734 Contact Us For Availability
12
GROMMET-SPACER WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 297416200 Contact Us For Availability
14
SWITCH, LIGHT/LAMP, RAMP WCI 216822900 Contact Us For Availability
16
SOCKET, LIGHT/LAMP, 25 W WCI 297139501 Contact Us For Availability
18
KNOB, TEMP CONTROL WCI 216707200 Contact Us For Availability
18
HANDLE WCI 297422020 Contact Us For Availability
20
COVER-CONTROL HOUSING WCI 297013800 Contact Us For Availability
21A
SCREW, DOOR STOP MTG, FH38-16X.750, P TWIN WCI 297197500 Contact Us For Availability
22
BEARING, HINGE, NATURAL, TOP WCI 216970802 Contact Us For Availability
22
CLAMP, CAP TUBE, COLD CONTROL WCI 216823500 Contact Us For Availability
26
RAMP, DOOR CLOSER WCI 297415900 Contact Us For Availability
26
GASKET, SECONDARY WCI 297387100 Contact Us For Availability
27
CLIP, PANEL MTG WCI 5303212828 Contact Us For Availability
28
HINGE, REVERSIBLE, BOTTOM RH WCI 297416301 Contact Us For Availability
28
RACK, DOOR WCI 5304494023 Contact Us For Availability
28A
PIN, BOTTOM HINGE WCI 297438300 Contact Us For Availability
29
COMPRESSOR, EGAS70HLP WCI 5304510816 Contact Us For Availability
29
HOSE-DRAIN WCI 5304510363 Contact Us For Availability
30
CONTROLLER, COMPRESSOR WCI 5304510815 Contact Us For Availability
32
CLAMP, ELEC CONT MTG, COMPRESSOR WCI 297051100 Contact Us For Availability
34
WCI 5304511843 WCI 5304511843 Contact Us For Availability
34
SHIELD-LIGHT WCI 297184400 Contact Us For Availability
35
CLIP, WIRE RETAINER WCI 216273000 Contact Us For Availability
38
HINGE-UPPER WCI 297283803 Contact Us For Availability
59
BASKET WCI 5304497658 Contact Us For Availability
59A
STOP-BASKET, (2) WCI 216486500 Contact Us For Availability
63
SCREW, LEVELING FOOT, PLASTIC, ADJUSTABLE WCI 216396900 Contact Us For Availability
64
PLUG-BUTTON, DOOR BASE WCI 297014702 Contact Us For Availability
73
LIGHT SIGNAL, ROUND, GREEN WCI 5304495394 Contact Us For Availability
79A
SCREW-SET WCI 297295900 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
170
VALVE, BREATHER WCI 297280400 Contact Us For Availability
NI
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
NI
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
NI
INSULATION, 24", SUCTION LINE WCI 297001704 Contact Us For Availability
NI
NUT-ANCHOR, DOOR HDL SCREW WCI 240537301 Contact Us For Availability
NI
SCREW, HWH, 10-24 X 0.500, SWAGE WCI 216337701 Contact Us For Availability
NI
INSULATION, DRAIN TUBE WCI 09948773 Contact Us For Availability
NIA
HINGE BEARING, REVERSIBLE WCI 5304511026 Contact Us For Availability
NIA
CLIP, PANEL MTG KIT, (40) WCI 5304406520 Contact Us For Availability
NIA
BRACKET, LH LEG LEVELOR WCI 297164650 Contact Us For Availability
NIB
BRACKET, RH LEG LEVELOR WCI 297164651 Contact Us For Availability
× ![]()
