Model Electrolux CFU12M2AW1 FREEZER – Common Parts & Diagrams

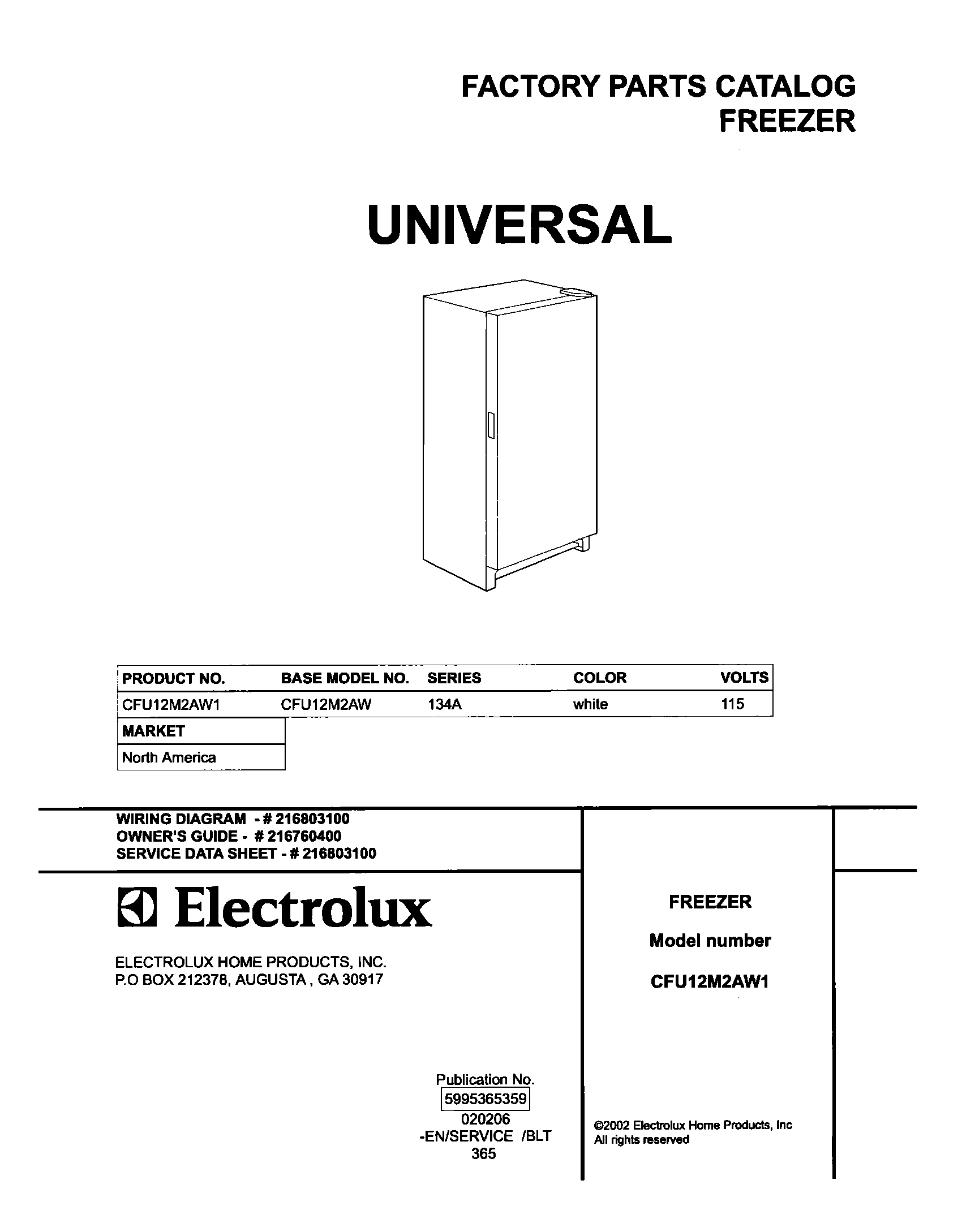

01 - COVER

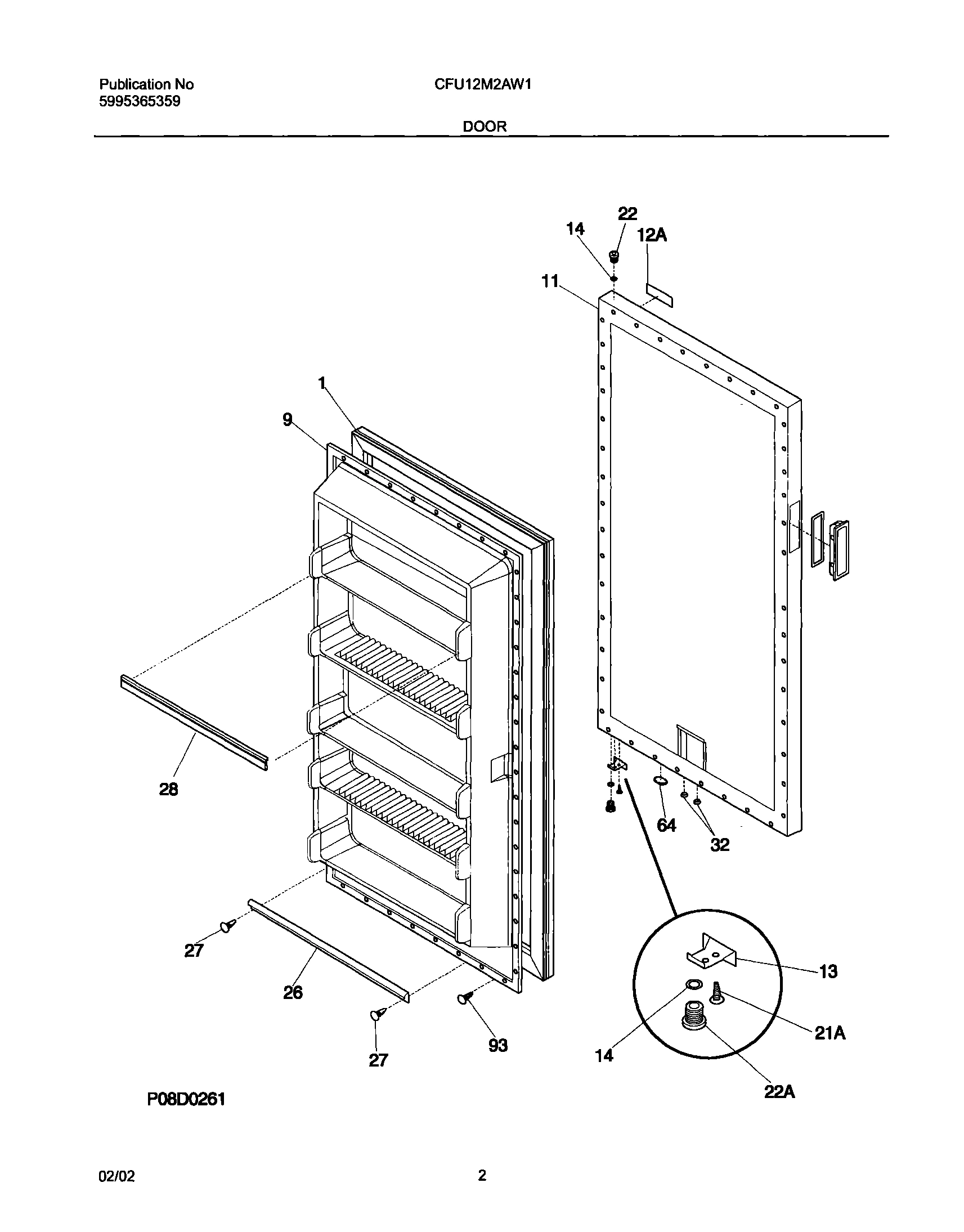

03 - DOOR

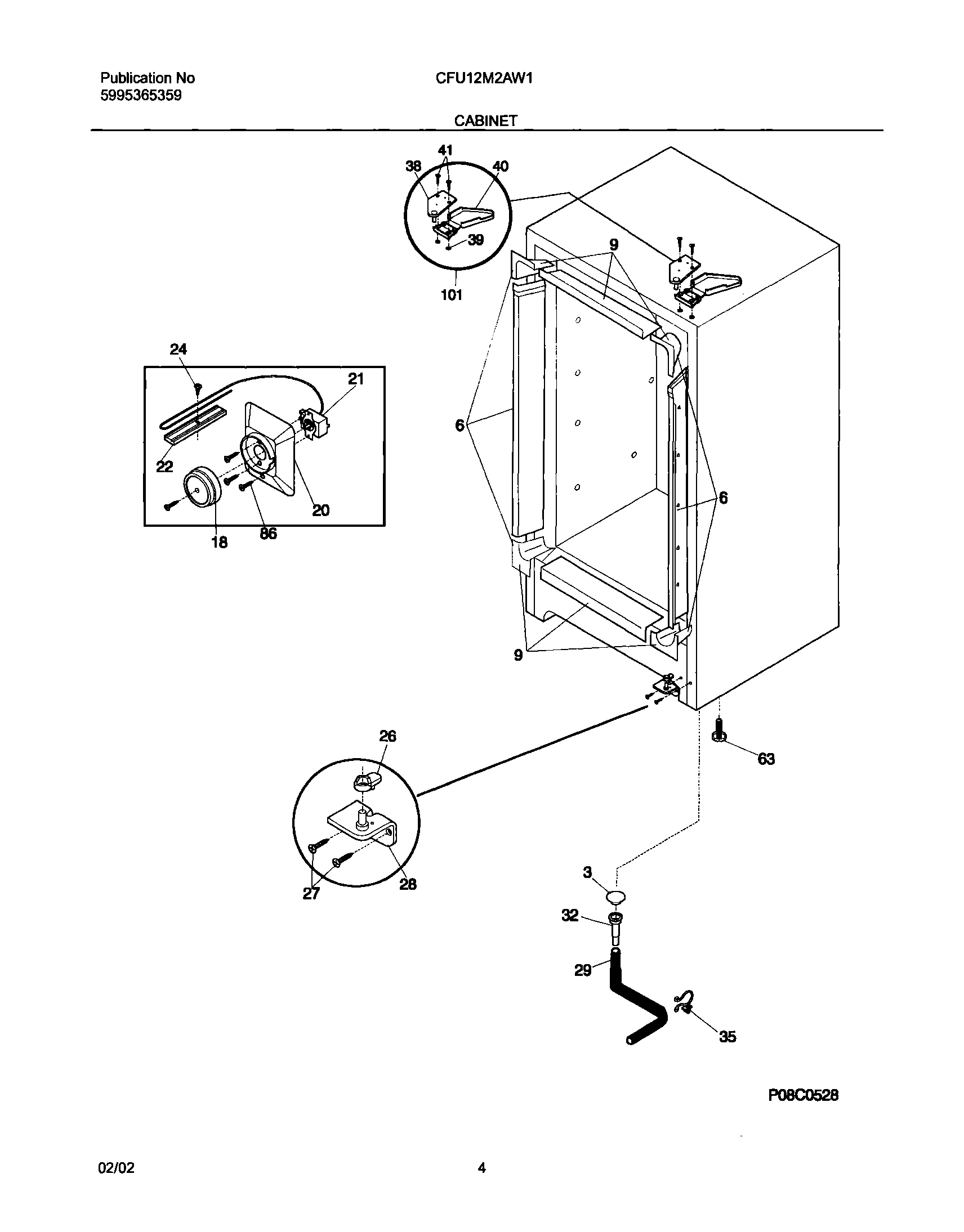

05 - CABINET

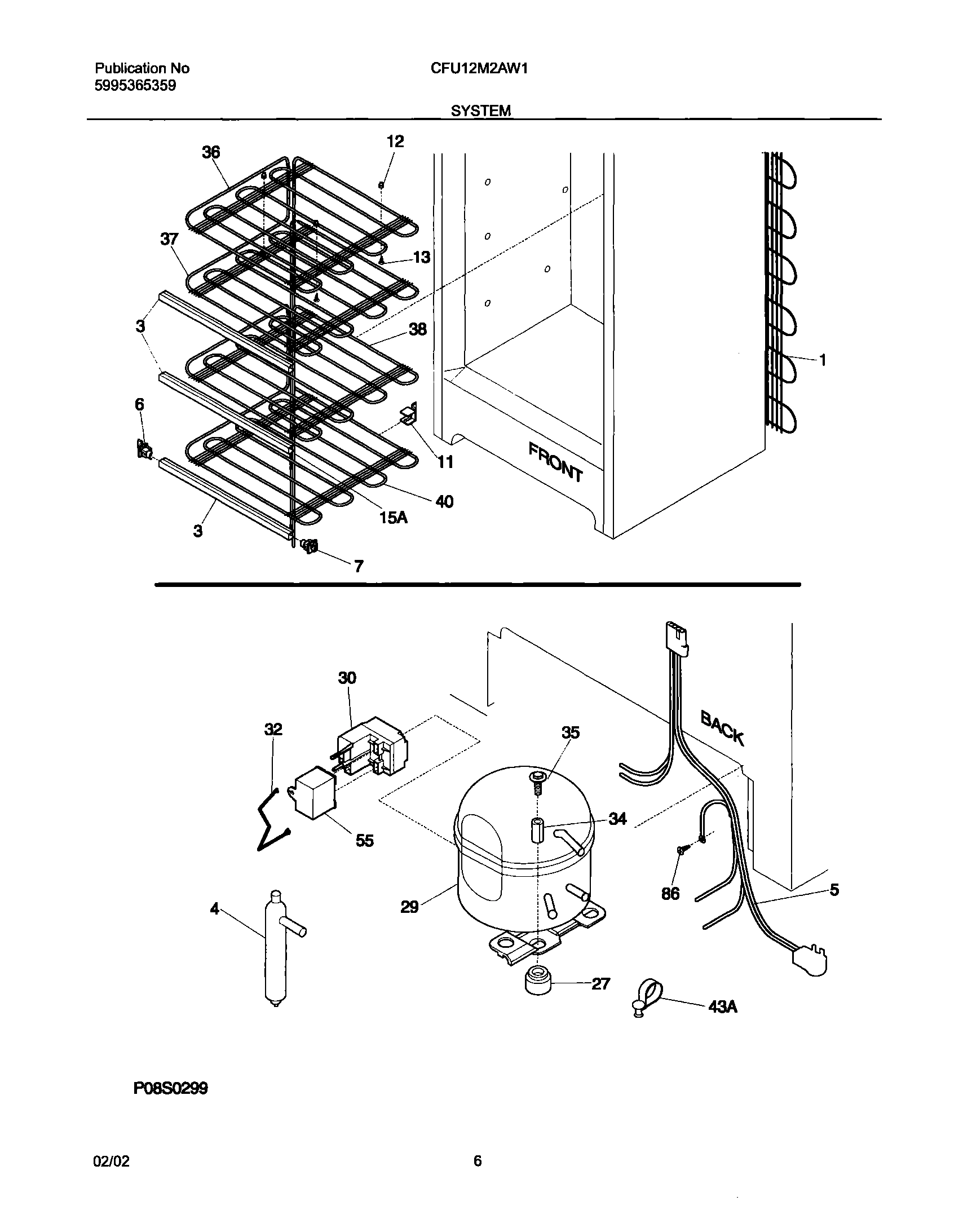

07 - SYSTEM
Common parts from model Electrolux CFU12M2AW1 FREEZER
3
Plug-drain,interior ,interior WCI 216502600 Contact Us For Availability
5
WCI 216703700 WCI 216703700 Contact Us For Availability
11
WCI 216474600 WCI 216474600 Contact Us For Availability
12
WCI 216225700 WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
13
WCI 216138900 WCI 216138900 Contact Us For Availability
15A
WCI 216404900 WCI 216404900 Contact Us For Availability
22
WCI 216823500 WCI 216823500 Contact Us For Availability
26
RAMP, CLOSER DOOR WCI 216503300 Contact Us For Availability
32
WCI 5309950074 WCI 5309950074 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
36
WCI 216069700 WCI 216069700 Contact Us For Availability
37
WCI 216069800 WCI 216069800 Contact Us For Availability
38
HINGE-UPPER WCI 216808900 Contact Us For Availability
38
WCI 216069900 WCI 216069900 Contact Us For Availability
40
WCI 216070000 WCI 216070000 Contact Us For Availability
55
WCI 216696700 WCI 216696700 Contact Us For Availability
64
Plug-button,door base WCI 216403700 Contact Us For Availability
101
KIT-TOP HINGE WCI 216835200 Contact Us For Availability
NI
WCI 09948773 WCI 09948773 Contact Us For Availability
NI
SLEEVE-TUBE INSERT WCI 216502500 Contact Us For Availability
NI
WCI 216694500 WCI 216694500 Contact Us For Availability
× ![]()
