Model Electrolux CFQE5100PW3 ELECTRIC DRYER – Common Parts & Diagrams

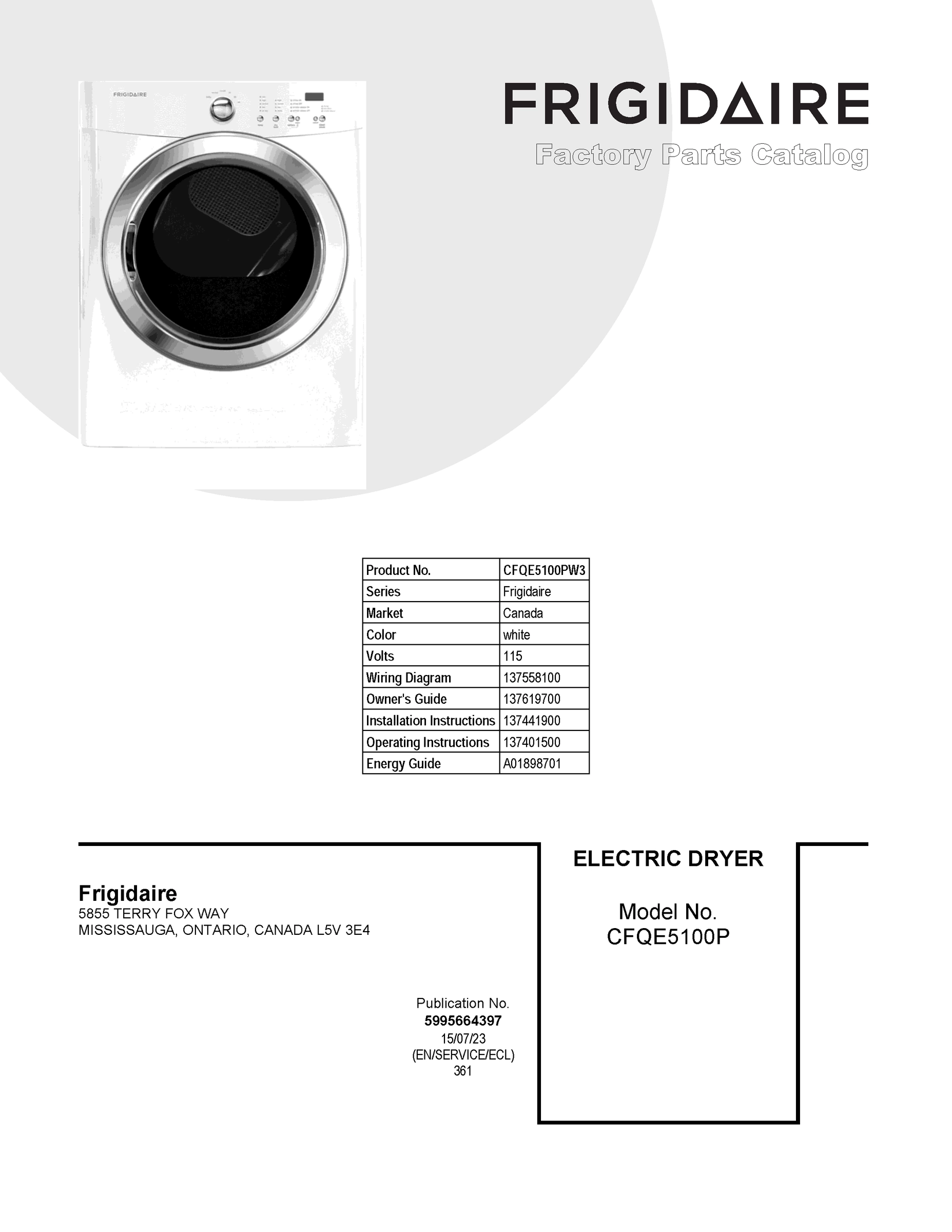

01 - COVER SHEET

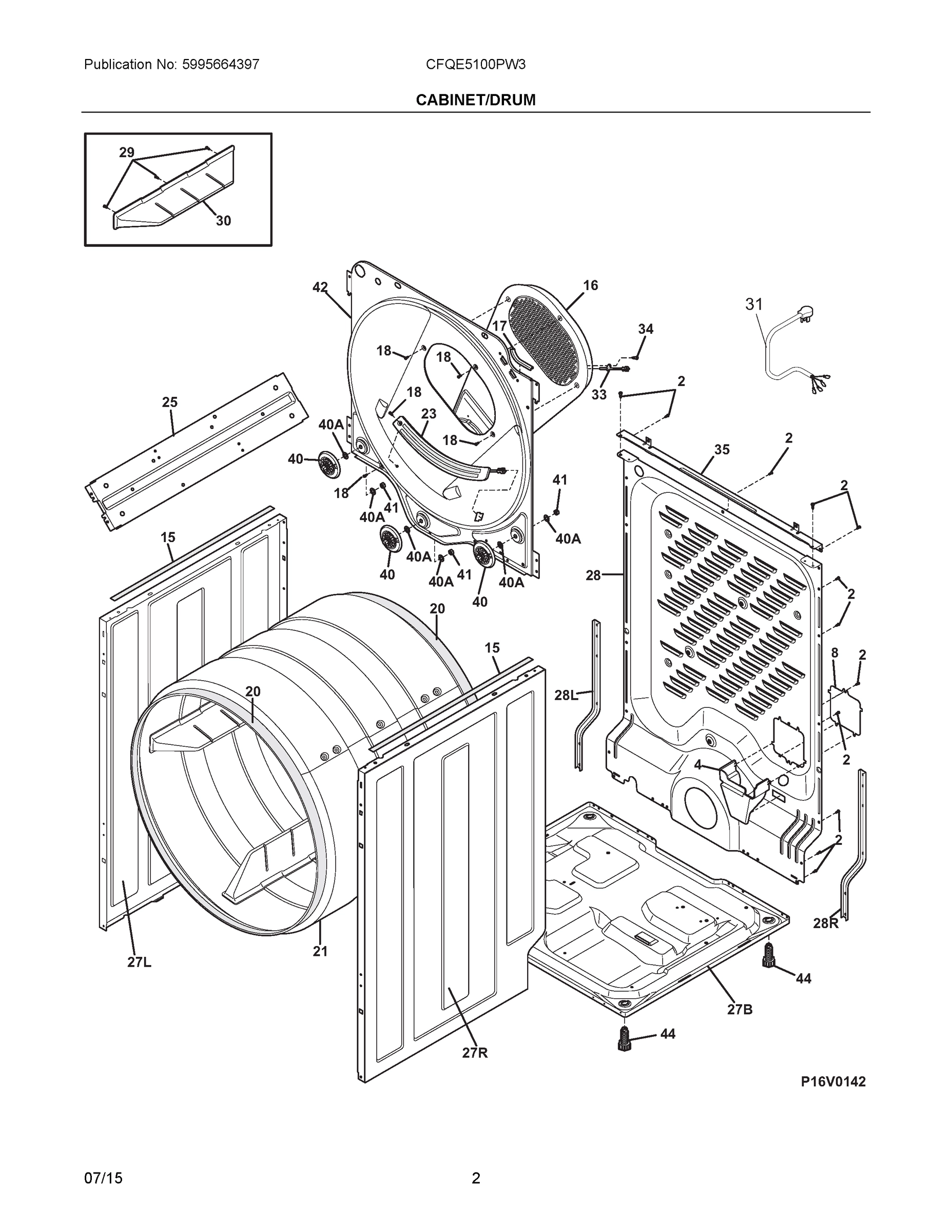

02 - CABINET/DRUM
03 - FRONT PANEL/LINT FILTER
04 - CONTROLS/TOP PANEL
05 - MOTOR
06 - BURNER
07 - WIRING DIAGRAM
Common parts from model Electrolux CFQE5100PW3 ELECTRIC DRYER
1
SEAL, AIR DUCT WCI 137068200 Contact Us For Availability
2
SCREW, PAN HEAD, 8-18B X 0.31 WCI 131168200 Contact Us For Availability
3
KNOB, CONTROL WCI 137314625 Contact Us For Availability
4
LOCK, BLOWER HOUSING WCI 131435200 Contact Us For Availability
4
BRACKET, MOUNTING, TERMINAL BLOCK WCI 134792200 Contact Us For Availability
6
PIN, PROGRAM KNOB WCI 134347700 Contact Us For Availability
6
DUCT, AIR, GRAY WCI 134710705 Contact Us For Availability
8
LIMITER, THERMAL, HEATER WCI 137032600 Contact Us For Availability
8
WCI 134711401 WCI 134711401 Contact Us For Availability
8
WCI 137554110 WCI 137554110 Contact Us For Availability
8
WCI 137578600 WCI 137578600 Contact Us For Availability
8A
SCREW, #6 PAN HEAD, #8-32 X .25, QUADREX WCI 134935200 Contact Us For Availability
10
WCI 137551110 WCI 137551110 Contact Us For Availability
11
SPACER, IDLER WCI 131749800 Contact Us For Availability
12
SPRING, PUSH BUTTONS WCI 137320500 Contact Us For Availability
13
LIGHT PIPE, START GROUP WCI 134557501 Contact Us For Availability
15
THERMISTOR, CONTROL WCI 134587700 Contact Us For Availability
15
CUSHION, VIBRATION, TOP PANEL WCI 137031800 Contact Us For Availability
15
LIGHT PIPE, 5 X 4 WCI 134552800 Contact Us For Availability
16
LIGHT PIPE, ROW OF 5 WCI 134600000 Contact Us For Availability
17
PROTECTOR, EDGE, RIGHT TOP FRONT, 85.0+/-1.5 WCI 134792900 Contact Us For Availability
19
SCREW, PHILLIPS, 6-19 X 0.650 WCI 134402900 Contact Us For Availability
20
WCI 5304499489 WCI 5304499489 Contact Us For Availability
20
GASKET, FRONT PANEL WCI 137116600 Contact Us For Availability
20
BOLT, HEX HEAD, 1/4-20T X 1.25, THREAD CUTTIN WCI 131017900 Contact Us For Availability
21
DRUM, 2-RIB, DRYER WCI 137623100 Contact Us For Availability
22
SPRING, IDLER ARM WCI 131601000 Contact Us For Availability
22
WCI 137554510 WCI 137554510 Contact Us For Availability
22A
WCI 137577310 WCI 137577310 Contact Us For Availability
22B
WCI 137576200 WCI 137576200 Contact Us For Availability
23
SENSOR-MOISTURE, ASSEMBLY WCI 134786110 Contact Us For Availability
25
BELT, "H", POLY V, 5 RIB WCI 134719300 Contact Us For Availability
25
DOOR CATCH, UPPER WCI 131658800 Contact Us For Availability
26
SWITCH, DOOR, RECTANGLE, WHITE, WITH DRUM LIG WCI 134813601 Contact Us For Availability
27
CLAMP, MOTOR MTG. WCI 134242400 Contact Us For Availability
27
WCI 137560710 WCI 137560710 Contact Us For Availability
27A
BRACKET, CONTROL PANEL, LEFT HAND, MOUNTING WCI 134710900 Contact Us For Availability
27B
WCI 134690203 WCI 134690203 Contact Us For Availability
27B
BRACKET, CONTROL PANEL, RIGHT HAND, MOUNTING WCI 134711000 Contact Us For Availability
27L
PANEL, LEFT SIDE, WHITE WCI 134690310 Contact Us For Availability
27R
PANEL, RIGHT SIDE, WHITE WCI 134690410 Contact Us For Availability
28
CLIP, MOUNTING, CABINET FRONT WCI 137034500 Contact Us For Availability
29
SCREW, #8 PAN HEAD, 10-10B X 0.500, CR/SQ DRI WCI 131205100 Contact Us For Availability
29
WCI 137618510 WCI 137618510 Contact Us For Availability
30
WCI 137623200 WCI 137623200 Contact Us For Availability
33
THERMOSTAT, SAFETY WCI 3204267 Contact Us For Availability
39
HINGE, DOOR, 39 WCI 137105100 Contact Us For Availability
40A
WASHER, FLAT WCI 134716700 Contact Us For Availability
41
NUT, 3/8-16 WCI 134716800 Contact Us For Availability
42
BULKHEAD, PANEL, FRONT WCI 134696110 Contact Us For Availability
43
BRACKET, DOOR GLASS WCI 134559300 Contact Us For Availability
44
WCI 137553402 WCI 137553402 Contact Us For Availability
45
WCI 137575900 WCI 137575900 Contact Us For Availability
46
GASKET, DOOR GLASS, INNER WCI 134580300 Contact Us For Availability
46
BRACKET, MOTOR MOUNTING WCI 134693500 Contact Us For Availability
47
SEAL, EXHAUST TUBE WCI 131633300 Contact Us For Availability
47
WCI 137554641 WCI 137554641 Contact Us For Availability
47A
STRIKE, DOOR LOCK WCI 137555100 Contact Us For Availability
53
PANEL, WORK TOP, WHITE WCI 134638510 Contact Us For Availability
53
WCI 137578200 WCI 137578200 Contact Us For Availability
55
WINDOW, DIGIT DISPLAY WCI 137320700 Contact Us For Availability
56
WCI 137578120 WCI 137578120 Contact Us For Availability
56
LIGHT PIPE, DIGITAL DISPLAY WCI 134557300 Contact Us For Availability
57
DISPLAY, DIGITAL WCI 134503300 Contact Us For Availability
58
LAMP ASSY, DRUM LIGHT, W/MTG BRACKET WCI 131843500 Contact Us For Availability
60
SCREW, INDT PAN HEAD, 10-14 X 0.625, QUADREX WCI 134430300 Contact Us For Availability
66
T-PLUG, HINGE HOLE, 66 WCI 137577200 Contact Us For Availability
68
PLUG, HINGE HOLE, WHITE WCI 134742000 Contact Us For Availability
68A
PLUG, HINGE HOLE, GREY WCI 134742002 Contact Us For Availability
NI
SCREW, 10-16AB X 0.625 WCI 131202300 Contact Us For Availability
NI
SCREW, HEX WASHER HEAD, 10-32 X 0.375, GROUND WCI 134154100 Contact Us For Availability
NIA
WCI 5308027429 WCI 5308027429 Contact Us For Availability
NIA
PULLEY, MOTOR WCI 134693800 Contact Us For Availability
NIA
DAMPER, SOUND WCI 134926600 Contact Us For Availability
NIA
RETAINER, ROLLER WHEEL, ASSEMBLY WCI 134716200 Contact Us For Availability
NIA
HARNESS, WIRE, DOOR SWITCH WCI 134910300 Contact Us For Availability
× ![]()
