Model Electrolux CFGF316DSD RANGE – Common Parts & Diagrams

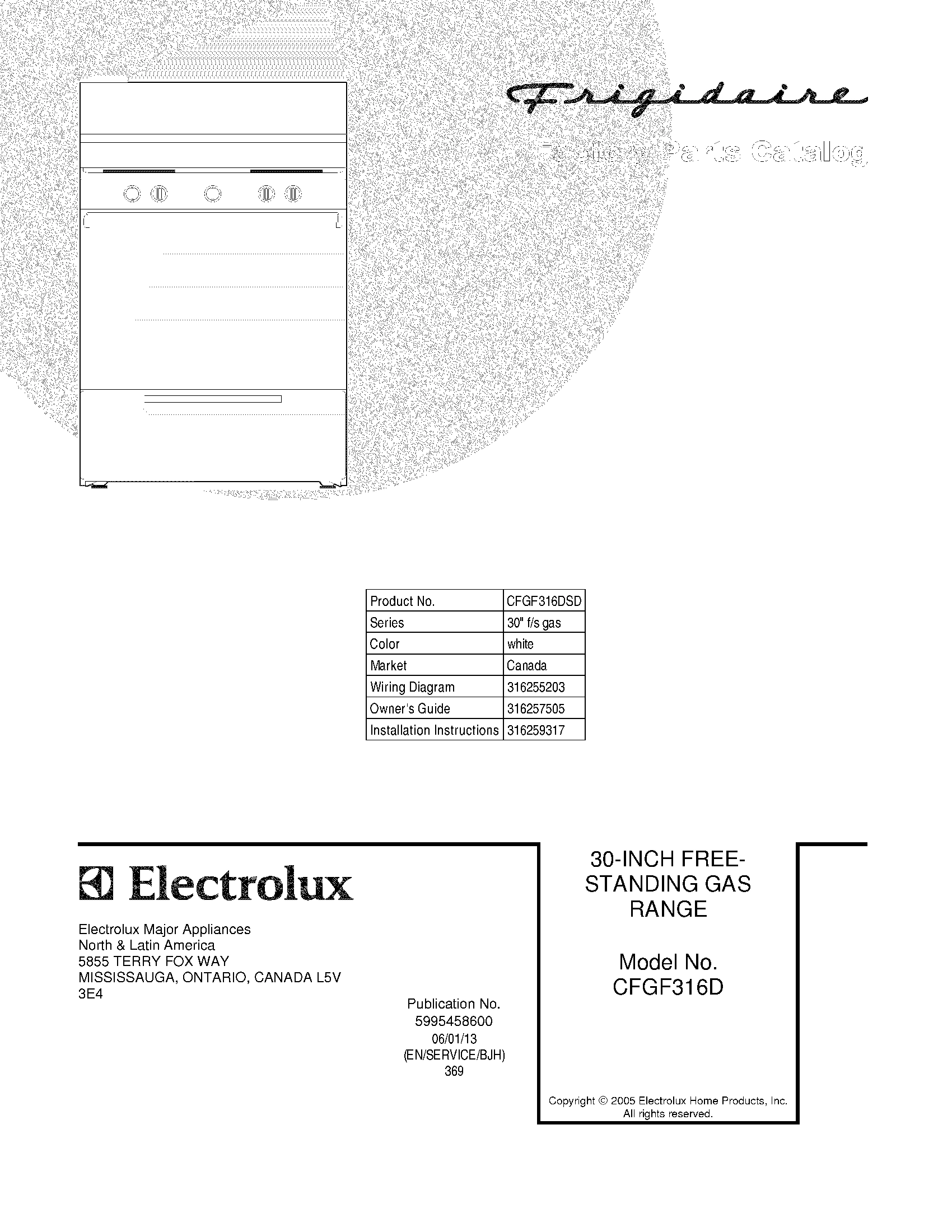

01 - COVER

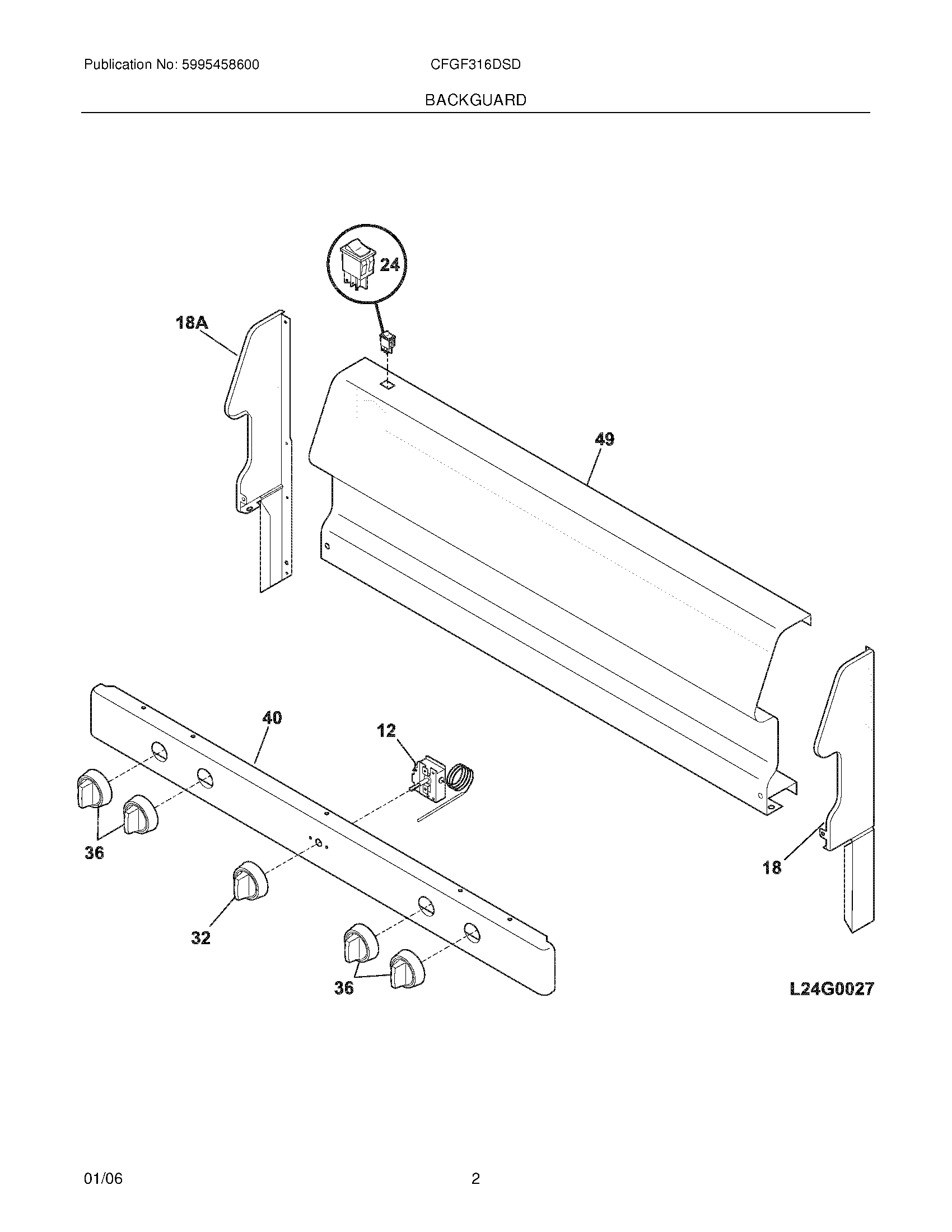

03 - BACKGUARD

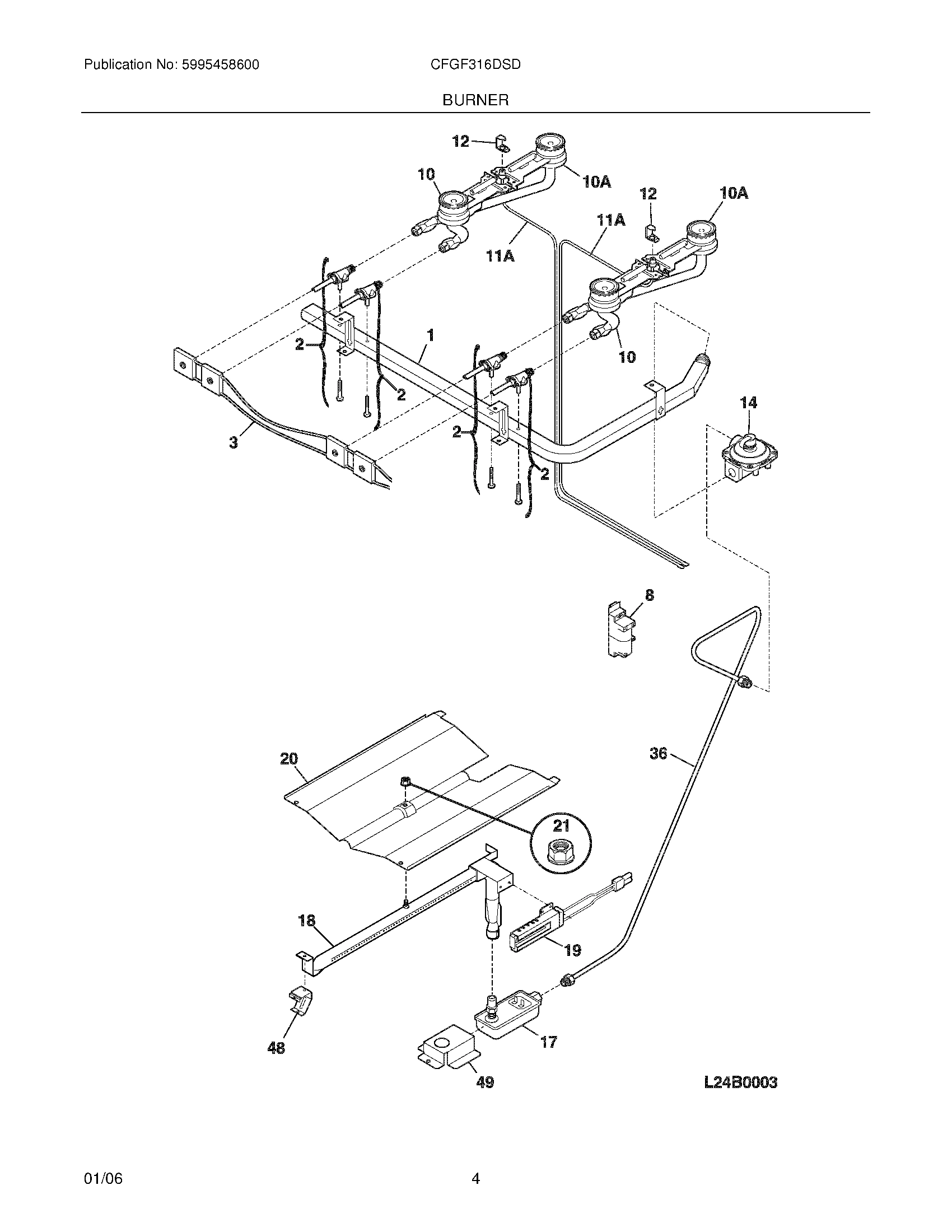

05 - BURNER

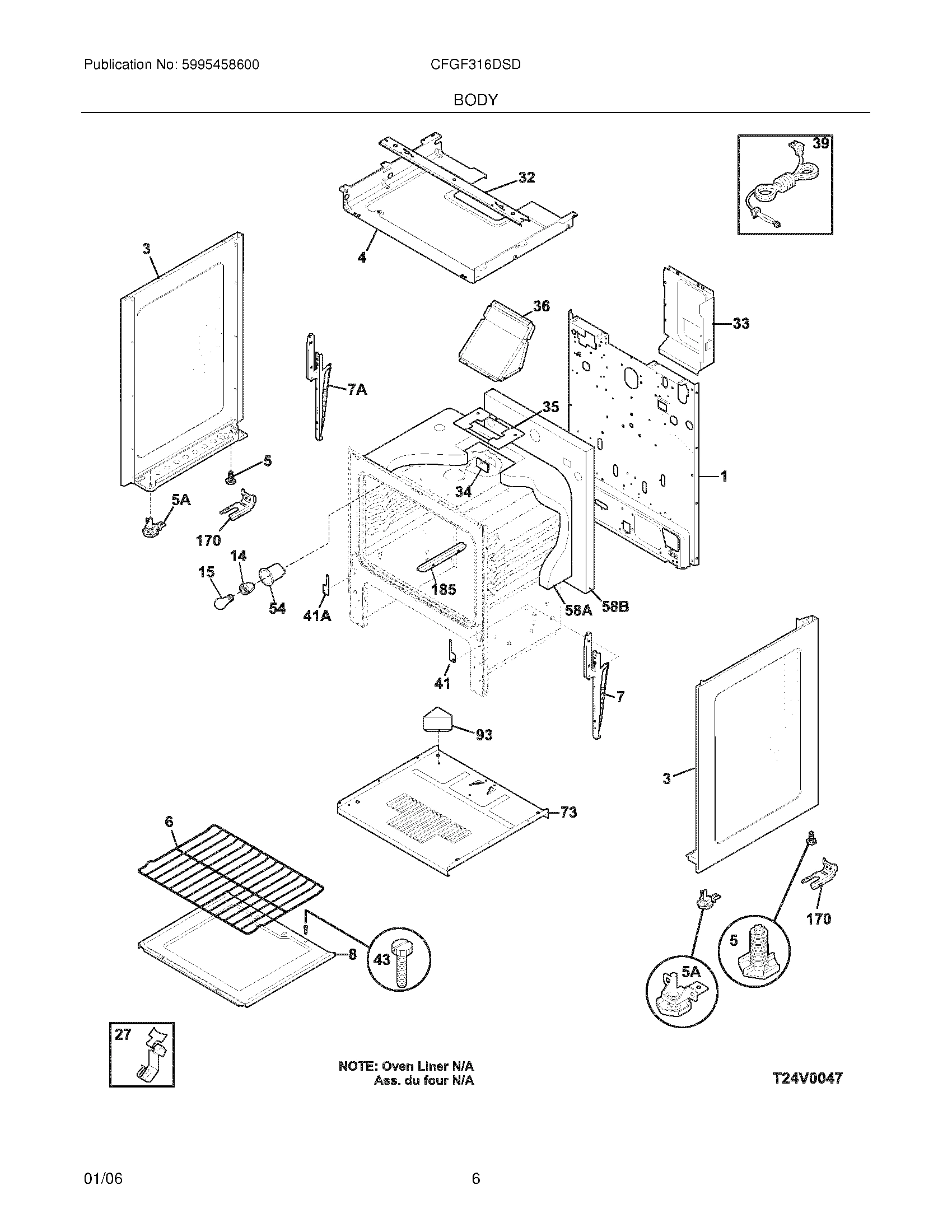

07 - BODY

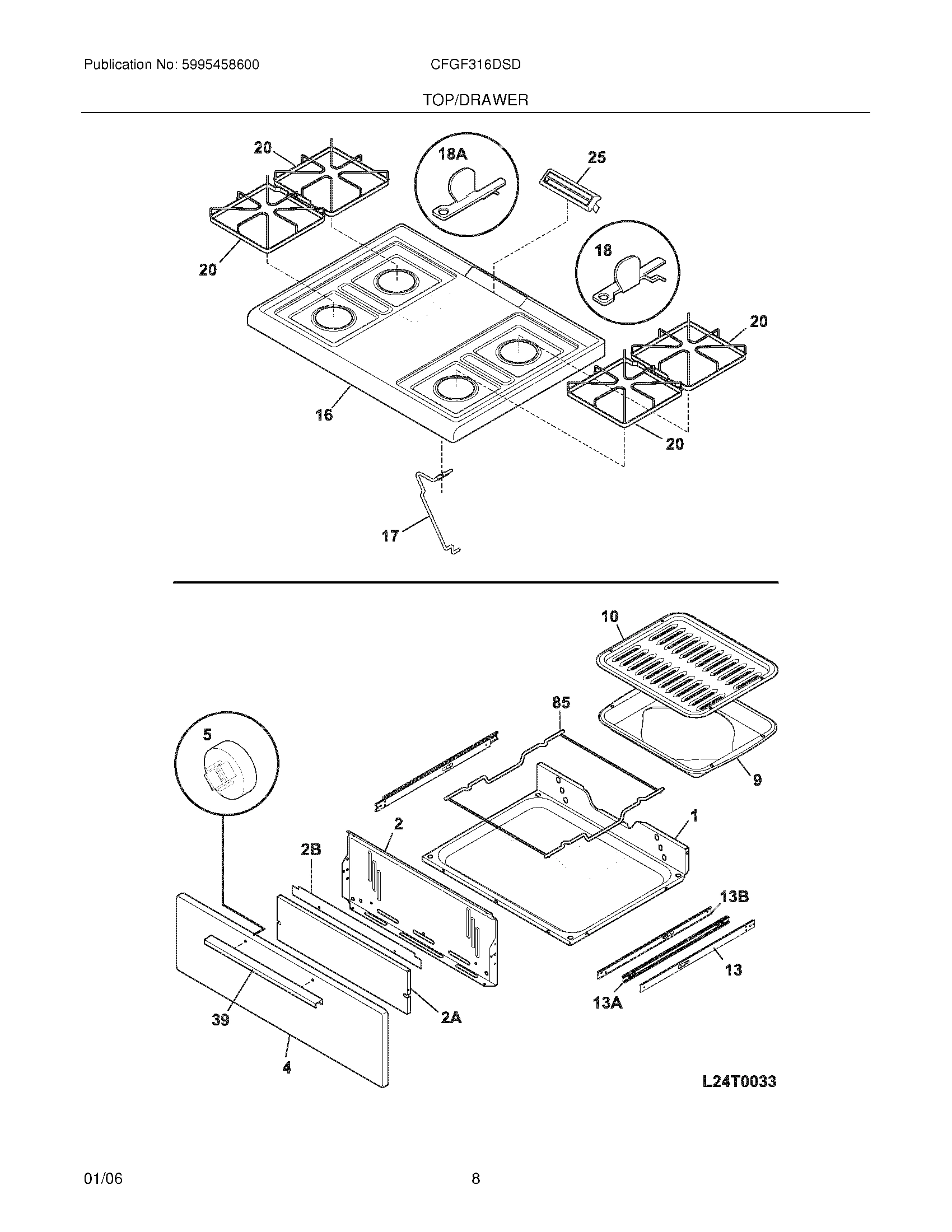

09 - TOP/DRAWER

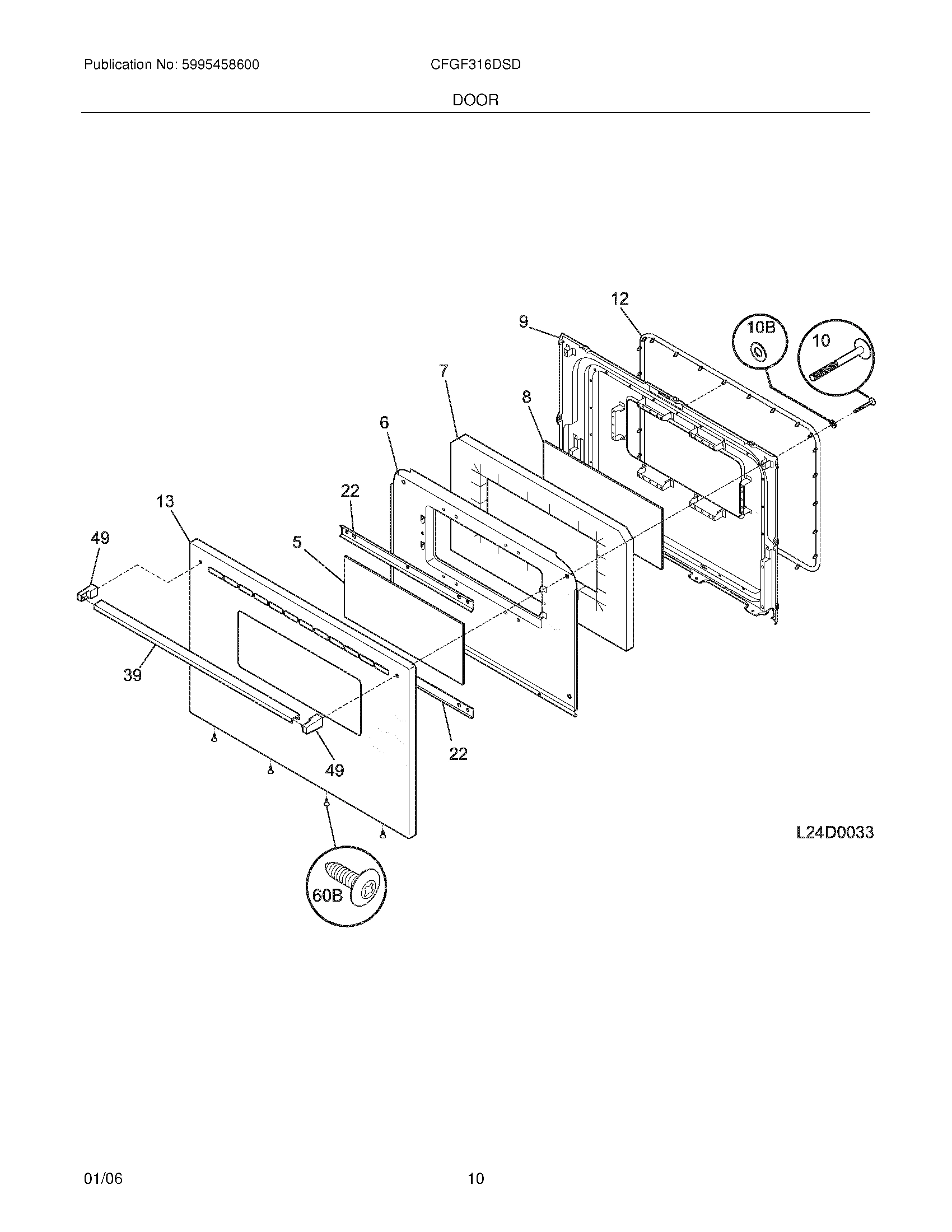

11 - DOOR

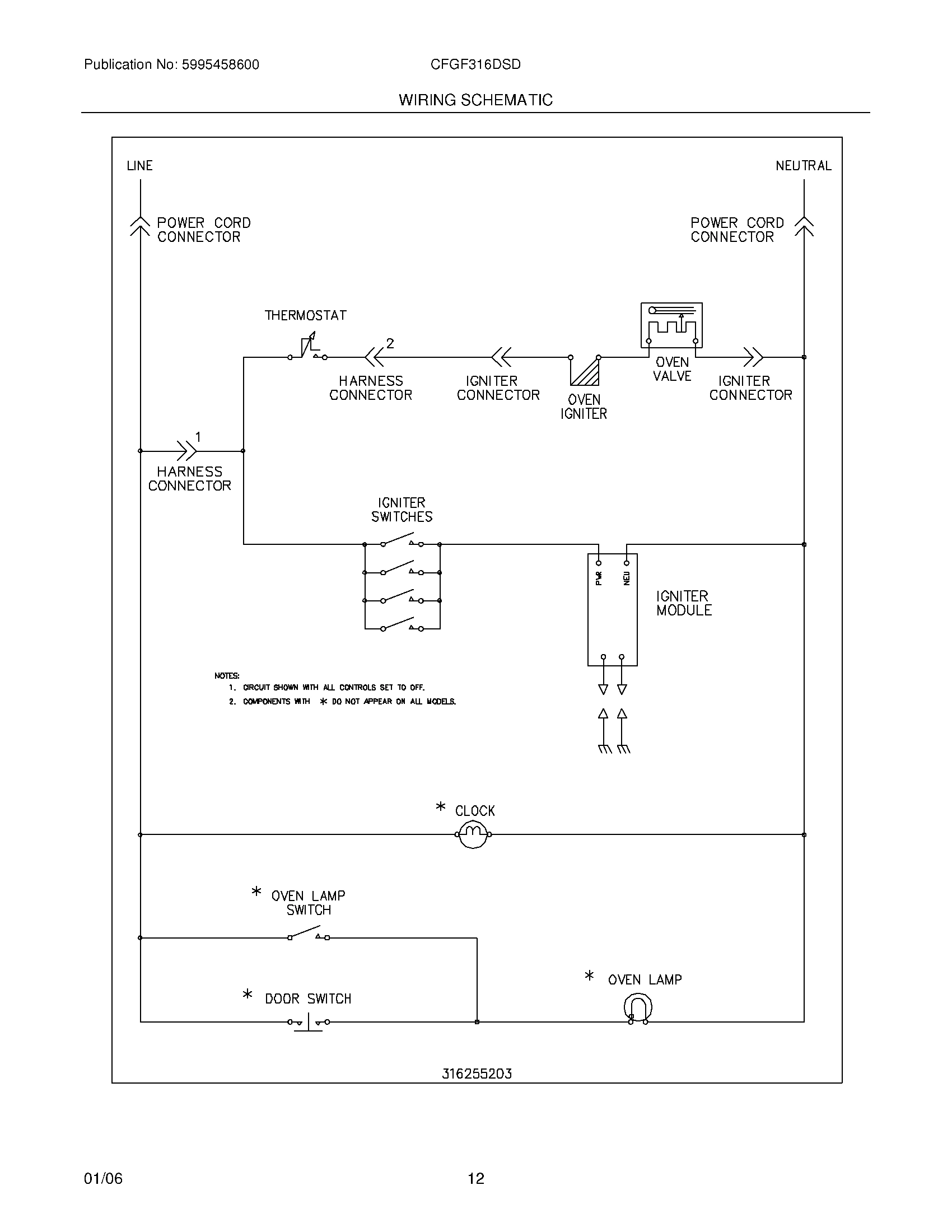

12 - WIRING SCHEMATIC

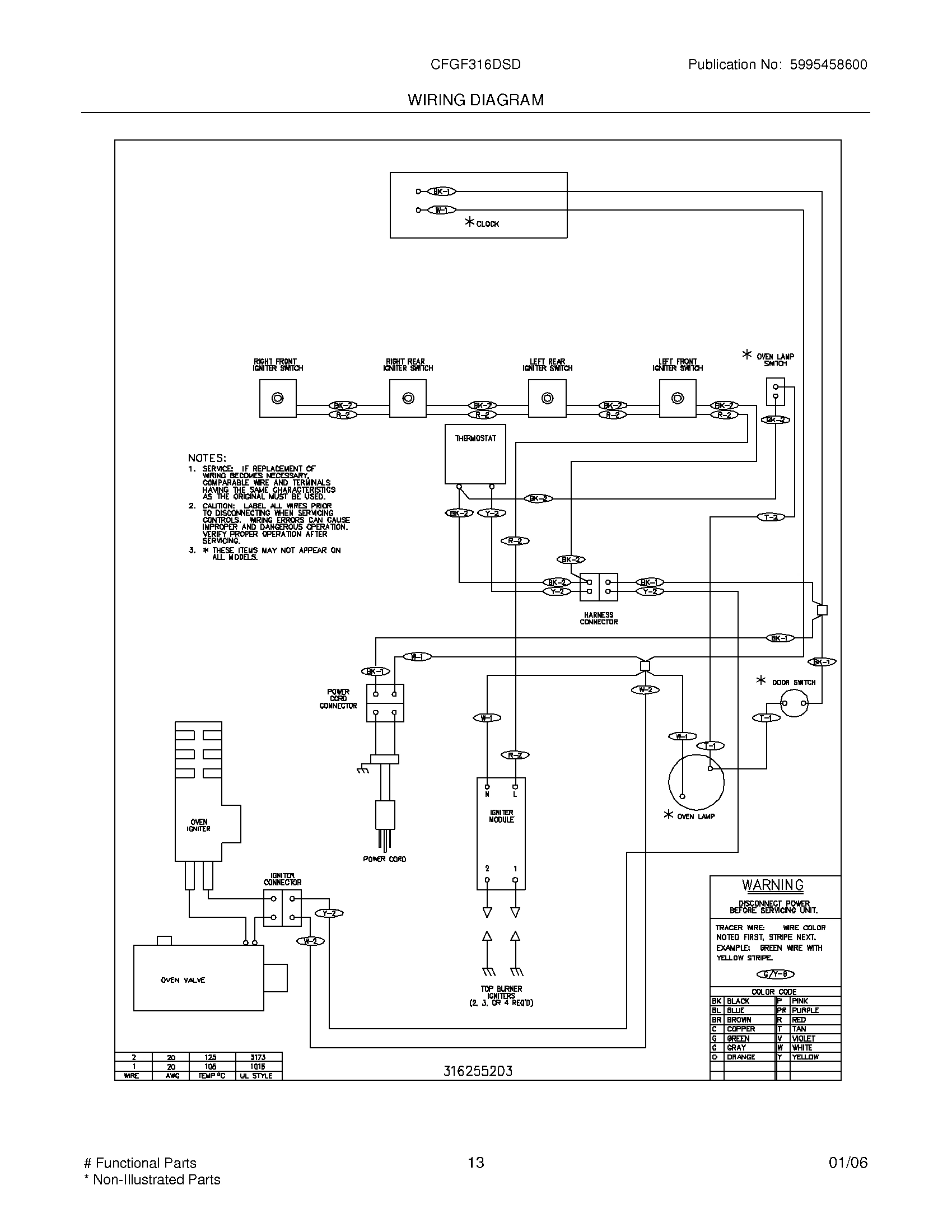

13 - WIRING DIAGRAM
Common parts from model Electrolux CFGF316DSD RANGE
1
WCI 316110201 WCI 316110201 Contact Us For Availability
2
WCI 5303935237 WCI 5303935237 Contact Us For Availability
2
WCI 316236401 WCI 316236401 Contact Us For Availability
3
WCI 316001830 WCI 316001830 Contact Us For Availability
4
WCI 316231211 WCI 316231211 Contact Us For Availability
5
WCI 316272900 WCI 316272900 Contact Us For Availability
5
WCI 316050307 WCI 316050307 Contact Us For Availability
5
WCI 316129100 WCI 316129100 Contact Us For Availability
6
Rack,oven WCI 316067902 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
10
WCI 316001009 WCI 316001009 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10B
WCI 316008401 WCI 316008401 Contact Us For Availability
11A
WCI 316081705 WCI 316081705 Contact Us For Availability
12
WCI 316239700 WCI 316239700 Contact Us For Availability
12
RETAINER-IGNITOR WCI 3016993 Contact Us For Availability
13B
WCI 316111501 WCI 316111501 Contact Us For Availability
14
WCI 316116400 WCI 316116400 Contact Us For Availability
14
WCI 316091705 WCI 316091705 Contact Us For Availability
16
WCI 316273001 WCI 316273001 Contact Us For Availability
17
WCI 3203459 WCI 3203459 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
WCI 316114300 WCI 316114300 Contact Us For Availability
18A
WCI 316263405 WCI 316263405 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
19
Ignitor,oven kit ,w/nut & instr WCI 5303935066 Contact Us For Availability
20
WCI 316277801 WCI 316277801 Contact Us For Availability
21
Nut,hex head sems WCI 5303013272 Contact Us For Availability
22
Retainer,glass ,(2) ,angle WCI 5303272476 Contact Us For Availability
25
WCI 316104500 WCI 316104500 Contact Us For Availability
27
Clip,thermo bulb mtg WCI 5303284616 Contact Us For Availability
32
WCI 316102303 WCI 316102303 Contact Us For Availability
34
Plate,cover WCI 3018607 Contact Us For Availability
36
WCI 316065004 WCI 316065004 Contact Us For Availability
39
WCI 316020202 WCI 316020202 Contact Us For Availability
39
WCI 316019511 WCI 316019511 Contact Us For Availability
41
WCI 316233400 WCI 316233400 Contact Us For Availability
49
WCI 316137000 WCI 316137000 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
WCI 316054202 WCI 316054202 Contact Us For Availability
73
WCI 316109902 WCI 316109902 Contact Us For Availability
85
WCI 316115600 WCI 316115600 Contact Us For Availability
170
WCI 316112500 WCI 316112500 Contact Us For Availability
NI
WCI 5303321319 WCI 5303321319 Contact Us For Availability
NI
Screw,hex head cup pt ,8-18 x 0.375 ,black WCI 316021105 Contact Us For Availability
NI
Screw,wafer head `8-32T x 0.500 ,black WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
WCI 316215600 WCI 316215600 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
NI
WCI 316245600 WCI 316245600 Contact Us For Availability
NI
WCI 316246400 WCI 316246400 Contact Us For Availability
NI
Screw`hex ,8-18 x 3/8 `nick `(3) `regulator b WCI 316021104 Contact Us For Availability
NI
Screw,wafer hd sq dr ,8-18AB x 0.5 WCI 5303271648 Contact Us For Availability
× ![]()
