Model Electrolux CFEF3043RSB ELECTRIC RANGE – Common Parts & Diagrams

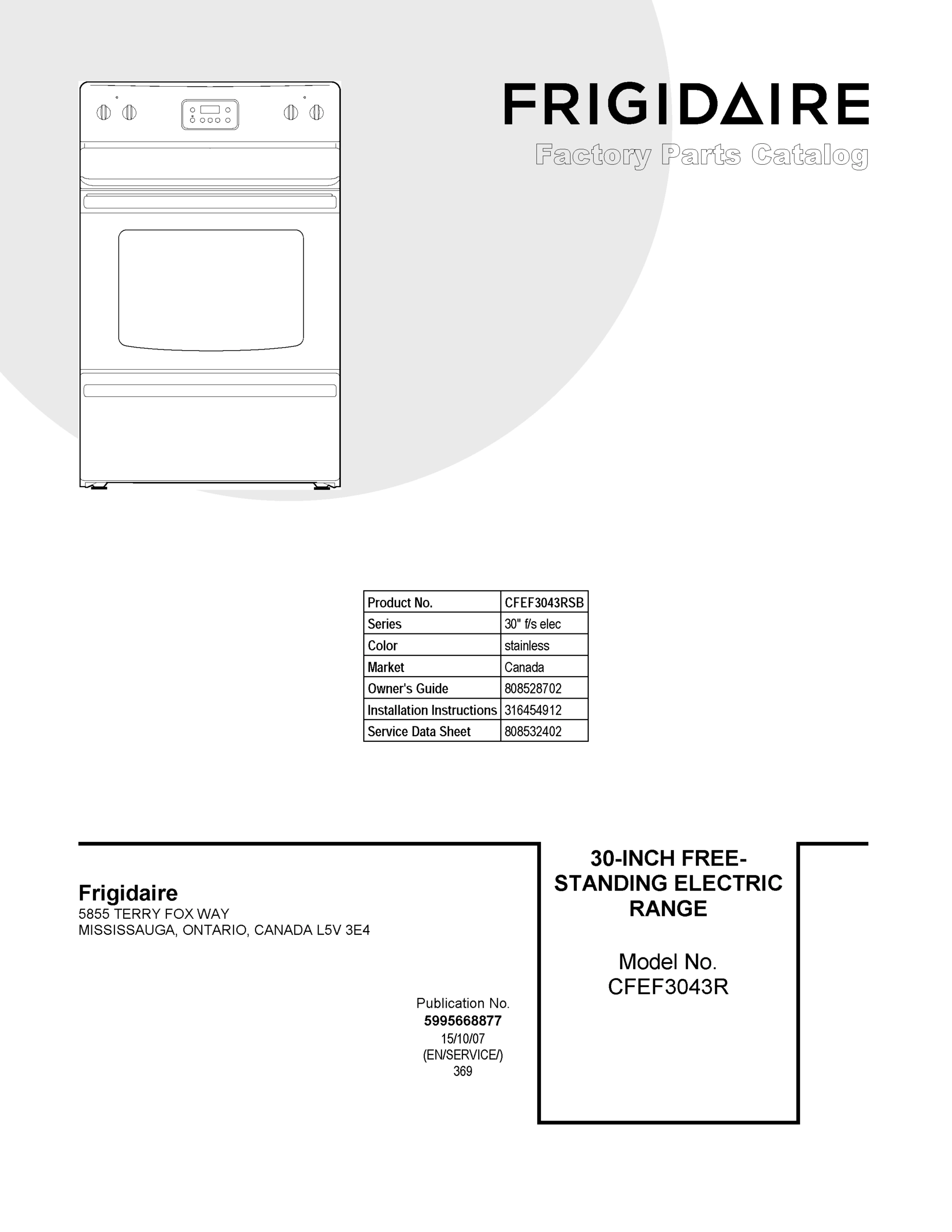

01 - COVER SHEET

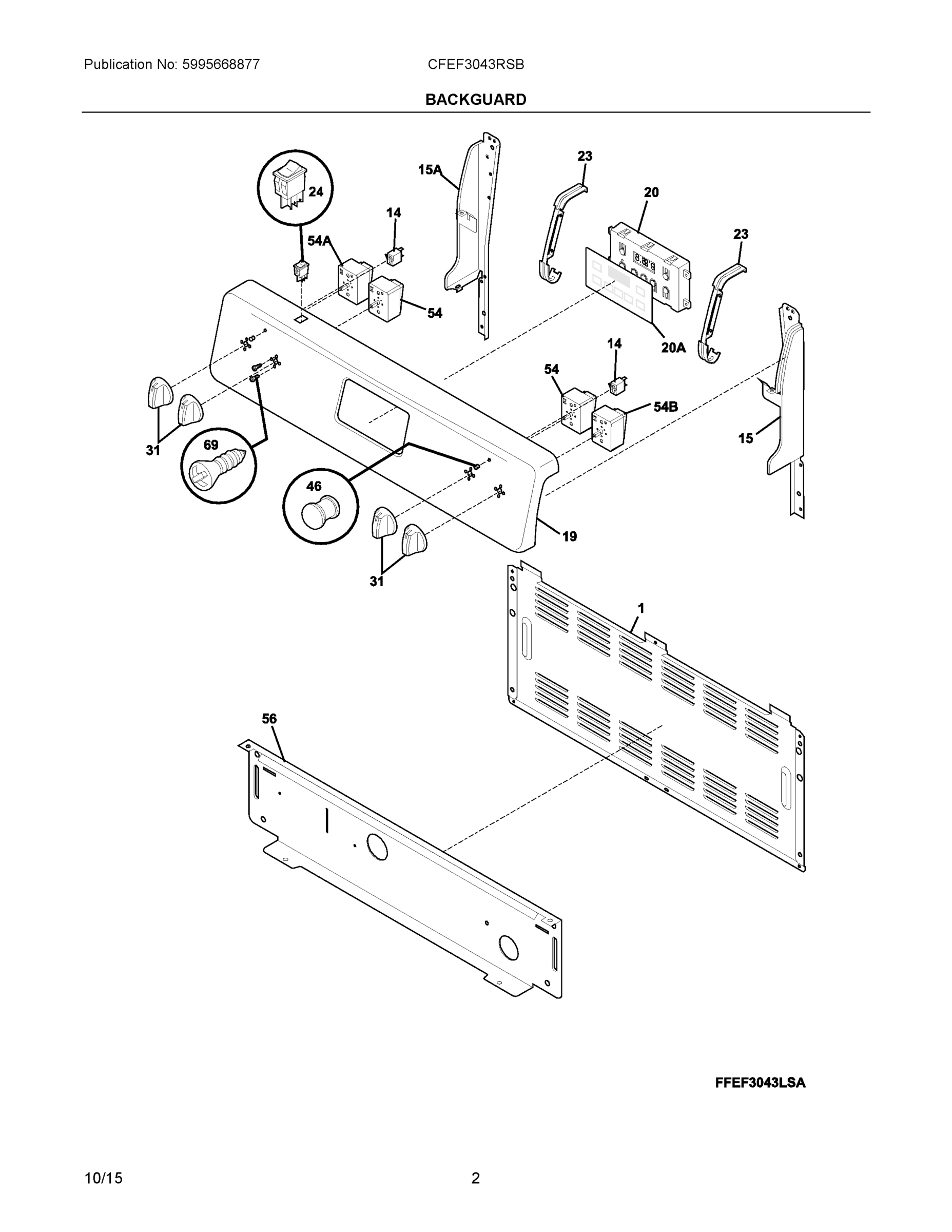

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux CFEF3043RSB ELECTRIC RANGE
3
WCI 5303935398 WCI 5303935398 Contact Us For Availability
4
WCI 316453036 WCI 316453036 Contact Us For Availability
4
WCI 5303935272 WCI 5303935272 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
6
RACK, OVEN, (2) WCI 316067902 Contact Us For Availability
8
WCI 5304503232 WCI 5304503232 Contact Us For Availability
8
PANEL, SUMP, OVEN BOTTOM WCI 316201501 Contact Us For Availability
9
PAN, BROILER OPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
WCI 316230635 WCI 316230635 Contact Us For Availability
10
SCREW, HANDLE MTG., 10-24 X 1.75", (2) WCI 316439500 Contact Us For Availability
10
INSERT, BROILER PAN OPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 316239700 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
15
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15
SUPPORT, BACKGUARD, BLACK, RH WCI 316411405 Contact Us For Availability
15A
ELEMENT, SURFACE, 9", 2500 W, RADIANT WCI 316135401 Contact Us For Availability
15A
SUPPORT, BACKGUARD, BLACK, LH WCI 316411404 Contact Us For Availability
15B
ELEMENT, DUAL, 9"/6", SURFACE, 1300W/1200W, ( WCI 316555800 Contact Us For Availability
16
WCI 316531948 WCI 316531948 Contact Us For Availability
17
WCI 316117701 WCI 316117701 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
19
WCI 316456529 WCI 316456529 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
BRACKET-CLOCK MTG, BLACK WCI 316441600 Contact Us For Availability
23
WCI 316575924 WCI 316575924 Contact Us For Availability
26
SUPPORT, CHASSIS, (2) WCI 316206300 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
26B
BRACKET, CHASSIS SUPPORT, FRONT WCI 316214202 Contact Us For Availability
31
KNOB, CONTROL, BLACK WCI 316543801 Contact Us For Availability
39
WCI 316558201 WCI 316558201 Contact Us For Availability
46
LENS, INDICATOR LIGHT WCI 316437900 Contact Us For Availability
52
CAP, DOOR TRIM, BLACK WCI 316491201 Contact Us For Availability
52
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
54B
SWITCH, INFINITE RADIAN, DUAL WCI 316238201 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
58A
INSULATION, 1", OVEN WRAPPER WCI 316047707 Contact Us For Availability
58B
INSULATION, 1", OVEN BACK WCI 316054202 Contact Us For Availability
59A
TUBE, OVEN VENT, UPPER WCI 316208304 Contact Us For Availability
66
ELEMENT, BROIL WCI 316203200 Contact Us For Availability
67
ELEMENT, BAKE WCI 316225001 Contact Us For Availability
68
SUPPORT, BROIL ELEMENT WCI 316203400 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NI
SCREW, TRILOBE, 10-32 X 5/16", BLACK WCI 316418901 Contact Us For Availability
NI
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NI
WCI 316580001 WCI 316580001 Contact Us For Availability
NI
PLUG, HOLE, LIGHT SWITCH WCI 316210800 Contact Us For Availability
NIA
SCREW, HANDLE MTG., 10 14 X .4 TRUS, (2) WCI 316437500 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
