Model Electrolux CFEF3012PBE RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

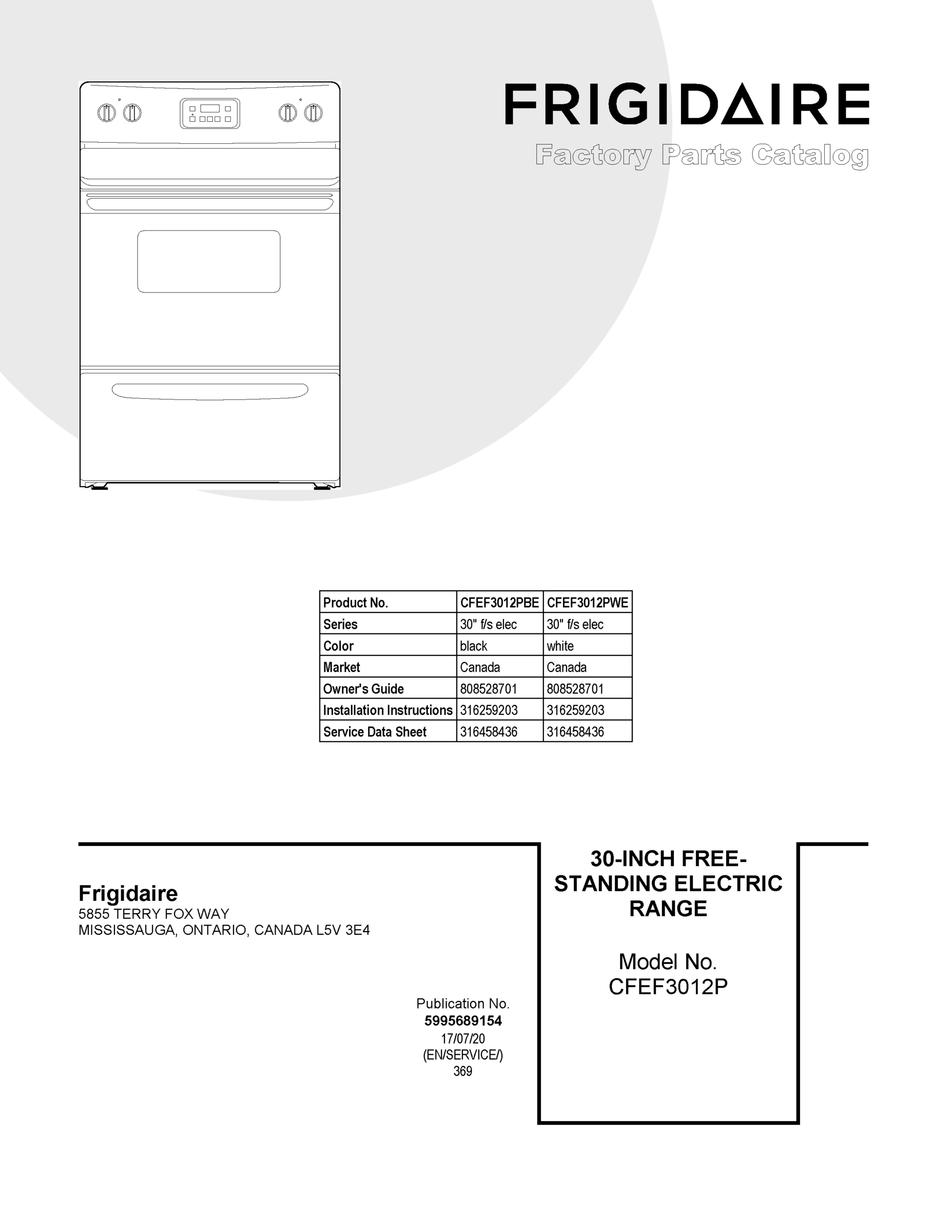

01 - COVER SHEET
02 - BACKGUARD

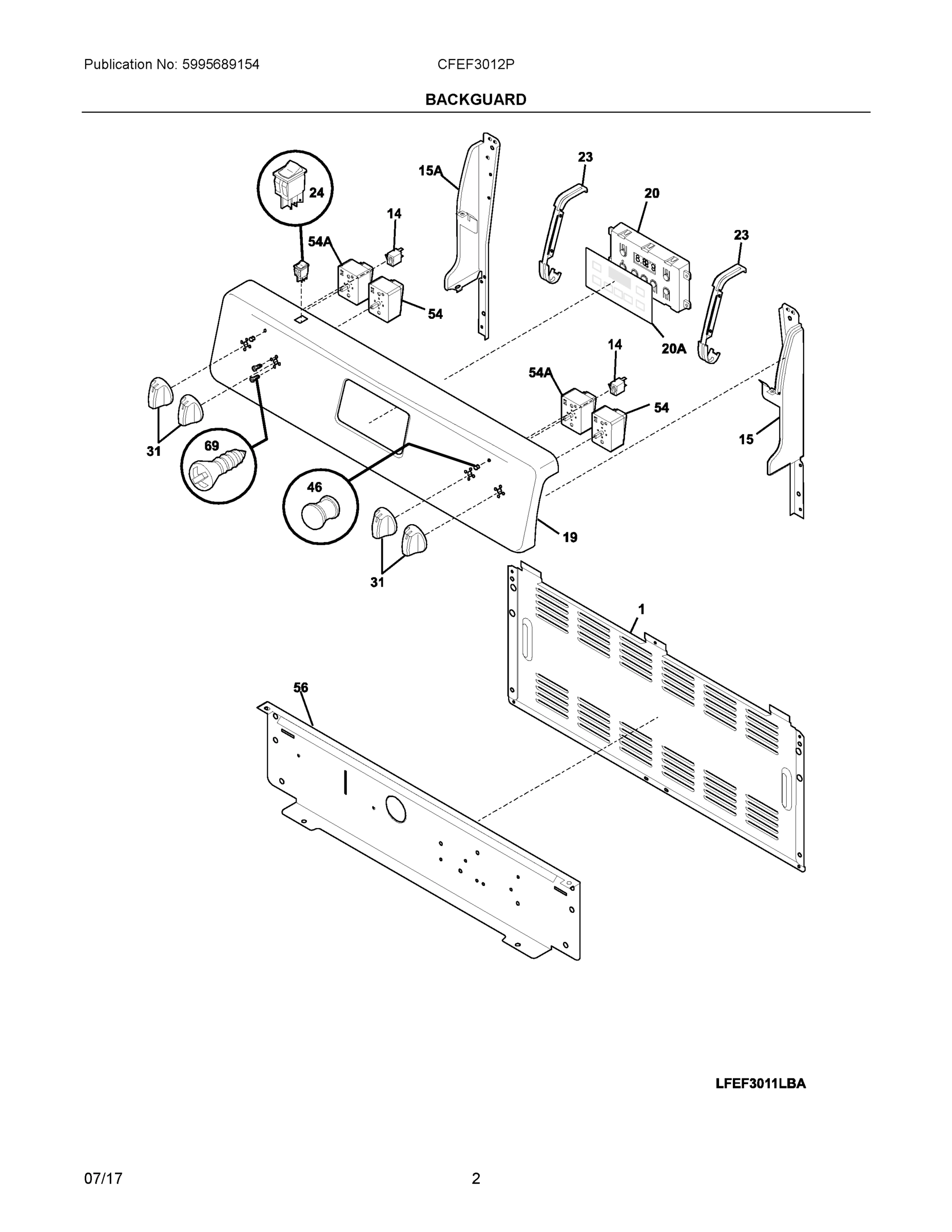

03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux CFEF3012PBE RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
3
TRIM KIT-DOOR, 3 SIDED, BLACK, W/TAPE AND FOI WCI 5303935398 Contact Us For Availability
4
GLASS, DOOR KIT, BLACK, OUTER, W/FOIL TAPE WCI 5303935203 Contact Us For Availability
4
WCI 316231328 WCI 316231328 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
6
RACK, OVEN, (2) WCI 316067902 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316236802 Contact Us For Availability
8
PANEL, SUMP, OVEN BOTTOM WCI 316201501 Contact Us For Availability
8
GLASS, OVEN DOOR, INNER WCI 5304506004 Contact Us For Availability
9
LINER, OVEN DOOR WCI 316230634 Contact Us For Availability
10
SCREW, WAFER HEAD, 10-14 X 1 3/8, HANDLE MTG WCI 316278700 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 316239700 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
15
SUPPORT, BACKGUARD, BLACK, RH WCI 316411405 Contact Us For Availability
15A
ELEMENT, SURFACE, 6", SMALL WCI 318372210 Contact Us For Availability
15A
SUPPORT, BACKGUARD, BLACK, LH WCI 316411404 Contact Us For Availability
16
MAIN TOP, BLACK WCI 316202387 Contact Us For Availability
17
ROD, SUPPORT, MAIN TOP WCI 316057601 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
HINGE, OVEN DOOR, ORANGE WCI 316575921 Contact Us For Availability
23
BRACKET-CLOCK MTG, BLACK WCI 316441600 Contact Us For Availability
26
SUPPORT, CHASSIS, (2) WCI 316206300 Contact Us For Availability
31
KNOB, CONTROL, BLACK WCI 316543801 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316233903 Contact Us For Availability
39
HANDLE, DOOR/DRAWER, BLACK WCI 316545300 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
52
CAP, DOOR TRIM, BLACK WCI 316491201 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
58A
INSULATION, 1", OVEN WRAPPER WCI 316047707 Contact Us For Availability
58B
INSULATION, 1", OVEN BACK WCI 316054202 Contact Us For Availability
59
TUBE, OVEN VENT WCI 316073605 Contact Us For Availability
66
ELEMENT, BROIL WCI 316203200 Contact Us For Availability
67
ELEMENT, BAKE WCI 316225001 Contact Us For Availability
68
SUPPORT, BROIL ELEMENT WCI 316203400 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
NI
HARNESS, WIRING, SURFACE UNITS WCI 316580400 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NI
SCREW, TRILOBE, 10-32 X 5/16", BLACK WCI 316418901 Contact Us For Availability
NI
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NI
PLUG, HOLE, LIGHT SWITCH WCI 316210800 Contact Us For Availability
NI
SCREW, WAFER HD SQ DR, 8-18AB X 0.5 WCI 5303271648 Contact Us For Availability
NIA
WCI 316418900 WCI 316418900 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
