Model Maytag CFE9000BCB ELECTRIC RANGE – Common Parts & Diagrams

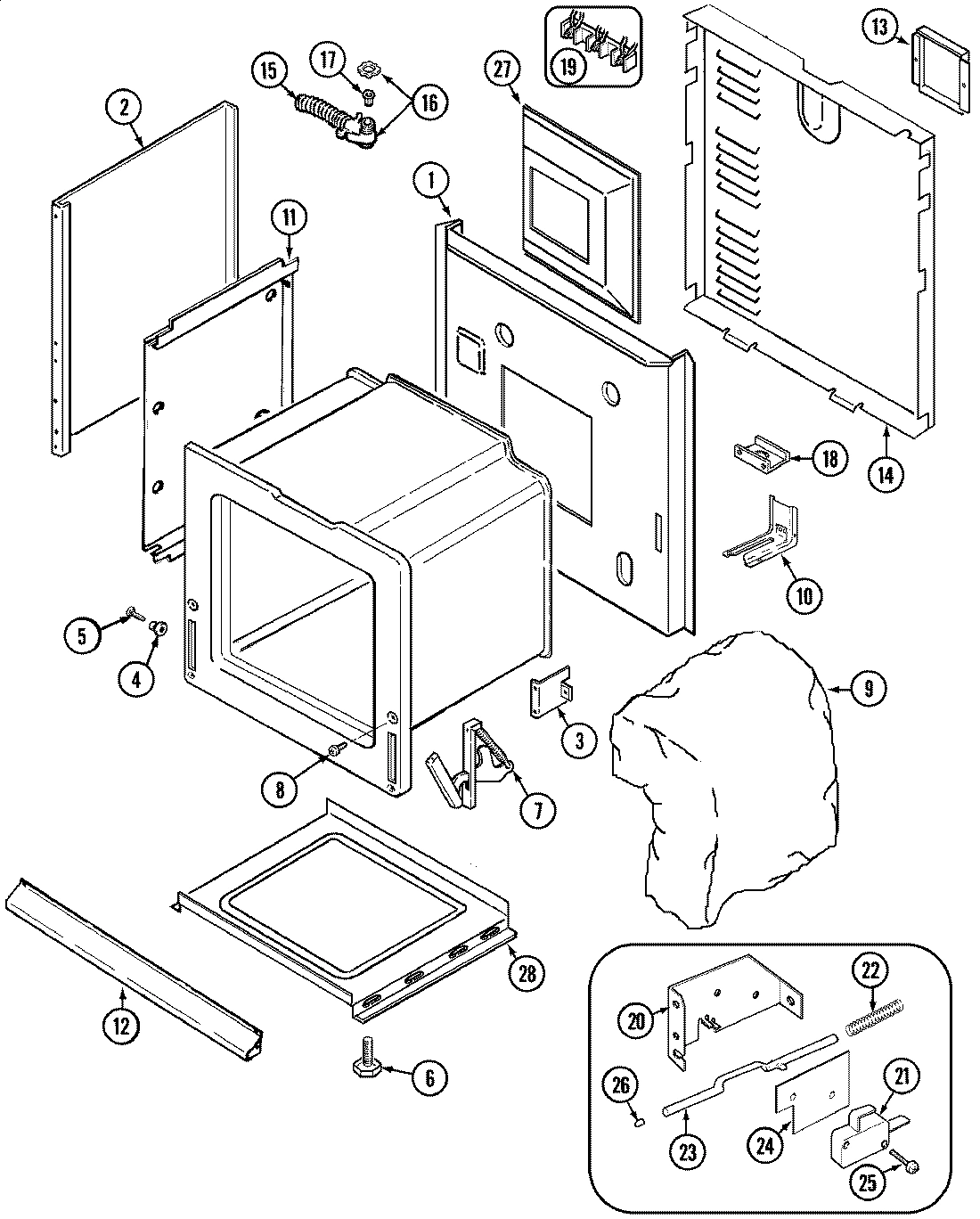

01 - BODY
02 - DOOR
03 - DOOR (SER. PRE. 12)
04 - INTERNAL CONTROLS
05 - OVEN
06 - TOP ASSEMBLY
07 - WIRING INFORMATION
Common parts from model Maytag CFE9000BCB ELECTRIC RANGE
1
MAY 7101P334-60 MAY 7101P334-60 Contact Us For Availability
1
MAY 7902P361-60 MAY 7902P361-60 Contact Us For Availability
1
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
1
MAY 74003032 MAY 74003032 Contact Us For Availability
1
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 74001648 MAY 74001648 Contact Us For Availability
2
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 74001708 MAY 74001708 Contact Us For Availability
3
MAY Y04000058 MAY Y04000058 Contact Us For Availability
4
MAY 74003005 MAY 74003005 Contact Us For Availability
4
MAY 8009P028-60 MAY 8009P028-60 Contact Us For Availability
4
MAY 7801P046-60 MAY 7801P046-60 Contact Us For Availability
5
SCREW MAY 7101P326-60 Contact Us For Availability
5
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
6
MAY 74001311 MAY 74001311 Contact Us For Availability
6
NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability
6
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
6
MAY 7701P132-60 MAY 7701P132-60 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 7601P301-60 MAY 7601P301-60 Contact Us For Availability
7
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
7
MAY 7701P149-60 MAY 7701P149-60 Contact Us For Availability
7
MAY 4804F051-60 MAY 4804F051-60 Contact Us For Availability
7
MAY 7403P307-60 MAY 7403P307-60 Contact Us For Availability
7
MAY 74003125 MAY 74003125 Contact Us For Availability
7
MAY 3801F312-45 MAY 3801F312-45 Contact Us For Availability
7
MAY 74002978 MAY 74002978 Contact Us For Availability
8
MAY 7731P082-60 MAY 7731P082-60 Contact Us For Availability
8
MAY 7101P262-60 MAY 7101P262-60 Contact Us For Availability
8
MAY 3601F236-47 MAY 3601F236-47 Contact Us For Availability
8
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
8
MAY 4005F466-51 MAY 4005F466-51 Contact Us For Availability
9
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
9
MAY 74001800 MAY 74001800 Contact Us For Availability
9
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
9
MAY 7706P305-60 MAY 7706P305-60 Contact Us For Availability
9
MAY 7427P012-60 MAY 7427P012-60 Contact Us For Availability
9
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
9
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
9
MAY 7740P052-60 MAY 7740P052-60 Contact Us For Availability
10
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
10
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
10
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
10
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
10
MAY 7103P136-60 MAY 7103P136-60 Contact Us For Availability
10
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
10
MAY 74003244 MAY 74003244 Contact Us For Availability
10
MAY 4011F250-80 MAY 4011F250-80 Contact Us For Availability
10
MAY 74003191 MAY 74003191 Contact Us For Availability
11
MAY 3804F107-51 MAY 3804F107-51 Contact Us For Availability
11
MAY 3818F052-51 MAY 3818F052-51 Contact Us For Availability
11
MAY 74001842 MAY 74001842 Contact Us For Availability
11
MAY 3604F213-51 MAY 3604F213-51 Contact Us For Availability
11
MAY 3604F214-51 MAY 3604F214-51 Contact Us For Availability
11
MAY 4006W112-45 MAY 4006W112-45 Contact Us For Availability
11
MAY 74001674 MAY 74001674 Contact Us For Availability
11
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
12
MAY 3604W155-70 MAY 3604W155-70 Contact Us For Availability
12
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
12
MAY 7706P309-60 MAY 7706P309-60 Contact Us For Availability
12
MAY 3801F327-51 MAY 3801F327-51 Contact Us For Availability
12
MAY 7201P060-60 MAY 7201P060-60 Contact Us For Availability
12
MAY 74003043 MAY 74003043 Contact Us For Availability
12
MAY 7407P098-60 MAY 7407P098-60 Contact Us For Availability
13
MAY 4005F413-51 MAY 4005F413-51 Contact Us For Availability
13
MAY 74001449 MAY 74001449 Contact Us For Availability
13
MAY 74001843 MAY 74001843 Contact Us For Availability
13
MAY 4001F098-51 MAY 4001F098-51 Contact Us For Availability
13
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
13
MAY 74001185 MAY 74001185 Contact Us For Availability
13
MAY 74003025 MAY 74003025 Contact Us For Availability
14
MAY 4005F411-51 MAY 4005F411-51 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
14
MAY 7428P021-60 MAY 7428P021-60 Contact Us For Availability
14
MAY 7406P074-60 MAY 7406P074-60 Contact Us For Availability
14
MAY Y04000064 MAY Y04000064 Contact Us For Availability
15
MAY 3414F066-51 MAY 3414F066-51 Contact Us For Availability
15
MAY 5140A026-60 MAY 5140A026-60 Contact Us For Availability
15
MAY 74001841 MAY 74001841 Contact Us For Availability
15
SUPPORT, RELAY MAY 74001813 Contact Us For Availability
15
MAY 8004P020-60 MAY 8004P020-60 Contact Us For Availability
15
MAY 8004P032-60 MAY 8004P032-60 Contact Us For Availability
15
MAY 74002652 MAY 74002652 Contact Us For Availability
15
MAY 7406P073-60 MAY 7406P073-60 Contact Us For Availability
15
MAY Y04000063 MAY Y04000063 Contact Us For Availability
16
MAY 7109P002-60 MAY 7109P002-60 Contact Us For Availability
16
MAY 7417P005-60 MAY 7417P005-60 Contact Us For Availability
16
MAY 74001844 MAY 74001844 Contact Us For Availability
16
MAY W10124350 MAY W10124350 Contact Us For Availability
16
MAY 3818F056-51 MAY 3818F056-51 Contact Us For Availability
16
MAY 3807F390-45 MAY 3807F390-45 Contact Us For Availability
17
MAY 8008P017-60 MAY 8008P017-60 Contact Us For Availability
17
MAY 3818F053-51 MAY 3818F053-51 Contact Us For Availability
17
MAY 3818F054-51 MAY 3818F054-51 Contact Us For Availability
17
MAY 3818F059-51 MAY 3818F059-51 Contact Us For Availability
17
MAY 74002614 MAY 74002614 Contact Us For Availability
17
MAY 74002976 MAY 74002976 Contact Us For Availability
18
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
18
SCREW, 8 X 1/2 MAY 74002979 Contact Us For Availability
19
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
19
MAY 74002647 MAY 74002647 Contact Us For Availability
20
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
21
MAY 74001628 MAY 74001628 Contact Us For Availability
23
MAY 74001630 MAY 74001630 Contact Us For Availability
24
MAY 74001626 MAY 74001626 Contact Us For Availability
25
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
26
MAY 74001631 MAY 74001631 Contact Us For Availability
27
MAY 74001325 MAY 74001325 Contact Us For Availability
28
MAY 4011F176-51 MAY 4011F176-51 Contact Us For Availability
NI
MAY 16000327 MAY 16000327 Contact Us For Availability
NI
MAY 5170P228-60 MAY 5170P228-60 Contact Us For Availability
NI
MAY 5175D076-60 MAY 5175D076-60 Contact Us For Availability
NI
MAY 74001180 MAY 74001180 Contact Us For Availability
NI
MAY 74001583 MAY 74001583 Contact Us For Availability
NI
MAY 74001594 MAY 74001594 Contact Us For Availability
NI
MAY 8308P002-60 MAY 8308P002-60 Contact Us For Availability
NI
MAY 15001408 MAY 15001408 Contact Us For Availability
× ![]()
