Model Maytag CFE800 ELECTRIC RANGE – Common Parts & Diagrams

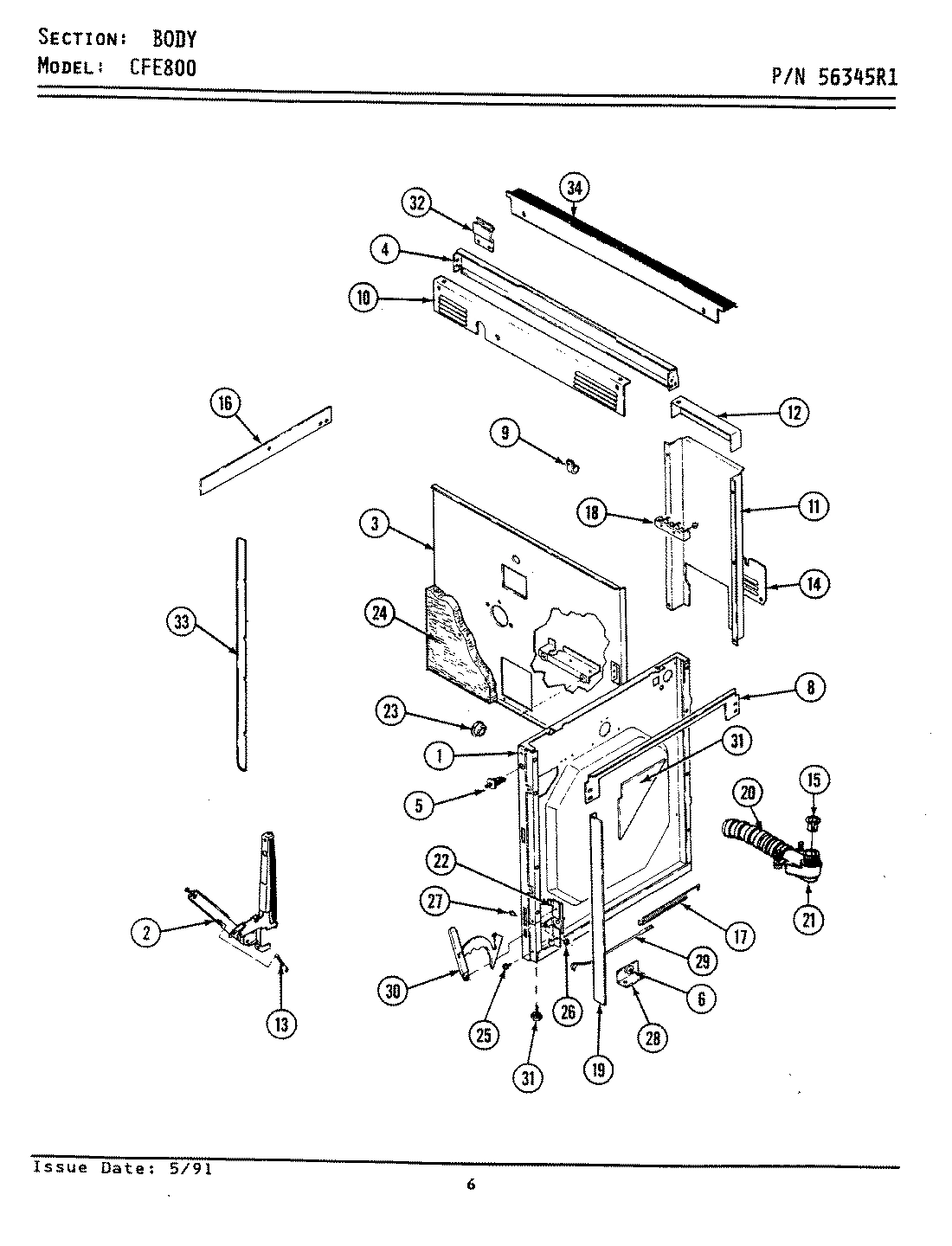

01 - BODY

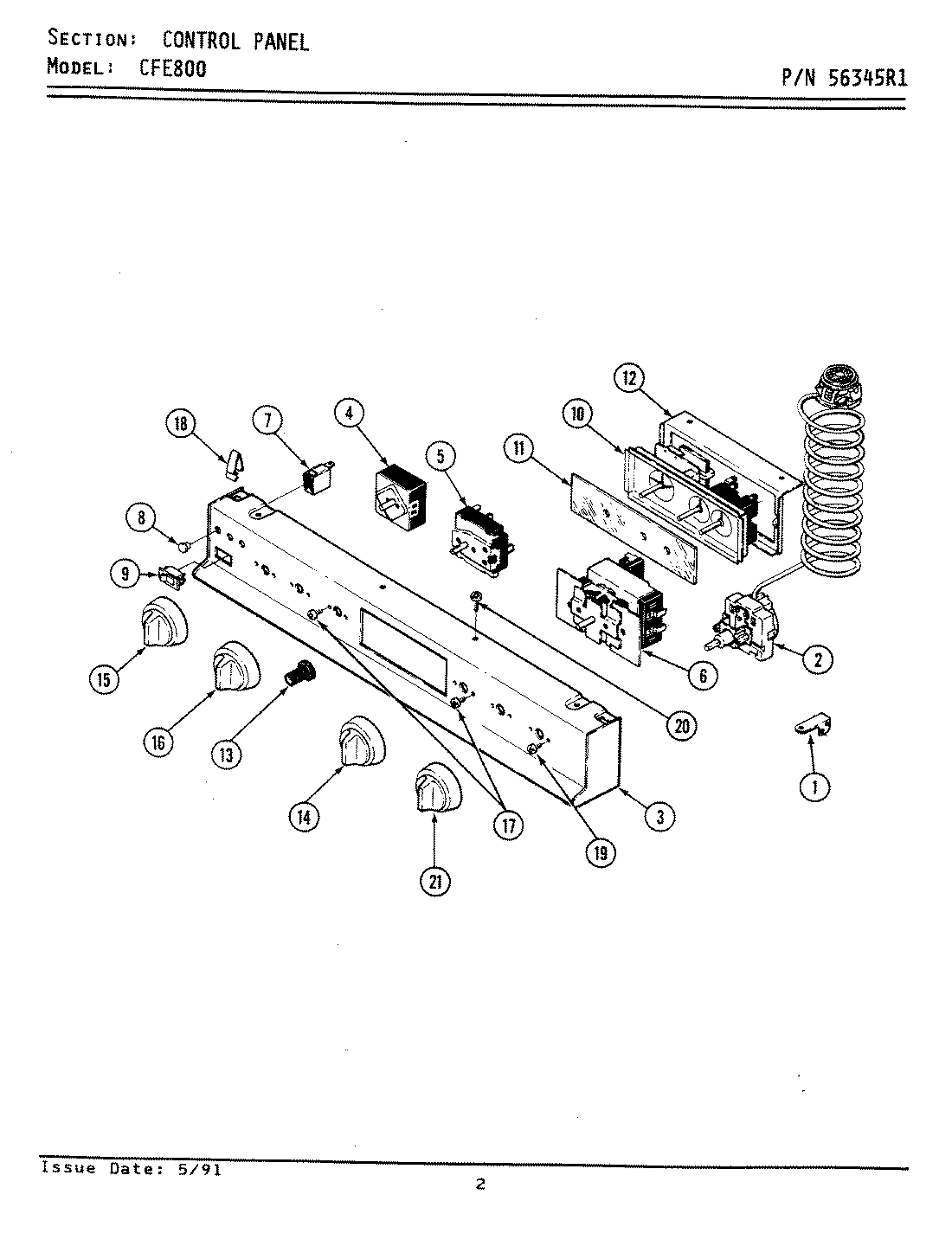

02 - CONTROL PANEL
03 - DOOR

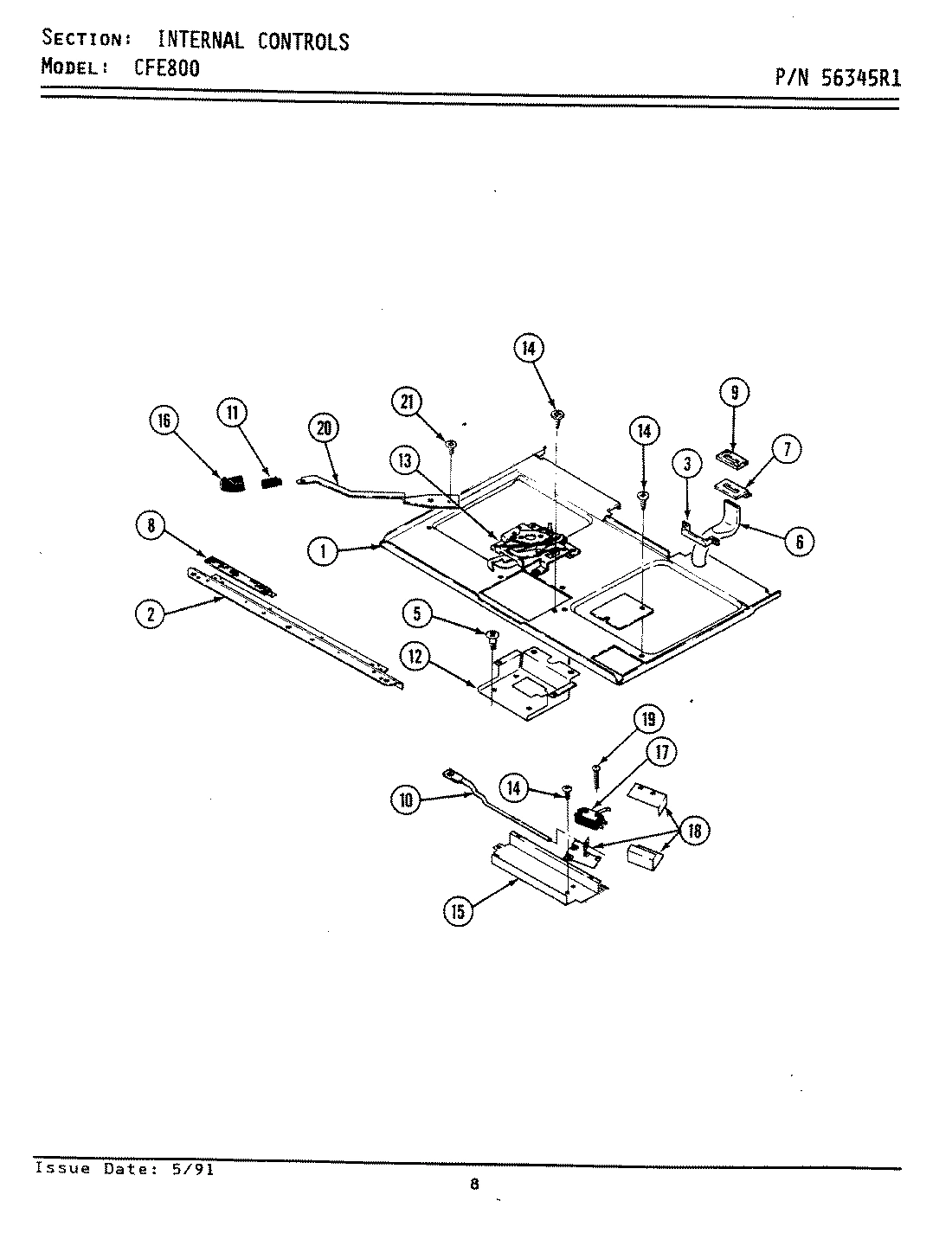

04 - INTERNAL CONTROLS

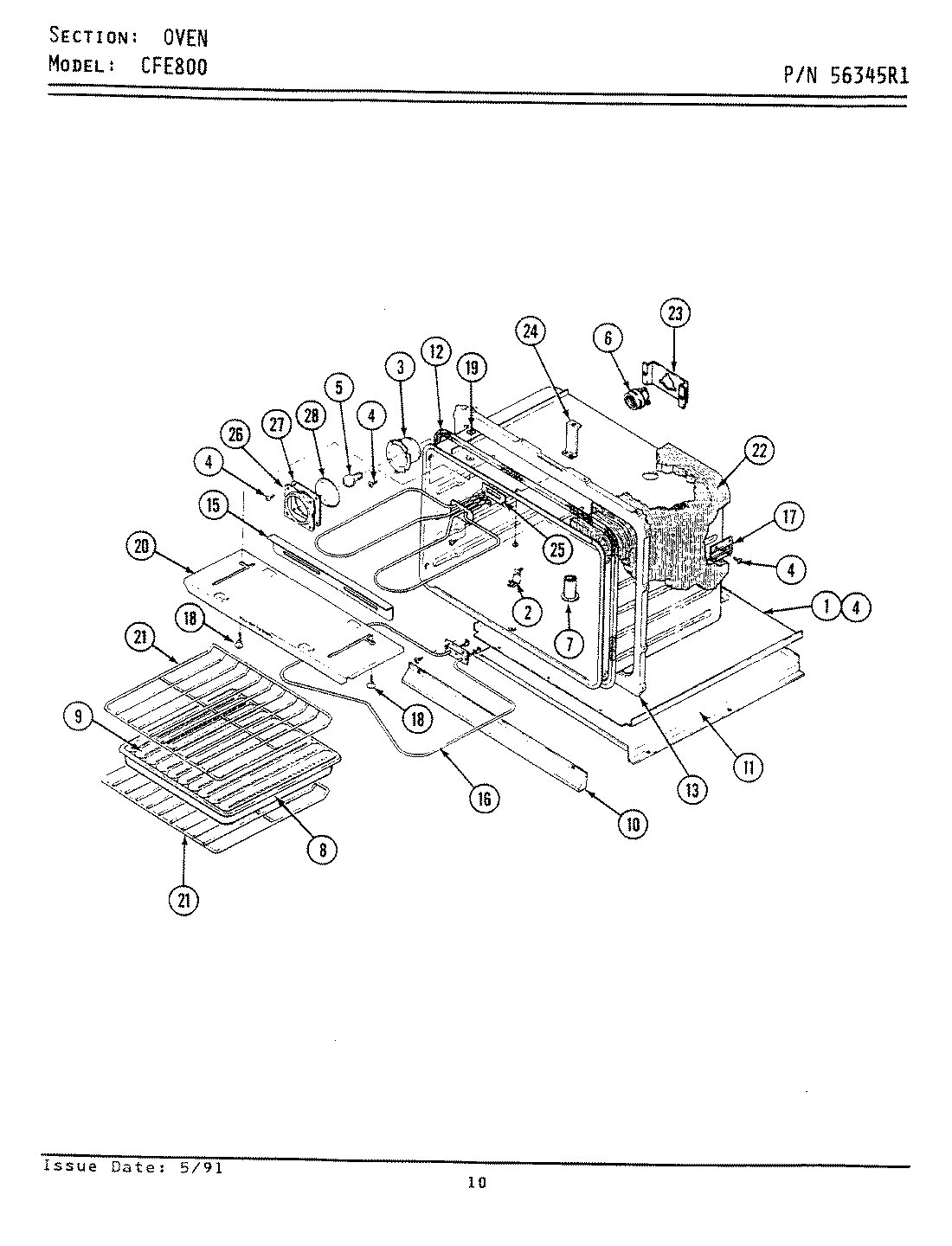

05 - OVEN

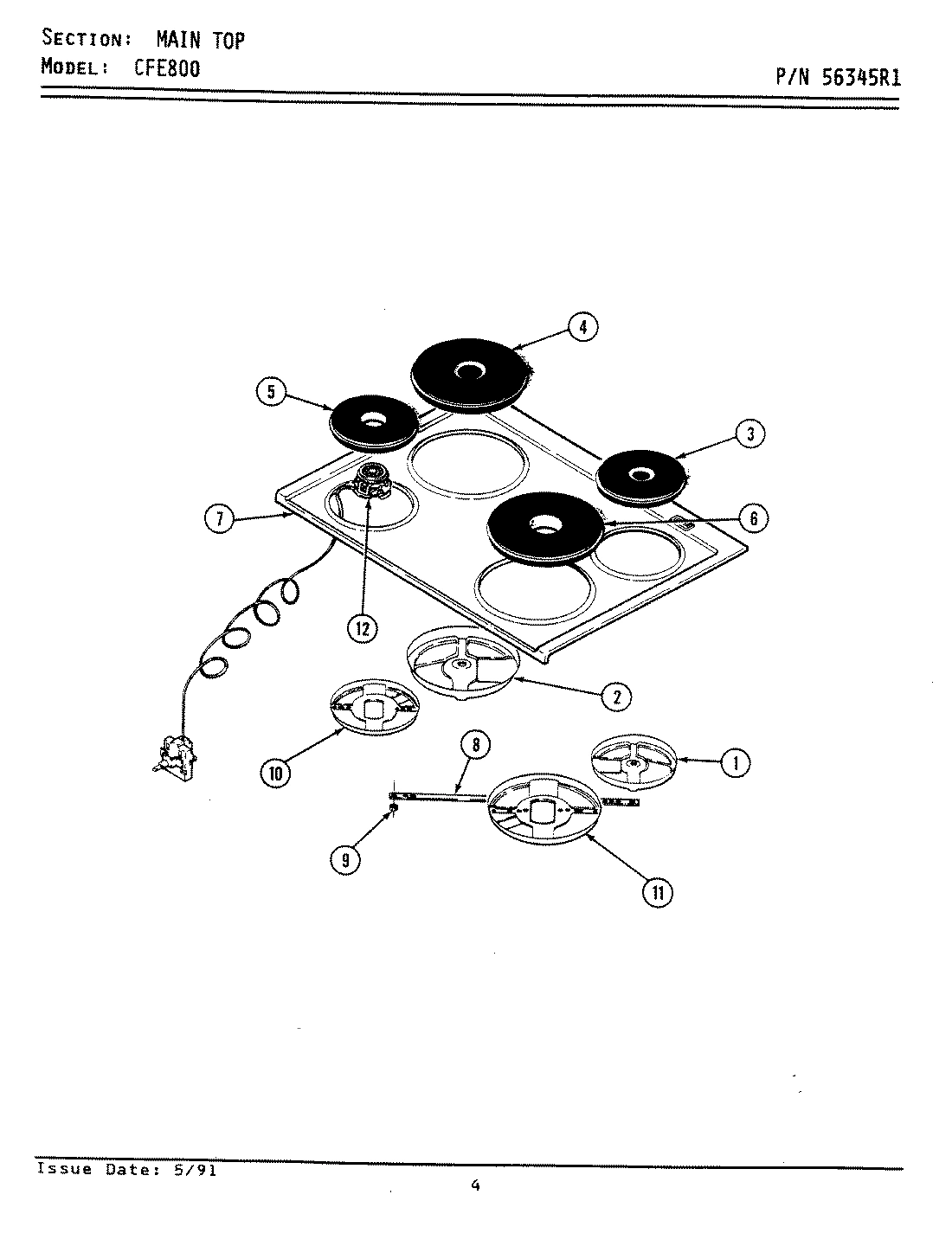

06 - TOP ASSEMBLY
Common parts from model Maytag CFE800 ELECTRIC RANGE
1
MAY 3801F047-34 MAY 3801F047-34 Contact Us For Availability
1
MAY 3801F049-34 MAY 3801F049-34 Contact Us For Availability
1
MAY 3601F158-70 MAY 3601F158-70 Contact Us For Availability
1
MAY 3601F159-70 MAY 3601F159-70 Contact Us For Availability
1
MAY 4011F158-80 MAY 4011F158-80 Contact Us For Availability
1
MAY 4011F180-80 MAY 4011F180-80 Contact Us For Availability
1
MAY 3804F093-80 MAY 3804F093-80 Contact Us For Availability
1
MAY 3804F102-80 MAY 3804F102-80 Contact Us For Availability
1
MAY 8004P011-60 MAY 8004P011-60 Contact Us For Availability
2
MAY 3601F170-45 MAY 3601F170-45 Contact Us For Availability
2
MAY 4012F018-80 MAY 4012F018-80 Contact Us For Availability
2
MAY 7118P004-60 MAY 7118P004-60 Contact Us For Availability
2
MAY 8004P012-60 MAY 8004P012-60 Contact Us For Availability
3
MAY 7722A098-60 MAY 7722A098-60 Contact Us For Availability
3
MAY 7706P246-60 MAY 7706P246-60 Contact Us For Availability
3
MAY 3801F122-45 MAY 3801F122-45 Contact Us For Availability
3
MAY 4001F020-23 MAY 4001F020-23 Contact Us For Availability
3
MAY 7201P014-60 MAY 7201P014-60 Contact Us For Availability
3
MAY 7406P023-60 MAY 7406P023-60 Contact Us For Availability
4
MAY 7902P097-60 MAY 7902P097-60 Contact Us For Availability
4
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
4
MAY 7406P024-60 MAY 7406P024-60 Contact Us For Availability
5
MAY 7403P037-60 MAY 7403P037-60 Contact Us For Availability
5
MAY 7902P271-60 MAY 7902P271-60 Contact Us For Availability
5
MAY 7116P003-60 MAY 7116P003-60 Contact Us For Availability
5
MAY 7407P026-60 MAY 7407P026-60 Contact Us For Availability
5
MAY 7406P019-60 MAY 7406P019-60 Contact Us For Availability
6
MAY 8014P007-60 MAY 8014P007-60 Contact Us For Availability
6
MAY 7404P050-60 MAY 7404P050-60 Contact Us For Availability
6
MAY 7701P045-60 MAY 7701P045-60 Contact Us For Availability
6
MAY 8026P012-60 MAY 8026P012-60 Contact Us For Availability
6
MAY 3604F007-80 MAY 3604F007-80 Contact Us For Availability
6
MAY 7408P002-60 MAY 7408P002-60 Contact Us For Availability
6
MAY 7406P022-60 MAY 7406P022-60 Contact Us For Availability
7
MAY 7407P017-60 MAY 7407P017-60 Contact Us For Availability
7
MAY 7002P106-60 MAY 7002P106-60 Contact Us For Availability
7
MAY 3801F126-45 MAY 3801F126-45 Contact Us For Availability
7
MAY 7505P041-60 MAY 7505P041-60 Contact Us For Availability
7
MAY 8026A007-60 MAY 8026A007-60 Contact Us For Availability
7
MAY 2002F064-30 MAY 2002F064-30 Contact Us For Availability
8
MAY 3807F194-80 MAY 3807F194-80 Contact Us For Availability
8
MAY 7730P004-60 MAY 7730P004-60 Contact Us For Availability
8
MAY 4804F006-60 MAY 4804F006-60 Contact Us For Availability
8
MAY 3604F149-80 MAY 3604F149-80 Contact Us For Availability
8
MAY 3401F015-15 MAY 3401F015-15 Contact Us For Availability
8
MAY 3801F100-51 MAY 3801F100-51 Contact Us For Availability
9
MAY 7111P002-60 MAY 7111P002-60 Contact Us For Availability
9
MAY 2402W125-15 MAY 2402W125-15 Contact Us For Availability
9
MAY 2402W149-15 MAY 2402W149-15 Contact Us For Availability
9
MAY 2402W164-15 MAY 2402W164-15 Contact Us For Availability
9
MAY 8114P274-60 MAY 8114P274-60 Contact Us For Availability
9
MAY 7201P028-60 MAY 7201P028-60 Contact Us For Availability
9
MAY 3413F012-15 MAY 3413F012-15 Contact Us For Availability
9
MAY 7103P075-60 MAY 7103P075-60 Contact Us For Availability
10
MAY 3604F097-80 MAY 3604F097-80 Contact Us For Availability
10
MAY 7601P097-60 MAY 7601P097-60 Contact Us For Availability
10
MAY 7807P004-60 MAY 7807P004-60 Contact Us For Availability
10
MAY 3604W002-70 MAY 3604W002-70 Contact Us For Availability
10
MAY 3604W152-70 MAY 3604W152-70 Contact Us For Availability
10
MAY 8004P009-60 MAY 8004P009-60 Contact Us For Availability
11
MAY 4011F051-51 MAY 4011F051-51 Contact Us For Availability
11
MAY 7902P027-60 MAY 7902P027-60 Contact Us For Availability
11
MAY 2410F016-51 MAY 2410F016-51 Contact Us For Availability
11
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
11
MAY 3604F073-80 MAY 3604F073-80 Contact Us For Availability
11
MAY 7103P074-60 MAY 7103P074-60 Contact Us For Availability
11
MAY 8004P010-60 MAY 8004P010-60 Contact Us For Availability
12
MAY 7201P036-60 MAY 7201P036-60 Contact Us For Availability
12
MAY 4005F082-80 MAY 4005F082-80 Contact Us For Availability
12
MAY 7403P175-60 MAY 7403P175-60 Contact Us For Availability
12
MAY 3801F113-51 MAY 3801F113-51 Contact Us For Availability
12
MAY 2410W029-15 MAY 2410W029-15 Contact Us For Availability
12
MAY 2410W041-15 MAY 2410W041-15 Contact Us For Availability
12
MAY 3807F195-45 MAY 3807F195-45 Contact Us For Availability
12
MAY 3807F408-45 MAY 3807F408-45 Contact Us For Availability
13
MAY 04000040 MAY 04000040 Contact Us For Availability
13
MAY 7711P359-60 MAY 7711P359-60 Contact Us For Availability
13
MAY 2410A029-15 MAY 2410A029-15 Contact Us For Availability
13
MAY 2410A041-15 MAY 2410A041-15 Contact Us For Availability
13
MAY 3604F159-45 MAY 3604F159-45 Contact Us For Availability
13
MAY 8002P020-60 MAY 8002P020-60 Contact Us For Availability
13
MAY 2201F060-23 MAY 2201F060-23 Contact Us For Availability
14
MAY 4005F302-51 MAY 4005F302-51 Contact Us For Availability
14
MAY 7735P018-60 MAY 7735P018-60 Contact Us For Availability
14
MAY 3804F051-80 MAY 3804F051-80 Contact Us For Availability
15
MAY 7109P002-60 MAY 7109P002-60 Contact Us For Availability
15
MAY 8018P002-60 MAY 8018P002-60 Contact Us For Availability
15
MAY 7737P016-60 MAY 7737P016-60 Contact Us For Availability
15
MAY 7107P017-60 MAY 7107P017-60 Contact Us For Availability
15
MAY 3818F027-45 MAY 3818F027-45 Contact Us For Availability
15
MAY 3807F176-15 MAY 3807F176-15 Contact Us For Availability
16
MAY 3601F106-51 MAY 3601F106-51 Contact Us For Availability
16
MAY 7739P022-60 MAY 7739P022-60 Contact Us For Availability
16
MAY 7701P088-60 MAY 7701P088-60 Contact Us For Availability
16
MAY 7101P104-60 MAY 7101P104-60 Contact Us For Availability
16
MAY 7406P010-60 MAY 7406P010-60 Contact Us For Availability
17
MAY 7803P057-60 MAY 7803P057-60 Contact Us For Availability
17
MAY 7101P279-60 MAY 7101P279-60 Contact Us For Availability
17
MAY 7101P068-60 MAY 7101P068-60 Contact Us For Availability
17
MAY 7003P019-60 MAY 7003P019-60 Contact Us For Availability
17
MAY 7003P039-60 MAY 7003P039-60 Contact Us For Availability
17
MAY 7403P045-60 MAY 7403P045-60 Contact Us For Availability
17
MAY 3807F205-45 MAY 3807F205-45 Contact Us For Availability
18
MAY 7401P002-60 MAY 7401P002-60 Contact Us For Availability
18
MAY 7112P042-60 MAY 7112P042-60 Contact Us For Availability
18
MAY 3807F193-45 MAY 3807F193-45 Contact Us For Availability
18
MAY 7118P001-60 MAY 7118P001-60 Contact Us For Availability
19
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
19
MAY 2618F071-80 MAY 2618F071-80 Contact Us For Availability
19
MAY 2618F072-80 MAY 2618F072-80 Contact Us For Availability
19
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
19
MAY 7101P031-60 MAY 7101P031-60 Contact Us For Availability
19
MAY 7103P062-60 MAY 7103P062-60 Contact Us For Availability
20
MAY 3414F066-51 MAY 3414F066-51 Contact Us For Availability
20
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
20
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
20
MAY 8009P010-60 MAY 8009P010-60 Contact Us For Availability
20
MAY 3604F092-45 MAY 3604F092-45 Contact Us For Availability
21
MAY 8010P045-60 MAY 8010P045-60 Contact Us For Availability
21
MAY 7417P005-60 MAY 7417P005-60 Contact Us For Availability
21
MAY 7737P017-60 MAY 7737P017-60 Contact Us For Availability
21
MAY 7101P018-60 MAY 7101P018-60 Contact Us For Availability
21
MAY 7801P032-60 MAY 7801P032-60 Contact Us For Availability
22
MAY 3418A029-60 MAY 3418A029-60 Contact Us For Availability
22
MAY 3418A030-60 MAY 3418A030-60 Contact Us For Availability
22
MAY 8016P008-60 MAY 8016P008-60 Contact Us For Availability
22
MAY 8010P051-60 MAY 8010P051-60 Contact Us For Availability
22
MAY 4804F008-60 MAY 4804F008-60 Contact Us For Availability
22
MAY 7002P046-60 MAY 7002P046-60 Contact Us For Availability
22
MAY 7002P114-60 MAY 7002P114-60 Contact Us For Availability
23
MAY 8008P019-60 MAY 8008P019-60 Contact Us For Availability
23
MAY 8010P052-60 MAY 8010P052-60 Contact Us For Availability
23
MAY 3801F204-51 MAY 3801F204-51 Contact Us For Availability
24
MAY 7002P116-60 MAY 7002P116-60 Contact Us For Availability
24
MAY 3420A033-34 MAY 3420A033-34 Contact Us For Availability
24
MAY 3801F093-45 MAY 3801F093-45 Contact Us For Availability
25
MAY 7201P003-60 MAY 7201P003-60 Contact Us For Availability
25
MAY 4870P002-60 MAY 4870P002-60 Contact Us For Availability
25
MAY 8270P081-60 MAY 8270P081-60 Contact Us For Availability
26
MAY 7112P019-60 MAY 7112P019-60 Contact Us For Availability
26
MAY 5700A091-60 MAY 5700A091-60 Contact Us For Availability
26
MAY 7902S303-60 MAY 7902S303-60 Contact Us For Availability
26
MAY 3804F012-45 MAY 3804F012-45 Contact Us For Availability
27
MAY 8003P002-60 MAY 8003P002-60 Contact Us For Availability
27
MAY 8003P009-60 MAY 8003P009-60 Contact Us For Availability
27
MAY 7201P015-60 MAY 7201P015-60 Contact Us For Availability
28
MAY 12400018 MAY 12400018 Contact Us For Availability
28
MAY 7201P018-60 MAY 7201P018-60 Contact Us For Availability
28
MAY 7902P057-60 MAY 7902P057-60 Contact Us For Availability
29
MAY 8019P001-60 MAY 8019P001-60 Contact Us For Availability
29
MAY 3804F022-45 MAY 3804F022-45 Contact Us For Availability
30
MAY 3420A034-34 MAY 3420A034-34 Contact Us For Availability
32
MAY 7706P170-60 MAY 7706P170-60 Contact Us For Availability
33
MAY 7101P154-60 MAY 7101P154-60 Contact Us For Availability
33
MAY 7706P042-60 MAY 7706P042-60 Contact Us For Availability
34
MAY 7706P009-60 MAY 7706P009-60 Contact Us For Availability
NI
MAY 4005F163-51 MAY 4005F163-51 Contact Us For Availability
NI
MAY 3605F163-80 MAY 3605F163-80 Contact Us For Availability
NI
MAY 7406P003-60 MAY 7406P003-60 Contact Us For Availability
NI
MAY 8004P013-60 MAY 8004P013-60 Contact Us For Availability
× ![]()
