Model Whirlpool CFCS3AE3 ICE MACHINE – Common Parts & Diagrams

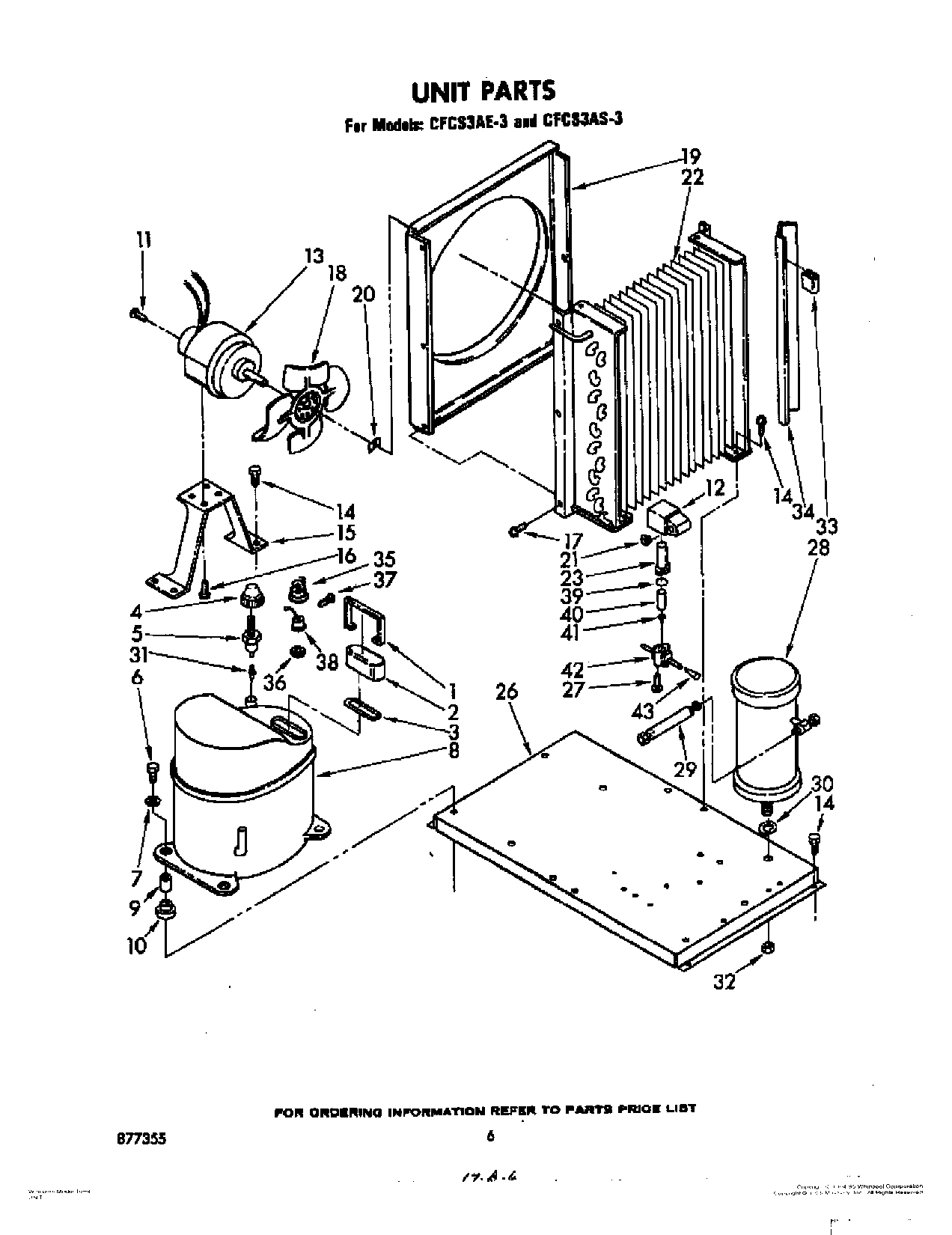

04 - UNIT
02 - CABINET, OPTIONAL

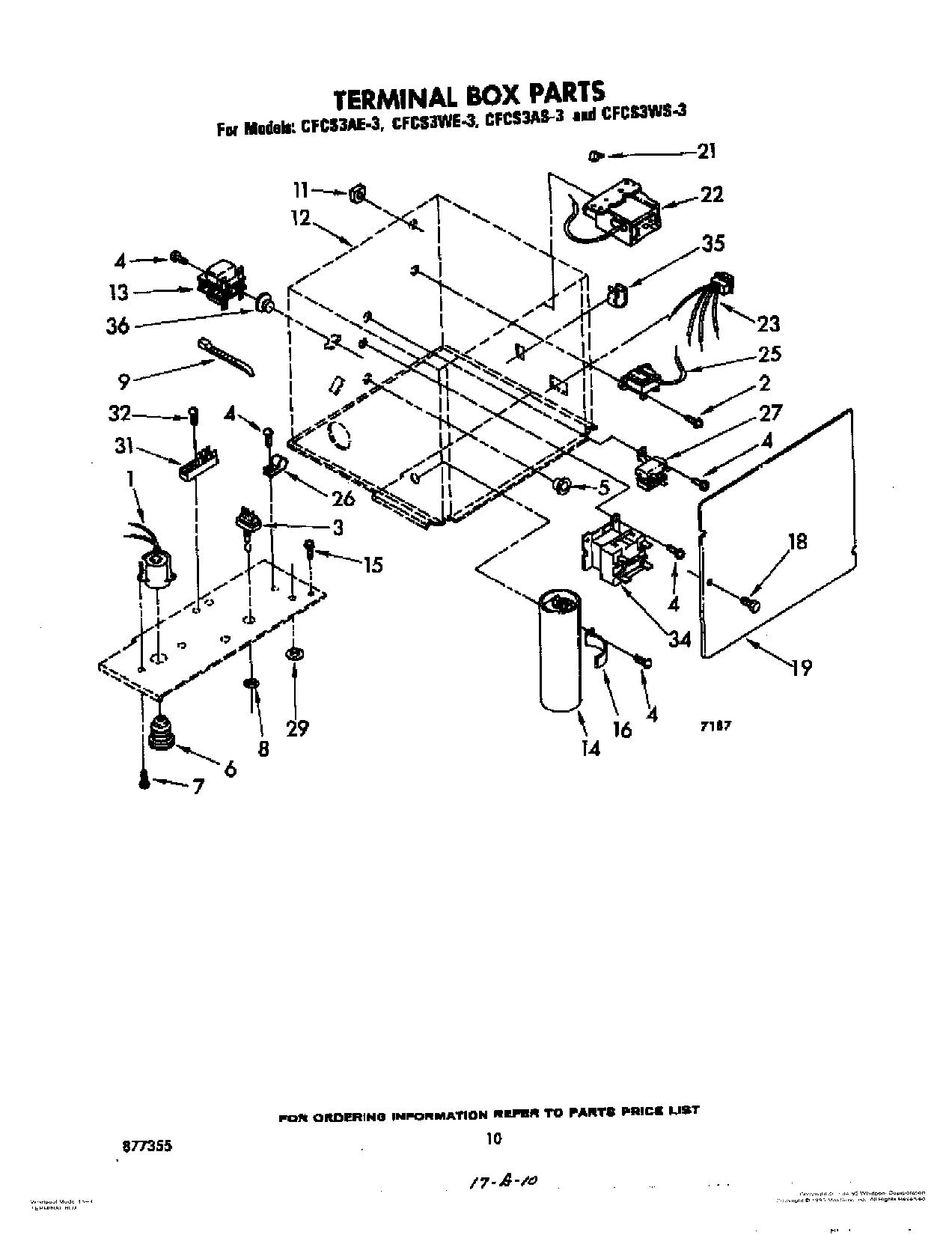

07 - TERMINAL BOX

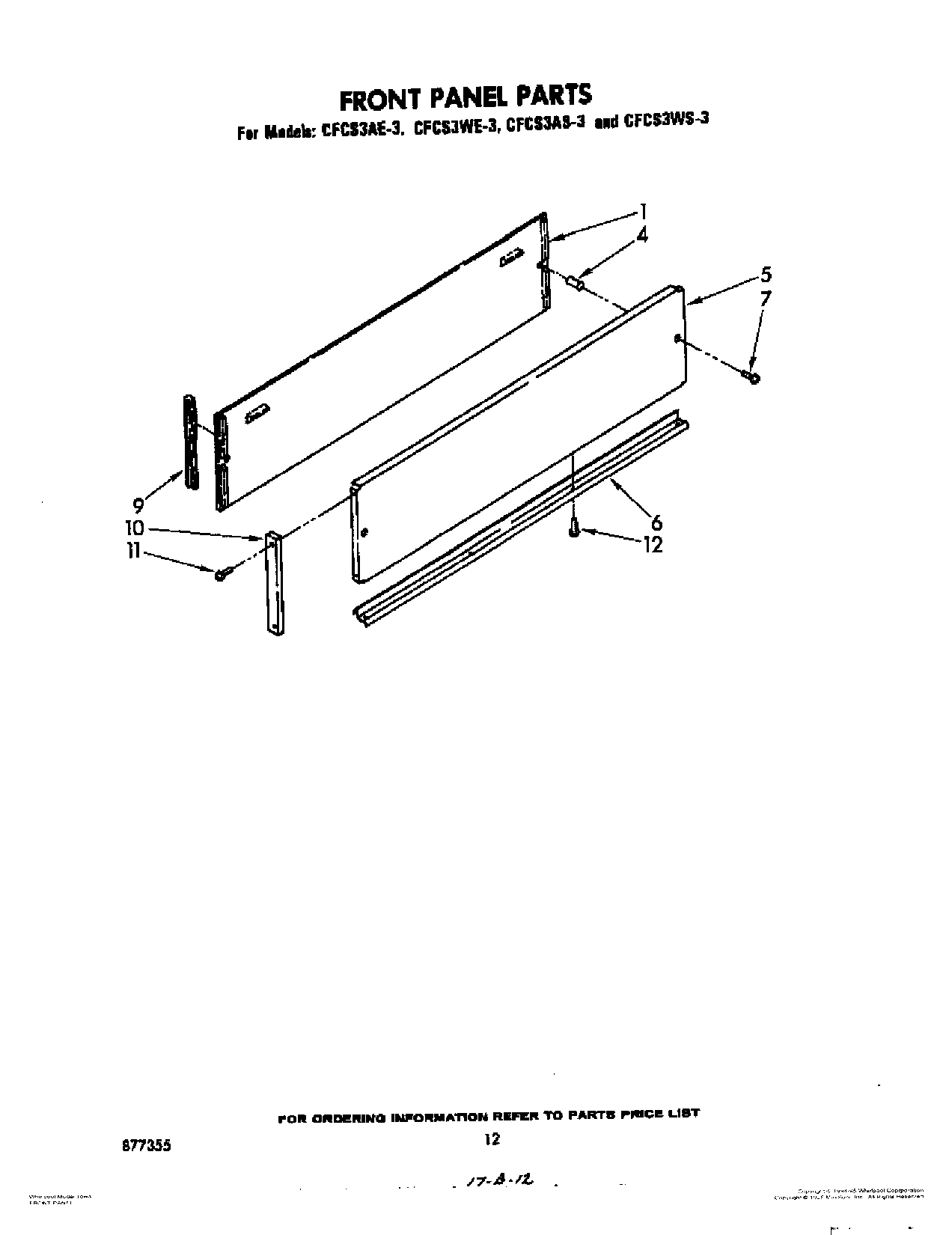

09 - FRONT PANEL

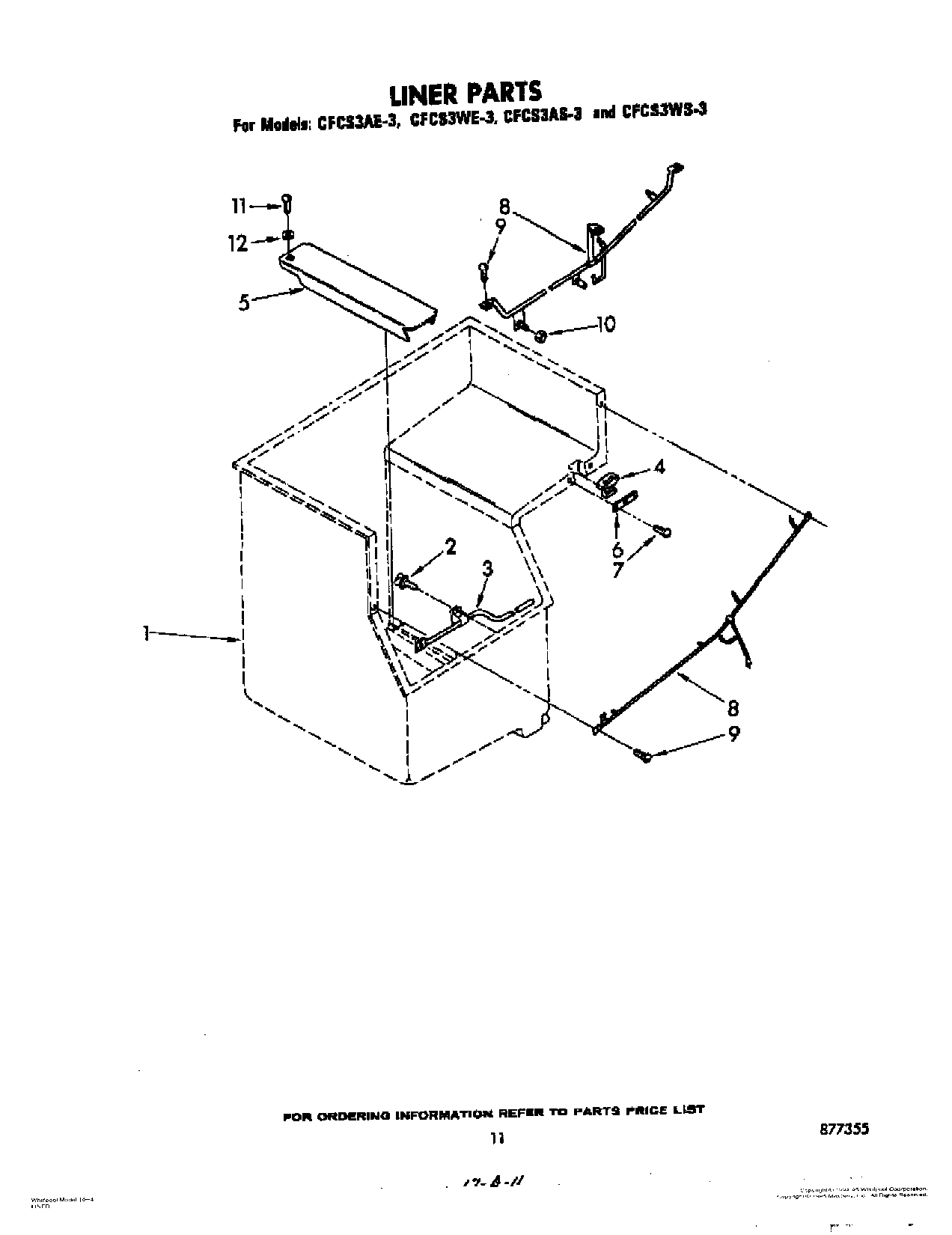

08 - LINER

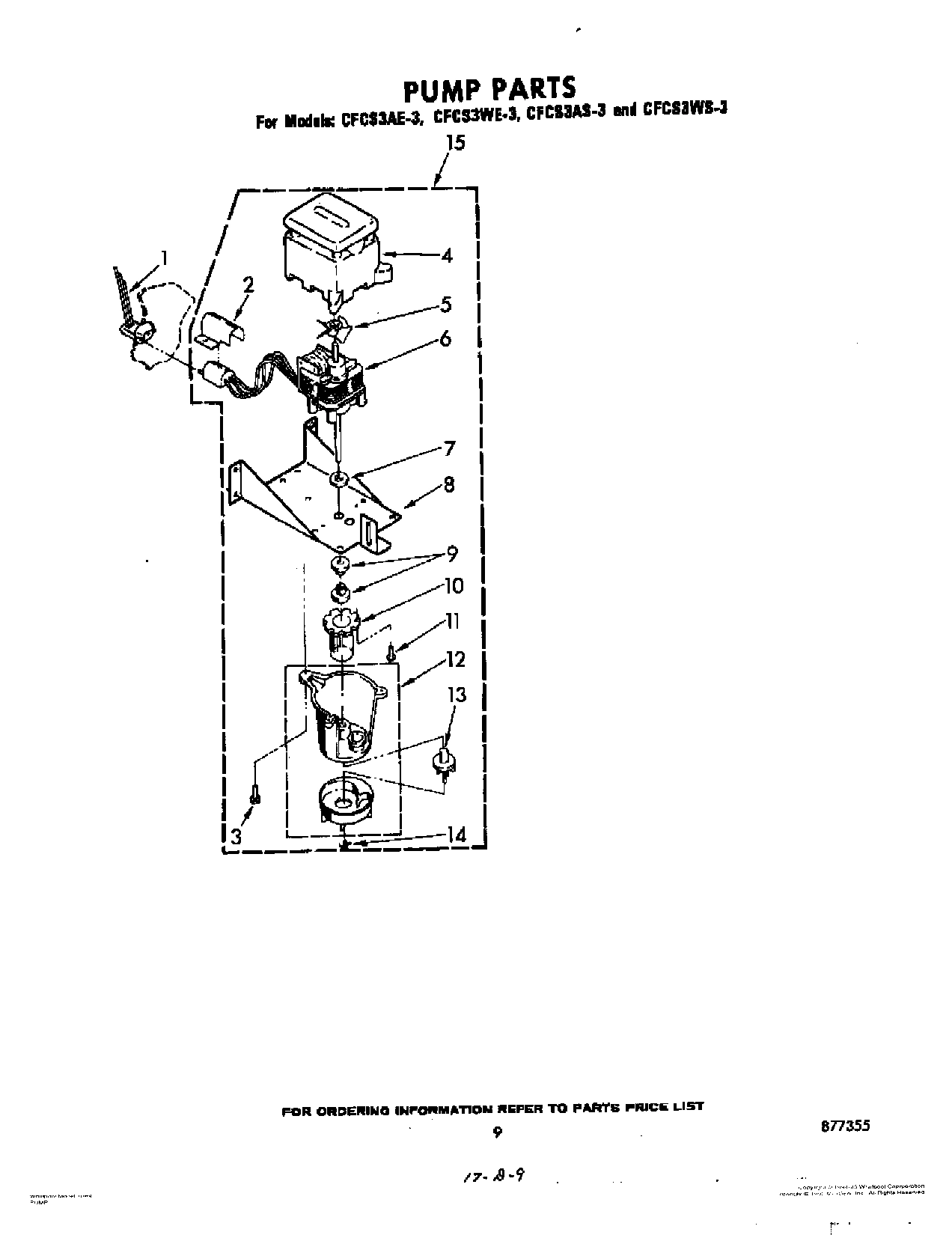

06 - PUMP

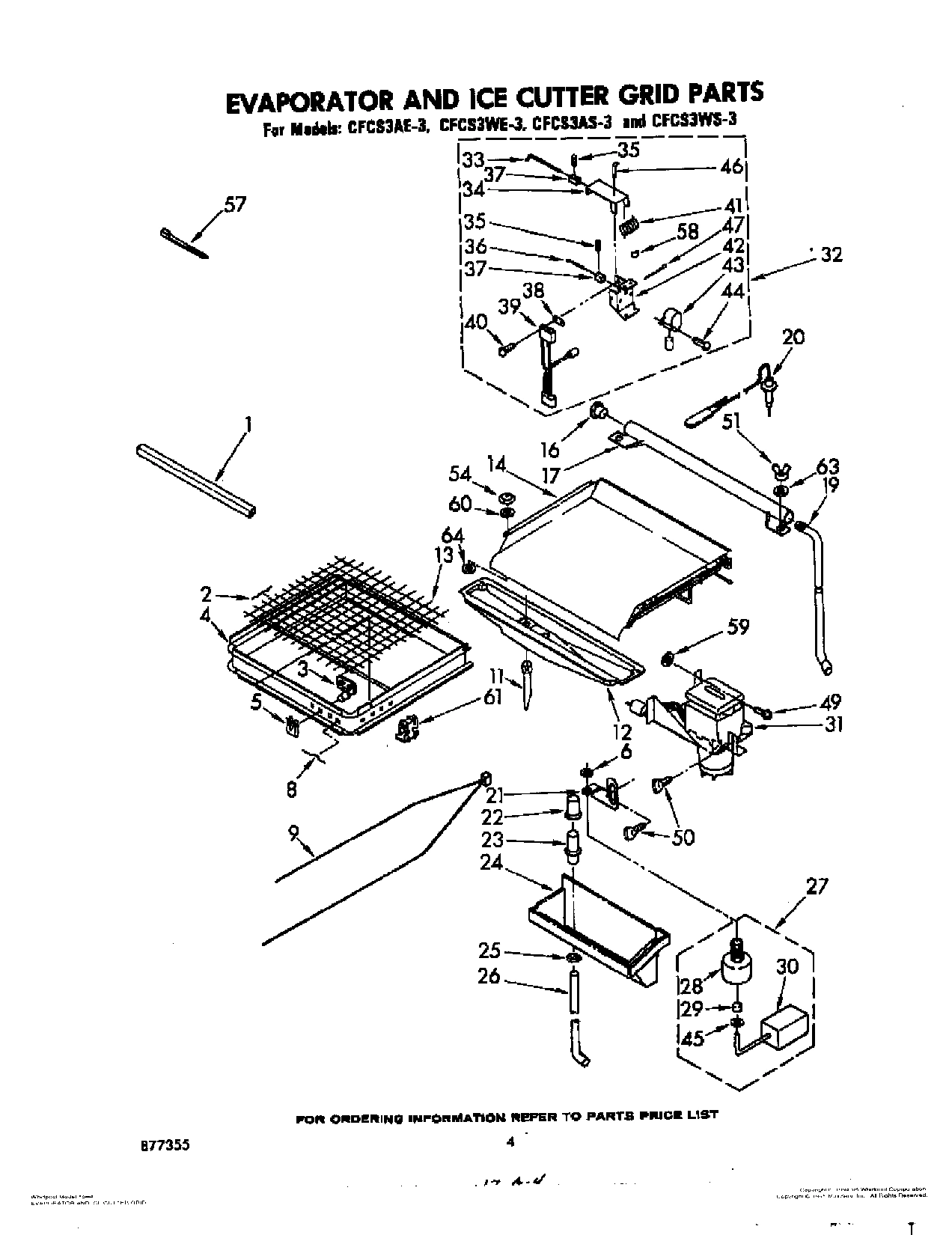

03 - EVAPORATOR AND ICE CUTTER GRID

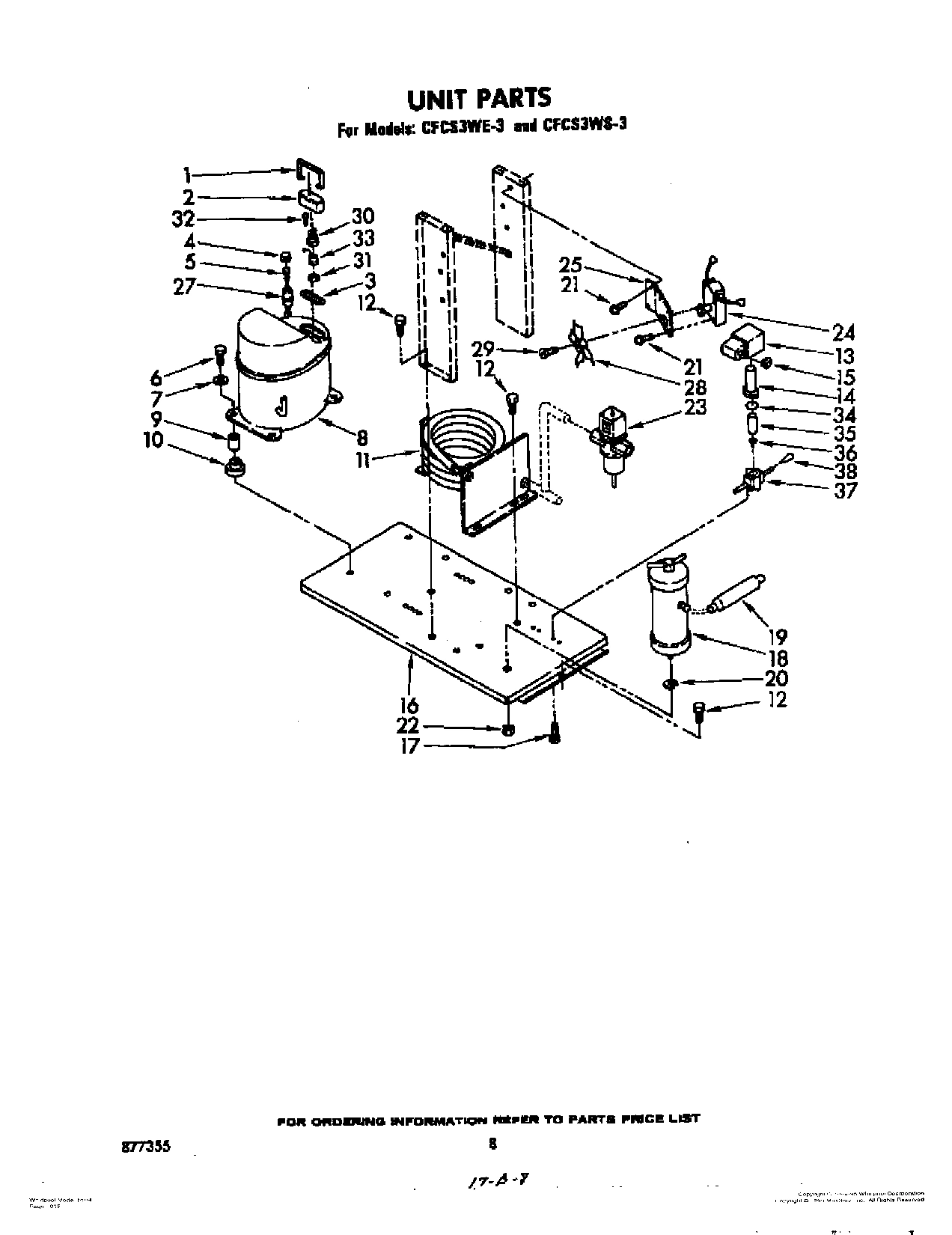

05 - SECTION
Common parts from model Whirlpool CFCS3AE3 ICE MACHINE
WPL 350941 WPL 350941 Contact Us For Availability
WPL 978931 WPL 978931 Contact Us For Availability
WPL 978932 WPL 978932 Contact Us For Availability
1
Screw, 10-32 x 1/2 (4) WPL 681528 Contact Us For Availability
1
Receptacle, Fustat WPL 593479 Contact Us For Availability
1
Panel, Interior WPL 756777 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI21409A4 Contact Us For Availability
1
Plug, Pump WPL 569434 Contact Us For Availability
1
Deflector, Ice Slab WPL 751954 Contact Us For Availability
1
Strap, Bale WPL 561858 Contact Us For Availability
2
Hinge, Top (2) WPL 585263 Contact Us For Availability
2
Screw, Thumb WPL 681419 Contact Us For Availability
2
Cover, Plug WPL 756124 Contact Us For Availability
2
Pin, Cutter Wire ((3/4`` Grid) (43)) WPL 587111 Contact Us For Availability
2
Pin, Cutter Wire (1-2/4`` Grid (9)) WPL 587423 Contact Us For Availability
2
Pin, Cutter Wire (1-2/4 Grid (13)) WPL 587424 Contact Us For Availability
2
Cover, Terminal WPL 751181 Contact Us For Availability
3
Cap, End (CFCS3AE-3) WPL 751582 Contact Us For Availability
3
Cap, End (CFCS3WE-3) (CFCS3AE-3) WPL 751861 Contact Us For Availability
3
Switch, Service WPL 560940 Contact Us For Availability
3
Well, Thermostat WPL 756473 Contact Us For Availability
3
Screw, 8-28 x 3/4 WPL 681391 Contact Us For Availability
3
Insulator, Grid 3/4 Grid (48) WPL 598277 Contact Us For Availability
3
Gasket, Cover WPL 561857 Contact Us For Availability
4
Cap, Valve WPL 561957 Contact Us For Availability
4
Sleeve, Panel (2) WPL 755795 Contact Us For Availability
4
Grommet, Tubing WPL 751585 Contact Us For Availability
4
Housing, Motor WPL 757399 Contact Us For Availability
4
Frame, Cutter Grid (Not a Serviceable Part) WPL ARI21406A7 Contact Us For Availability
5
Core, Valve WPL 561958 Contact Us For Availability
5
Grille, Rear WPL 756191 Contact Us For Availability
5
Bushing, Snap WPL 596589 Contact Us For Availability
5
Panel, Outer (CFCS3WE-3) (CFCS3AS-3) WPL 755060 Contact Us For Availability
5
Panel, Outer (CFCS3AE-3) WPL 755122 Contact Us For Availability
5
Cover, Drain WPL 751504 Contact Us For Availability
5
Fan, Pump Motor WPL 587096 Contact Us For Availability
5
Clip, Tension 3/4 Grid (45) 1-2/4 Grid (24) WPL 564072 Contact Us For Availability
6
Screw WPL 681342 Contact Us For Availability
6
Washer, Receptacle WPL 755436 Contact Us For Availability
6
Fustat, 8 Amp WPL 596285 Contact Us For Availability
6
Shield, Front Panel (CFCS3AE-3) WPL 756162 Contact Us For Availability
6
Shield, Front Panel (CFCS3WE-3) (CFCS3AS-3) WPL 756724 Contact Us For Availability
6
Plate, Mounting WPL 751586 Contact Us For Availability
6
Motor, Pump WPL 756950 Contact Us For Availability
6
Washer WPL 681334 Contact Us For Availability
7
Washer (4) WPL 595230 Contact Us For Availability
7
Collar Assembly WPL 756126 Contact Us For Availability
7
Screw, 10-32 x 3/8 (2) WPL 680604 Contact Us For Availability
7
Screw WPL 681581 Contact Us For Availability
7
Screw (2) WPL 595034 Contact Us For Availability
7
Washer WPL 593060 Contact Us For Availability
8
Compressor, Service WPL 569285 Contact Us For Availability
8
Retainer, Wire WPL 596744 Contact Us For Availability
8
Nut, Switch (2) WPL 596021 Contact Us For Availability
8
Support Mounting (Front) WPL 751593 Contact Us For Availability
8
Support Mounting (Rear) WPL 756367 Contact Us For Availability
8
Bracket, Pump WPL 756122 Contact Us For Availability
8
Pin, Cutter Wire (4) WPL 587112 Contact Us For Availability
9
Sleeve, Grommet (4) WPL 583536 Contact Us For Availability
9
Collar WPL 755330 Contact Us For Availability
9
Gasket, Panel WPL 756221 Contact Us For Availability
9
Screw, 1/4-20 x 1/2 WPL 681572 Contact Us For Availability
9
Grommet (2) WPL 596016 Contact Us For Availability
9
Harness, Grid Connecting ((1-2/4`` Grid)) WPL 587613 Contact Us For Availability
9
Harness, Grid Connecting ((3/4`` Grid)) WPL 757044 Contact Us For Availability
10
Grommet (4) WPL 583625 Contact Us For Availability
10
Grommet WPL 596160 Contact Us For Availability
10
Cap. End (CFCS3AE-3) WPL 755053 Contact Us For Availability
10
Cap. End (CFCS3WE-3) (CFCS3AS-3) WPL 755054 Contact Us For Availability
10
Sleeve, Pump WPL 593229 Contact Us For Availability
11
Leg WPL 598531 Contact Us For Availability
11
Screw WPL 681148 Contact Us For Availability
11
Grommet WPL 573333 Contact Us For Availability
11
Pipe, Stand WPL 756691 Contact Us For Availability
11
Condenser WPL 585121 Contact Us For Availability
12
Screw, 1/4-20 x 1/2 WPL 681305 Contact Us For Availability
12
Support, Grill WPL 757458 Contact Us For Availability
12
Terminal Box (Not a Serviceable Part) WPL ARI21408A9 Contact Us For Availability
12
Pump, Assembly WPL 583518 Contact Us For Availability
12
Trough, Water WPL 593094 Contact Us For Availability
13
Coil, Solenoid WPL 702368 Contact Us For Availability
13
Motor, Fan WPL 583647 Contact Us For Availability
13
Transformer (14.25 V) WPL 755722 Contact Us For Availability
13
Impeller WPL 569513 Contact Us For Availability
13
Wire Kit, Grid Cutter ((1-2/4`` Grid)) WPL 569968 Contact Us For Availability
13
Wire Kit, Grid Cutter ((3/4`` Grid)) WPL 569969 Contact Us For Availability
14
Bonnet Assembly WPL 702381 Contact Us For Availability
14
Capacitor, Start WPL 572805 Contact Us For Availability
14
Ring, Retaining WPL 681301 Contact Us For Availability
14
Evaporator WPL 757000 Contact Us For Availability
15
Bracket, Fan Motor WPL 756201 Contact Us For Availability
15
Bushing, Snap WPL 596380 Contact Us For Availability
15
Plate, Tap WPL 755099 Contact Us For Availability
15
Screw, Ground WPL 681187 Contact Us For Availability
16
Screw, 8-32 x 1/2 (Furnished W/Fan Motor) WPL 680439 Contact Us For Availability
16
Base, Unit WPL 755919 Contact Us For Availability
16
Bearing, Door WPL 756129 Contact Us For Availability
16
Clamp, Capacitor WPL 560767 Contact Us For Availability
16
Seal, Dispenser WPL 583481 Contact Us For Availability
17
Hinge, Door (2) WPL 756134 Contact Us For Availability
17
Dispenser, Water WPL 583459 Contact Us For Availability
18
Blade, Fan WPL 756898 Contact Us For Availability
18
Receiver Assembly WPL 572803 Contact Us For Availability
18
Screw (4) WPL 681612 Contact Us For Availability
19
Shroud, Condenser WPL 755915 Contact Us For Availability
19
Gasket, Interior Storage WPL 756125 Contact Us For Availability
19
Cover, Terminal Box WPL 755934 Contact Us For Availability
19
Hose, Dispenser WPL 756181 Contact Us For Availability
19
Drier WPL 752801 Contact Us For Availability
20
Washer, Lock WPL 681467 Contact Us For Availability
20
Valve, Thermo Expansion WPL 756772 Contact Us For Availability
21
Clip WPL 596216 Contact Us For Availability
21
Bracket, Float Valve WPL 587675 Contact Us For Availability
21
Screw WPL 487313 Contact Us For Availability
22
Condenser WPL 755916 Contact Us For Availability
22
Nut (1) WPL 595172 Contact Us For Availability
22
Magnet WPL 512312 Contact Us For Availability
22
Switch, Hi-Pressure (CFCS3WE-3) WPL 751698 Contact Us For Availability
22
Cap, Siphon WPL 562662 Contact Us For Availability
23
Washer, Nylon WPL 681610 Contact Us For Availability
23
Harness, Control WPL 756043 Contact Us For Availability
23
Tube, Siphon WPL 577430 Contact Us For Availability
23
Valve, Water WPL 585386 Contact Us For Availability
24
Gasket, Drain WPL 751258 Contact Us For Availability
24
Pan, Water WPL 585148 Contact Us For Availability
24
Motor, Fan WPL 756048 Contact Us For Availability
25
Drain, Bin WPL 751260 Contact Us For Availability
25
Thermostat, Bin Control WPL 593328 Contact Us For Availability
25
Nut, Siphon Tube WPL 583266 Contact Us For Availability
25
Bracket, Motor WPL 755938 Contact Us For Availability
26
Screw, 12-24 x 3/4 (4) WPL 681496 Contact Us For Availability
26
Clamp, Wire WPL 596276 Contact Us For Availability
26
Hose, Siphon WPL 598463 Contact Us For Availability
27
Body, Valve WPL 561955 Contact Us For Availability
27
Elbow, Drain WPL 751369 Contact Us For Availability
27
Relay, Compresor Start WPL 572809 Contact Us For Availability
27
Valve, Float WPL 593654 Contact Us For Availability
28
Bracket, Locking Top WPL 751523 Contact Us For Availability
28
Body, Valve WPL 978862 Contact Us For Availability
28
Blade, Fan WPL 513964 Contact Us For Availability
29
Drier WPL 572801 Contact Us For Availability
29
Screw WPL 681087 Contact Us For Availability
29
Bushing, Snap (4) WPL 596416 Contact Us For Availability
29
Plunger WPL 588794 Contact Us For Availability
30
Spring, Overload WPL 561702 Contact Us For Availability
30
Hinge, Rear WPL 583600 Contact Us For Availability
30
Float & Stem Assembly WPL 588793 Contact Us For Availability
31
Adapter, Overload WPL 561855 Contact Us For Availability
31
Plate, Backing WPL 587641 Contact Us For Availability
31
Terminal Board WPL 756195 Contact Us For Availability
31
Pump, Water (See Page 9 for Breakdown) WPL ARI21407A6 Contact Us For Availability
32
Screw, 6-32 x 1/4 WPL 595036 Contact Us For Availability
32
Screw, No. 6 x 1-2/4 WPL 681567 Contact Us For Availability
32
Screw, 8-32 x 5/8 WPL 680603 Contact Us For Availability
32
Control Assembly (Ice Thickness) WPL 598369 Contact Us For Availability
33
Clip WPL 681511 Contact Us For Availability
33
Overload WPL 598546 Contact Us For Availability
33
Shaft, Ice Thickness Control WPL 607815 Contact Us For Availability
34
Baffle, Condenser (R.S.) WPL 751609 Contact Us For Availability
34
Baffle, Condenser (L.S.) WPL 756052 Contact Us For Availability
34
Seal, Bonnet WPL 702382 Contact Us For Availability
34
Harness Water Pump WPL 756146 Contact Us For Availability
34
Relay, Defrost Control WPL 583095 Contact Us For Availability
34
Bracket, Shaft WPL 587293 Contact Us For Availability
35
Plunger WPL 702371 Contact Us For Availability
35
Gasket, Panel WPL 756061 Contact Us For Availability
35
Retainer, Wire WPL 596752 Contact Us For Availability
35
Setscrew (4) WPL 595330 Contact Us For Availability
36
Diaphragm WPL 702383 Contact Us For Availability
36
Clip, Sealing (Large) WPL 654067 Contact Us For Availability
36
Clip, Sealing (Small) WPL 654068 Contact Us For Availability
36
Shaft, Flexible WPL 607816 Contact Us For Availability
37
Body, Solenoid WPL 702384 Contact Us For Availability
37
Escutcheon, Nameplate WPL 837577 Contact Us For Availability
37
Coupling, Shaft (2) WPL 572489 Contact Us For Availability
38
Strainer WPL 702389 Contact Us For Availability
38
Insert, Escutcheon WPL 598569 Contact Us For Availability
38
Spacer WPL 587996 Contact Us For Availability
39
Switch & Harness (Ice Thickness Control) WPL 587889 Contact Us For Availability
40
Scoop WPL 587100 Contact Us For Availability
40
Screw WPL 681433 Contact Us For Availability
41
Top Bin (CFCS3AE-3) WPL 756266 Contact Us For Availability
41
Top Bin (CFCS3WE-3) (CFCS3AS-3) WPL 756268 Contact Us For Availability
41
Spring, Hold Down WPL 560861 Contact Us For Availability
42
Gasket, Bin Top WPL 751440 Contact Us For Availability
42
Bracket, Motor WPL 607811 Contact Us For Availability
43
Lockwasher WPL 681039 Contact Us For Availability
43
Motor, Ice Thickness Control WPL 577540 Contact Us For Availability
44
Nut, U Spring WPL 681629 Contact Us For Availability
44
Screw WPL 680854 Contact Us For Availability
45
Panel, Door Interior WPL 756140 Contact Us For Availability
45
Washer WPL 588842 Contact Us For Availability
46
Insulation, foam WPL 756136 Contact Us For Availability
46
Screw, Adjusting WPL 755406 Contact Us For Availability
47
Panel, Door Exterior (CFCS3AE-3) WPL 756131 Contact Us For Availability
47
Panel, Door Exterior (CFCS3WE-3) (CFCS3AS-3) WPL 756167 Contact Us For Availability
47
Pin, Cotter WPL 680668 Contact Us For Availability
48
Grille Front (CFCS3AE-3) WPL 756160 Contact Us For Availability
48
Grille Front (CFCS3WE-3) (CFCS3AS-3) WPL 756771 Contact Us For Availability
49
Screw, 10-32 x 3/ WPL 595095 Contact Us For Availability
50
Panel, Inner WPL 751439 Contact Us For Availability
50
WPL 681302 WPL 681302 Contact Us For Availability
51
WPL 681584 WPL 681584 Contact Us For Availability
52
Plate, Tap WPL 756089 Contact Us For Availability
53
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
53
Enamel, Beaumont Beige (1/2 Pt.) WPL 598953 Contact Us For Availability
53
Enamel, Burnt Sienna (1/2 Pt.) WPL 598954 Contact Us For Availability
53
WPL 755100 WPL 755100 Contact Us For Availability
53
WPL 755104 WPL 755104 Contact Us For Availability
53
WPL 756023 WPL 756023 Contact Us For Availability
53
WPL 757342 WPL 757342 Contact Us For Availability
53
WPL 799340 WPL 799340 Contact Us For Availability
53
WPL 877355 WPL 877355 Contact Us For Availability
58
WPL 596681 WPL 596681 Contact Us For Availability
59
WPL 680656 WPL 680656 Contact Us For Availability
60
WPL 562336 WPL 562336 Contact Us For Availability
61
WPL 756058 WPL 756058 Contact Us For Availability
63
WPL 680396 WPL 680396 Contact Us For Availability
64
WPL 486260 WPL 486260 Contact Us For Availability
× ![]()
