Model Electrolux CF132 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

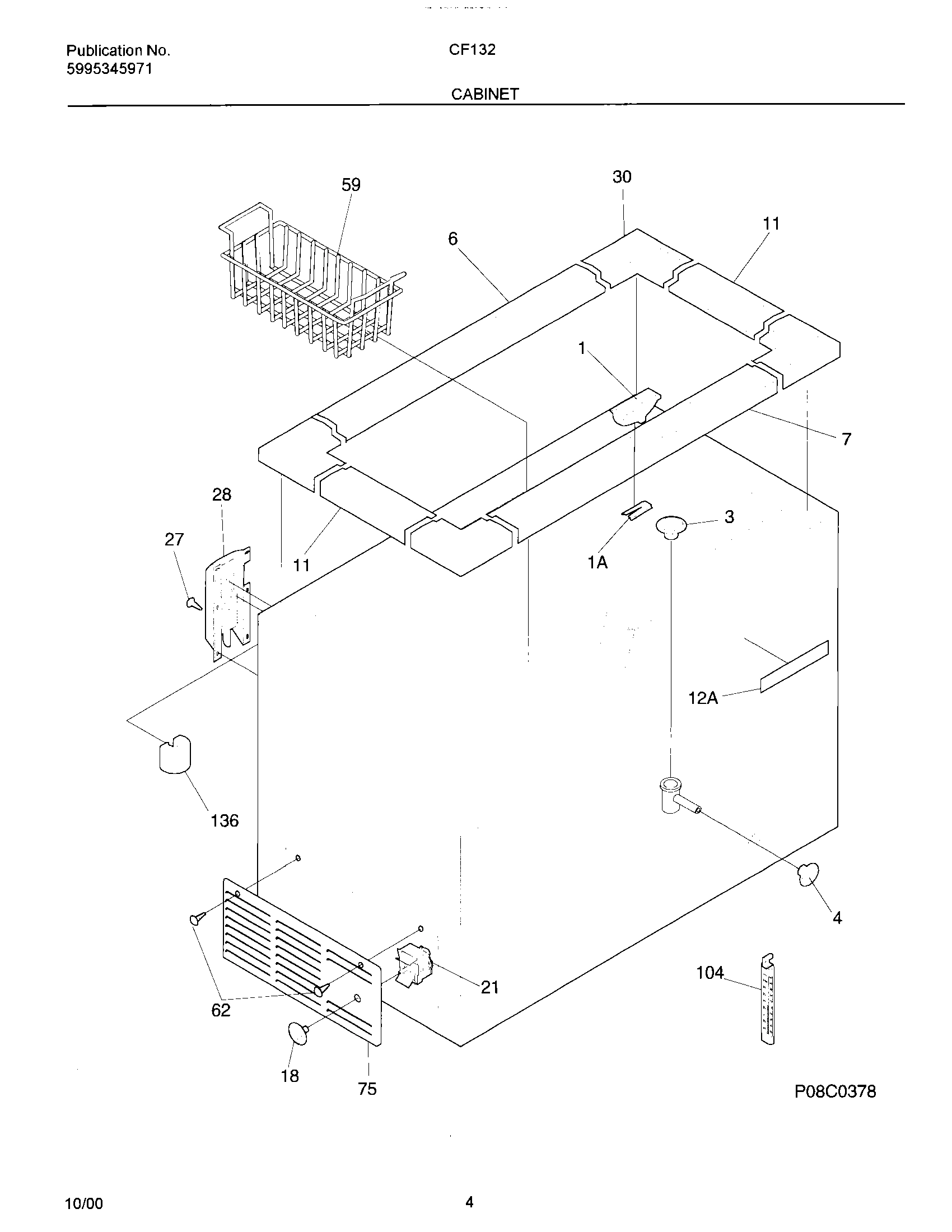

05 - CABINET

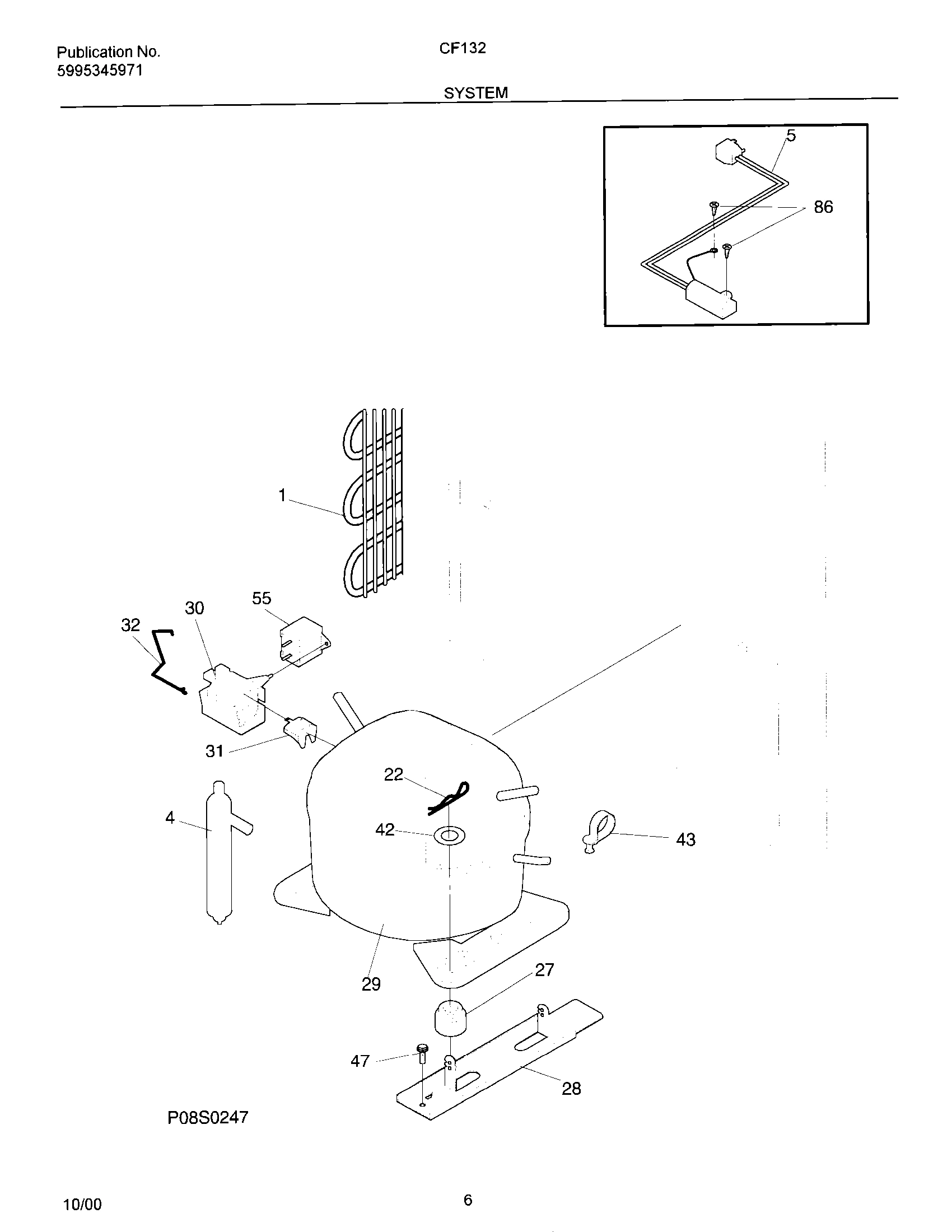

07 - SYSTEM
Common parts from model Electrolux CF132 FREEZER
WCI 5303925098 WCI 5303925098 Contact Us For Availability
WCI 09948773 WCI 09948773 Contact Us For Availability
WCI 216621000 WCI 216621000 Contact Us For Availability
WCI 216533600 WCI 216533600 Contact Us For Availability
SPACER-TUBE,.75`` WCI 5303298960 Contact Us For Availability
1
WCI 216481101 WCI 216481101 Contact Us For Availability
1
LATCH, DOOR WCI 5303208488 Contact Us For Availability
1A
WCI 216080800 WCI 216080800 Contact Us For Availability
3
WCI 216502600 WCI 216502600 Contact Us For Availability
4
PLUG-DRAIN,EXTERIOR WCI 216073900 Contact Us For Availability
5
WCI 216551800 WCI 216551800 Contact Us For Availability
6
WCI 216110900 WCI 216110900 Contact Us For Availability
7
WCI 216111500 WCI 216111500 Contact Us For Availability
11
Breaker,white ,ends WCI 216110800 Contact Us For Availability
12A
WCI 216734501 WCI 216734501 Contact Us For Availability
18
WCI 216591602 WCI 216591602 Contact Us For Availability
21
WCI 216726100 WCI 216726100 Contact Us For Availability
22
CLIP, SPRING MTG WCI 216056400 Contact Us For Availability
28
WCI 216039600 WCI 216039600 Contact Us For Availability
28
WCI 5303212615 WCI 5303212615 Contact Us For Availability
29
WCI 216726200 WCI 216726200 Contact Us For Availability
30
Breaker,white ,corners WCI 216110700 Contact Us For Availability
30
WCI 216649307 WCI 216649307 Contact Us For Availability
31
GASKET, WHITE WCI 08009392 Contact Us For Availability
42
WASHER-FLAT WCI 216232700 Contact Us For Availability
47
SCREW-COMP,IND HEX WSHR HD,10-32T X 0.500 SUP WCI 08016776 Contact Us For Availability
50
WCI 5303308306 WCI 5303308306 Contact Us For Availability
59
WCI 216703500 WCI 216703500 Contact Us For Availability
75
WCI 216034300 WCI 216034300 Contact Us For Availability
104
WCI 216706400 WCI 216706400 Contact Us For Availability
136
WCI 216726600 WCI 216726600 Contact Us For Availability
× ![]()
