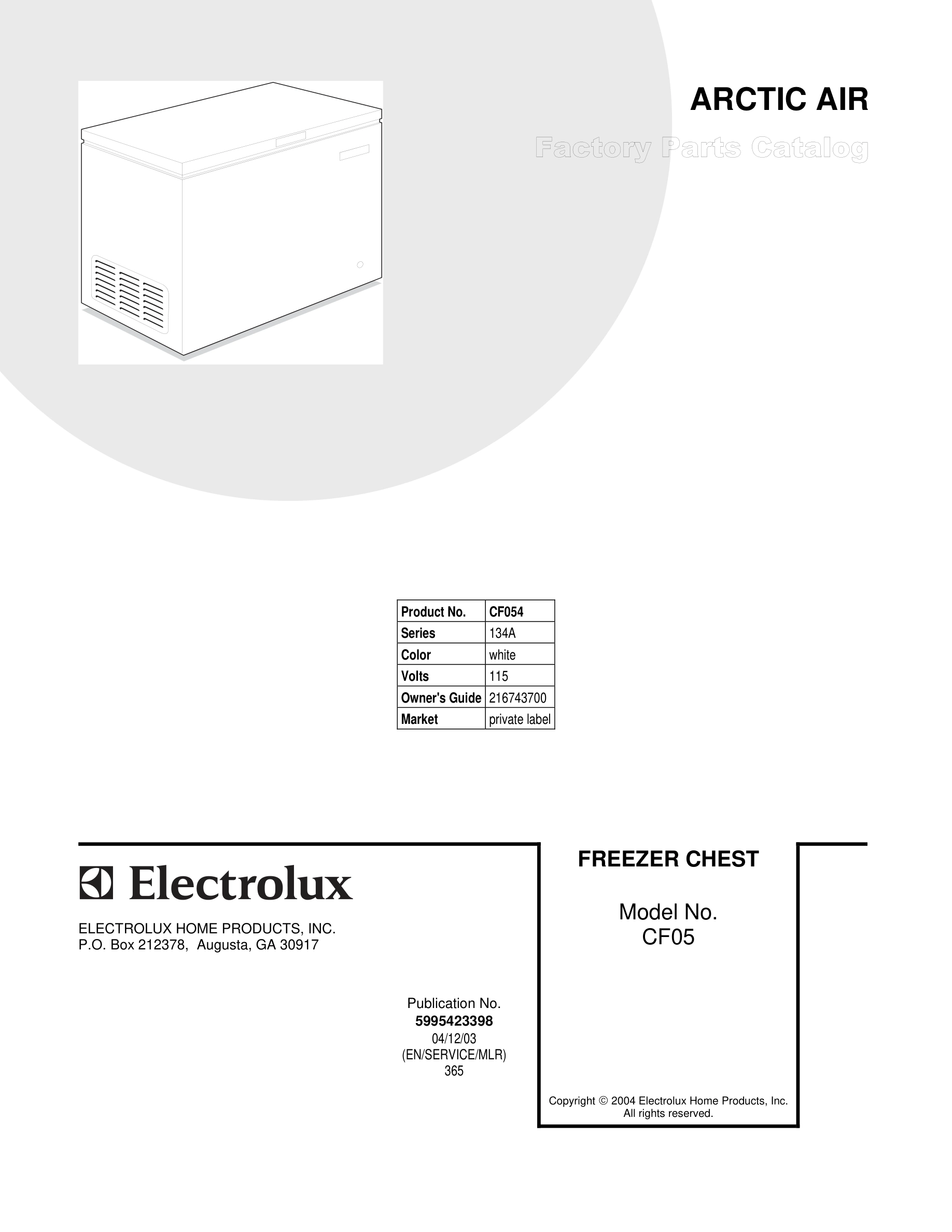

Model Frigidaire CF05 FREEZER CHEST – Common Parts & Diagrams

*
Insulation-door, fiberglass, (bulk)
Insulation-door, fiberglass, (bulk) WCI 5303917276 Contact Us For Availability
View on Model
*
Caster
Caster WCI 216621000 Contact Us For Availability
View on Model
1
Gasket-door, white
Gasket-door, white WCI 216480801 Contact Us For Availability
View on Model
1
Catch-lock
Catch-lock WCI 216117700 Contact Us For Availability
View on Model
1
Condenser
Condenser WCI 5300120779 Contact Us For Availability
View on Model
3
Plug, drain, interior
Plug, drain, interior WCI 216502600 Contact Us For Availability
View on Model
4
Plug, drain, exterior
Plug, drain, exterior WCI 216073900 Contact Us For Availability
View on Model
5#
Harness-ext, main
Harness-ext, main WCI 216551900 Contact Us For Availability
View on Model
6
Breaker, hinge side
Breaker, hinge side WCI 216855700 Contact Us For Availability
View on Model
7
Breaker-lock side, white
Breaker-lock side, white WCI 216855701 Contact Us For Availability
View on Model
10
Plug button, 1/4", white
Plug button, 1/4", white WCI 216923001 No Longer Available
View on Model
11
Breaker-ends, white
Breaker-ends, white WCI 216855706 Contact Us For Availability
View on Model
12A
Nameplate
Nameplate WCI 216734501 Contact Us For Availability
View on Model
21#
Control-temperature
Control-temperature WCI 216759300 Contact Us For Availability
View on Model
22
Clip, compressor mtg, SPRING
Clip, compressor mtg, SPRING WCI 216056400 Contact Us For Availability
View on Model
25
Screw, 8-18 X 1/2
Screw, 8-18 X 1/2 WCI 216707700 Contact Us For Availability
View on Model
28
Hinge Assy
Hinge Assy WCI 216478800 Contact Us For Availability
View on Model
30
Breaker-corners, white
Breaker-corners, white WCI 216105500 Contact Us For Availability
View on Model
46
Screw, PH, 8-32 x 1/2, wiring harness
Screw, PH, 8-32 x 1/2, wiring harness WCI 216707800 Contact Us For Availability
View on Model
53
Cover terminal, cover-comp term
Cover terminal, cover-comp term WCI 216347800 Contact Us For Availability
View on Model
59
Basket
Basket WCI 216703400 Contact Us For Availability
View on Model
75
Panel-access, white
Panel-access, white WCI 216782000 Contact Us For Availability
View on Model
85
Wire-ground
Wire-ground WCI 216818300 Contact Us For Availability
View on Model
104
Thermometer
Thermometer WCI 216706400 Contact Us For Availability
View on Model
136
Guard-splash
Guard-splash WCI 216706700 Contact Us For Availability
View on Model
