Model Whirlpool CEX375VB0 ELECTRIC COOK-TOP – Common Parts & Diagrams
01 - SECTION
02 - SECTION

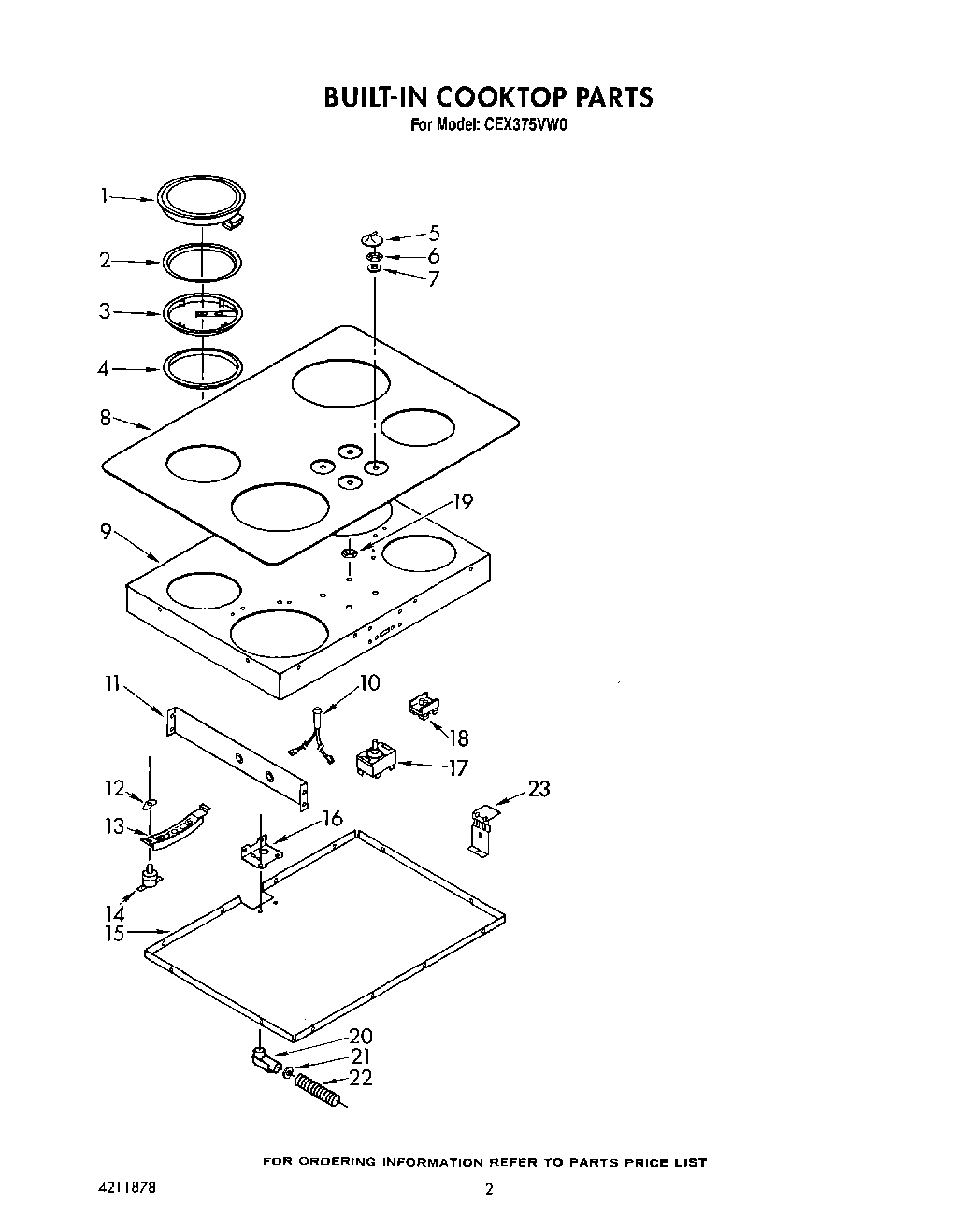

Common parts from model Whirlpool CEX375VB0 ELECTRIC COOK-TOP
WPL LIT4211866 WPL LIT4211866 Contact Us For Availability
WPL LIT4211867 WPL LIT4211867 Contact Us For Availability
WPL LIT4211878 WPL LIT4211878 Contact Us For Availability
1
Surface Unit (Nut (4)) WPL 4211821 Contact Us For Availability
2
Ring, Trim (Black-6``(2)) WPL 4211835 Contact Us For Availability
2
Ring, Trim (Black - 8`` (2)) WPL 4211838 Contact Us For Availability
2
Ring, Trim (White - 8`` (2)) WPL 4211854 Contact Us For Availability
2
Ring, Trim (White-6``(2)) WPL 4211855 Contact Us For Availability
3
Collar, Intermediate (6``(2)) WPL 4211836 Contact Us For Availability
3
Collar, Intermediate (8`` (2)) WPL 4211839 Contact Us For Availability
4
Gasket (6``(2)) WPL 4211828 Contact Us For Availability
4
Gasket (8`` (2)) WPL 4211834 Contact Us For Availability
5
Knob, Control (White) WPL 4211872 Contact Us For Availability
5
Knob, Control (Black) WPL 4211876 Contact Us For Availability
6
Nut (4) WPL 4211830 Contact Us For Availability
7
Seal, Shaft (4) WPL 4211860 Contact Us For Availability
8
Cooktop, Glass (White) WPL 4211871 Contact Us For Availability
8
Cooktop, Glass (Black) WPL 4211873 Contact Us For Availability
9
Screw, 10-24 X 1/2 WPL 4211812 Contact Us For Availability
9
Burner Box WPL 4211827 Contact Us For Availability
9
Lockwasher WPL 4211875 Contact Us For Availability
10
Indicator Light (4) WPL 4211833 Contact Us For Availability
11
Shield, Infinite Switch (2) WPL 4211808 Contact Us For Availability
12
Spring, Leaf (4) WPL 4211822 Contact Us For Availability
13
Bracket, Mounting (Nut (4)) WPL 4211806 Contact Us For Availability
13
Bracket, Mounting (6``(2)) WPL 4211820 Contact Us For Availability
13
Bracket, Mounting (8`` (2)) WPL 4211825 Contact Us For Availability
14
Protector, Thermal Switch (4) WPL 4211857 Contact Us For Availability
15
Screw, 10-3/8 (14) WPL 4211804 Contact Us For Availability
15
Cover, Burner Box WPL 4211823 Contact Us For Availability
16
Screw, 10-3/8 (2) WPL 4211813 Contact Us For Availability
16
Bracket, Cable WPL 4211814 Contact Us For Availability
17
Infinite Switch (4) WPL 4211874 Contact Us For Availability
18
Screw, 10-3/4 (2) WPL 4211831 Contact Us For Availability
18
Terminal Block WPL 4211832 Contact Us For Availability
19
Nut WPL 4211819 Contact Us For Availability
20
90~ Connector WPL 4211815 Contact Us For Availability
21
Bushing WPL 4211816 Contact Us For Availability
22
Flex Cable WPL 4211817 Contact Us For Availability
23
WPL W10355051 No Longer Available
23
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
23
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
23
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
23
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
23
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
23
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
23
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
23
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
23
Wire (1 WPL 242828 Contact Us For Availability
23
WPL 242829 WPL 242829 Contact Us For Availability
23
WPL 242830 WPL 242830 Contact Us For Availability
23
WPL 242832 WPL 242832 Contact Us For Availability
23
WPL 261961 WPL 261961 Contact Us For Availability
23
WPL 4211856 WPL 4211856 Contact Us For Availability
23
WPL 4211858 WPL 4211858 Contact Us For Availability
× ![]()
