Model Whirlpool CET14D2A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

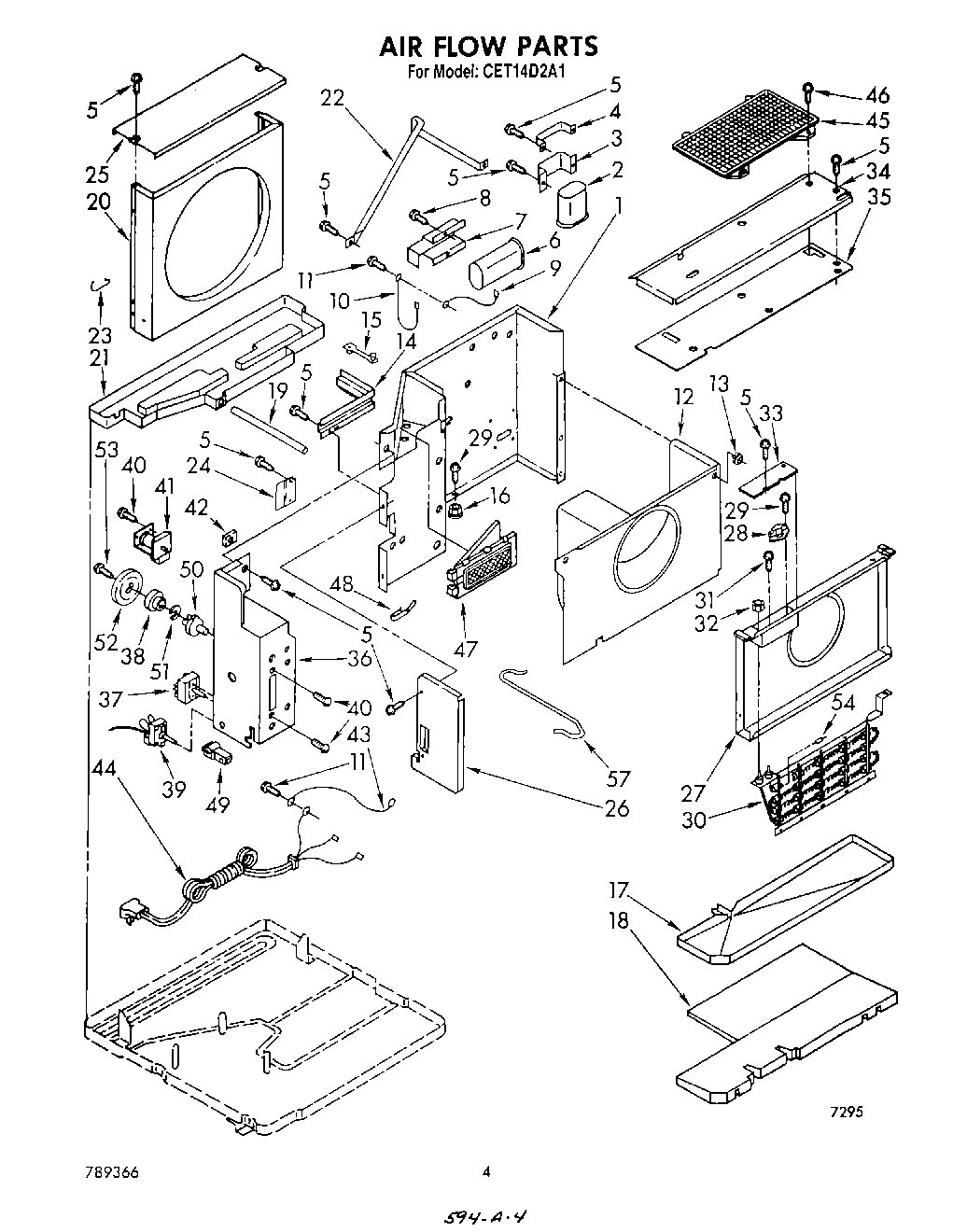

03 - AIR FLOW , LIT/OPTIONAL

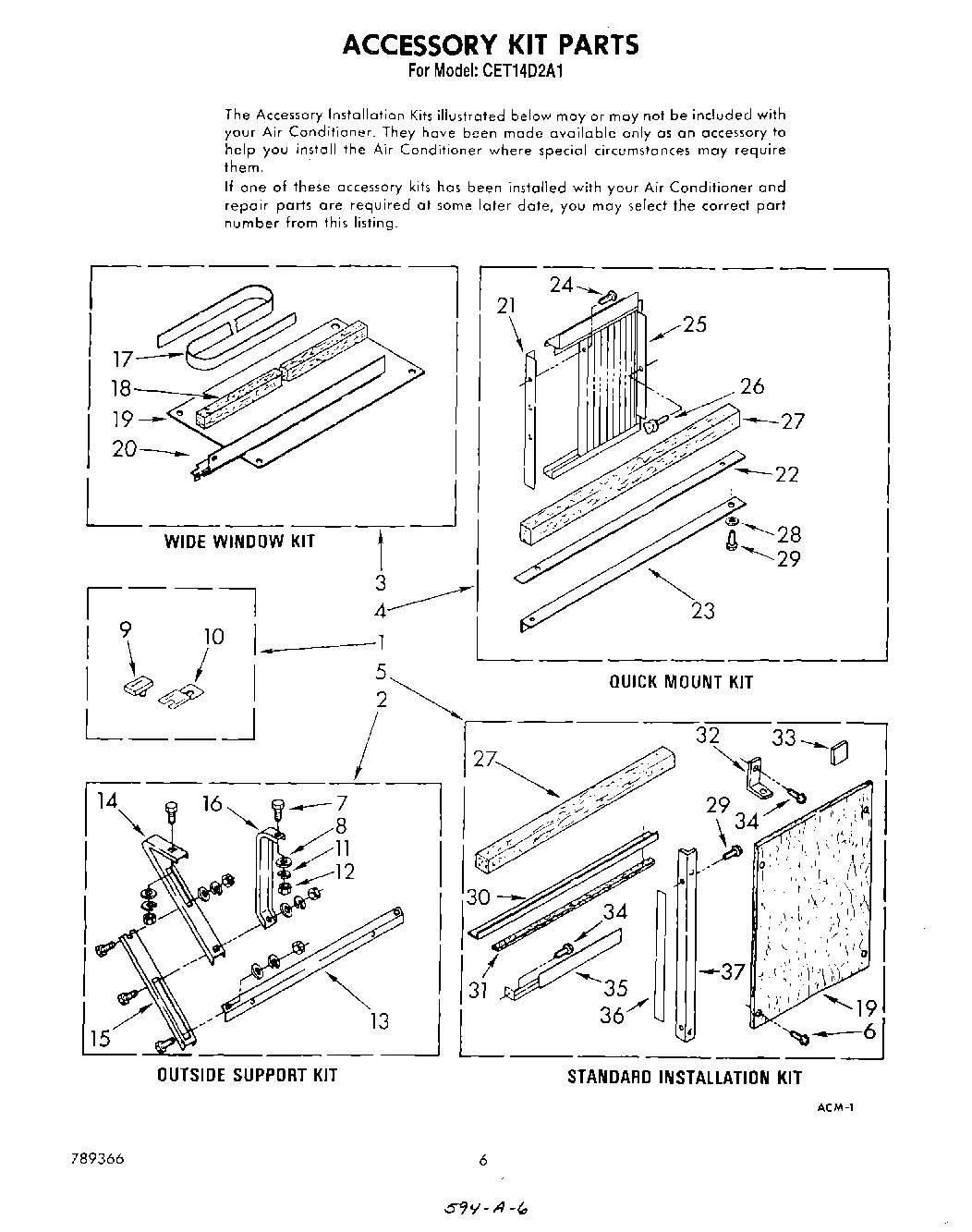

04 - ACCESSORY KIT
05 - CABINET AND FRONT
02 - UNIT
Common parts from model Whirlpool CET14D2A1 ROOM AIR CONDITIONER
1
Kit, Condensate Cup WPL 978929 Contact Us For Availability
1
Cabinet WPL 858828 Contact Us For Availability
1
Base, Unit WPL 951381 Contact Us For Availability
2
Kit, Outside Support WPL 485679 Contact Us For Availability
2
Grommet, Cable WPL 647849 Contact Us For Availability
2
Handle, Base WPL 647971 Contact Us For Availability
3
Kit, Wide Window WPL 485676 Contact Us For Availability
3
Wire, Ground WPL 857017 Contact Us For Availability
3
Compressor WPL 876799 Contact Us For Availability
4
Kit, Quick Mount WPL 485675 Contact Us For Availability
4
Screw, Mach 8-32 x 3/8 WPL 488853 Contact Us For Availability
4
Washer (3) WPL 470280 Contact Us For Availability
5
Kit, Standard Installation WPL 485674 Contact Us For Availability
5
Overload WPL 953100 Contact Us For Availability
6
Capacitor, Fan WPL 952076 Contact Us For Availability
6
Plate, Escutcheon WPL 953003 Contact Us For Availability
7
Bracket, Fan Capacitor WPL 998009 Contact Us For Availability
7
Bolt, 1/4-20 x 3/4 WPL 488750 Contact Us For Availability
7
Spacer, Plate (3) WPL 470036 Contact Us For Availability
8
Knob, Control WPL 953054 Contact Us For Availability
9
Wire, Ground WPL 998010 Contact Us For Availability
9
Front, Cabinet (Complete Assembly) WPL 953021 Contact Us For Availability
9
Plate, Fan Motor WPL 998024 Contact Us For Availability
10
Wire, Ground WPL 948285 Contact Us For Availability
10
Support, Cup WPL 995075 Contact Us For Availability
10
front, cabinet WPL 953017 Contact Us For Availability
10
Motor, Fan WPL 952058 Contact Us For Availability
11
Lockwasher WPL 486009 Contact Us For Availability
11
Filter WPL 648008 Contact Us For Availability
12
Housing, Blower Wheel WPL 852875 Contact Us For Availability
12
Nut, 1/4-20 WPL 486035 Contact Us For Availability
12
Retainer, Filter WPL 476707 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
13
Fastener, snap WPL 487808 Contact Us For Availability
13
Bracket, Cabinet Support WPL 644281 Contact Us For Availability
13
Wheel, Blower WPL 852067 Contact Us For Availability
14
Channel, Wiring WPL 852317 Contact Us For Availability
14
Support, Cabinet (2) WPL 644283 Contact Us For Availability
14
Seal, Cabinet Front WPL 647914 Contact Us For Availability
14
Evaporator WPL 949606 Contact Us For Availability
15
Clamp, Wiring WPL 948279 Contact Us For Availability
15
Retainer, Support (2) WPL 644285 Contact Us For Availability
15
Seal WPL 649198 Contact Us For Availability
15
Tube, Restrictor (2) (33.0`` Length) WPL 951385 Contact Us For Availability
16
Clip, Speed WPL 649620 Contact Us For Availability
16
Louver, Vertical Louver WPL 953068 Contact Us For Availability
16
Fan, Blade WPL 949124 Contact Us For Availability
17
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
17
Condenser WPL 951386 Contact Us For Availability
18
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
18
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
18
Link, Vertical Louver WPL 953067 Contact Us For Availability
18
Tube, 90~ Connect WPL 950814 Contact Us For Availability
19
Tube, Condensate WPL 49181 Contact Us For Availability
19
Board, Filler (2) WPL 647835 Contact Us For Availability
19
Spring, Dent WPL 641484 Contact Us For Availability
19
Tube, Flow Divider WPL 947364 Contact Us For Availability
20
Shroud, Condenser WPL 647862 Contact Us For Availability
20
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
20
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
20
Screw, St 8-32 x 3/8 WPL 488854 Contact Us For Availability
20
Tube, 90~ Connect WPL 475635 Contact Us For Availability
21
Pan, Condenser Condensate WPL 859238 Contact Us For Availability
21
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
21
Clip, Cabinet Front (2) WPL 949634 Contact Us For Availability
21
Bend, Return (12) WPL 855199 Contact Us For Availability
22
Support, Unit WPL 852318 Contact Us For Availability
22
Strip, Seal WPL 477597 Contact Us For Availability
22
Seal, Cabinet Bottom WPL 647854 Contact Us For Availability
22
Bend, Return (16) WPL 854624 Contact Us For Availability
23
Retainer, Shroud Cover WPL 647873 Contact Us For Availability
23
Channel, Bottom Mounting WPL 644387 Contact Us For Availability
23
Tube, Outlet (Includes Illus. 24) WPL 484230 Contact Us For Availability
24
Cover, Wall WPL 994399 Contact Us For Availability
24
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
24
Strainer, Tube WPL 49599 Contact Us For Availability
25
Cover, Shroud (Condenser) WPL 853390 Contact Us For Availability
25
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
25
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
25
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
26
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
26
Thumbscrew (2) WPL 475581 Contact Us For Availability
27
Deflector, Heat Assembly WPL 857224 Contact Us For Availability
27
Seal, Meeting Rail WPL 469877 Contact Us For Availability
28
Switch, Limit WPL 995674 Contact Us For Availability
28
Cup, Condensate WPL 647850 Contact Us For Availability
28
Washer (2) WPL 488520 Contact Us For Availability
29
Screw, Sheet Metal No.8 x 3/8A WPL 488624 Contact Us For Availability
29
Spring, Overload WPL 950032 Contact Us For Availability
30
Heater, Air WPL 995675 Contact Us For Availability
30
Channel, Top Mounting WPL 644380 Contact Us For Availability
31
Seal WPL 855265 Contact Us For Availability
32
Bracket, Window Lock WPL 644228 Contact Us For Availability
32
Anticipator, Temperature WPL 484238 Contact Us For Availability
33
Cover, Wire Enclosure WPL 857203 Contact Us For Availability
33
Block, Spacer (4) WPL 995274 Contact Us For Availability
33
Clip, Anticipator WPL 642080 Contact Us For Availability
34
Cover, Shroud (Evaporator) WPL 856957 Contact Us For Availability
34
Wood Screw, No.8 x 3/4 (5) WPL 488255 Contact Us For Availability
35
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
35
Bracket, R.S. WPL 645562 Contact Us For Availability
35
Bracket, L.S. WPL 645563 Contact Us For Availability
36
Box, Control Assembly WPL 952380 Contact Us For Availability
36
Strip, Seal WPL 856979 Contact Us For Availability
37
Switch, Rotary WPL 950525 Contact Us For Availability
37
Angle, Side Mounting (2) WPL 645564 Contact Us For Availability
37
Instructions, Installation (Kit, Quick Mount) WPL LIT485687 Contact Us For Availability
37
Instructions, Installation (Kit, Wide Window) WPL LIT485688 Contact Us For Availability
37
Instruction Sheet (Outside Sill Bracket) WPL LIT485706 Contact Us For Availability
37
Instruction Sheet (Outside Support) WPL LIT485707 Contact Us For Availability
37
Instruction Sheet (Condensate Cup) WPL LIT978930 Contact Us For Availability
37
Instruction Sheet (Standard Installation) WPL LIT993380 Contact Us For Availability
38
Bushing, Shaft WPL 647879 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
39
Control, Temperature WPL 994200 Contact Us For Availability
40
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
40
Setscrew, 5/16-24 x 1/4 WPL 595085 Contact Us For Availability
41
Contactor WPL 858771 Contact Us For Availability
41
Clip, Balancing WPL 876034 Contact Us For Availability
42
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
42
Tape, No Drip (For Sweating Tubes) WPL 505168 Contact Us For Availability
42
Grommet, Wiring WPL 647865 Contact Us For Availability
42
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
42
epoxy, aluminum repair WPL 484310 Contact Us For Availability
42
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
43
Ground, Wire WPL 857634 Contact Us For Availability
44
Cable, Appliance WPL 649125 Contact Us For Availability
45
Guard, Impeller WPL 997949 Contact Us For Availability
47
Door, Exhaust WPL 649720 Contact Us For Availability
48
Spring, Door WPL 859369 Contact Us For Availability
49
Insulator, Terminal WPL 642360 Contact Us For Availability
50
Shaft, Control WPL 852023 Contact Us For Availability
51
Spring, Washer WPL 647881 Contact Us For Availability
52
Cam, WPL 647882 Contact Us For Availability
54
WPL 876903 WPL 876903 Contact Us For Availability
57
WPL 484069 WPL 484069 Contact Us For Availability
57
WPL 47261 WPL 47261 Contact Us For Availability
57
WPL 47262 WPL 47262 Contact Us For Availability
57
WPL 47263 WPL 47263 Contact Us For Availability
57
WPL 485426 WPL 485426 Contact Us For Availability
57
WPL 647847 WPL 647847 Contact Us For Availability
57
WPL 647848 WPL 647848 Contact Us For Availability
57
WPL 859370 WPL 859370 Contact Us For Availability
57
WPL 950157 WPL 950157 Contact Us For Availability
× ![]()
