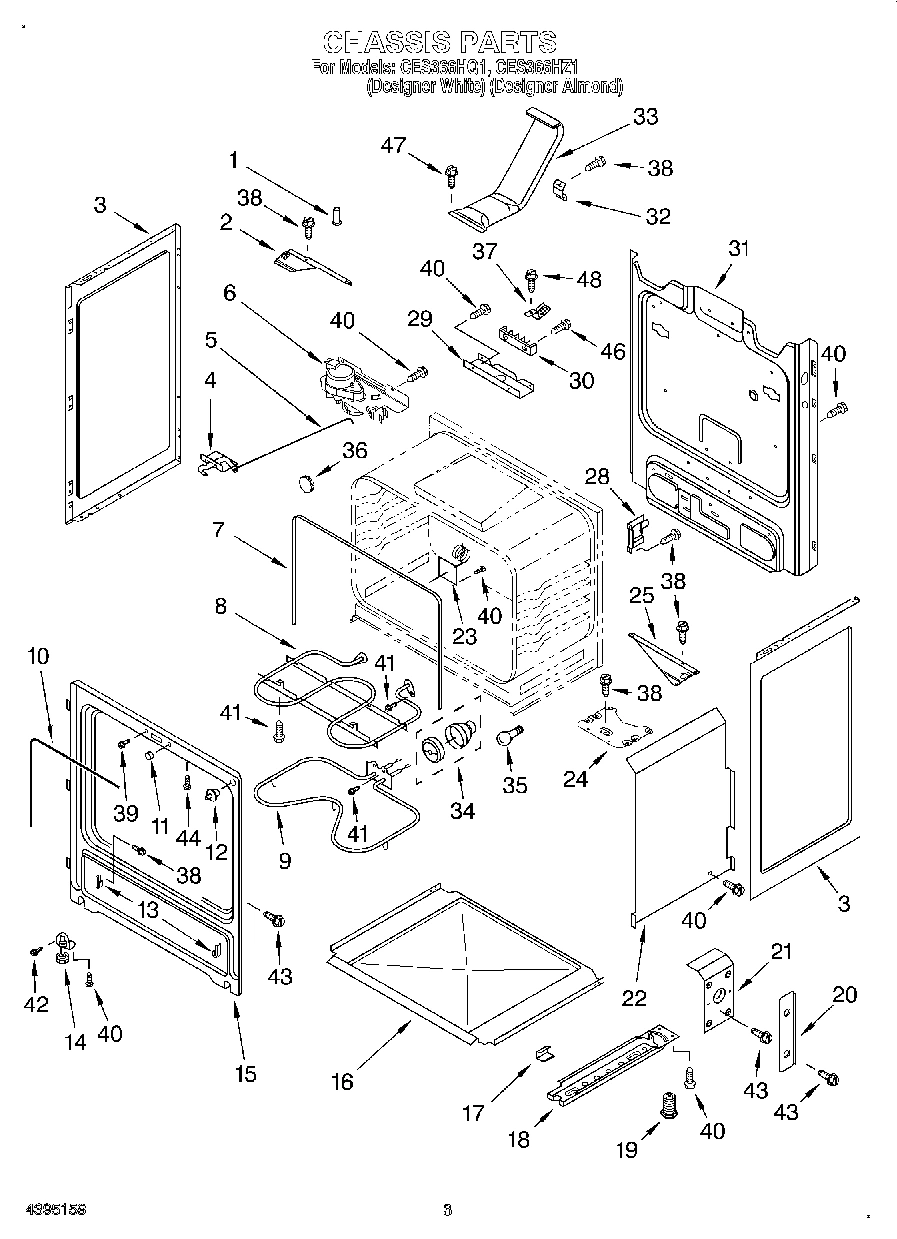

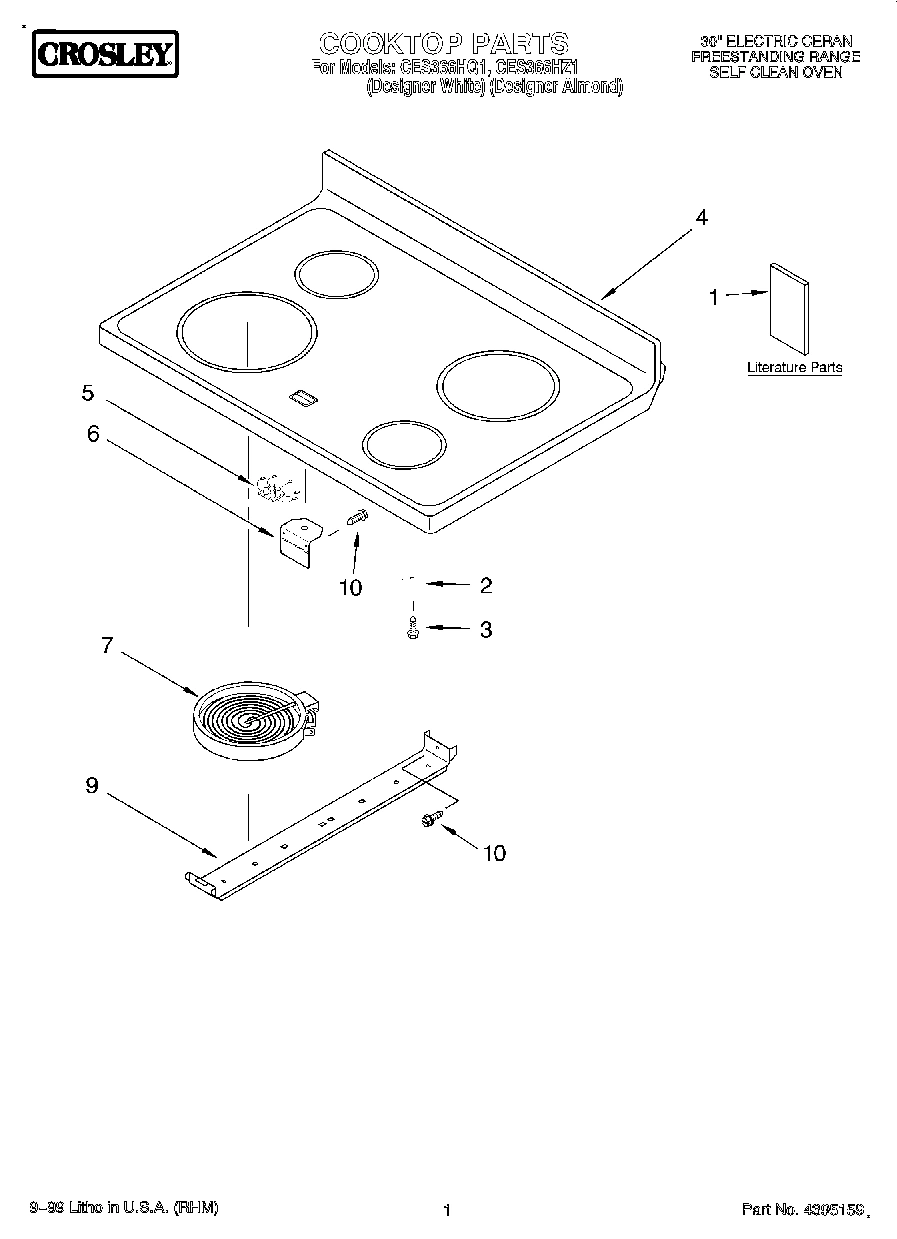

Model Whirlpool CES366HQ1 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $60.51

1

Endcap (White Left Hand) WPL 3186190 Contact Us For Availability

1

Endcap (White Right Hand) WPL 3186191 Contact Us For Availability

1

Endcap (Almond Left Hand) WPL 3186192 Contact Us For Availability

1

Endcap (Almond Right Hand) WPL 3186193 Contact Us For Availability

1

Trim, Door Top (Almond) WPL 3196820 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

Spring, Locator WPL 3149191 Contact Us For Availability

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $2.51

3

WPW10202216 Whirlpool Door Handle In Stock WPL WPW10202216 $130.22

3

Panel, Backguard (Almond) WPL 8272353 Contact Us For Availability

3

Panel, Backguard (White) WPL 8272354 Contact Us For Availability

3

Handle, Door (Almond) WPL 3195921 Contact Us For Availability

4

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

4

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

4

Cooktop (White) WPL 8053546 Contact Us For Availability

4

Cooktop (Almond) WPL 8053547 Contact Us For Availability

4

Drawer, Storage WPL 8053342 Contact Us For Availability

4

Liner, Door WPL 3186296 Contact Us For Availability

5

8522415 Whirlpool Oven Wind Gasket Backorder WPL 8522415 $28.80

5

W10838990 Whirlpool Mounting Bracket In Stock WPL W10838990 $31.66

5

Light, Indicator (Surface Unit (2)) WPL 313102 Contact Us For Availability

5

Light, Indicator (Hot Surface) WPL 8273009 Contact Us For Availability

6

3196815 Whirlpool Oven Rivet Backorder WPL 3196815 $9.59

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WP9758164 Whirlpool Door Glass Backorder WPL WP9758164 $57.94

6

Bracket, Ind Light WPL 3196103 Contact Us For Availability

7

W10823699 Whirlpool Right Front Surface Eleme In Stock WPL W10823699 $85.49

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $70.99

7

WP3196232 Whirlpool Knob In Stock WPL WP3196232 $10.76

7

WPW10242957 Whirlpool Element Surface Left Fr Backorder WPL WPW10242957 $181.00

7

Knob, Infinite (4) (Almond) WPL 3196233 Contact Us For Availability

7

Panel, Drawer Front (Almond) WPL 8053340 Contact Us For Availability

7

Frame, Glass WPL 3186290 Contact Us For Availability

8

Shield, Heat WPL 8053911 Contact Us For Availability

8

Insulation, Door WPL 3186256 Contact Us For Availability

9

9761499 Whirlpool Oven Retainer Backorder WPL 9761499 $117.64

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.70

9

Screw WPL 4449746 Contact Us For Availability

9

Bracket, Element WPL 3196454 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $28.80

3196696 Whirlpool Clip Backorder WPL 3196696 $6.61

3400964 Whirlpool Oven Clip Backorder WPL 3400964 $32.57

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP8053807 Whirlpool Oven Door Hinge In Stock WPL WP8053807 $49.45

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $112.03

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Clip, Ground Wire WPL 313660 Contact Us For Availability

Harness, Wire (Door Switch) WPL 3196108 Contact Us For Availability

Harness, Wire (Oven Light) WPL 3196132 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8053633 WPL 8053633 Contact Us For Availability

WPL 8272999 WPL 8272999 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

3149360 Whirlpool Light Switch Backorder WPL 3149360 $36.12

WP9762476 Whirlpool Door Glass Backorder WPL WP9762476 $119.54

Switch, Rocker (Almond) WPL 3169466 Contact Us For Availability

Glass, Outer Door (Almond) WPL 8053483 Contact Us For Availability

12

WP3195993 Whirlpool Light Switch In Stock WPL WP3195993 $56.02

12

Control-Range (White) WPL 3196968 Contact Us For Availability

12

Control, Range (Almond) WPL 3196969 Contact Us For Availability

13

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

13

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

8184859 Whirlpool Range Oven Door Trim Kit (2 In Stock WPL 8184859 $48.50

8184860 Whirlpool Oven Door Trim Backorder WPL 8184860 $55.24

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $46.85

15

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

15

Clip, Glass (4) WPL 3196025 Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

16

Bracket, Latch WPL 3195914 Contact Us For Availability

17

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

18

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.51

18

Knob, 150 Control (White) WPL 8053352 Contact Us For Availability

18

Knob, 150 Control (Almond) WPL 8053353 Contact Us For Availability

19

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $28.68

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

38

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

48

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59
