Model Whirlpool CER3760BAC ELECTRIC RANGE – Common Parts &amp; Diagrams

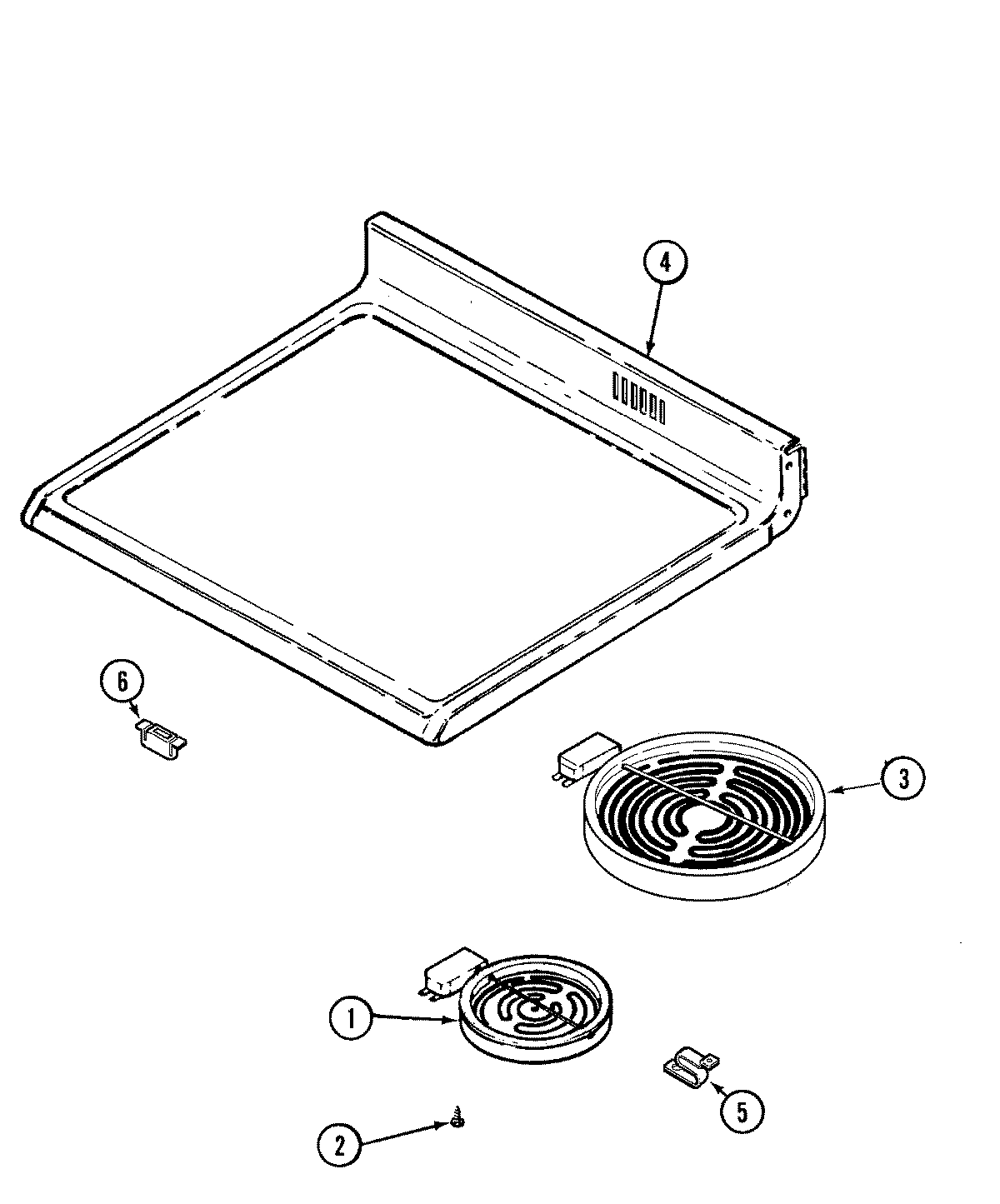

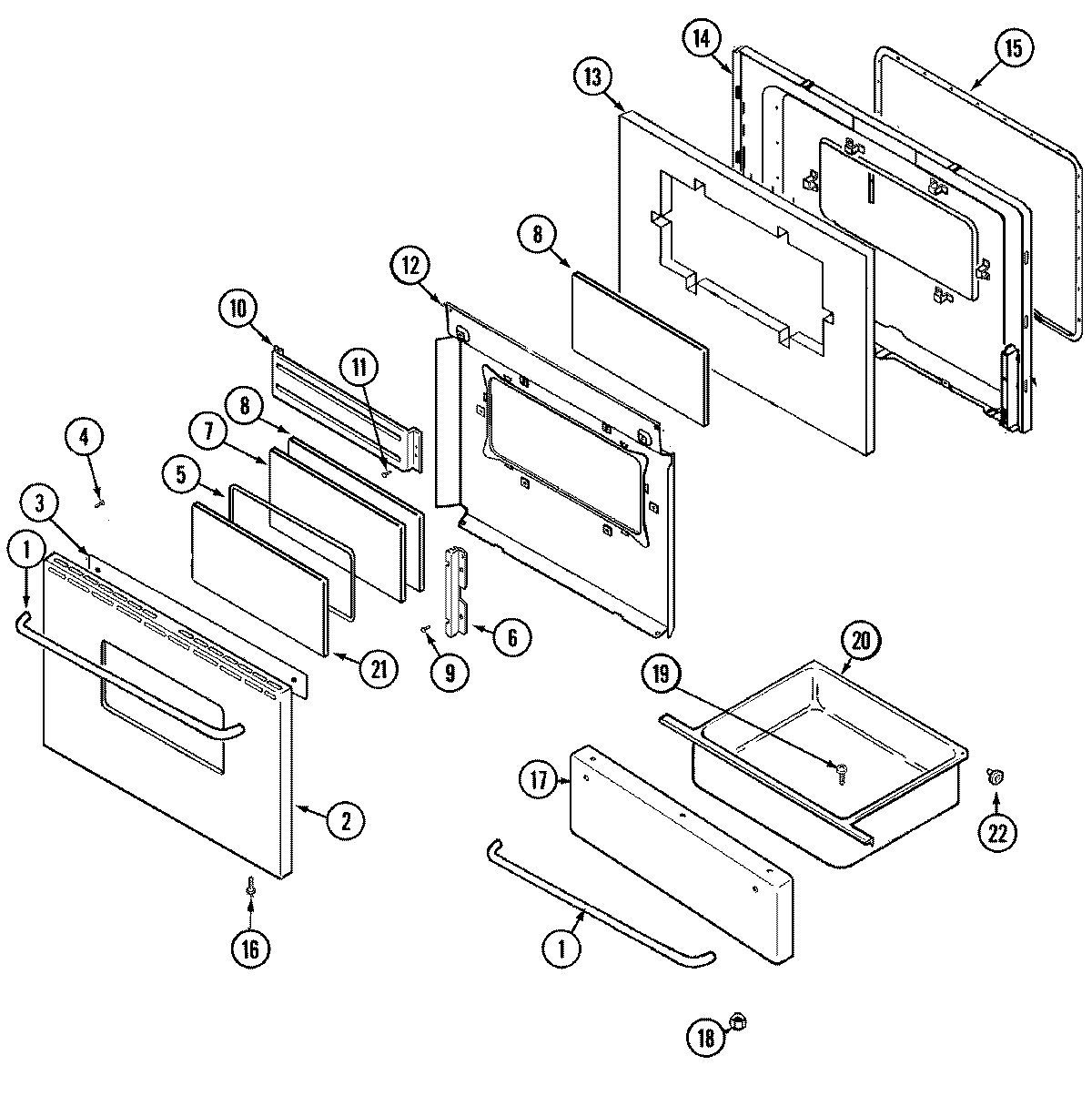

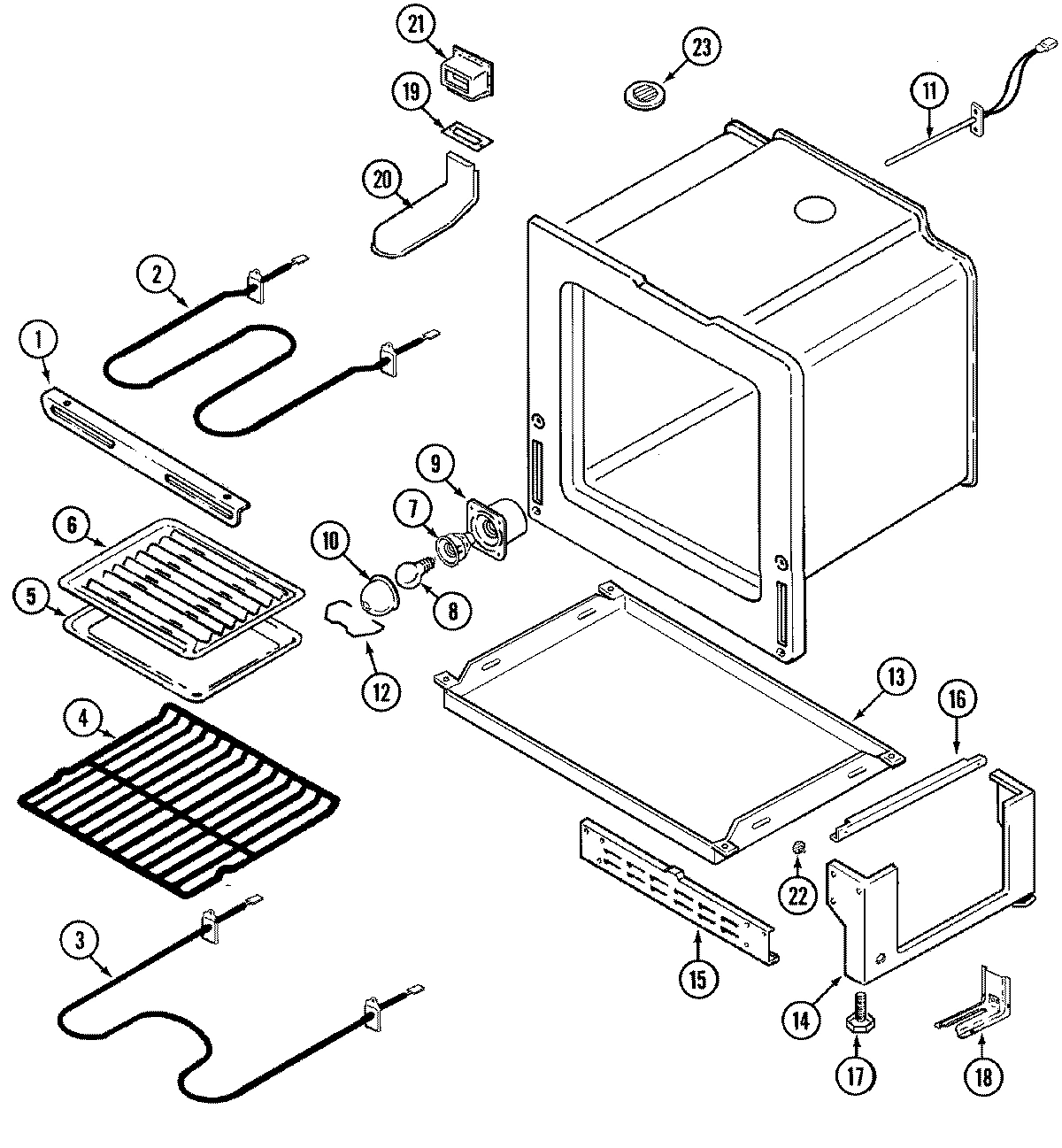

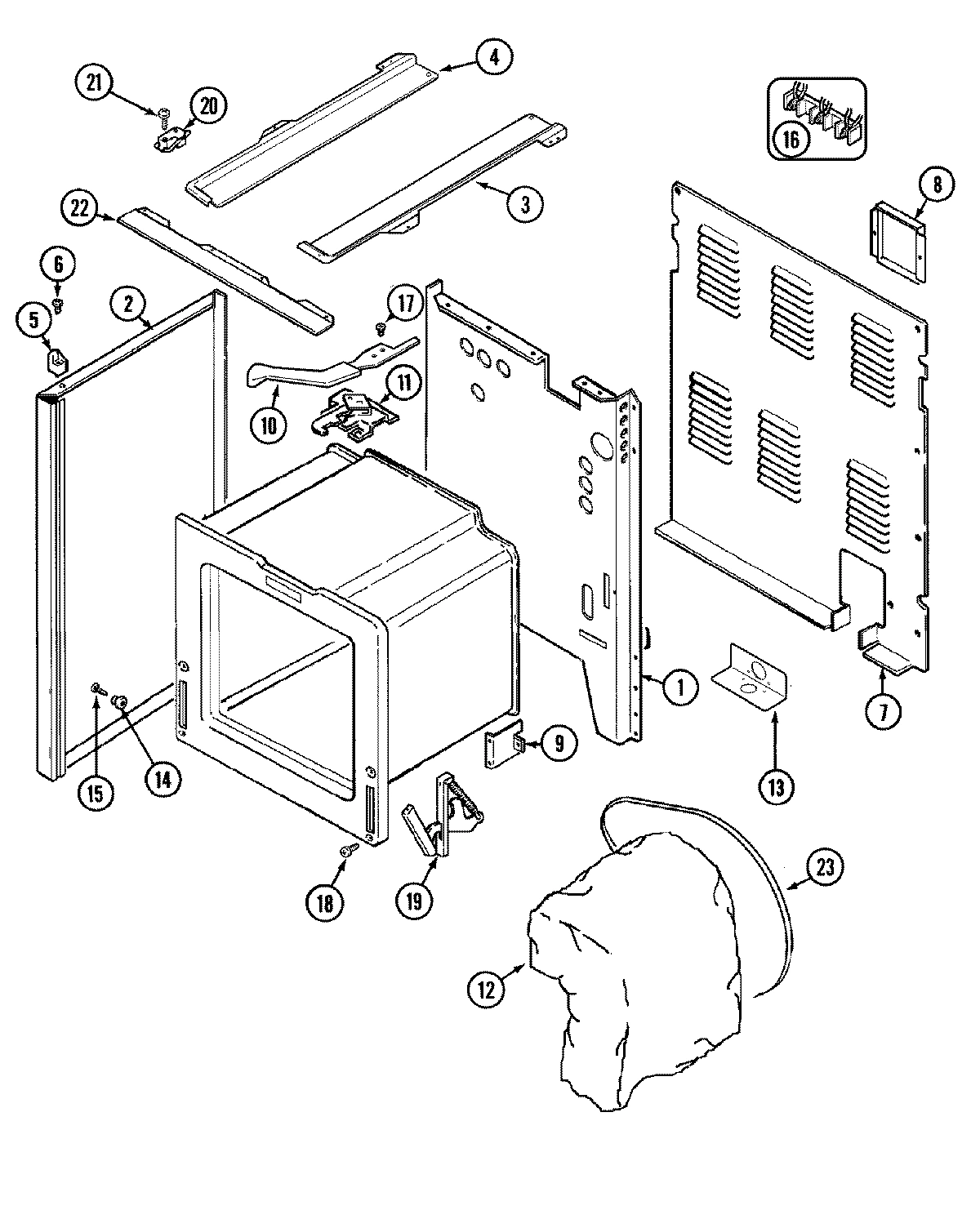

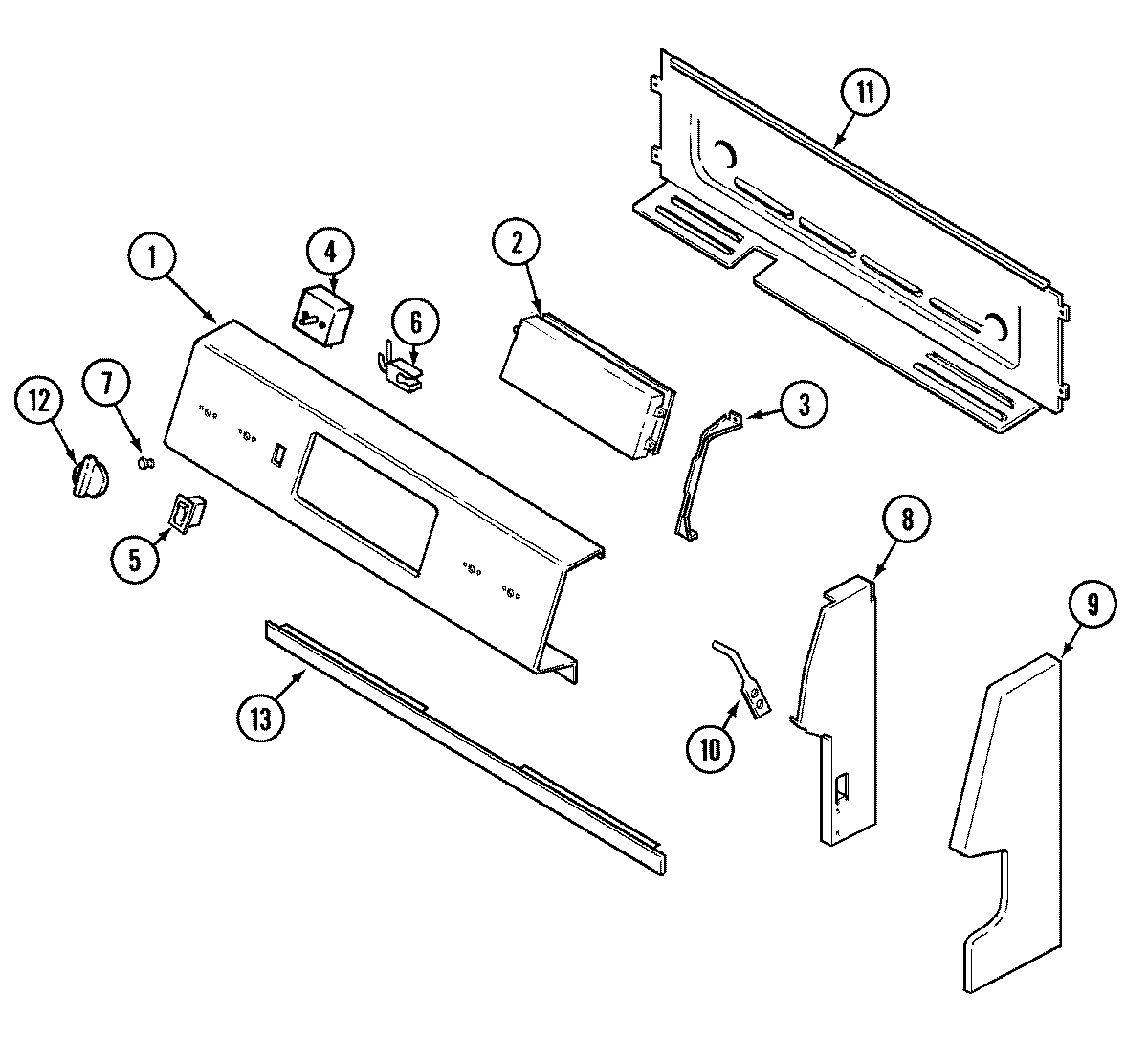

1

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

1

PANEL, CONTROL (CHR) WPL 74006517 Contact Us For Availability

1

BACK, MAIN WPL 74006322 Contact Us For Availability

2

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $2.55

2

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $70.99

2

CLOCK (BLK) WPL 74003485 Contact Us For Availability

2

CLOCK W/OVERLAY (BLK) WPL 74009364 Contact Us For Availability

2

PANEL, SIDE (BLK) WPL 74003283 Contact Us For Availability

2

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $130.67

3

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $23.48

3

INSULATION, FOIL BACK WPL 74003146 Contact Us For Availability

3

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

3

BRACKET, CLOCK WPL 74004913 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

4

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $6.90

4

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $46.57

4

WASHER (1``) WPL 74001521 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

4

PAD, SPONGE (NON ABRASIVE) WPL 20001100 Contact Us For Availability

4

TOP, MAIN (CHR) WPL 74006484 Contact Us For Availability

5

GASKET, WINDOW WPL 7201P01760 Contact Us For Availability

5

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

5

SWITCH, ROCKER (BLK) WPL 74003363 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

6

RETAINER, GLASS WPL 74003048 Contact Us For Availability

6

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

6

INDICATOR, LIGHT WPL 74006388 Contact Us For Availability

7

GLASS, INNER WPL 74002002 Contact Us For Availability

7

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

8

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

8

GLASS, INNER WPL 74001841 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

9

HOUSING, BULB WPL 74003388 Contact Us For Availability

9

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

9

SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability

9

END CAP, CONTROL PNL (RT-BLK) WPL 74003367 Contact Us For Availability

9

END CAP, CONTROL PNL (LT-BLK) WPL 74003368 Contact Us For Availability

9

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

BAFFLE, DOOR (SECONDARY) WPL 74005458 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

SCREW WPL 7101P35660 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability

DOOR LATCH KIT WPL 12001944 Contact Us For Availability

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

LATCH, DOOR WPL 74003380 Contact Us For Availability

RETAINER, LATCH INSULATION WPL 74006342 Contact Us For Availability

BAFFLE, DOOR WPL 74001843 Contact Us For Availability

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

KNOB, INFINITE SWITCH (BLK) WPL 74003427 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74005771 Contact Us For Availability

13

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.80

13

INSULATION, DOOR WPL 74001842 Contact Us For Availability

13

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

14

LINING, OVEN DOOR WPL 74004972 Contact Us For Availability

14

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

14

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.24

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

17

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.49

17

PANEL, DRAWER (CHR) WPL 74006665 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.20

NUT, LOCK WPL 7103P13960 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

19

WP74011141 Whirlpool Oven Hinge Backorder WPL WP74011141 $88.78

19

SCREW WPL 7101P07260 Contact Us For Availability

19

GASKET, VENT WPL 74003285 Contact Us For Availability

20

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

20

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

20

SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability

21

GLASS, OUTER DOOR (BLK) WPL 74001072 Contact Us For Availability

21

EXTENSION, OVEN VENT ASSEMBLY WPL 74004535 Contact Us For Availability

21

SCREW WPL 912012 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

23

SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability

23

STRAP, INSULATION WPL 74003385 Contact Us For Availability

WIRING INFORMATION WPL 15002273 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability

HARNESS, SENSOR/LOCK WPL 74003375 Contact Us For Availability

MANUAL, USE & CARE WPL 74003467 Contact Us For Availability

HARNESS, BCKGRD/TOP WPL 74004914 Contact Us For Availability

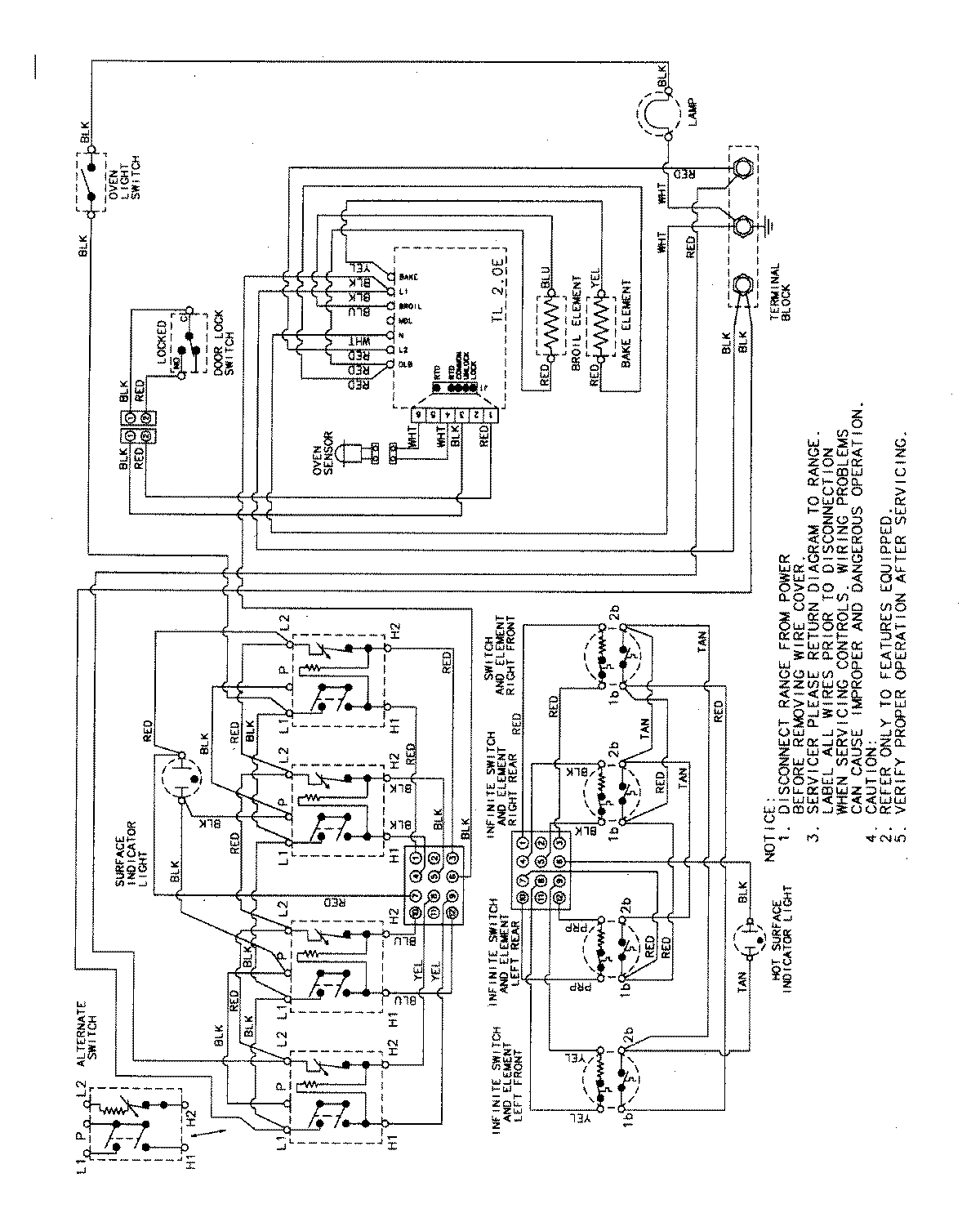

WIRING INFORMATION WPL 15003394 Contact Us For Availability
