Model Whirlpool CEP3760AAQ ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

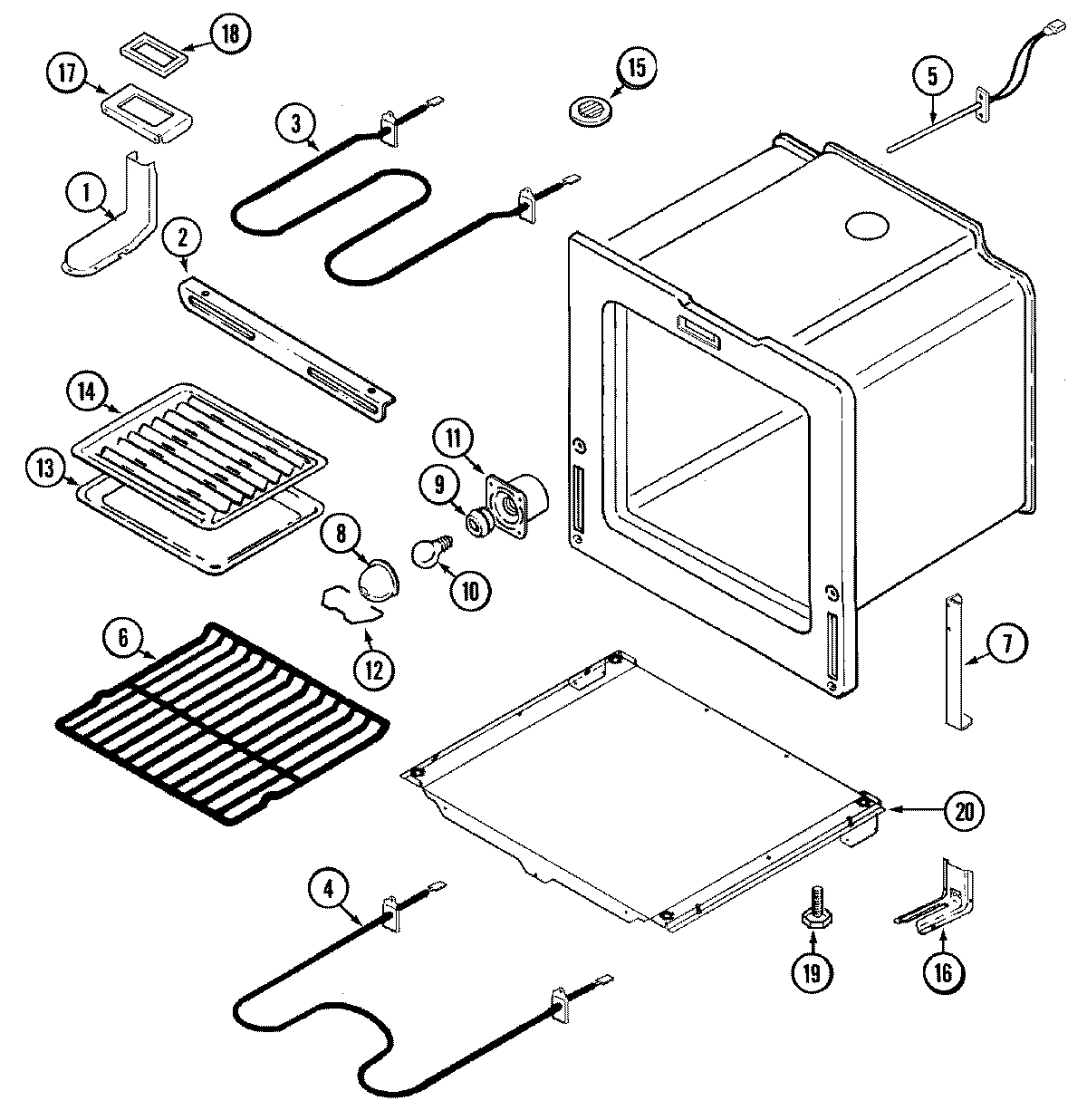

03 - OVEN/BASE

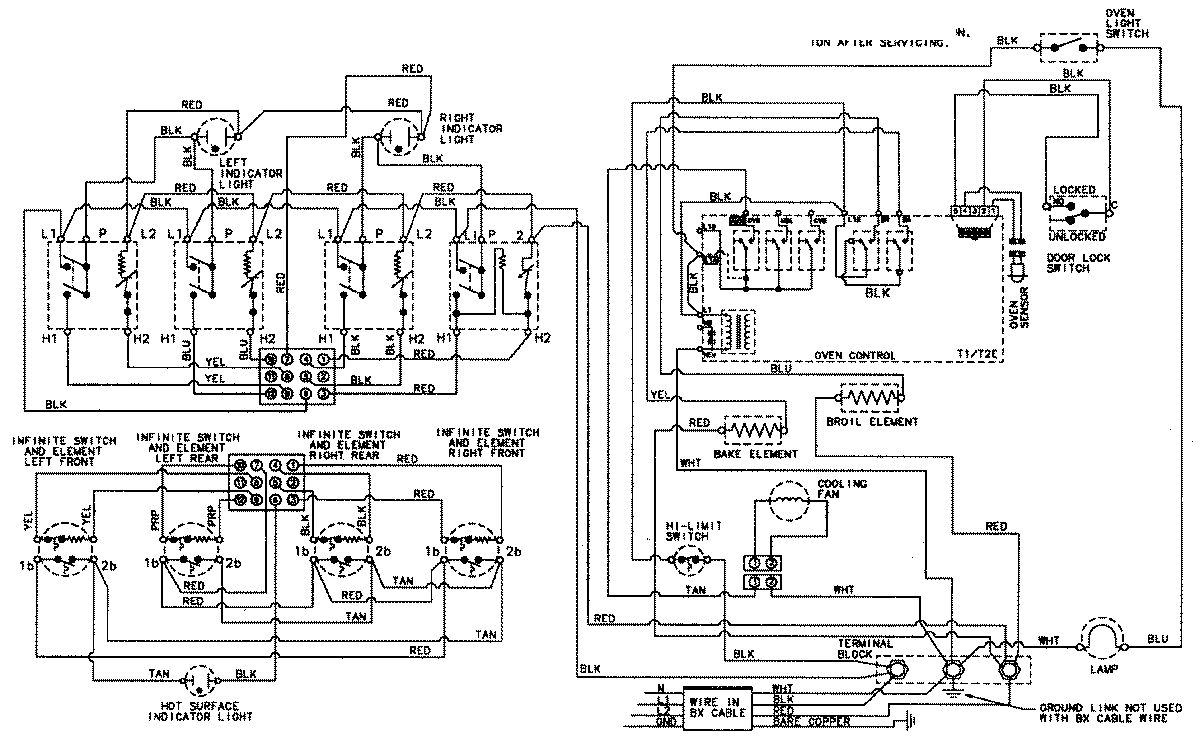

04 - WIRING INFORMATION
02 - DOOR
Common parts from model Whirlpool CEP3760AAQ ELECTRIC RANGE
1
BOX, VENT WPL 74004170 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
2
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
2
LINING, OVEN DOOR WPL 74004972 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74004184 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
6
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
6
INSULATION, OVEN WPL 74003503 Contact Us For Availability
6
GLASS, INNER WPL 74003320 Contact Us For Availability
7
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
7
SUPPORT, OVEN WPL 74004171 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
8
COVER, BULB WPL 74003389 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
9
BLOCK, DISCONNECT WPL 74002305 Contact Us For Availability
9
BLOCK, DISCONNECT WPL 74002306 Contact Us For Availability
9
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
9
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
9
GLASS, DOOR (OUTER-BSQ) WPL 74005041 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
10
HANDLE, DOOR (BSQ) WPL 74005042 Contact Us For Availability
11
FAN MOTOR ASY. WPL 74004947 Contact Us For Availability
11
HOUSING, BULB WPL 74003388 Contact Us For Availability
12
EXTENSION, HEAT SHIELD WPL 74004176 Contact Us For Availability
12
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
12
TRIM, DOOR (LWR-BSQ) WPL 74005043 Contact Us For Availability
13
SHIELD, HEAT WPL 74004177 Contact Us For Availability
13
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
13
TAPE WPL 74004075 Contact Us For Availability
13
TRIM, DOOR (SIDE-BSQ) WPL 74005044 Contact Us For Availability
14
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
14
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
15
SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability
16
SHIELD, VENT (BSQ) WPL 74005100 Contact Us For Availability
16
SCREW WPL 7101P35260 Contact Us For Availability
17
TRIM, SIDE (BSQ) WPL 74005094 Contact Us For Availability
17
PLATE, VENT WPL 74004178 Contact Us For Availability
18
DOOR LATCH KIT WPL 12001943 Contact Us For Availability
18
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
18
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
18
LATCH, DOOR WPL 74003380 Contact Us For Availability
18
GASKET, VENT WPL 74004179 Contact Us For Availability
19
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
19
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
19
INSULATOR, SWITCH WPL 74003630 Contact Us For Availability
20
LEVER, LATCH (BRN) WPL 74001057 Contact Us For Availability
20
BOTTOM, MAIN WPL 74004225 Contact Us For Availability
21
TUBING, FLEX WPL 74004221 Contact Us For Availability
22
GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability
23
WASHER WPL 7109P00260 Contact Us For Availability
24
CONNECTOR, RT ANGLE WPL 74004223 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002526 Contact Us For Availability
× ![]()
