Model Whirlpool CEA4D59TSV ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

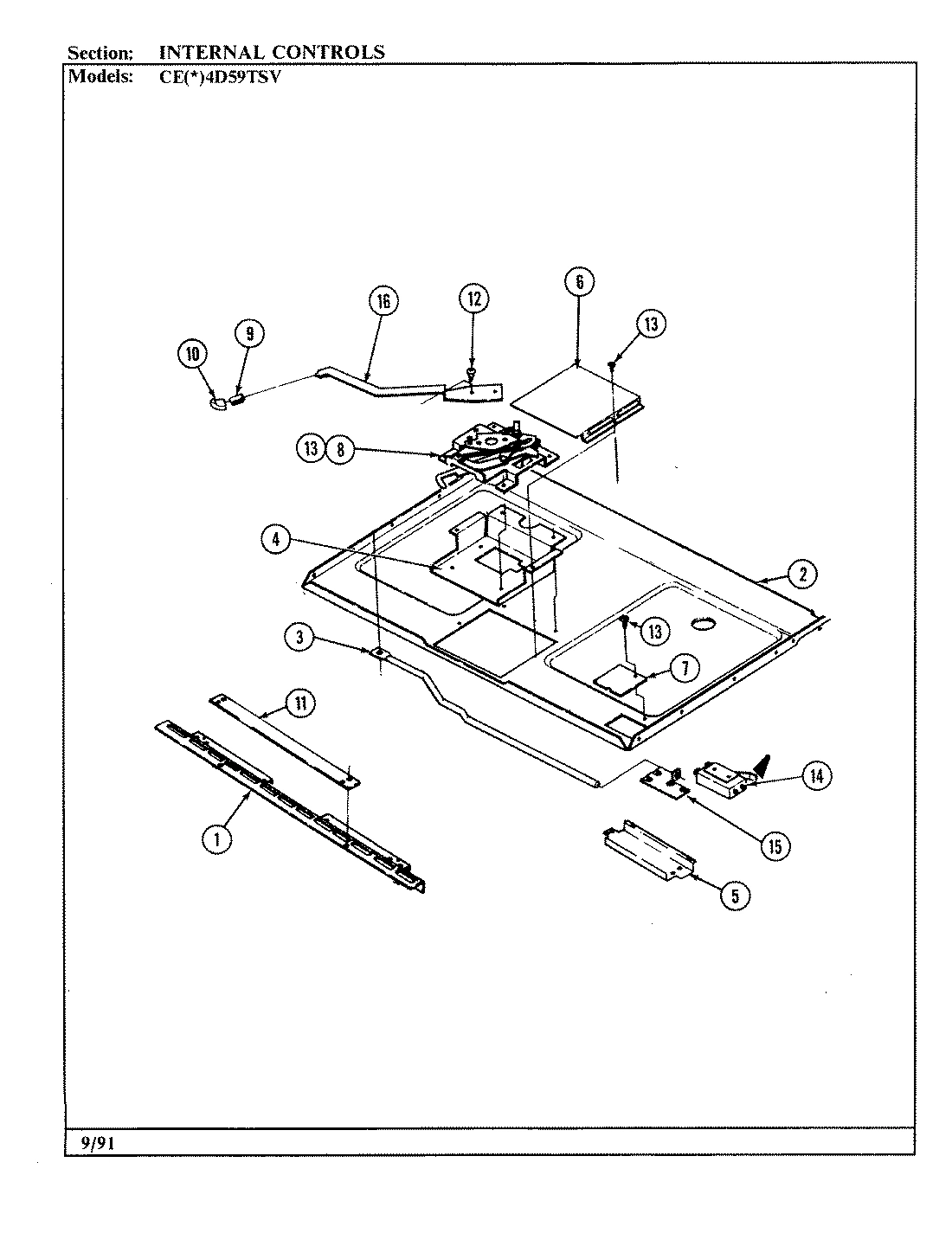

04 - GAS CONTROLS

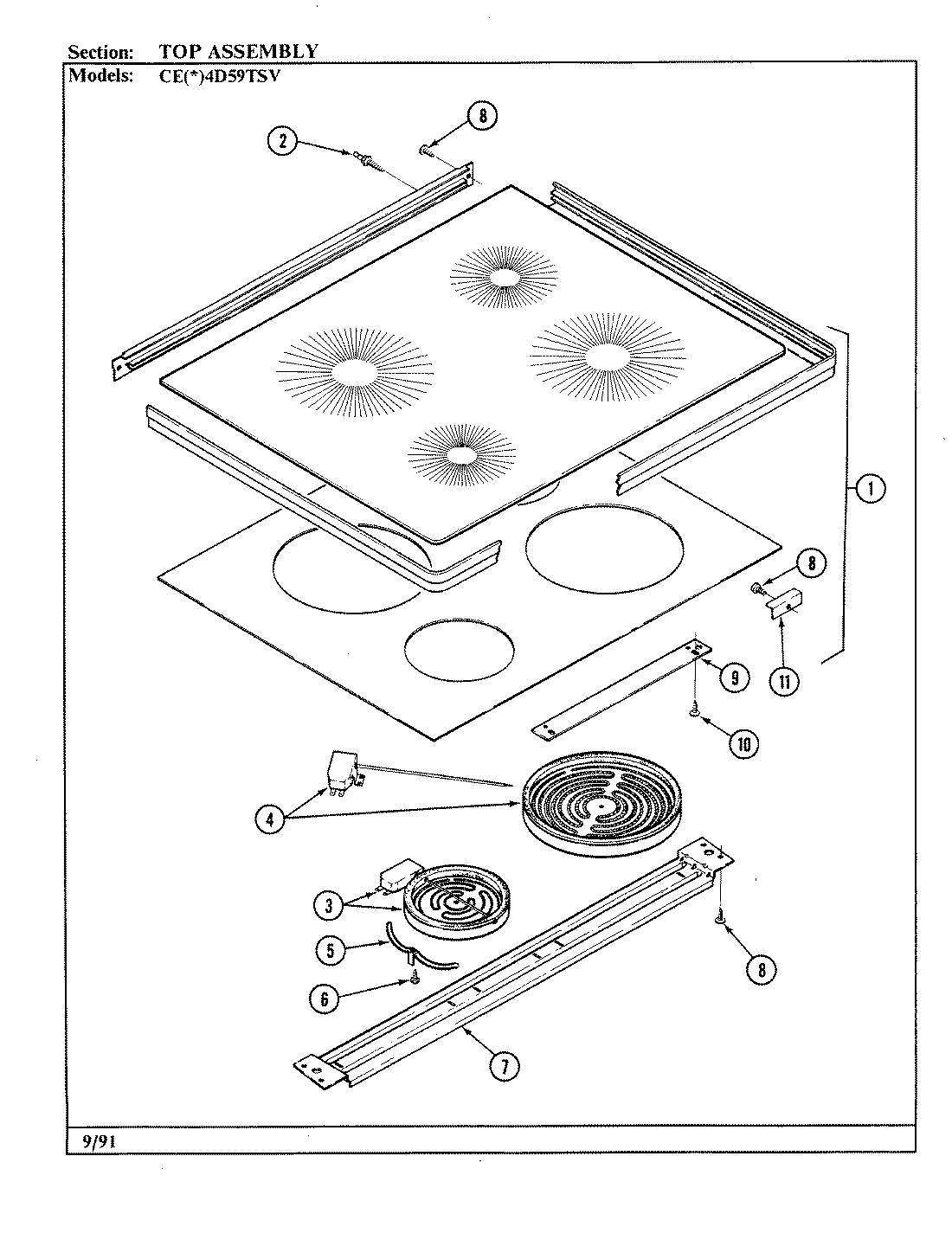

06 - TOP ASSEMBLY

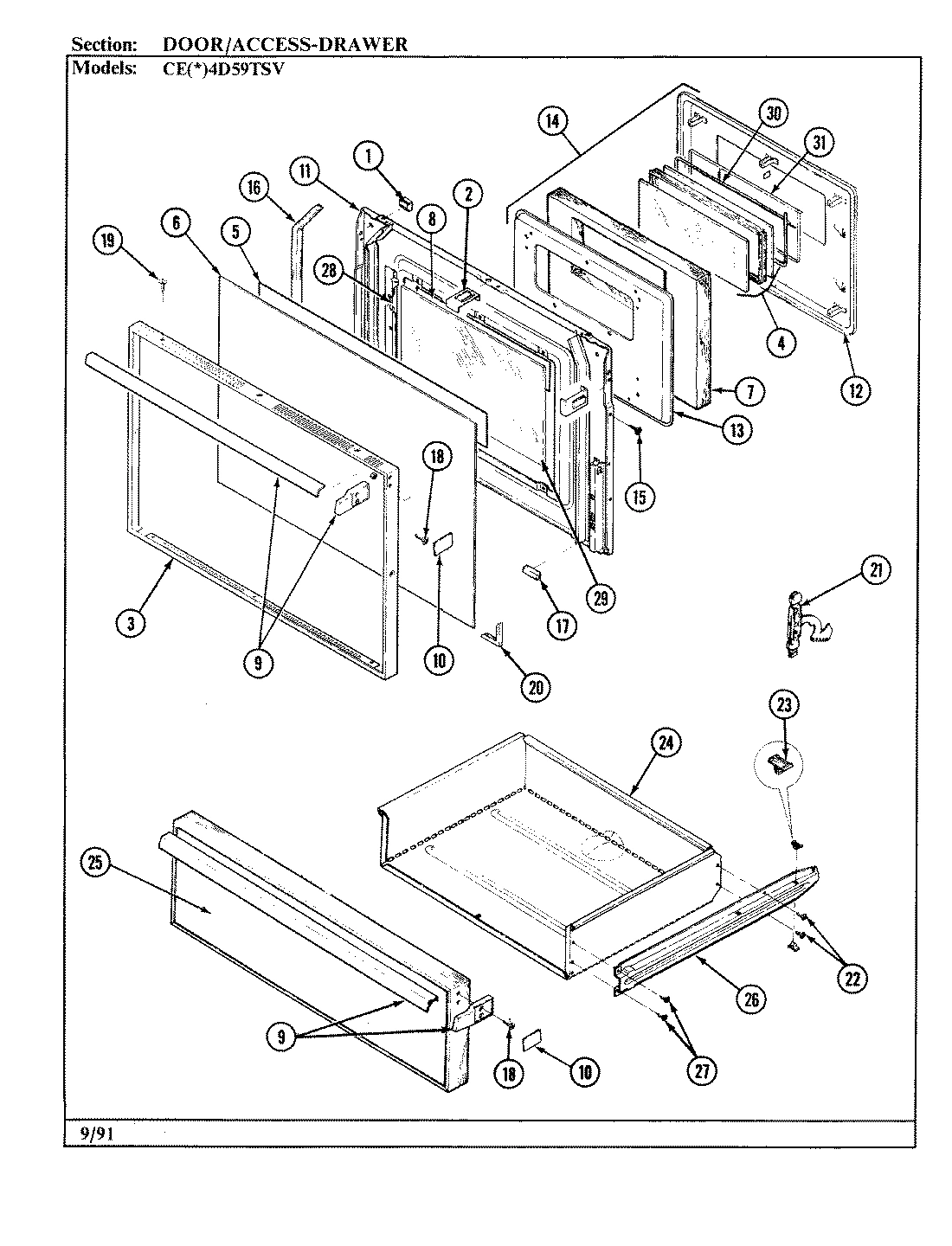

03 - DOOR/DRAWER

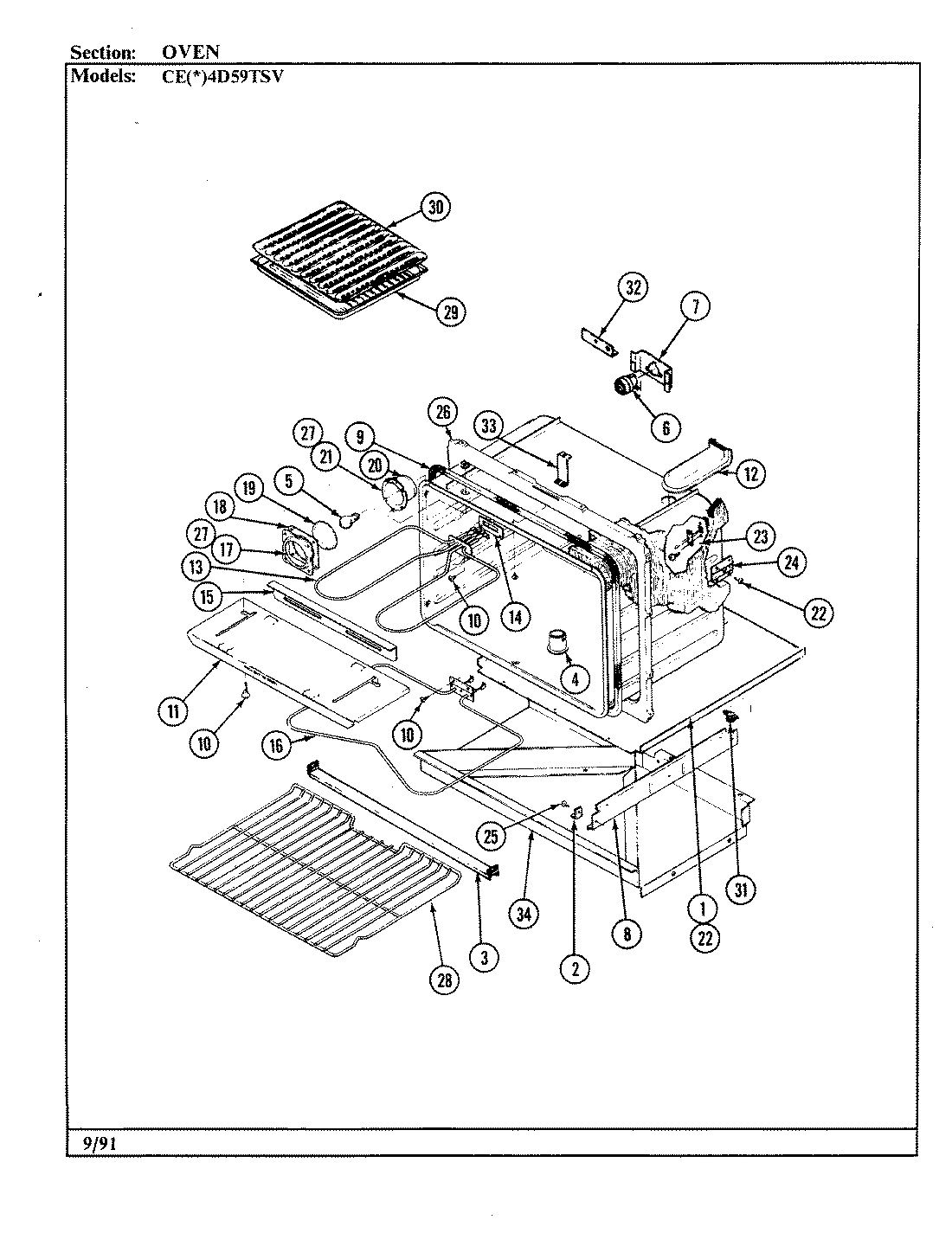

05 - OVEN
01 - BODY
Common parts from model Whirlpool CEA4D59TSV ELECTRIC RANGE
1
COVER, UPPER FLUE BOX WPL 4005F29551 Contact Us For Availability
1
GASKET, COVER WPL 4005F29651 Contact Us For Availability
1
SEAL, COVER WPL 7212P03260 Contact Us For Availability
1
FRONT, BURNER BOX BOTTOM WPL 4012F01780 Contact Us For Availability
1
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
1
KIT, MAIN TOP (BLK) WPL 5425A00960 Contact Us For Availability
1
KIT, MAIN TOP WPL 5425A01060 Contact Us For Availability
1
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
1
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
1
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
1
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
1
INNER SIDE LINING ASSY WPL 4009W05480 Contact Us For Availability
1
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
1
NUT, NYLON WPL 7103P04560 Contact Us For Availability
2
GLASS CONTROL PANEL WPL 7910P15660 Contact Us For Availability
2
COVER, BACK BURNER BOX WPL 4005F25780 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 4011F18080 Contact Us For Availability
2
SPACER, TOP WPL 8010P07160 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
3
PANEL BKGD WPL 2601W32584 Contact Us For Availability
3
COVER, BKGD WIRE WPL 4005F33880 Contact Us For Availability
3
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
3
ELEMENT, STD WPL 7406P05860 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
3
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
3
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
3
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
3
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
4
KNOB, SWITCH WPL 7711P32160 Contact Us For Availability
4
SUPPORT, CATCH ASSY. WPL 3807F40845 Contact Us For Availability
4
ELEMENT, GIANT WPL 7406P05760 Contact Us For Availability
4
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
4
WINDOW PAK WPL 7902S30360 Contact Us For Availability
4
TUBE, VENT WPL 8026A01160 Contact Us For Availability
4
SCREW WPL 7101P11260 Contact Us For Availability
5
BUTTON, CLOCK SET WPL 7711P45260 Contact Us For Availability
5
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
5
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
5
TAPE, FOIL 3`` X 60 YRDS WPL 8270P03360 Contact Us For Availability
5
BULB, OVEN WPL 7407P02660 Contact Us For Availability
5
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
6
LIGHT, SIGNAL WPL 7407P02960 Contact Us For Availability
6
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
6
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
6
GLASS DOOR WPL 7902P27760 Contact Us For Availability
6
GLASS DOOR WPL 7902P27860 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
6
BACK, MAIN WPL 4002F16280 Contact Us For Availability
7
SCREW WPL 7101P06160 Contact Us For Availability
7
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
7
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
7
SUPPORT WPL 3807F22945 Contact Us For Availability
7
INSULATION DOOR PAD WPL 4804F00660 Contact Us For Availability
7
BRACKET WPL 3801F02451 Contact Us For Availability
8
TRIM, RETAINER GLASS WPL 7742P00960 Contact Us For Availability
8
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
8
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
8
TAPE, 2`` X 60 YD ROLL WPL 8270P07160 Contact Us For Availability
8
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
8
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
8
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
9
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
9
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
9
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
9
BRACKET, MAIN TOP RETAINER WPL 3801F12580 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
9
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
9
HOUSING MAIN WIRE WPL 4001F05180 Contact Us For Availability
10
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
10
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
10
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
10
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
10
COVER, WIRE HOUSING WPL 4005F18280 Contact Us For Availability
11
SWITCH, INF. 250V WPL 7403P18360 Contact Us For Availability
11
SWITCH, INFINITE (1400W) WPL 7403P26860 Contact Us For Availability
11
SWITCH, INFINITE (2600W) WPL 7403P26960 Contact Us For Availability
11
CLIP ELEMENT SUPPORT WPL 8004P02360 Contact Us For Availability
11
LINING WPL 2402W17319 Contact Us For Availability
11
NUT, SNAP WPL 7103P11460 Contact Us For Availability
11
LABEL (CLEANING INST.) WPL 8114P27460 Contact Us For Availability
11
SHIELD, BROIL WPL 3604F09245 Contact Us For Availability
11
COVER ACCESS WPL 4005F36251 Contact Us For Availability
12
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
12
BOLT WPL 7116P00360 Contact Us For Availability
12
PAD, DOOR WPL 2410W04119 Contact Us For Availability
12
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
12
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
12
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
13
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
13
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
13
SCREW WPL 7101P07460 Contact Us For Availability
13
PAD, INNER WPL 2410F01651 Contact Us For Availability
13
ELEMENT, BROIL WPL 7406P06860 Contact Us For Availability
13
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
14
SCREW WPL 7101P00860 Contact Us For Availability
14
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
14
INSULATION, SWITCH WPL 7003P03960 Contact Us For Availability
14
SWITCH----NA WPL 7403P07760 Contact Us For Availability
14
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
14
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
14
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
15
PAD, FOAM GASKET WPL 7201P05260 Contact Us For Availability
15
SUPPORT, DOOR LOCK SWITCH WPL 3807F42245 Contact Us For Availability
15
SCREW WPL 7101P03160 Contact Us For Availability
15
RIVET WPL 7107P01760 Contact Us For Availability
15
SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability
15
FAN ASSEMBLY WPL 7427P00560 Contact Us For Availability
16
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
16
SCREW WPL 7101P01860 Contact Us For Availability
16
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
16
SEAL WPL 7208P00260 Contact Us For Availability
16
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
16
COVER, FAN ASSY WPL 4005F17980 Contact Us For Availability
17
CLOCK, ELECTRONIC WPL 7601P17560 Contact Us For Availability
17
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
17
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
17
COVER, FLUE BOX WPL 4005F28251 Contact Us For Availability
18
SCREW WPL 7101P12360 Contact Us For Availability
18
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
18
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
18
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
19
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
19
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
19
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
20
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
20
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
20
HOUSING, LAMP WPL 4001F02019 Contact Us For Availability
21
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
21
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
22
PIN, HINGE WPL 7113P00260 Contact Us For Availability
23
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
23
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
23
COVER, SENSOR PROBE WPL 4005F20080 Contact Us For Availability
23
PROBE, OVEN SENSOR WPL 7430P00860 Contact Us For Availability
23
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
23
SUPPORT, TERMINAL BLOCK WPL 3807F15780 Contact Us For Availability
24
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
24
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
24
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
24
INSULATION, TERM BD WPL 7003P01860 Contact Us For Availability
25
FRAME/PANEL ASSY WPL 2416S03270 Contact Us For Availability
25
SERVICE DRAWER ASSY WPL 2416S03474 Contact Us For Availability
25
FRAME/PANEL ASSY DWR WHT WPL 2416S03571 Contact Us For Availability
25
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
25
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
26
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
26
NOT REQUIRED PART OR SEE NOTE FRONT, OVEN UPP WPL W10124350 Contact Us For Availability
27
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
28
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
28
RACK, OVEN WPL 7801P03060 Contact Us For Availability
29
GLASS, INNER WPL 7902P09760 Contact Us For Availability
29
PAN, BROIL WPL 3401F00419 Contact Us For Availability
29
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
30
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
30
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
30
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
31
RETAINER WPL 3804F02245 Contact Us For Availability
31
SWITCH, HI-LIMIT WPL 7403P16460 Contact Us For Availability
32
SHIELD, LIGHT RECEPTACLE WPL 3604F00780 Contact Us For Availability
33
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
34
BAFFLE ASSY., AIR DUCT WPL 3601W12080 Contact Us For Availability
NI
HARNESS, OVEN SENSOR WPL 5170P10060 Contact Us For Availability
× ![]()
