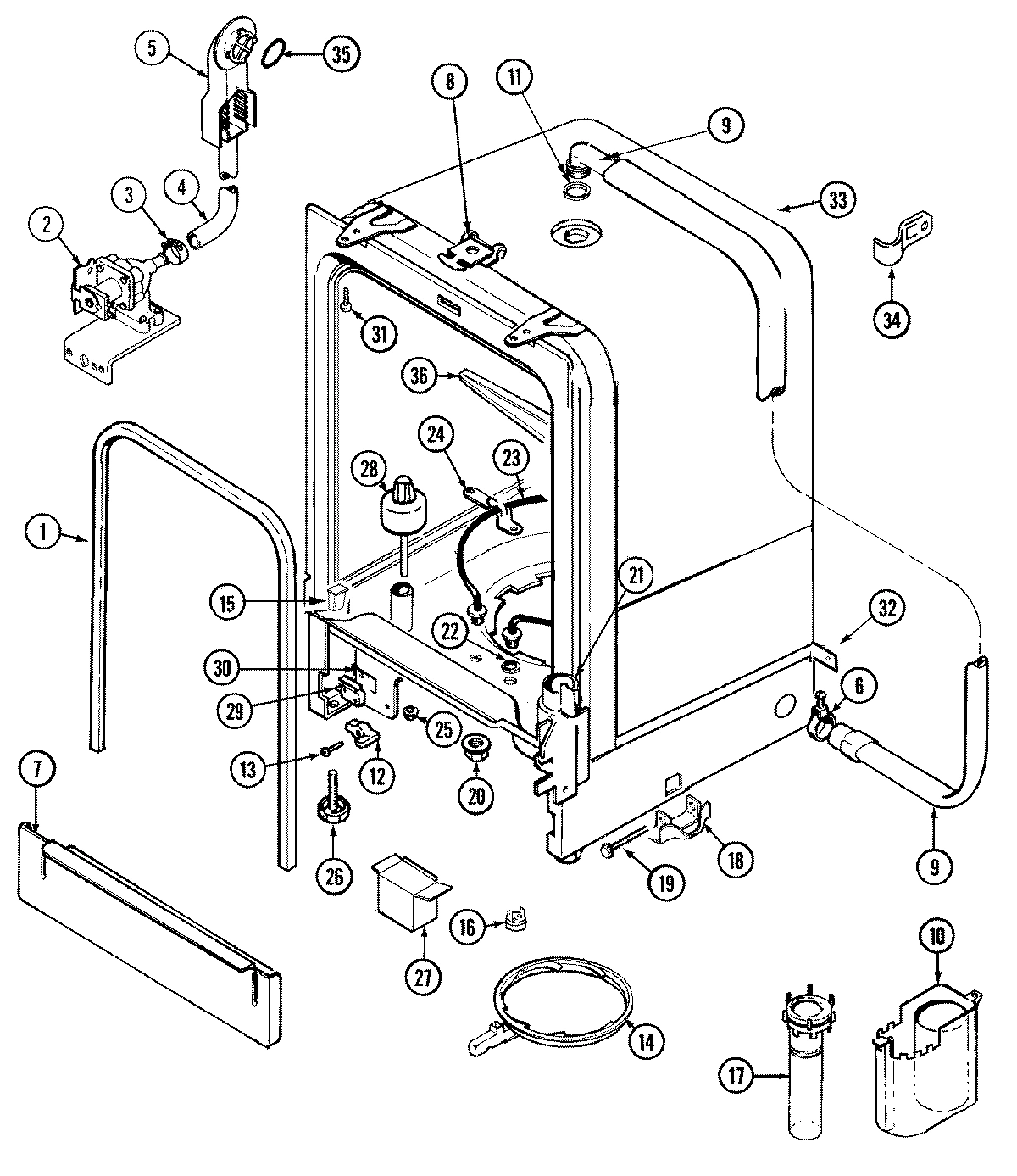

Model Whirlpool CDU810V DISHWASHER – Common Parts &amp; Diagrams

1

WP902899 Whirlpool Dishwasher Wax Motor Backorder WPL WP902899 $41.44

1

FELT, CONTROL PANEL (SIDE) WPL 99002559 Contact Us For Availability

1

RIVET WPL 912024 Contact Us For Availability

1

INSERT, FRONT PANEL (WHT/BSQ) WPL 99002248 Contact Us For Availability

1

TRIM, BOTTOM (WHT) WPL Y912955 Contact Us For Availability

1

NOZZLE, JUMP UP (WHT) WPL 99002424 Contact Us For Availability

1

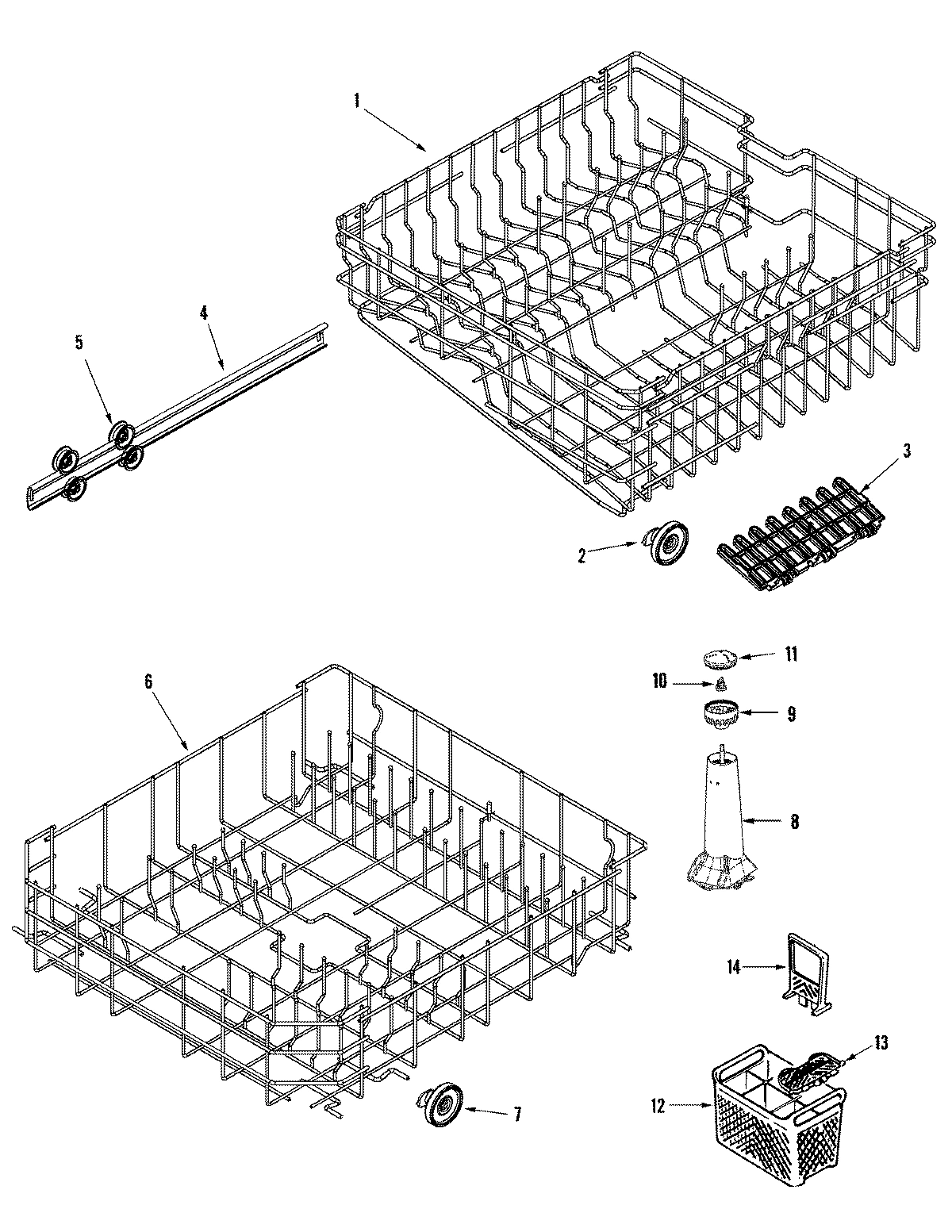

RACK ASSEMBLY (UPR) WPL 99002460 Contact Us For Availability

2

WP903093 Whirlpool Dishwasher Rack Wheel In Stock WPL WP903093 $6.00

2

WP99001359 Whirlpool Dishwasher Water Valve In Stock WPL WP99001359 $30.62

2

LINER, VENT WPL Y913116 Contact Us For Availability

2

SEAL, VENT OUTLET WPL Y913177 Contact Us For Availability

2

FILLER, FRONT PANEL WPL Y913184 Contact Us For Availability

2

KNOB, RINSE AID (WHT) WPL Y912923 Contact Us For Availability

2

ARM ASSY, WASH (LWR-WHT) WPL 99002419 Contact Us For Availability

3

912619 Whirlpool Dishwasher Trim Screw P-1 Backorder WPL 912619 $9.28

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

3

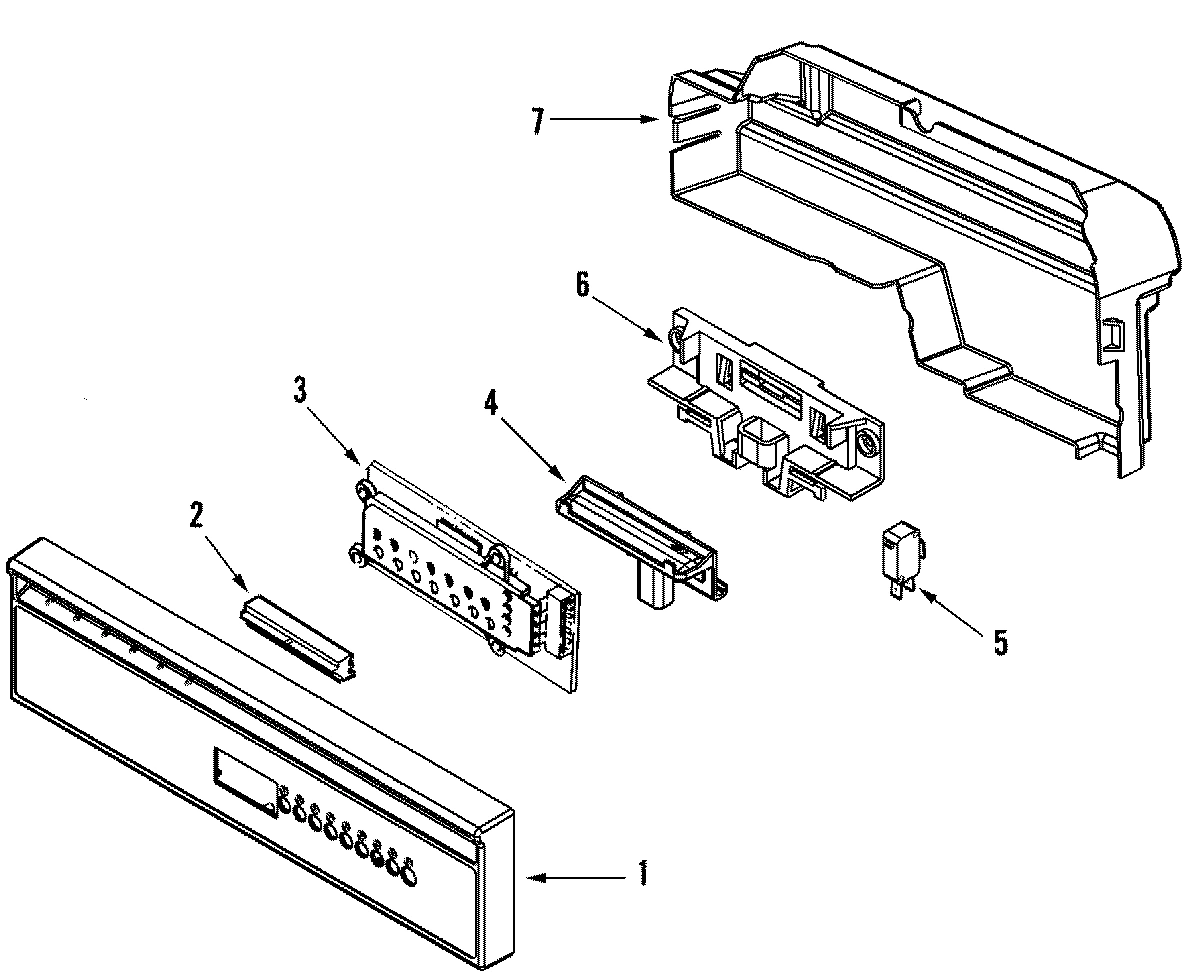

CONTROL, MICROPROCESSOR WPL 99002467 Contact Us For Availability

3

TRIM, SIDE (WHT) WPL 99001351 Contact Us For Availability

3

NUT, RINSE AID WPL 99002005 Contact Us For Availability

3

RING, SEAL WPL 912313 Contact Us For Availability

3

SHELF, CUP (WHT) WPL 99002416 Contact Us For Availability

4

W10834433 Whirlpool Dishwasher Handle Backorder WPL W10834433 $55.77

4

WP99001553 Whirlpool Dishwasher Grommet Backorder WPL WP99001553 $35.82

4

WP99002136 Whirlpool Rack Stop Backorder WPL WP99002136 $8.91

4

HOSE, INJECTOR WPL 912633 Contact Us For Availability

4

COVER, LATCH WPL 99002382 Contact Us For Availability

4

GROUND WIRE, REINFORCEMENT WPL 99001688 Contact Us For Availability

4

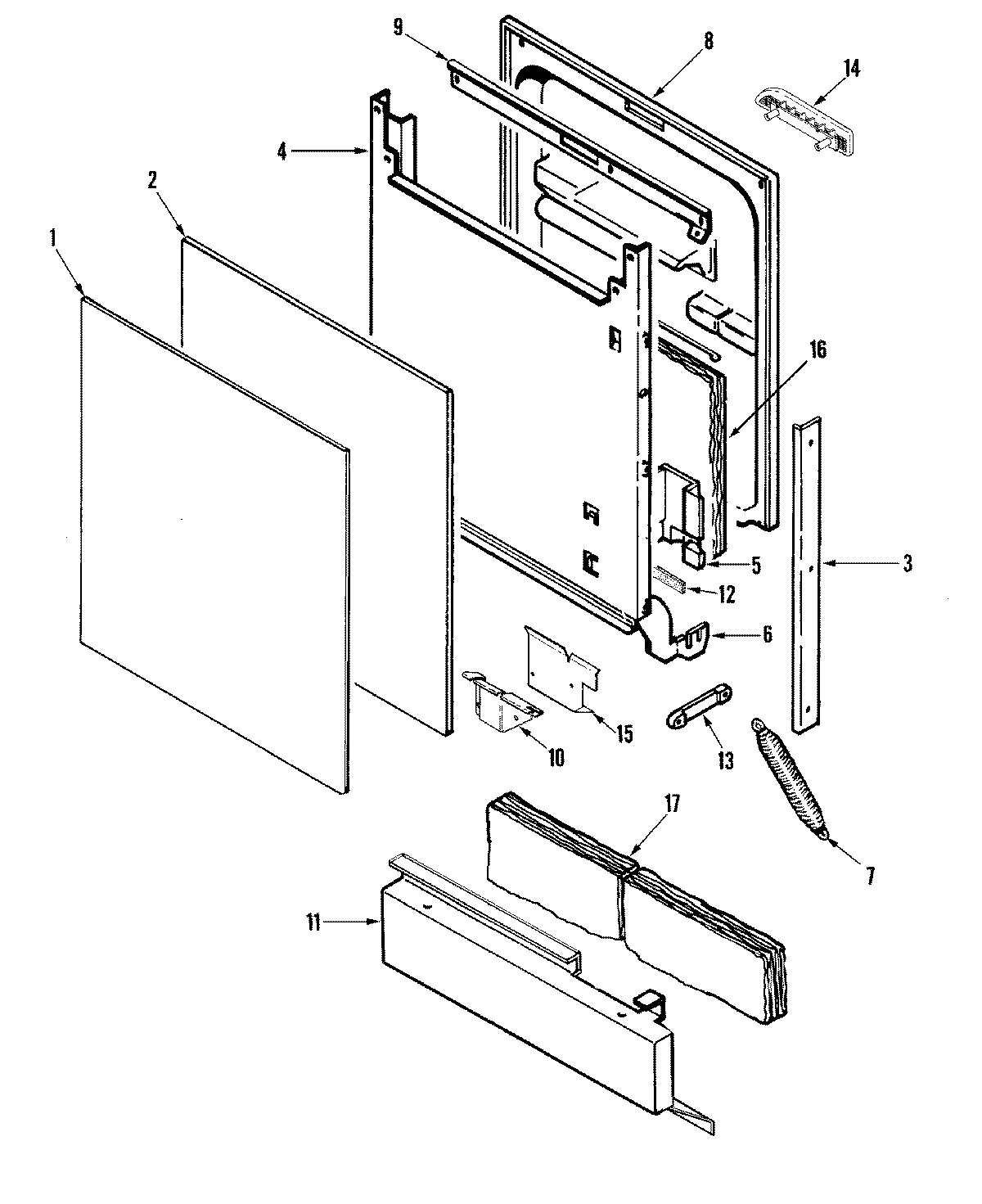

DOOR, OUTER WPL 99002176 Contact Us For Availability

4

STRAINER (WHT) WPL 99002466 Contact Us For Availability

5

WP99002207 Whirlpool Dishwasher Door Switch Backorder WPL WP99002207 $14.51

5

WP99002947 Whirlpool Tub Wheel In Stock WPL WP99002947 $5.64

5

WPY912798 Whirlpool Dishwasher Tub Washer Whe Backorder WPL WPY912798 $2.55

5

RETAINER, WIRE WPL 99002188 Contact Us For Availability

5

SPACER, FOAM WPL 99002362 Contact Us For Availability

5

WHEEL, TUB WPL 99002915 Contact Us For Availability

5

INJECTOR, WATER WPL 912533 Contact Us For Availability

6

WP99002240 Whirlpool Dishwasher Bracket Backorder WPL WP99002240 $32.59

6

SCREW WPL 99001075 Contact Us For Availability

6

HINGE (LT) WPL 99001898 Contact Us For Availability

6

HINGE (RT) WPL 99001899 Contact Us For Availability

7

BARRIER, CONTROL PANEL WPL 99002432 Contact Us For Availability

7

SPRING, DOOR WPL 99002469 Contact Us For Availability

7

SCREW, ACCESS PANEL WPL 99001194 Contact Us For Availability

7

SLIDER WPL 99001289 Contact Us For Availability

7

ASSEMBLY, RINSE ARM WPL 99002043 Contact Us For Availability

7

WHEEL ASSEMBLY (LWR) WPL 903815 Contact Us For Availability

7

PANEL, TOE (WHT) WPL 99001106 Contact Us For Availability

8

WPW10116816 Whirlpool Dishwasher Spring Backorder WPL WPW10116816 $4.00

8

DOOR, INNER WPL 99002388 Contact Us For Availability

8

FELT, VENT (DOOR) WPL 99002499 Contact Us For Availability

8

TOWER, SPRAY (W/SHAFT-WHT) WPL 99002478 Contact Us For Availability

8

DOOR LATCH HOOK ASSY WPL 903098 Contact Us For Availability

8

SPRING, LATCH WPL 912648 Contact Us For Availability

8

RETAINER, LATCH WPL 912650 Contact Us For Availability

8

HOOK, LATCH WPL 99001355 Contact Us For Availability

8

SCREW, LATCH WPL Y912873 Contact Us For Availability

9

WP99002833 Whirlpool Dishwasher Reservoir Backorder WPL WP99002833 $37.14

9

BAR, REINFORCEMENT WPL Y913093 Contact Us For Availability

9

SEAL, REINFORCEMENT WPL Y913178 Contact Us For Availability

9

SUPPORT, WASH ARM WPL 99002041 Contact Us For Availability

9

DIVERTER, SPRAY (WHT) WPL 99002422 Contact Us For Availability

9

HOSE, TOP SHOWER WPL 912647 Contact Us For Availability

COVER, WIRE (WHT) WPL 99001132 Contact Us For Availability

PLUNGER ASSEMBLY WPL 903124 Contact Us For Availability

NUT, DISCHARGE HOUSING WPL 99001426 Contact Us For Availability

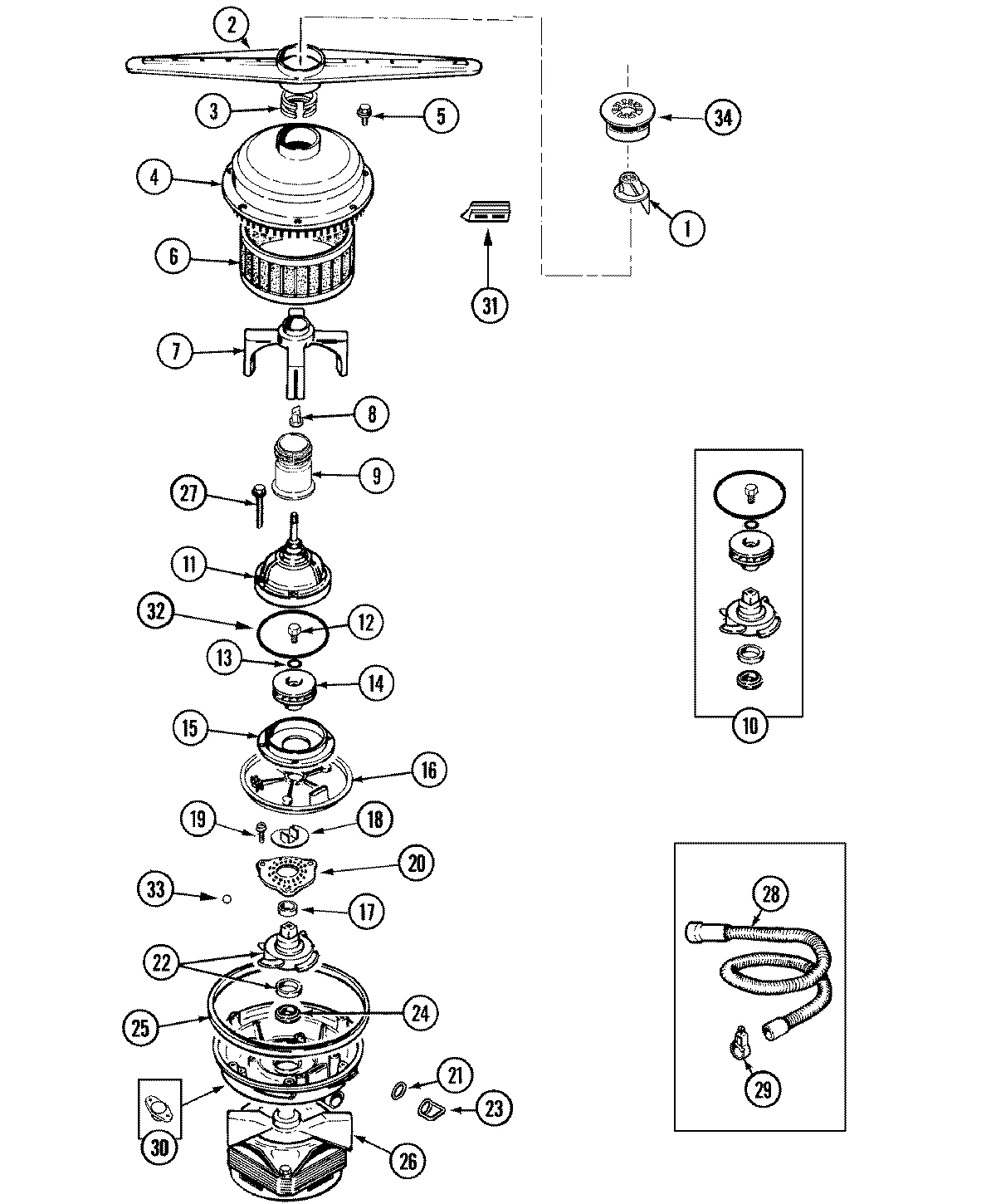

SEAL KIT (MOTOR/PUMP) WPL 99002103 Contact Us For Availability

VENT, INLET WPL Y913095 Contact Us For Availability

PANEL, ACCESS (WHT) WPL 99001234 Contact Us For Availability

O-RING, RESERVOIR WPL 99002003 Contact Us For Availability

DISCHARGE HOUSING ASSY (UPR) WPL 99002461 Contact Us For Availability

CAP, SPRAY DIVERTER (WHT) WPL 99002420 Contact Us For Availability

WASHER, TUB TOP WPL 910069 Contact Us For Availability

WP99001576 Whirlpool Dishwasher Basket Backorder WPL WP99001576 $14.92

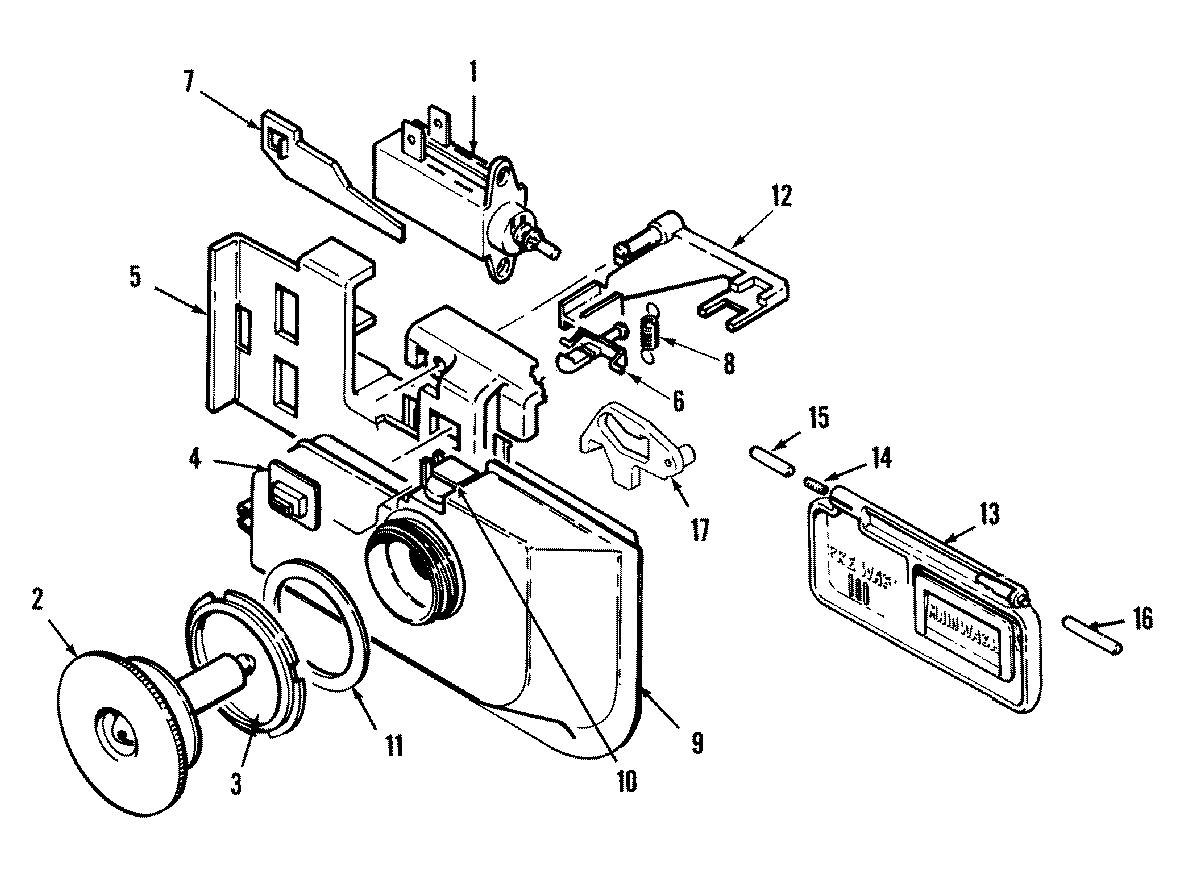

ACTUATOR, RINSE AID WPL 99001290 Contact Us For Availability

SCREW, IMPELLER WPL 910654 Contact Us For Availability

LEVER, ACTUATOR WPL 912014 Contact Us For Availability

WP912653 Whirlpool Dishwasher Door Spring Lin In Stock WPL WP912653 $3.06

LID, DETERGENT CUP WPL 903483 Contact Us For Availability

COVER, SILVERWARE BASKET (WHT) WPL 99002417 Contact Us For Availability

PIN, LEVER PIVOT WPL 912015 Contact Us For Availability

WP99002069 Whirlpool Dishwasher Impeller Backorder WPL WP99002069 $31.06

COVER, VENT WPL Y912910 Contact Us For Availability

SPRING, CUP LID WPL Y912547 Contact Us For Availability

HANDLE, SILVERWARE BASKET WPL 99001585 Contact Us For Availability

RING, LOCKING WPL Y912686 Contact Us For Availability

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $2.55

DEFLECTOR, WATER WPL WP99001885 No Longer Available

SHIELD, TUB (WHT) WPL 99001131 Contact Us For Availability

PLATE, SUCTION WPL 99002279 Contact Us For Availability

WP6-912678 Whirlpool Hinge Pin In Stock WPL WP6-912678 $3.70

WP6-920580 Whirlpool Dishwasher Insulation Pa Backorder WPL WP6-920580 $12.48

SUPPORT, FILTER WPL 99002280 Contact Us For Availability

CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability

THERMOSTAT, LIMITING WPL 99001852 Contact Us For Availability

INSULATION, ACCESS PANEL WPL 99002412 Contact Us For Availability

PIVOT WPL 99001287 Contact Us For Availability

O-RING WPL 912510 Contact Us For Availability

TUBE, INLET WPL Y913096 Contact Us For Availability

18

DISC, CUTTER WPL 912310 Contact Us For Availability

18

BRACKET, ADJUSTING WPL 912651 Contact Us For Availability

19

61002031 Whirlpool Air Conditioner Handle Scr Backorder WPL 61002031 $30.88

19

SCREW, ADJUSTING BRACKET WPL 912613 Contact Us For Availability

20

PLATE, CHOPPER WPL 912309 Contact Us For Availability

20

NUT, HEATING ELEMENT WPL 912645 Contact Us For Availability

20

SLEEVE, INSULATING WPL 99001333 Contact Us For Availability

21

SCREW WPL 912622 Contact Us For Availability

21

FLAPPER, VALVE WPL 99001799 Contact Us For Availability

21

CAP, AIR INLET WPL Y912659 Contact Us For Availability

22

DRAIN IMPELLER ASSEMBLY WPL 903304 Contact Us For Availability

22

O-RING, HEATER WPL Y913079 Contact Us For Availability

23

WP99002360 Whirlpool Dishwasher Heat Element Backorder WPL WP99002360 $69.18

23

CLIP, RETAINER WPL 99001800 Contact Us For Availability

24

SEAL, PUMP WPL 902882 Contact Us For Availability

24

BRACKET, ELEMENT WPL 99002361 Contact Us For Availability

25

GASKET, PUMP WPL 912529 Contact Us For Availability

26

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $5.45

26

MOTOR/PUMP HOUSING ASSEMBLY WPL 99002481 Contact Us For Availability

27

SCREW WPL 912383 Contact Us For Availability

27

BOX, TERMINAL WPL 912563 Contact Us For Availability

28

WP99002363 Whirlpool Dishwasher Float Backorder WPL WP99002363 $3.70

29

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.29

29

SCREW WPL 912012 Contact Us For Availability

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $2.55

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

O-RING, PUMP THERMOSTAT WPL 99001979 Contact Us For Availability

FLANGE, THERMOSTAT/THERMISTOR WPL 99001980 Contact Us For Availability

THERMISTOR WPL 99002070 Contact Us For Availability

BRACKET, WATER LEVEL SWITCH WPL 912656 Contact Us For Availability

31

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.55

31

SHIELD, RADIANT WPL 99002288 Contact Us For Availability

32

GASKET, DISCHARGE HSNG (UPR) WPL 99001326 Contact Us For Availability

32

STRAP, SUPPORT WPL 912654 Contact Us For Availability

33

BALL, CHECK (GRN) WPL 99002423 Contact Us For Availability

33

INSULATION, TUB (SHORT) WPL 99002408 Contact Us For Availability

34

CAP, WASH ARM (WHT) WPL 99002421 Contact Us For Availability

34

HOOK, DRAIN HOSE WPL Y912790 Contact Us For Availability

35

SEAL RING, INJECTOR WPL 912644 Contact Us For Availability

36

W10877037 Whirlpool Dishwasher Spray Arm Nut Backorder WPL W10877037 $3.76

MANUAL, SERVICE CROSLEY WPL 16010623 Contact Us For Availability

MANUAL, USE & CARE (TRI) WPL 99002393 Contact Us For Availability

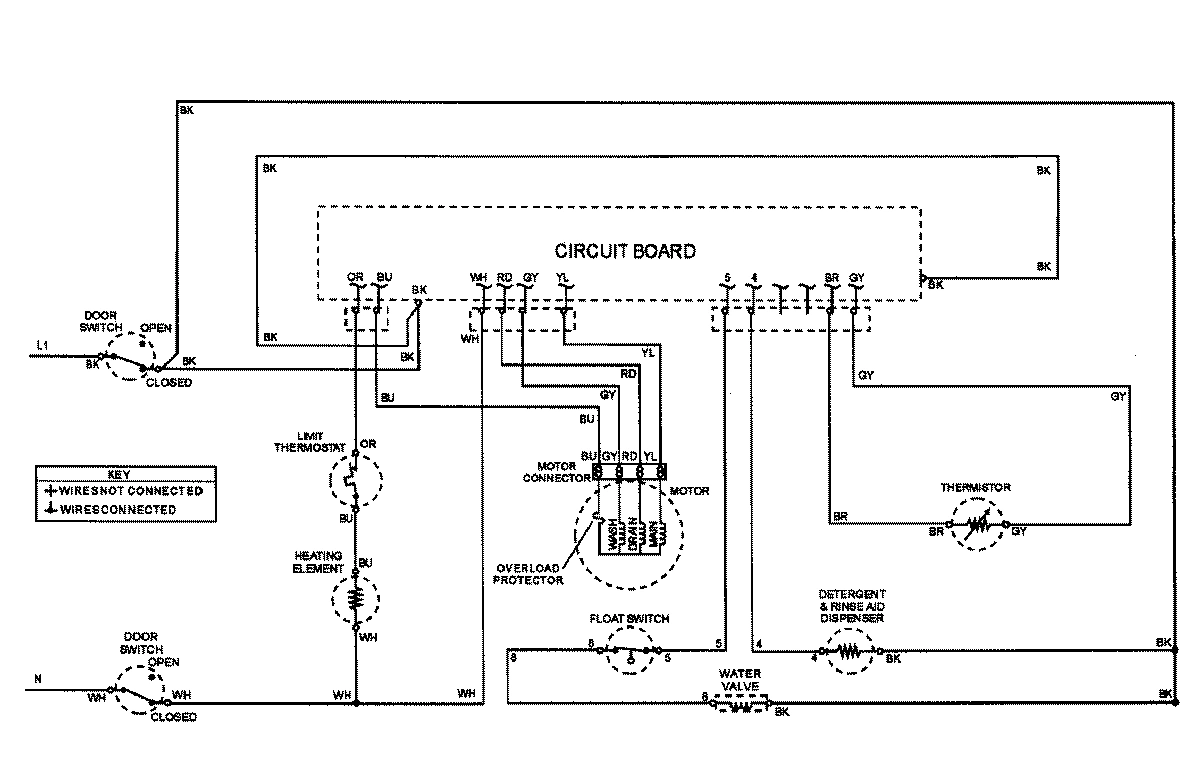

HARNESS, WIRE WPL 99002426 Contact Us For Availability

HARNESS, WIRE WPL 99002494 Contact Us For Availability

CAP, RACK (WHT) WPL 99002016 Contact Us For Availability
