Model Whirlpool CDU210CWW DISHWASHER – Common Parts & Diagrams
01 - CONTROL PANEL ASSY

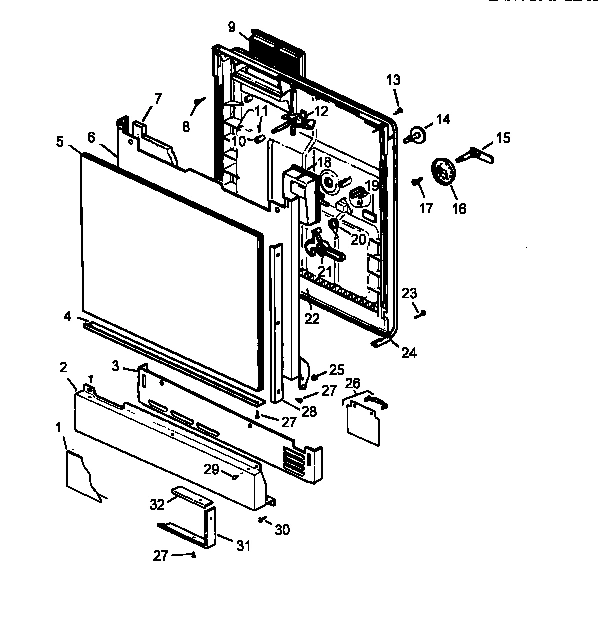

02 - DOOR ASSY

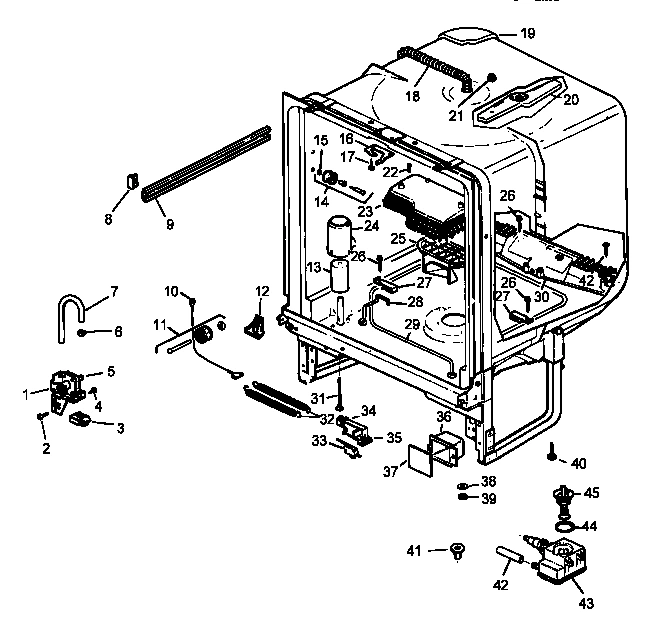

05 - TUB ASSY

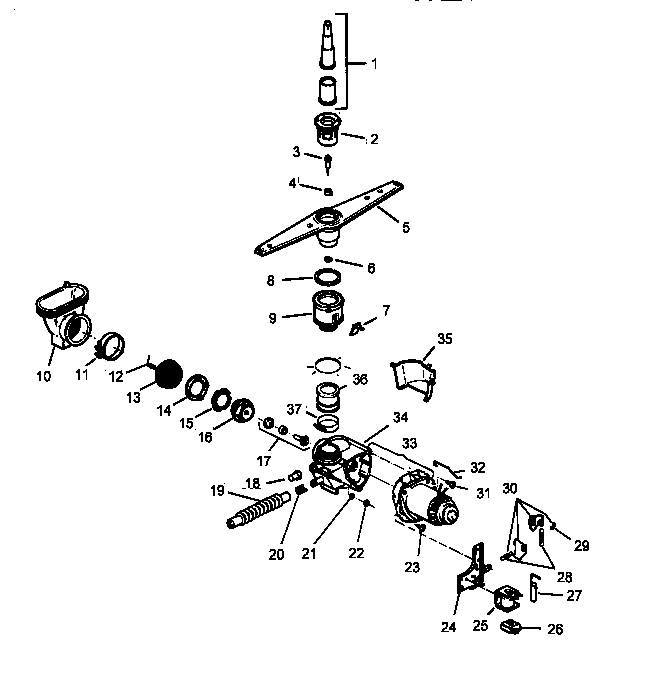

03 - MOTOR-PUMP/WATER DISTRIBUTION COMPONENTS

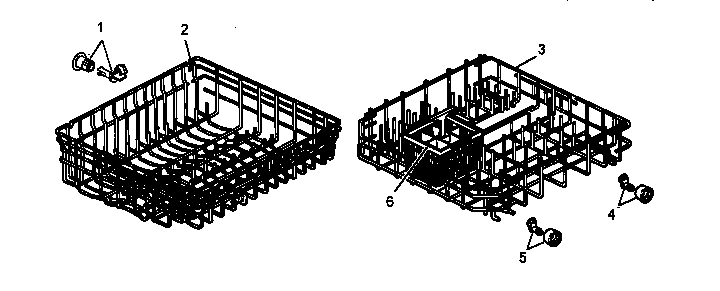

04 - RACK ASSY
Common parts from model Whirlpool CDU210CWW DISHWASHER
1
ASSY, TIMER KNOB WPL R0903601 Contact Us For Availability
1
SOLENOID ASSEMBLY, WATER VALVE WPL R0909002 Contact Us For Availability
1
ASSY, TOWER WPL R0913119 Contact Us For Availability
1
ROLLER STUD ASSY. (1= 4 PACK) WPL R0910005 Contact Us For Availability
2
PANEL,ACCESS AND SCREW BK WPL R0903035 Contact Us For Availability
2
PANEL,ACCESS AND SCREW BK WPL R0903036 Contact Us For Availability
2
SCR 10-24X3/8 TT HEX WPL R0900012 Contact Us For Availability
2
SPRAY ARM & SHIELD WPL R0913121 Contact Us For Availability
2
ASSY-UPPER RACK & ROLLER WPL R0910111 Contact Us For Availability
3
TOE KICK ASSY WPL R0903022 Contact Us For Availability
3
SCREW, SPRAY ARM WPL R0913115 Contact Us For Availability
3
ASSY, LWR RACK/ROLLER WPL R0913124 Contact Us For Availability
4
INSERT, ESCUT WPL R0913199 Contact Us For Availability
4
TRIM, DOOR BTM WPL R0913128 Contact Us For Availability
4
SCREW WPL R0900011 Contact Us For Availability
4
THRUST WASHER WPL R0900508 Contact Us For Availability
4
ROLLER ASSY WPL R0910008 Contact Us For Availability
5
ESCUTCHEON WPL R0905749 Contact Us For Availability
5
INSERT, DOOR PANEL WPL R0903018 Contact Us For Availability
5
VALVE, WATER INLET (W/SOLENOID WPL R0910033 Contact Us For Availability
5
SPRAY ARM ASSEMBLY WPL R0913192 Contact Us For Availability
5
LOWER ROLLER ASSY WPL R0910007 Contact Us For Availability
6
DOOR & HINGE ASSY, OUTER WPL R0905637 Contact Us For Availability
6
E-RING WPL R0913116 Contact Us For Availability
6
BASKET,SILVERWARE WPL R0910160 Contact Us For Availability
7
HOSE, WATER INLET WPL R0903514 Contact Us For Availability
7
CHECK VALVE WPL R0910037 Contact Us For Availability
8
SCREW WPL R0900009 Contact Us For Availability
8
END CAP WPL R0903517 Contact Us For Availability
8
RING SEAL WPL R0913118 Contact Us For Availability
9
HOUSING TERMINAL WPL R0910049 Contact Us For Availability
9
DOOR VENT WPL R0905536 Contact Us For Availability
9
RACK SLIDE WPL R0905567 Contact Us For Availability
9
ASS`Y, SUPPORT WPL R0913120 Contact Us For Availability
10
TERM SPEC.(1=12) WPL R0910050 Contact Us For Availability
10
KNOB, LATCH WPL R0903532 Contact Us For Availability
10
CABLE AND EYELET WPL R0910012 Contact Us For Availability
10
SUMP, INLET WPL R0905719 Contact Us For Availability
11
SWITCH LEAF WPL R0905533 Contact Us For Availability
11
ROLLER & STUD KIT WPL R0910013 Contact Us For Availability
12
LATCH ASM WPL R0910121 Contact Us For Availability
12
BAFFLE, TUBE CORNER RH WPL R0905596 Contact Us For Availability
12
BAFFLE TUB CORNER LH WPL R0905597 Contact Us For Availability
12
SPRING, CUTTER WPL R0913110 Contact Us For Availability
13
SPRING, TIMER LEVER WPL R0905541 Contact Us For Availability
13
FLOOD FLOAT WPL R0903501 Contact Us For Availability
13
NUT WPL R0905563 Contact Us For Availability
14
SHIELD, SWITCH WPL R0905534 Contact Us For Availability
14
CAP, FILL WPL R0905614 Contact Us For Availability
14
TUB ROLLER & STUD KIT WPL R0910004 Contact Us For Availability
14
WEAR RING BASE WPL R0905518 Contact Us For Availability
15
SWITCH, INTERLOCK WPL R0902506 Contact Us For Availability
15
SHAFT HAND D CUP WPL R0905615 Contact Us For Availability
15
No.8 TYPE A SET SST WASHER WPL R0900503 Contact Us For Availability
15
WEAR RING WPL R0905520 Contact Us For Availability
16
DETERGENT CUP COVER WPL R0910010 Contact Us For Availability
16
LATCH KEEPER WPL R0905505 Contact Us For Availability
16
ASSY, IMPELLER WPL R0913109 Contact Us For Availability
17
LEVER, TIMER WPL R0905545 Contact Us For Availability
17
SCREW WPL R0900025 Contact Us For Availability
17
ASSY, PUMP SEAL WPL R0913111 Contact Us For Availability
18
CAM-TIMER WPL R0904007 Contact Us For Availability
18
RINSE AID INJECTOR ASSY WPL R0905618 Contact Us For Availability
18
CAP, POWER SHOWER WPL R0903508 Contact Us For Availability
19
TIMER WPL R0913201 Contact Us For Availability
19
DEFLECTER WPL R0905523 Contact Us For Availability
19
ASSY-UPPER RACK & ROLLER WPL R0913135 Contact Us For Availability
19
DRAIN TUBE ASM WPL R0903584 Contact Us For Availability
20
SHIELD, TIMER WPL R0904016 Contact Us For Availability
20
TRIP SPRING WPL R0905542 Contact Us For Availability
20
CLAMP WPL R0901510 Contact Us For Availability
21
SWITCH-ROCKER WPL R0902516 Contact Us For Availability
21
LATCH DETERGENT CUP WPL R0905539 Contact Us For Availability
21
SEAL, SHAFT WPL R0906504 Contact Us For Availability
22
DOOR, INNER WPL R0903021 Contact Us For Availability
22
SCREW WPL R0900008 Contact Us For Availability
22
NUT WPL R0906510 Contact Us For Availability
23
SCREW WPL R0900006 Contact Us For Availability
23
COVER INLET WPL R0905717 Contact Us For Availability
24
DOOR GASKET WPL R0904507 Contact Us For Availability
24
FLOAT WPL R0905511 Contact Us For Availability
24
BRACKET-SOLENOID WPL R0905639 Contact Us For Availability
25
HINGE ARM BEARING WPL R0905537 Contact Us For Availability
25
CAP, SUMP WPL R0905718 Contact Us For Availability
25
SOLENOID KIT WPL R0909003 Contact Us For Availability
26
DRIP SHIELD WPL R0910011 Contact Us For Availability
26
INSUL, HSG TERMINAL WPL R0903582 Contact Us For Availability
27
SCREW WPL R0900042 Contact Us For Availability
27
SCREW, 8-18 WPL R0900053 Contact Us For Availability
27
SUPPORT HEATER REAR WPL R0905633 Contact Us For Availability
27
ARMATURE & LINK ASSY WPL R0905517 Contact Us For Availability
28
TRIM, DOOR SIDE WPL R0913127 Contact Us For Availability
28
SUPPORT, HEATER WPL R0911008 Contact Us For Availability
28
SPRING, GATE ARM WPL R0905529 Contact Us For Availability
29
SCREW WPL R0900017 Contact Us For Availability
29
ASS`Y, HTG ELEMENT WPL R0913106 Contact Us For Availability
29
RETAINER WPL R0901503 Contact Us For Availability
30
SCREW, 10-16 WPL R0900054 Contact Us For Availability
30
GATE VALVE ARM KIT WPL R0905619 Contact Us For Availability
31
SCREW WPL R0900007 Contact Us For Availability
31
FLOAT STEM WPL R0905512 Contact Us For Availability
32
DOOR SPRING YELLOW WPL R0905504 Contact Us For Availability
32
HANGER MECHANISM WPL R0905712 Contact Us For Availability
33
SWITCH FLOOD WPL R0902501 Contact Us For Availability
33
MOTOR/PUMP ASSY DISHWA WPL R0913108 Contact Us For Availability
34
BRKT, FLOOD SWITCH WPL R0905513 Contact Us For Availability
34
MOTOR/PUMP ASSY DISHWA WPL R0904527 Contact Us For Availability
35
COVER SWITCH BRKT WPL R0905514 Contact Us For Availability
35
GUARD WPL R0905522 Contact Us For Availability
36
BOX, JUNCTION WPL R0903587 Contact Us For Availability
36
ASSY, PUMP CONNECTOR WPL R0913113 Contact Us For Availability
37
COVER, JUNC BOX WPL R0903032 Contact Us For Availability
38
WASHER WPL R0900501 Contact Us For Availability
39
GROMMET WPL R0906502 Contact Us For Availability
40
LEG, LEVELING WPL R0905506 Contact Us For Availability
41
NUT, HR TOWER WPL R0913107 Contact Us For Availability
× ![]()
