Model Maytag CDU200CB DISHWASHER – Common Parts & Diagrams

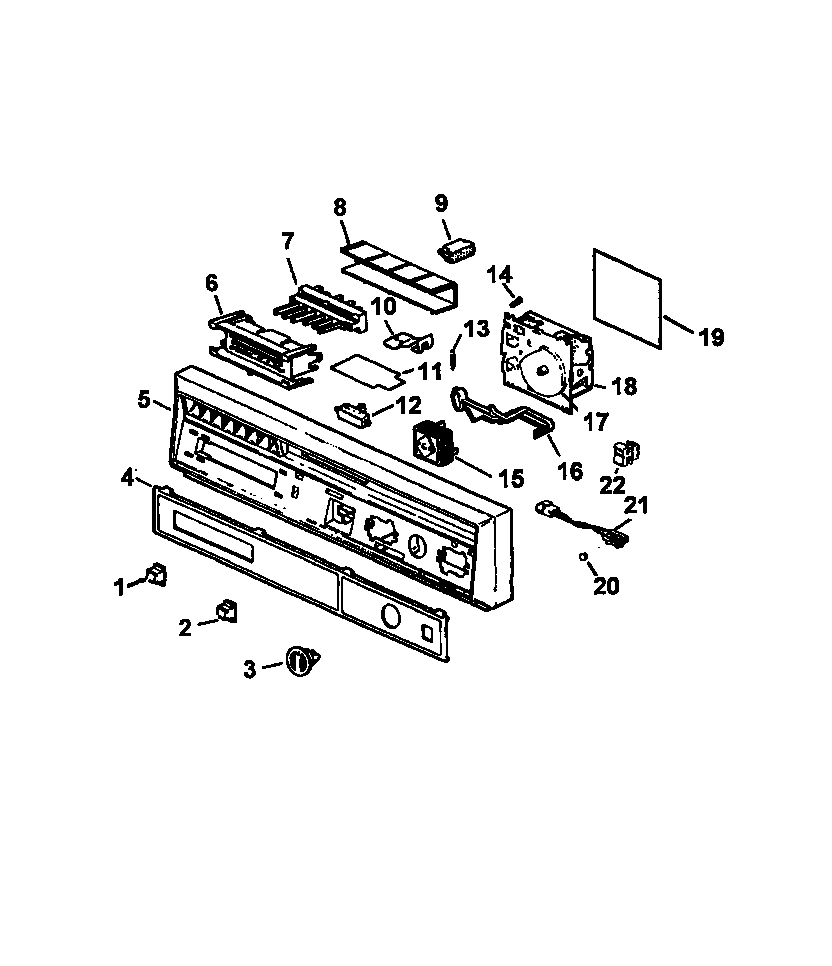

01 - CONTROL PANEL

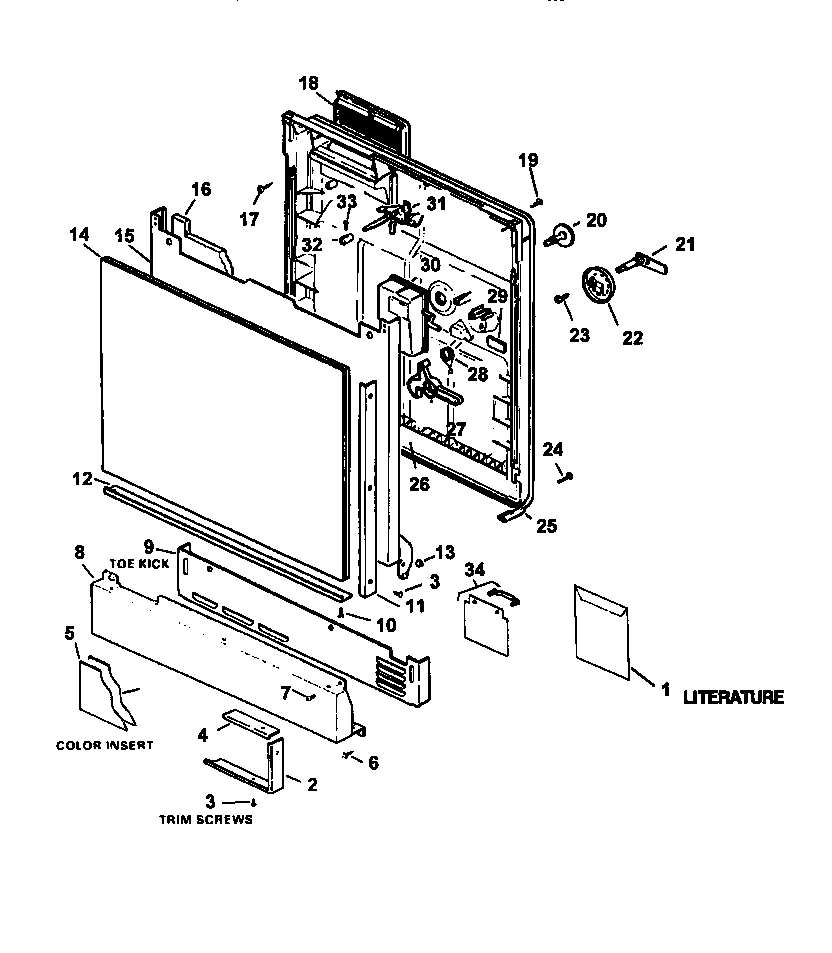

02 - DOOR

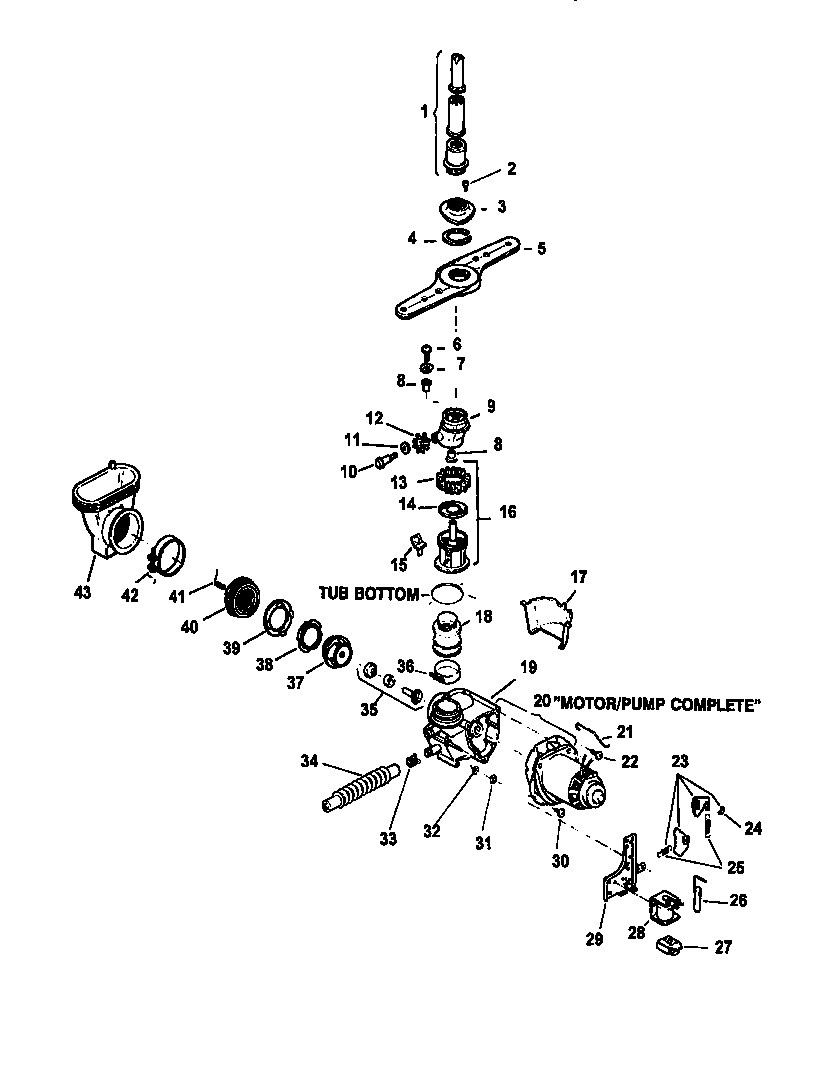

03 - MOTOR/PUMP

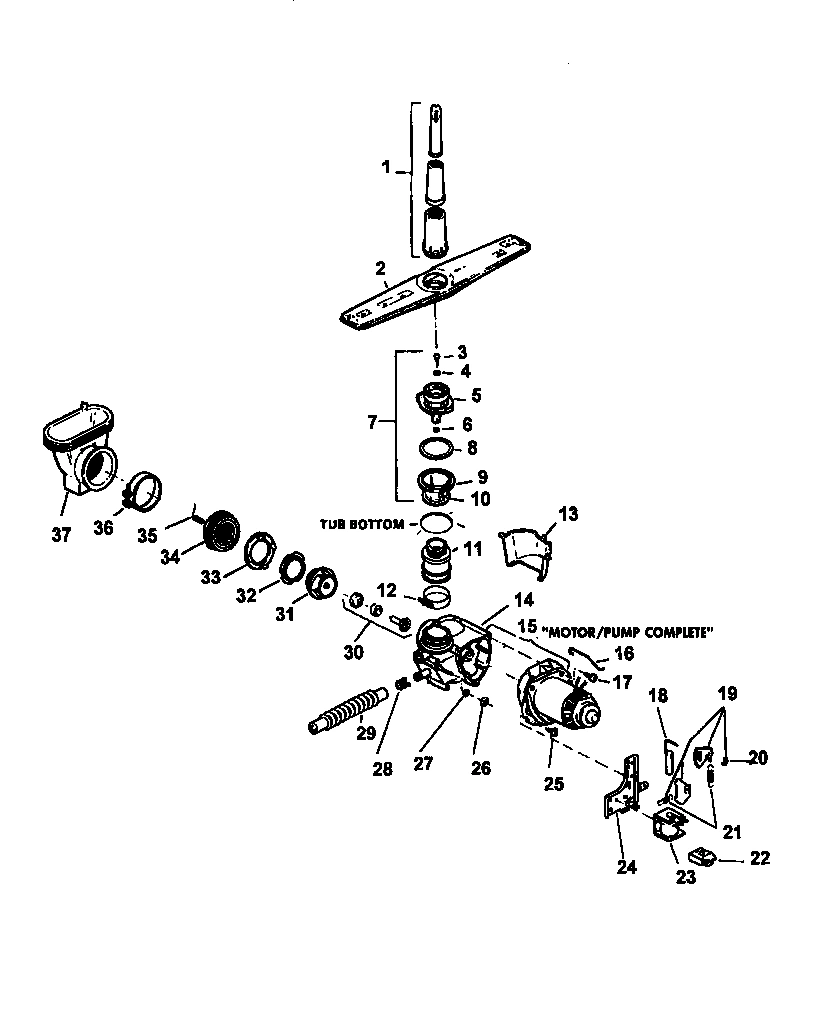

04 - MOTOR/PUMP

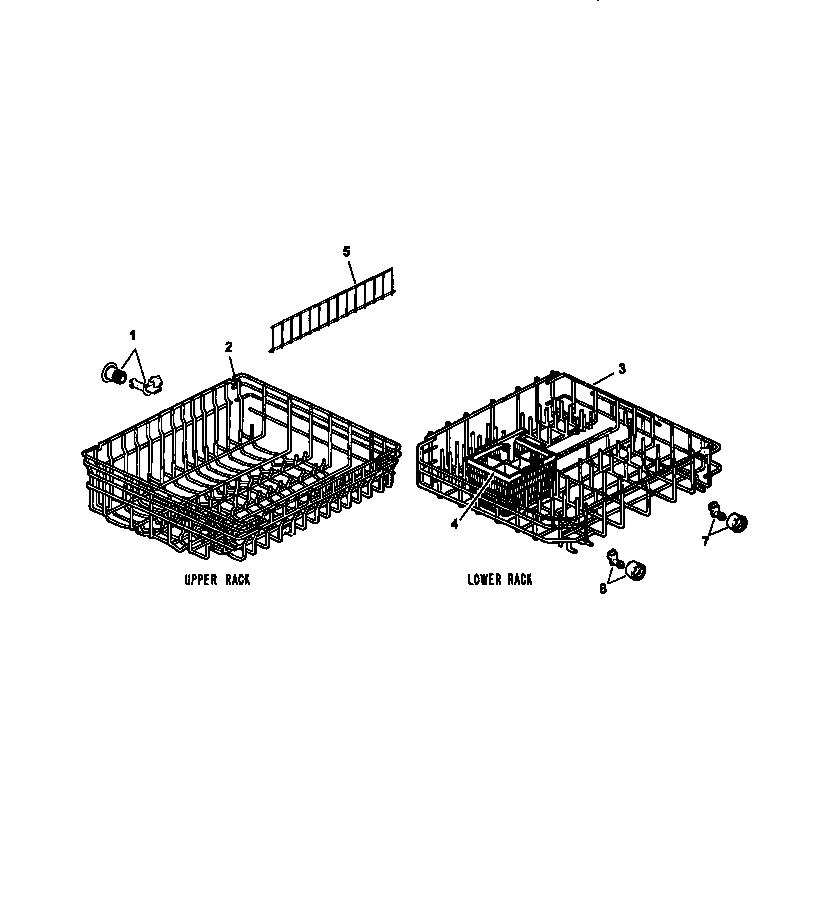

05 - RACK

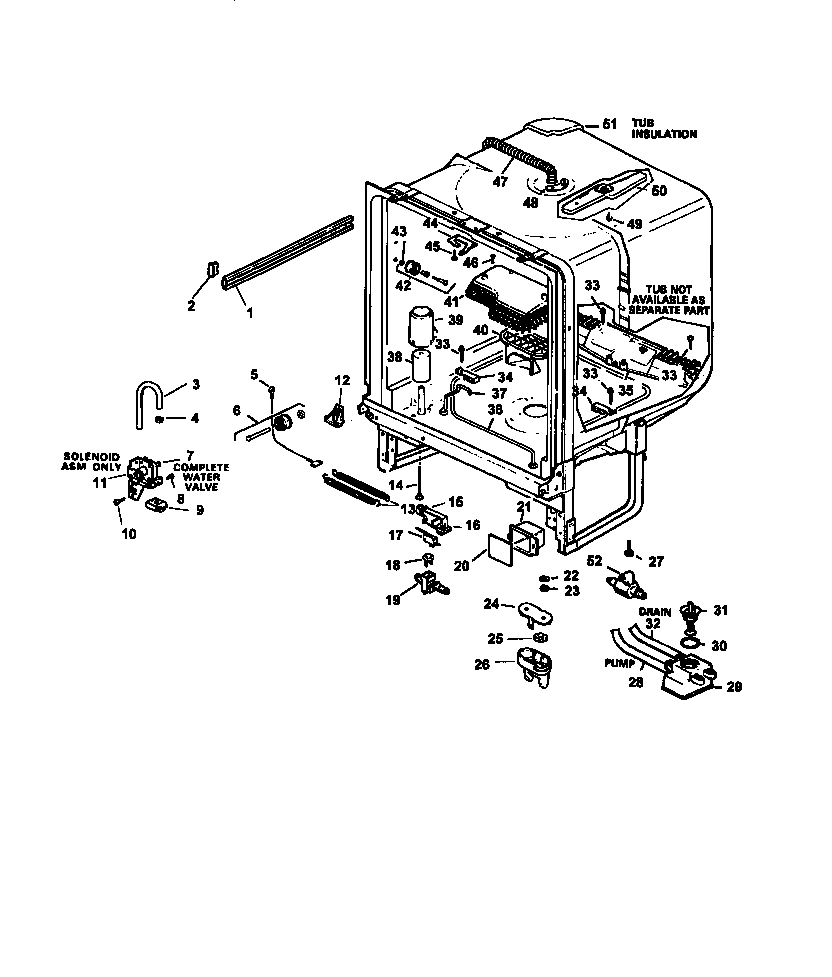

06 - TUB
Common parts from model Maytag CDU200CB DISHWASHER
1
MAY R0913059 MAY R0913059 Contact Us For Availability
1
MAY R0913060 MAY R0913060 Contact Us For Availability
1
MAY R0913068 MAY R0913068 Contact Us For Availability
1
MAY R0913071 MAY R0913071 Contact Us For Availability
1
MAY R0910057 MAY R0910057 Contact Us For Availability
1
MAY R0910005 MAY R0910005 Contact Us For Availability
1
MAY R0905567 MAY R0905567 Contact Us For Availability
2
MAY R0910055 MAY R0910055 Contact Us For Availability
2
MAY R0910058 MAY R0910058 Contact Us For Availability
2
MAY R0903517 MAY R0903517 Contact Us For Availability
3
MAY R0903601 MAY R0903601 Contact Us For Availability
3
MAY R0900044 MAY R0900044 Contact Us For Availability
3
MAY R0900026 MAY R0900026 Contact Us For Availability
3
MAY R0910162 MAY R0910162 Contact Us For Availability
3
MAY R0903514 MAY R0903514 Contact Us For Availability
4
MAY R0905755 MAY R0905755 Contact Us For Availability
4
MAY R0900508 MAY R0900508 Contact Us For Availability
4
MAY R0901510 MAY R0901510 Contact Us For Availability
4
MAY R0910009 MAY R0910009 Contact Us For Availability
5
MAY R0905749 MAY R0905749 Contact Us For Availability
5
MAY R0910056 MAY R0910056 Contact Us For Availability
5
MAY R0905640 MAY R0905640 Contact Us For Availability
6
MAY R0900020 MAY R0900020 Contact Us For Availability
6
MAY R0910149 MAY R0910149 Contact Us For Availability
6
MAY R0910013 MAY R0910013 Contact Us For Availability
7
MAY R0900017 MAY R0900017 Contact Us For Availability
7
MAY R0903515 MAY R0903515 Contact Us For Availability
7
MAY R0910150 MAY R0910150 Contact Us For Availability
7
MAY R0910033 MAY R0910033 Contact Us For Availability
8
MAY R0903035 MAY R0903035 Contact Us For Availability
8
MAY R0903535 MAY R0903535 Contact Us For Availability
8
MAY R0900011 MAY R0900011 Contact Us For Availability
9
MAY R0910049 MAY R0910049 Contact Us For Availability
9
MAY R0910050 MAY R0910050 Contact Us For Availability
9
MAY R0903022 MAY R0903022 Contact Us For Availability
9
MAY R0903582 MAY R0903582 Contact Us For Availability
9
SEE NOTE NOT STOCKED SEPARATELY-SEE ITEM 7 FO MAY Y00000000 Contact Us For Availability
10
MAY R0905533 MAY R0905533 Contact Us For Availability
10
MAY R0910037 MAY R0910037 Contact Us For Availability
10
MAY R0900012 MAY R0900012 Contact Us For Availability
11
MAY R0905534 MAY R0905534 Contact Us For Availability
11
MAY R0905644 MAY R0905644 Contact Us For Availability
11
MAY R0903520 MAY R0903520 Contact Us For Availability
11
MAY R0909002 MAY R0909002 Contact Us For Availability
12
MAY R0902506 MAY R0902506 Contact Us For Availability
12
MAY R0905645 MAY R0905645 Contact Us For Availability
12
MAY R0901512 MAY R0901512 Contact Us For Availability
12
MAY R0905596 MAY R0905596 Contact Us For Availability
12
MAY R0905597 MAY R0905597 Contact Us For Availability
13
MAY R0905541 MAY R0905541 Contact Us For Availability
13
MAY R0905537 MAY R0905537 Contact Us For Availability
13
MAY R0905522 MAY R0905522 Contact Us For Availability
13
MAY R0905504 MAY R0905504 Contact Us For Availability
14
MAY R0903018 MAY R0903018 Contact Us For Availability
14
MAY R0910001 MAY R0910001 Contact Us For Availability
14
MAY R0905512 MAY R0905512 Contact Us For Availability
15
MAY R0905637 MAY R0905637 Contact Us For Availability
15
MAY R0907005 MAY R0907005 Contact Us For Availability
15
MAY R0905513 MAY R0905513 Contact Us For Availability
16
MAY R0905545 MAY R0905545 Contact Us For Availability
16
MAY R0905712 MAY R0905712 Contact Us For Availability
16
MAY R0905514 MAY R0905514 Contact Us For Availability
17
MAY R0900009 MAY R0900009 Contact Us For Availability
17
MAY R0904019 MAY R0904019 Contact Us For Availability
17
MAY R0900007 MAY R0900007 Contact Us For Availability
17
MAY R0902501 MAY R0902501 Contact Us For Availability
18
MAY R0904020 MAY R0904020 Contact Us For Availability
18
MAY R0905536 MAY R0905536 Contact Us For Availability
18
MAY R0905517 MAY R0905517 Contact Us For Availability
19
MAY R0904016 MAY R0904016 Contact Us For Availability
19
MAY R0900019 MAY R0900019 Contact Us For Availability
19
MAY R0905619 MAY R0905619 Contact Us For Availability
19
MAY R0910021 MAY R0910021 Contact Us For Availability
20
MAY R0905646 MAY R0905646 Contact Us For Availability
20
MAY R0901503 MAY R0901503 Contact Us For Availability
20
MAY R0903032 MAY R0903032 Contact Us For Availability
21
MAY R0905538 MAY R0905538 Contact Us For Availability
21
MAY R0905529 MAY R0905529 Contact Us For Availability
21
MAY R0903587 MAY R0903587 Contact Us For Availability
22
MAY R0902532 MAY R0902532 Contact Us For Availability
22
MAY R0902533 MAY R0902533 Contact Us For Availability
22
MAY R0910010 MAY R0910010 Contact Us For Availability
22
MAY R0900501 MAY R0900501 Contact Us For Availability
23
MAY R0909003 MAY R0909003 Contact Us For Availability
23
MAY R0906502 MAY R0906502 Contact Us For Availability
24
MAY R0900006 MAY R0900006 Contact Us For Availability
24
MAY R0905639 MAY R0905639 Contact Us For Availability
24
MAY R0903580 MAY R0903580 Contact Us For Availability
25
MAY R0900002 MAY R0900002 Contact Us For Availability
25
MAY R0904501 MAY R0904501 Contact Us For Availability
25
MAY R0901001 MAY R0901001 Contact Us For Availability
26
MAY R0903021 MAY R0903021 Contact Us For Availability
26
MAY R0906510 MAY R0906510 Contact Us For Availability
26
MAY R0903581 MAY R0903581 Contact Us For Availability
27
MAY R0905539 MAY R0905539 Contact Us For Availability
27
MAY R0906504 MAY R0906504 Contact Us For Availability
27
MAY R0905506 MAY R0905506 Contact Us For Availability
28
MAY R0905542 MAY R0905542 Contact Us For Availability
29
MAY R0905523 MAY R0905523 Contact Us For Availability
29
MAY R0903584 MAY R0903584 Contact Us For Availability
30
MAY R0905618 MAY R0905618 Contact Us For Availability
30
MAY R0910148 MAY R0910148 Contact Us For Availability
31
MAY R0910121 MAY R0910121 Contact Us For Availability
31
MAY R0905519 MAY R0905519 Contact Us For Availability
32
MAY R0903532 MAY R0903532 Contact Us For Availability
32
MAY R0905520 MAY R0905520 Contact Us For Availability
33
MAY R0900016 MAY R0900016 Contact Us For Availability
33
MAY R0905518 MAY R0905518 Contact Us For Availability
33
MAY R0900001 MAY R0900001 Contact Us For Availability
34
MAY R0910011 MAY R0910011 Contact Us For Availability
34
MAY R0905563 MAY R0905563 Contact Us For Availability
34
MAY R0905633 MAY R0905633 Contact Us For Availability
35
MAY R0905521 MAY R0905521 Contact Us For Availability
36
MAY R0901506 MAY R0901506 Contact Us For Availability
36
MAY R0911009 MAY R0911009 Contact Us For Availability
37
MAY R0905719 MAY R0905719 Contact Us For Availability
37
MAY R0911008 MAY R0911008 Contact Us For Availability
38
MAY R0903501 MAY R0903501 Contact Us For Availability
39
MAY R0905511 MAY R0905511 Contact Us For Availability
40
MAY R0905718 MAY R0905718 Contact Us For Availability
41
MAY R0905717 MAY R0905717 Contact Us For Availability
42
MAY R0910004 MAY R0910004 Contact Us For Availability
43
MAY R0900503 MAY R0900503 Contact Us For Availability
44
MAY R0905505 MAY R0905505 Contact Us For Availability
45
MAY R0900025 MAY R0900025 Contact Us For Availability
46
MAY R0900008 MAY R0900008 Contact Us For Availability
51
MAY R0904523 MAY R0904523 Contact Us For Availability
NI
MAY R0900507 MAY R0900507 Contact Us For Availability
NI
MAY R0903508 MAY R0903508 Contact Us For Availability
× ![]()
