Model Electrolux CDH30E2 DEHUMIDIFIER – Common Parts & Diagrams

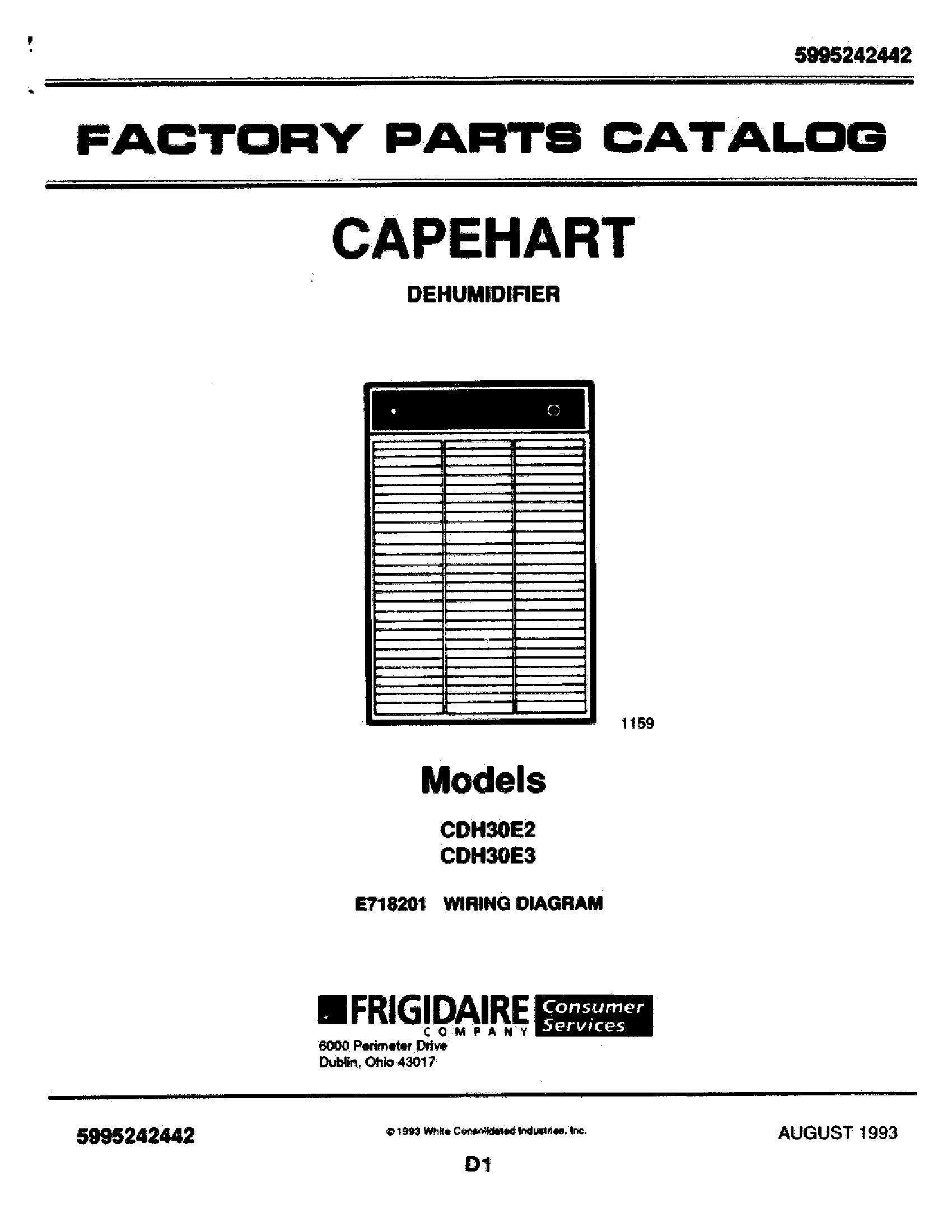

01 - COVER

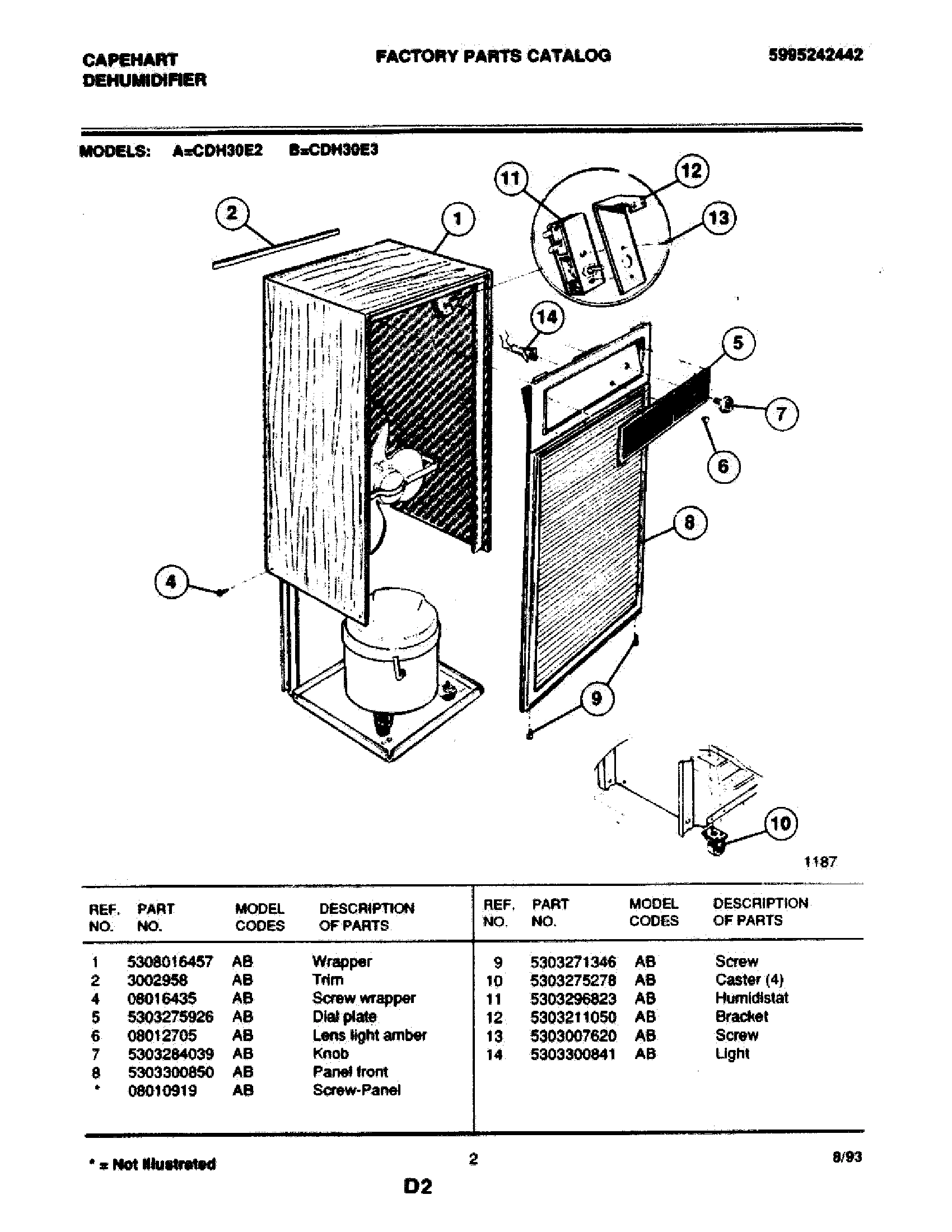

02 - WRAPPER

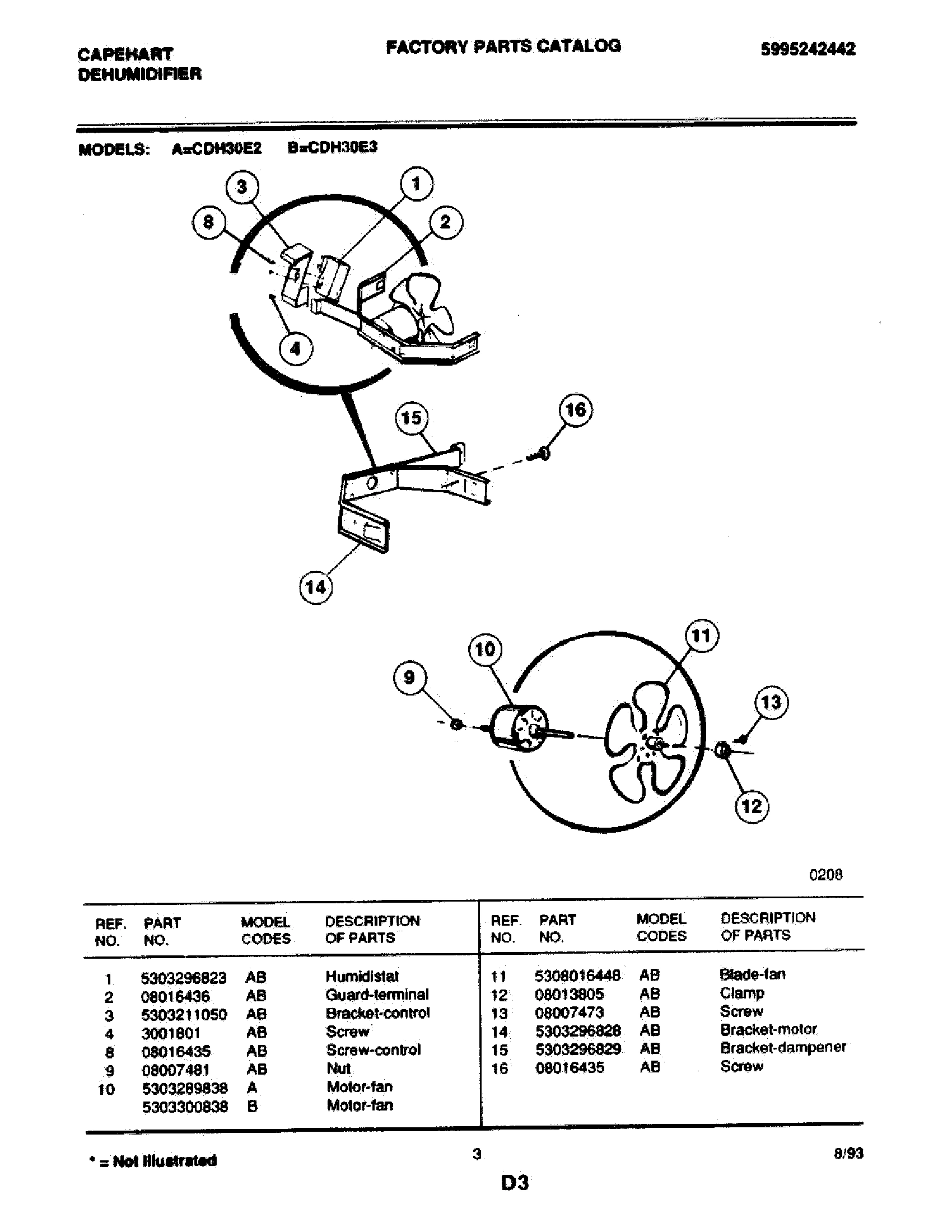

03 - FAN

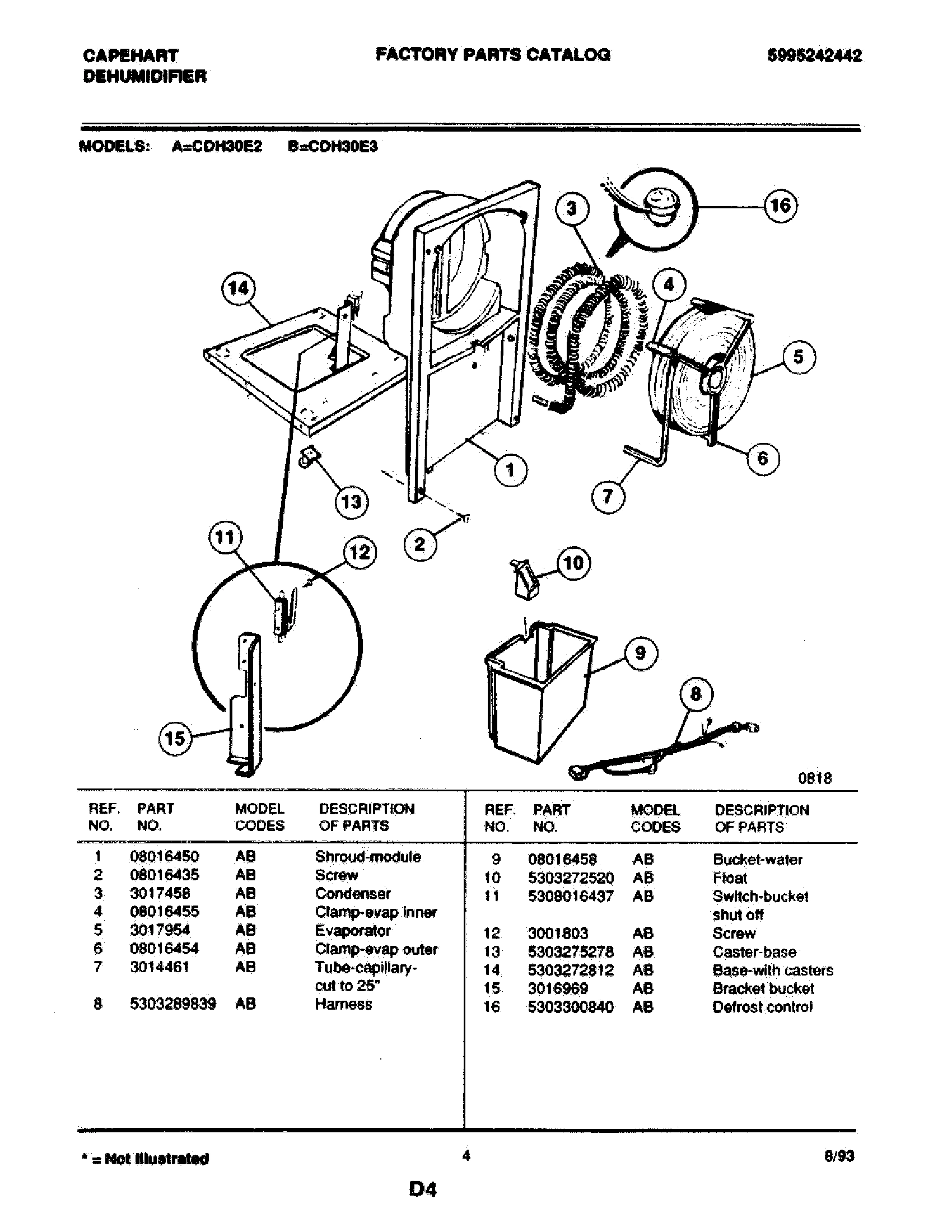

04 - CONDENSER

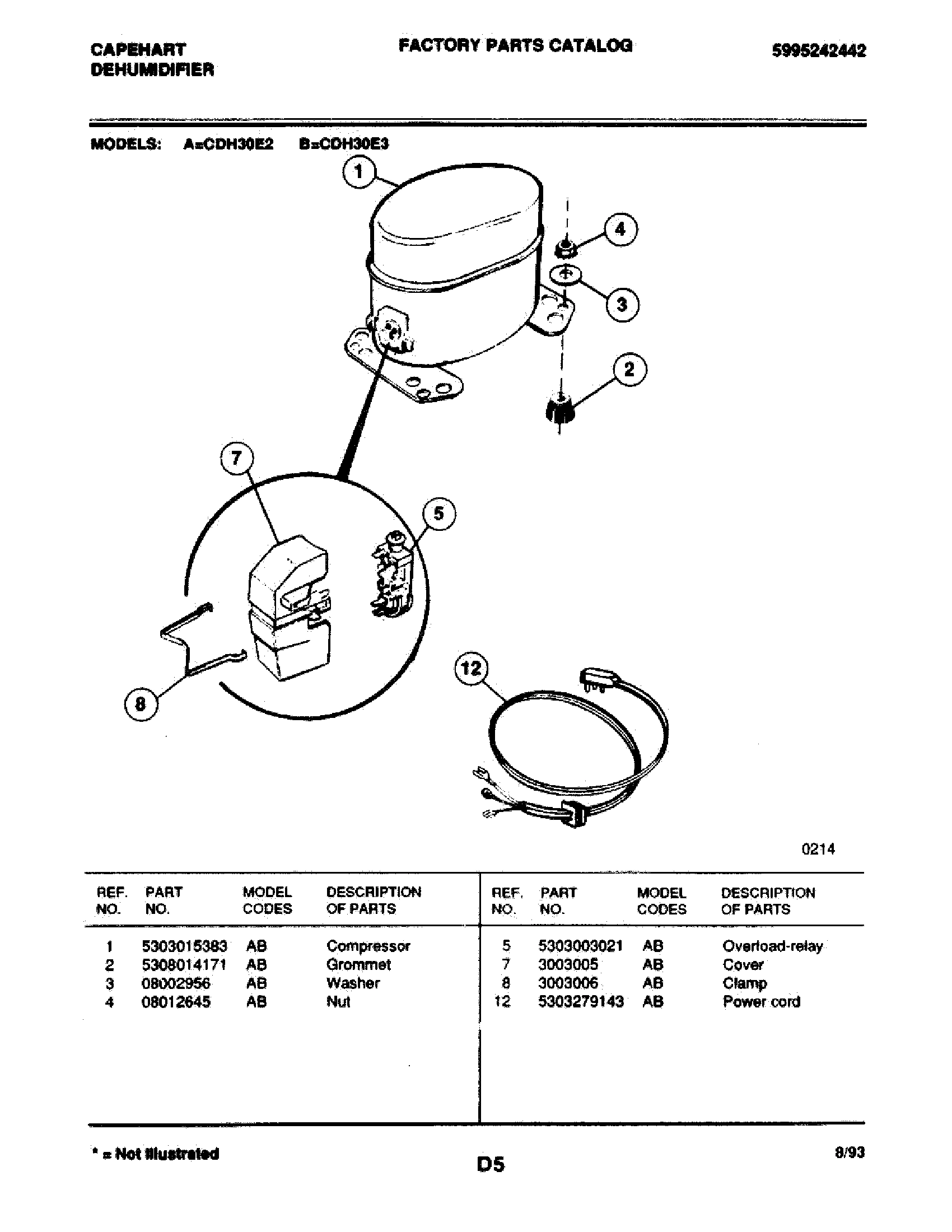

05 - COMPRESSOR
Common parts from model Electrolux CDH30E2 DEHUMIDIFIER
1
HUMIDISTAT WCI 5303296823 Contact Us For Availability
1
WCI 08016450 WCI 08016450 Contact Us For Availability
1
WCI 5303015383 WCI 5303015383 Contact Us For Availability
2
SCREW WCI 08016435 Contact Us For Availability
2
WCI 08016436 WCI 08016436 Contact Us For Availability
2
WCI 5308014171 WCI 5308014171 Contact Us For Availability
3
BRACKET-CONTROL WCI 5303211050 Contact Us For Availability
3
WCI 3017458 WCI 3017458 Contact Us For Availability
3
WCI 08002956 WCI 08002956 Contact Us For Availability
4
WCI 3001801 WCI 3001801 Contact Us For Availability
4
CLAMP-EVAPORATOR INNER WCI 08016455 Contact Us For Availability
4
WCI 08012645 WCI 08012645 Contact Us For Availability
5
WCI 5303275926 WCI 5303275926 Contact Us For Availability
5
WCI 3017954 WCI 3017954 Contact Us For Availability
5
OVERLOAD/RELAY WCI 5303003021 Contact Us For Availability
6
WCI 08012705 WCI 08012705 Contact Us For Availability
6
CLAMP-EVAPORATOR OUTER WCI 08016454 Contact Us For Availability
7
WCI 5303284039 WCI 5303284039 Contact Us For Availability
7
CAPILLARY TUBE-CUT TO 25`` WCI 3014461 Contact Us For Availability
7
WCI 3003005 WCI 3003005 Contact Us For Availability
8
WCI 5303300850 WCI 5303300850 Contact Us For Availability
8
HARNESS WCI 5303289839 Contact Us For Availability
8
WCI 3003006 WCI 3003006 Contact Us For Availability
9
SCREW WCI 5303271346 Contact Us For Availability
9
WCI 08007481 WCI 08007481 Contact Us For Availability
9
WCI 08016458 WCI 08016458 Contact Us For Availability
10
WCI 5303289838 WCI 5303289838 Contact Us For Availability
10
WCI 5303272520 WCI 5303272520 Contact Us For Availability
11
FAN BLADE WCI 5308016448 Contact Us For Availability
11
SWITCH- BUCKET WCI 5308016437 Contact Us For Availability
12
WCI 08013805 WCI 08013805 Contact Us For Availability
12
WCI 3001803 WCI 3001803 Contact Us For Availability
12
WCI 5303279143 WCI 5303279143 Contact Us For Availability
13
WCI 5303007620 WCI 5303007620 Contact Us For Availability
13
CASTER-BASE WCI 5303275278 Contact Us For Availability
14
WCI 5303300841 WCI 5303300841 Contact Us For Availability
14
WCI 5303296828 WCI 5303296828 Contact Us For Availability
14
WCI 5303272812 WCI 5303272812 Contact Us For Availability
15
WCI 5303296829 WCI 5303296829 Contact Us For Availability
15
WCI 3016969 WCI 3016969 Contact Us For Availability
16
WCI 5303300840 WCI 5303300840 Contact Us For Availability
× ![]()
