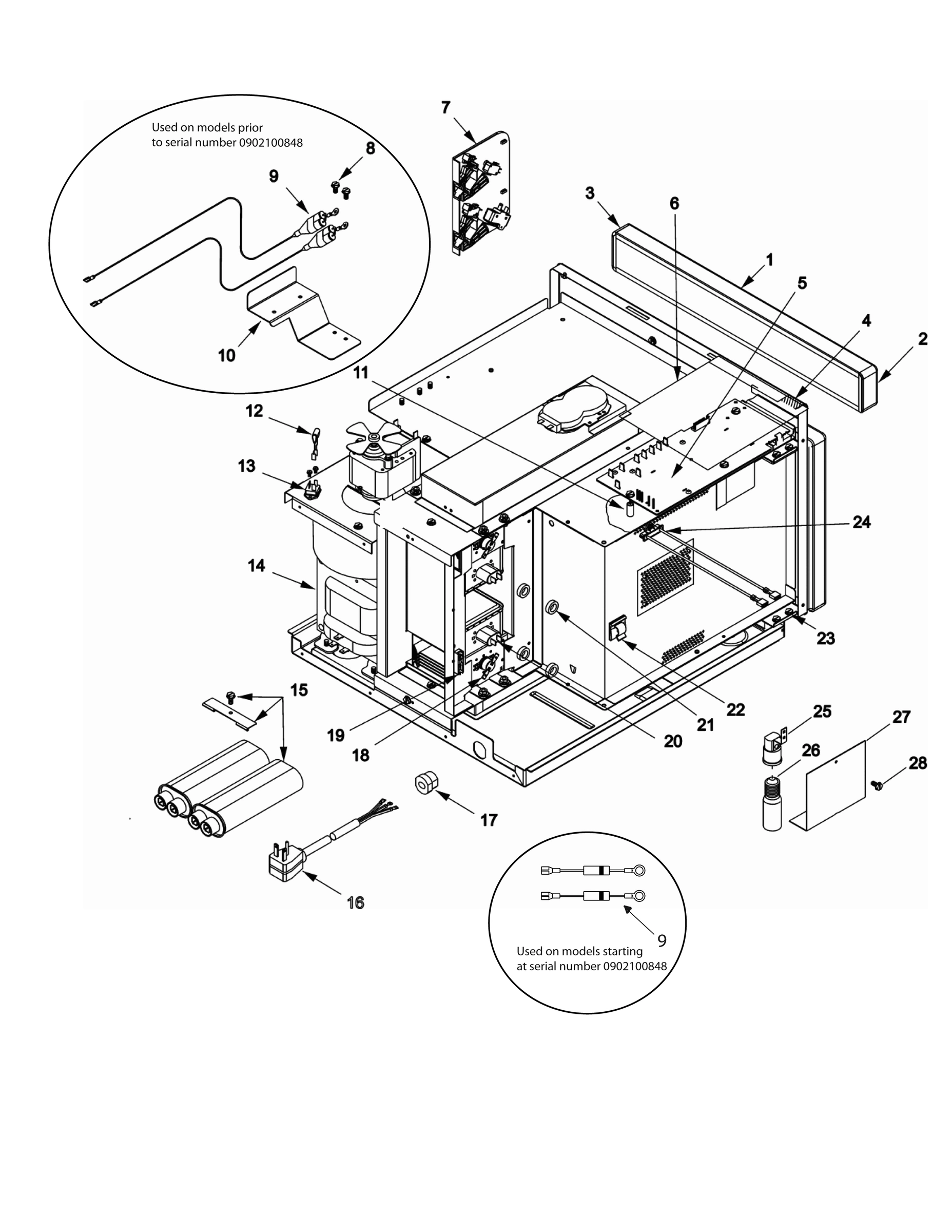

Model Accelerated Cooking Products CDEC14E2-P1331230M Amana Menumaster CDEC14E2 – Common Parts &amp; Diagrams

1

59174529 Amana Touch Panel Assembly Backorder ACP 59174529 $157.92

1

R0150197 Amana Antenna Motor Kit - Top Backorder ACP R0150197 $80.39

2

12131001 Amana Right ESC End Cap Backorder ACP 12131001 $5.85

2

59154448 Amana Foam Tape (1 Roll) Backorder ACP 59154448 $56.55

2

ACCESS PANEL-E CT ACP 12296806 Contact Us For Availability

3

12131002 Amana End Cap ESC Backorder ACP 12131002 $5.85

3

DUCT-AIR ACP 12296601 Contact Us For Availability

4

12990525 Amana Screw - Small Head Backorder ACP 12990525 $4.82

4

59004077 Amana Gasket per Foot Backorder ACP 59004077 $1.23

5

CLIP-GUIDE ACP M0118705 Contact Us For Availability

6

13095201 Amana Screw, Oval Backorder ACP 13095201 $4.82

6

13098101 Amana Welded Door Ring Backorder ACP 13098101 $45.68

6

59174559 Amana Light Cover Hardware Backorder ACP 59174559 $27.62

6

CLIP-CORD ACP M0104106 Contact Us For Availability

6

HARNESS, WIRE ACP 59001702 Contact Us For Availability

6

SPACER-RUBBER ACP M0274072 Contact Us For Availability

7

59001893 Amana Line Filter Backorder ACP 59001893 $75.01

7

59114167 Amana Interlock Switch Assembly In Stock ACP 59114167 $97.49

7

R9900114 Amana Window Kit Backorder ACP R9900114 $23.54

7

HARNESS, HV ACP 59001661 Contact Us For Availability

8

14179127 Amana Exhaust Duct Kit & Gasket Backorder ACP 14179127 $112.56

8

HARNESS, LW ANTENNA ACP 13017801 Contact Us For Availability

9

5210001001 Amana Nylon Bushing Backorder ACP 5210001001 $4.82

9

59124202 Amana Antenna Shield In Stock ACP 59124202 $37.68

14159092 Amana Ceramic Tray and Sealer Kit In Stock ACP 14159092 $109.20

14179128 Amana Hinge Kit Top & Bottom Backorder ACP 14179128 $39.77

R9800022 Amana Diode Kit Backorder ACP R9800022 $73.90

DIVIDER, FLOW ACP 12134101 Contact Us For Availability

11

12107407 Amana MAG Outlet Duct Backorder ACP 12107407 $12.01

11

BASEPAN & GASKET ASSY ACP 59184621 Contact Us For Availability

12

59002017 Amana Snubber Assembly Backorder ACP 59002017 $36.09

12

BARRIER-AIR ACP 12525701 Contact Us For Availability

12

SCREW-SM/KNIFE RoHS ACP 12991101 Contact Us For Availability

13

59001659 Amana Screen Filter In Stock ACP 59001659 $20.63

13

59174520 Amana TRIAC (40A) & Snubber Kit In Stock ACP 59174520 $54.35

13

R9900668 Amana Antenna Motor Bottom Kit Backorder ACP R9900668 $57.14

14

R9900585 Amana Installation Kit In Stock ACP R9900585 $64.90

14

SCREW, SM ACP M0210816 Contact Us For Availability

14

TRIM ACP 12131301 Contact Us For Availability

12990522 Amana Screw SM/HEX RoHS Backorder ACP 12990522 $4.82

20173001 Amana Rotary Igniter Backorder ACP 20173001 $14.83

59174533 Amana Capacitor and Diode Kit, 0.65 Backorder ACP 59174533 $43.92

R0150185 Amana Antenna Retainer Assembly Backorder ACP R0150185 $26.31

16

B5706704 Amana Motor Fan Blade Backorder ACP B5706704 $6.65

17

59174525 Amana Blower Motor Assembly Backorder ACP 59174525 $179.76

17

R0000413 Amana Base Pan Gasket 90 Inch In Stock ACP R0000413 $41.34

18

59002167 Amana Sealer In Stock ACP 59002167 $14.95

18

B5684121 Amana Thermal Cutout Backorder ACP B5684121 $5.44

18

BRKT-BLOWER WSH ACP 12271103 Contact Us For Availability

19

C8893502 Amana Door Latch Spring Backorder ACP C8893502 $4.82

19

GASKET, PER FT ACP 59002162 Contact Us For Availability

20

12138201 Amana Blower Wheel Backorder ACP 12138201 $13.68

20

59004013 Amana Magnetron In Stock ACP 59004013 $101.60

21

12138302 Amana Blower Scroll Backorder ACP 12138302 $7.24

21

TOROID ACP 44780P01 Contact Us For Availability

22

RIVET, .156 POP ACP A4539618 Contact Us For Availability

23

12126901 Amana Door Latch Backorder ACP 12126901 $4.82

23

M0805203 Amana Fuse 20A Backorder ACP M0805203 $4.82

23

SCREW, TC ACP M0253540 Contact Us For Availability

24

10091101 Amana Fuse Holder Backorder ACP 10091101 $7.53

24

B5795319 Amana Cavity Thermal Cutout In Stock ACP B5795319 $12.20

25

20020502 Amana Retainer Backorder ACP 20020502 $4.82

26

14159099 Amana Cavity Kit for 18 & 21 Backorder ACP 14159099 $724.08

26

LAMP, 230/240 VAC ACP M0360402 Contact Us For Availability

27

59194649 Amana LED Lamp Backorder ACP 59194649 $33.58

28

SCREW-TF/HEX RoHS ACP 12992307 Contact Us For Availability
