Model Whirlpool CDE20R7AC ELECTRIC DRYER – Common Parts & Diagrams

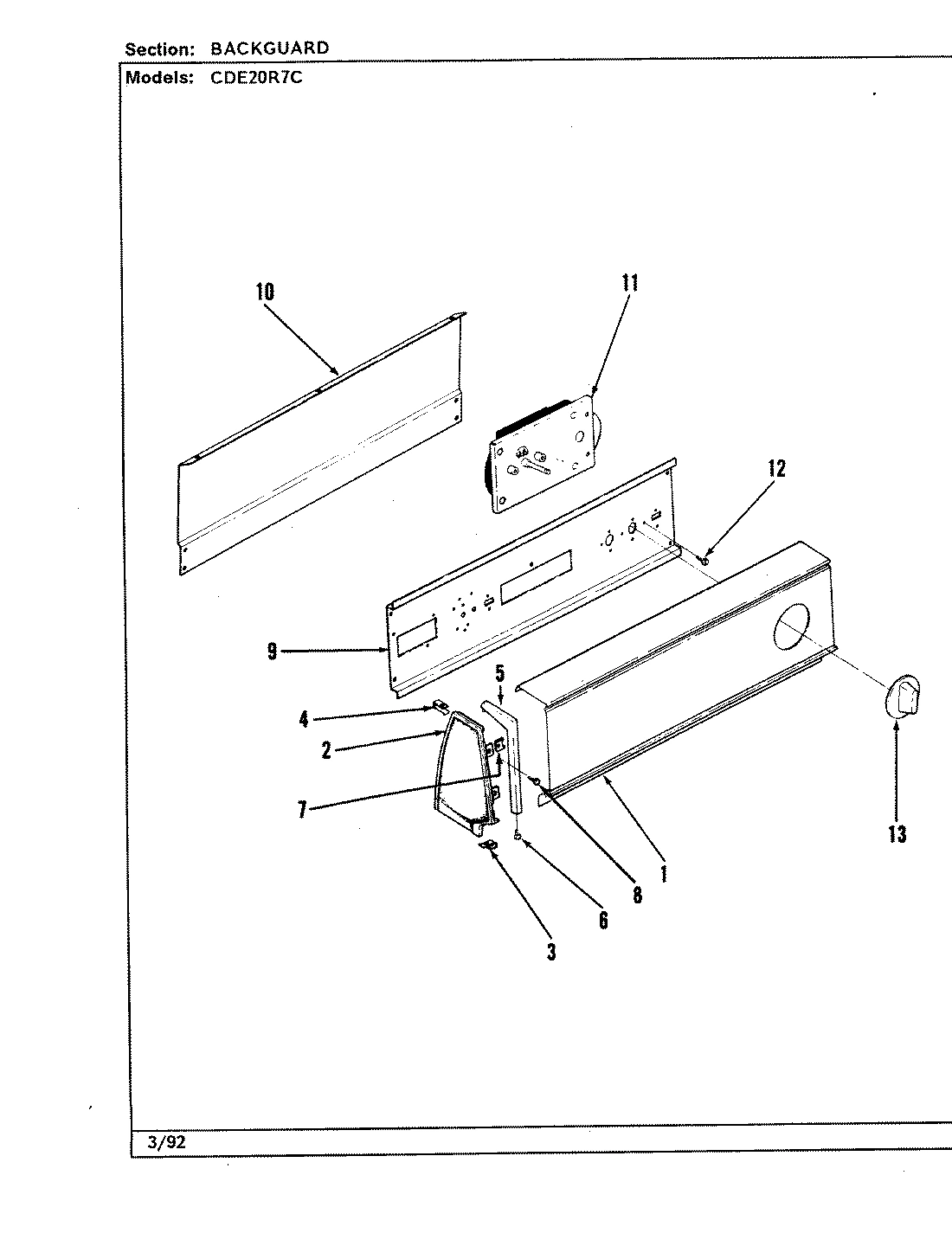

01 - CONTROL PANEL (ORIG. REV. B)

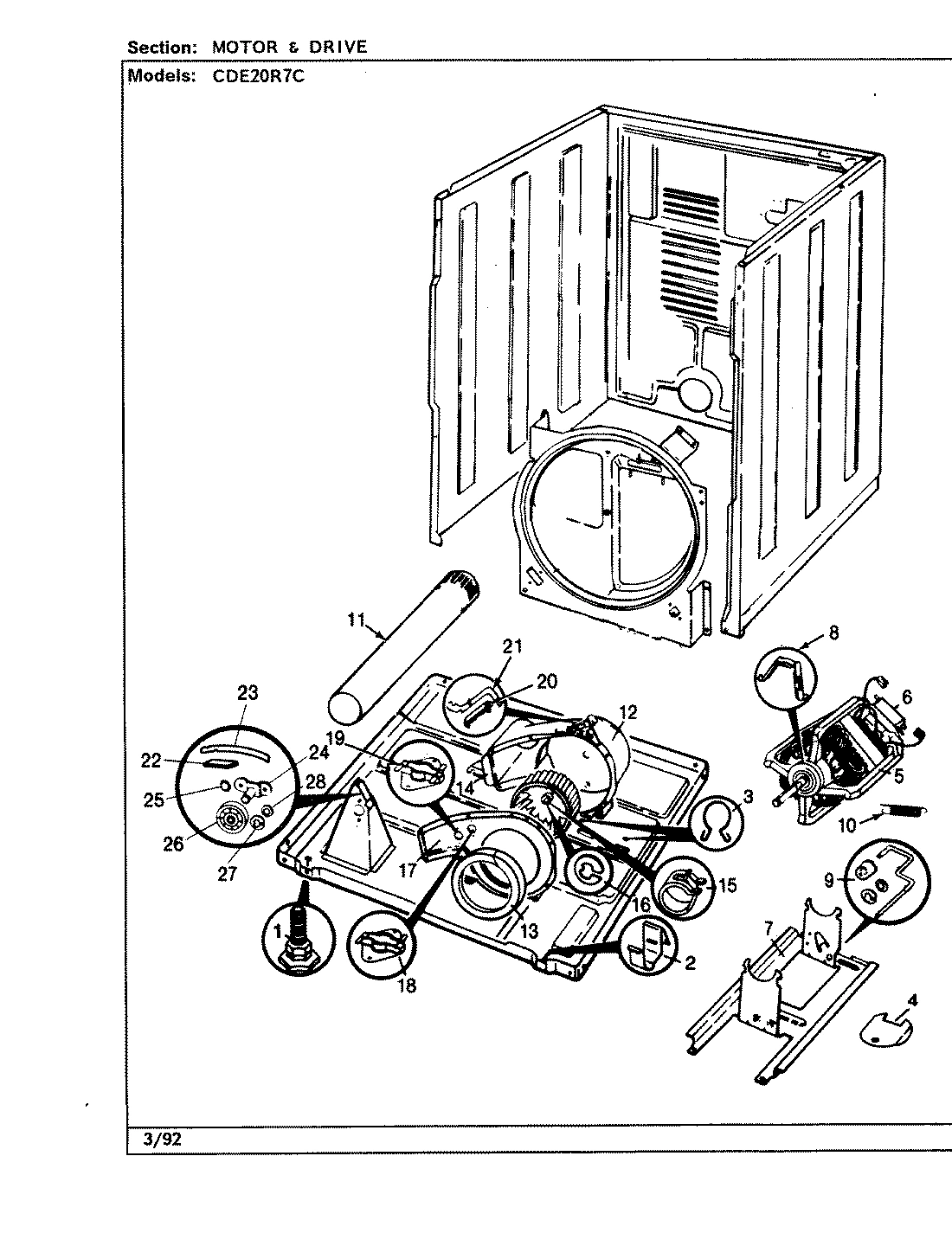

03 - MOTOR & DRIVE (ORIG. REV. B)

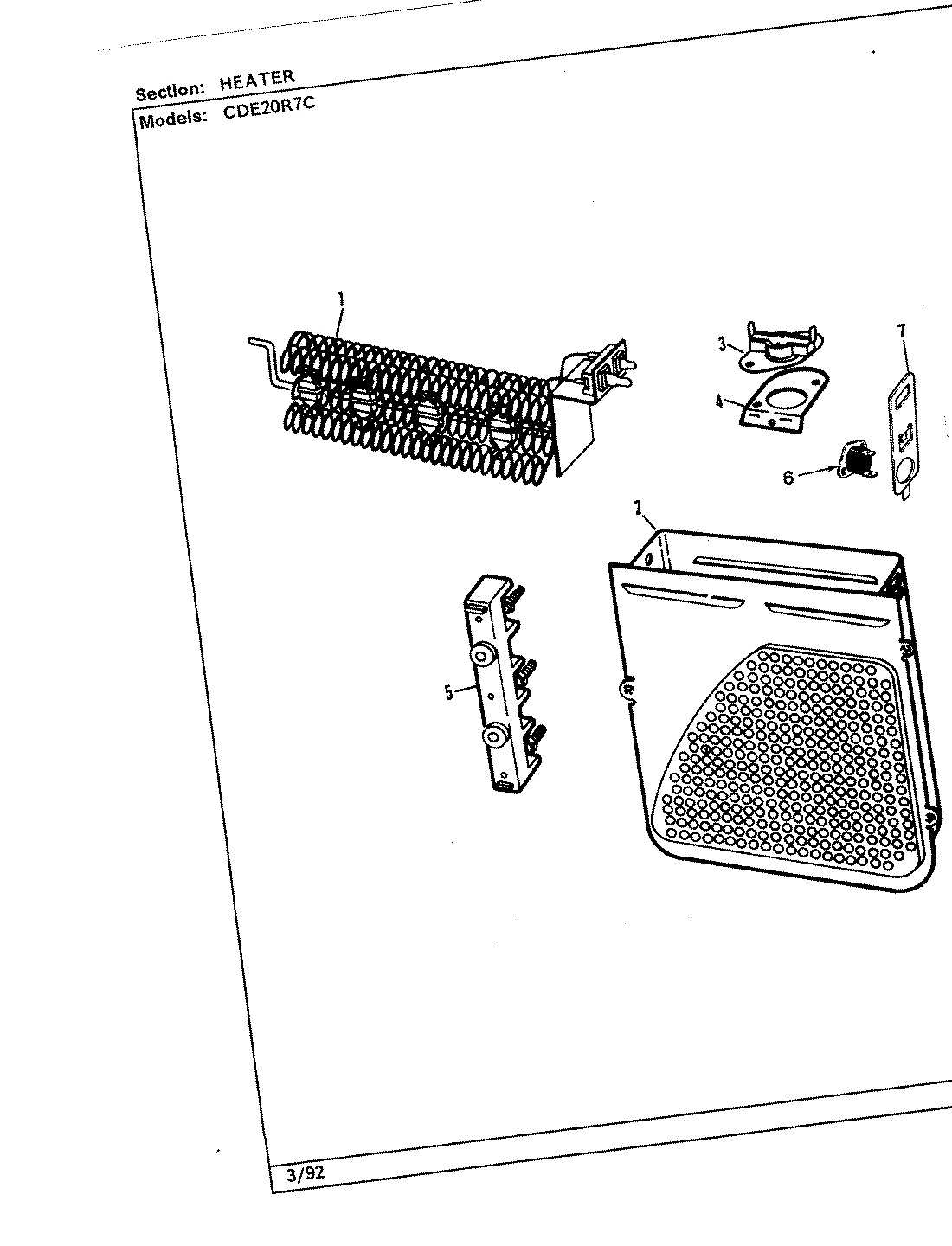

02 - HEATER (ORIG. REV. B)
Common parts from model Whirlpool CDE20R7AC ELECTRIC DRYER
1
CONTROL PANEL WPL 531925 Contact Us For Availability
1
LEG, LEVELING WPL 635519 Contact Us For Availability
1
SCREW WPL 257863 Contact Us For Availability
1
HEATER ELEMENT WPL 530920 Contact Us For Availability
2
SCREW WPL 257649 Contact Us For Availability
2
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
2
CAP, END (RT) WPL 352487 Contact Us For Availability
2
CAP, END (LT) WPL 352488 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
SCREW No.8-18X1/2 PAN HD WPL 257819 Contact Us For Availability
2
HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability
3
SCREW WPL 257697 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
3
SCREW WPL 253083 Contact Us For Availability
3
THERMOSTAT WPL 531493 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
SHIELD, WIRING WPL 530153 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
5
TRIM, END CAP (RT) WPL 530277 Contact Us For Availability
5
TRIM, END CAP (LT) WPL 530278 Contact Us For Availability
5
MOTOR ASM WPL 531041 Contact Us For Availability
5
MOTOR & PULLEY ASSY (115V,60HZ WPL 532275 Contact Us For Availability
5
NUT (No.10-32) WPL 250027 Contact Us For Availability
5
WASHER, FLAT WPL 253122 Contact Us For Availability
5
WASHER, CUP WPL 253123 Contact Us For Availability
5
NUT WPL 256124 Contact Us For Availability
5
SCREW WPL 257803 Contact Us For Availability
5
TERMINAL BLOCK WPL 530166 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
6
SWITCH, MOTOR WPL 530693 Contact Us For Availability
6
FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability
7
CLIP WPL 257025 Contact Us For Availability
7
SCREW WPL 257811 Contact Us For Availability
7
MOTOR BRACKET WPL 530852 Contact Us For Availability
7
BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability
8
SCREW WPL 257674 Contact Us For Availability
8
CLAMP, MOTOR WPL 530214 Contact Us For Availability
9
WASHER WPL 257815 Contact Us For Availability
9
PULLEY, IDLER WPL 531628 Contact Us For Availability
9
IDLER ASSY WPL 531650 Contact Us For Availability
9
ARM, IDLER WPL 532250 Contact Us For Availability
9
IDLER ASSY. WPL 532287 Contact Us For Availability
9
PUSHNUT WPL 537957 Contact Us For Availability
10
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
10
IDLER SPRING WPL 531648 Contact Us For Availability
10
SPRING, IDLER WPL 532209 Contact Us For Availability
11
TIMER MOTOR WPL 530635 Contact Us For Availability
11
TIMER WPL 531303 Contact Us For Availability
11
TIMER WPL 531758 Contact Us For Availability
11
RESISTOR ASSY. WPL 636743 Contact Us For Availability
11
DUCT, EXHAUST WPL 530134 Contact Us For Availability
12
SCREW WPL 257435 Contact Us For Availability
12
SCREW WPL 250205 Contact Us For Availability
12
BLOWER HOUSING WPL 530774 Contact Us For Availability
12
HOUSING, BLOWER WPL 531801 Contact Us For Availability
13
SCREW WPL 253092 Contact Us For Availability
13
KNOB WPL 530653 Contact Us For Availability
13
BUZZER ASSY. WPL 531639 Contact Us For Availability
13
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
14
BLOWER WHEEL WPL 530106 Contact Us For Availability
15
CLAMP WPL 257823 Contact Us For Availability
16
RING, RETAINING WPL 257855 Contact Us For Availability
17
BLOWER COVER WPL 531023 Contact Us For Availability
17
SCREW WPL 257807 Contact Us For Availability
17
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
17
COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability
18
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
19
SCREW WPL 252134 Contact Us For Availability
20
RH GLD CUSHION WPL 530182 Contact Us For Availability
21
RH CYL GLIDE WPL 530183 Contact Us For Availability
23
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
23
ROLLER WPL LA1008 Contact Us For Availability
24
SUPPORT ASM WPL 530198 Contact Us For Availability
25
SPACER WPL 257813 Contact Us For Availability
26
CYL ROLLER WPL 530642 Contact Us For Availability
27
RING, RETAINING WPL 257854 Contact Us For Availability
28
WASHER WPL 257814 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 5319261 Contact Us For Availability
× ![]()
