Model Whirlpool CCS51AEL ICE MACHINE – Common Parts & Diagrams
02 - CABINET, LINER AND DOOR , LIT/OPTIONAL
04 - PUMP

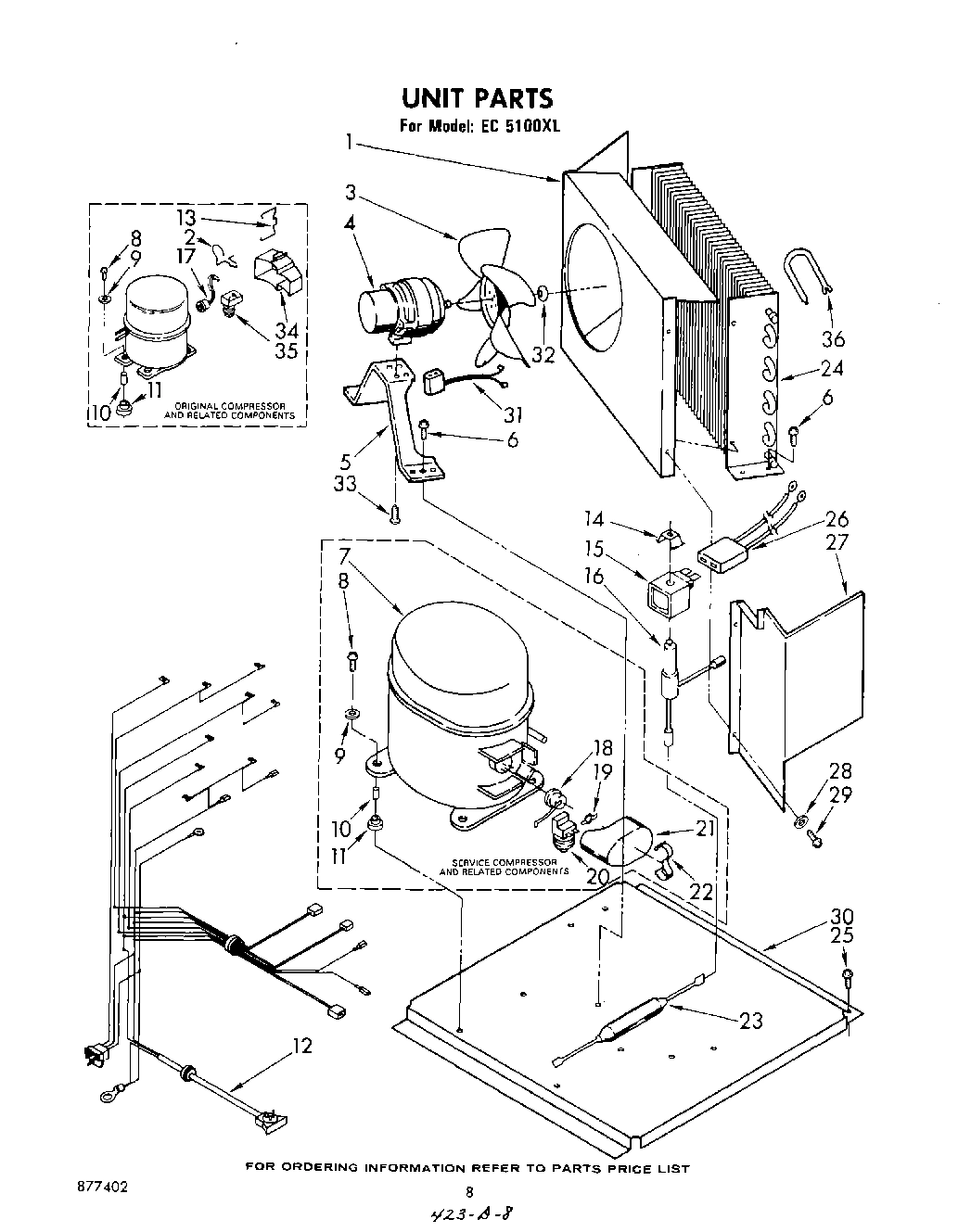

06 - UNIT

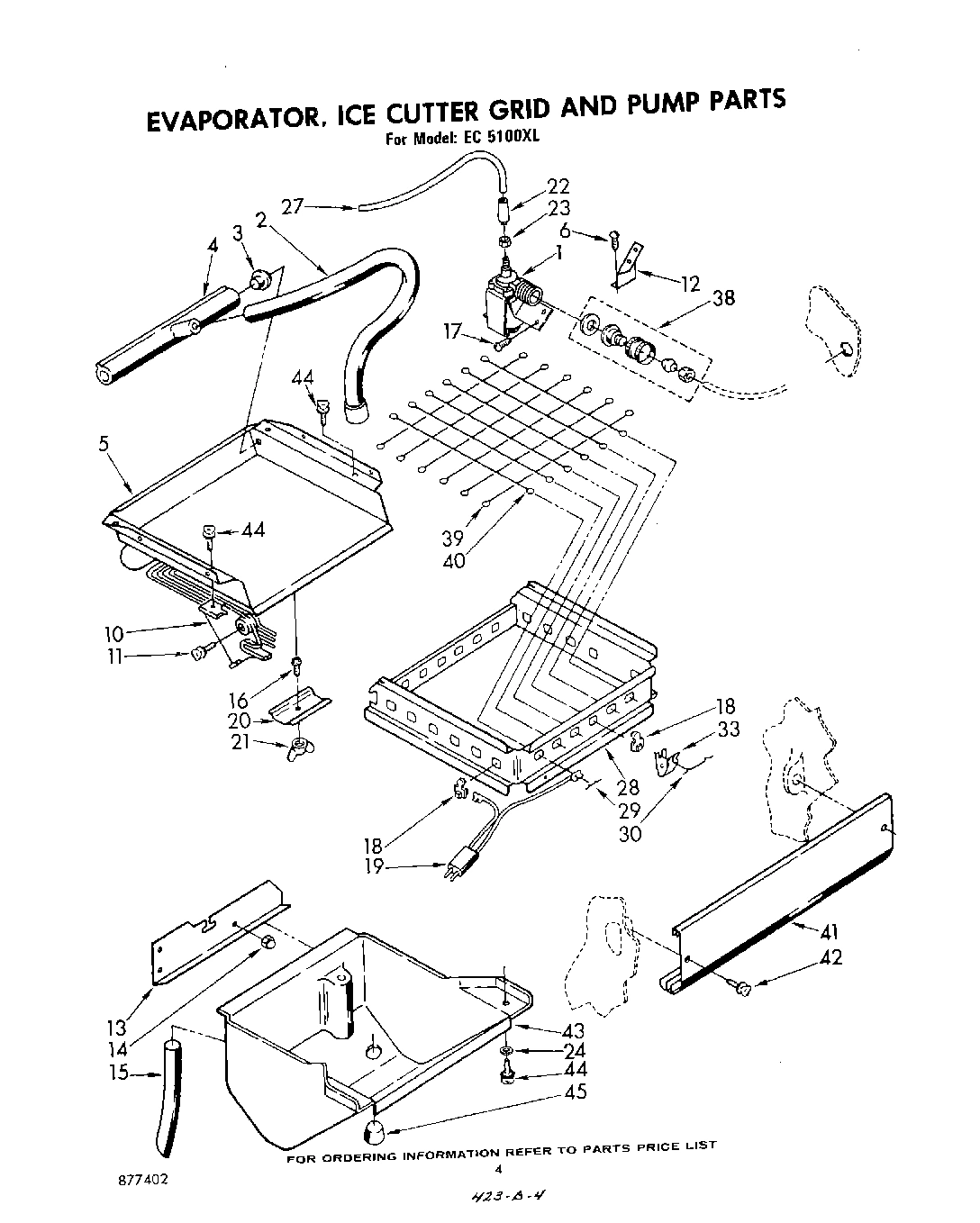

03 - EVAPORATOR, ICE CUTTER GRID AND PUMP

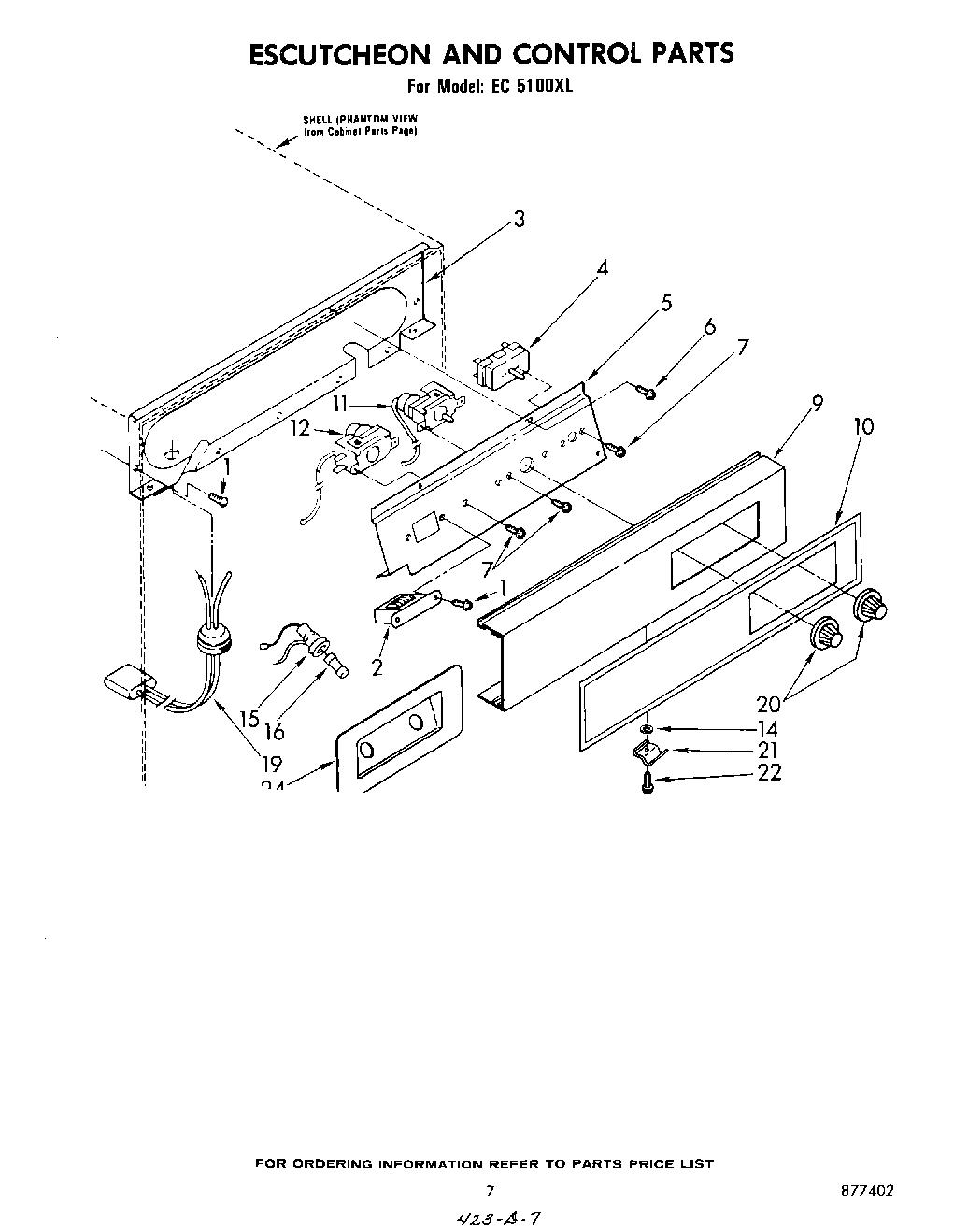

05 - ESCUTCHEON AND CONTROL
01 - FRONT COVER
Common parts from model Whirlpool CCS51AEL ICE MACHINE
1
Screw, WPL 681036 Contact Us For Availability
1
Plug, Pump WPL 569434 Contact Us For Availability
1
Shroud WPL 757955 Contact Us For Availability
1
Valve, Complete Water WPL 757433 Contact Us For Availability
2
Cover, Plug WPL 756124 Contact Us For Availability
2
Clip (Used W/Original Compressor) WPL 727046 Contact Us For Availability
2
Tube, Plastic WPL 585856 Contact Us For Availability
2
Transformer WPL 593165 Contact Us For Availability
3
Screw, 8-18 x 3/4 WPL 681391 Contact Us For Availability
3
Plug (2) WPL 564061 Contact Us For Availability
3
Escutcheon, Panel WPL 756664 Contact Us For Availability
4
Housing, Motor WPL 593702 Contact Us For Availability
4
Motor, Fan WPL 593363 Contact Us For Availability
4
Dispenser, Water WPL 585813 Contact Us For Availability
4
Switch, Service WPL 593139 Contact Us For Availability
5
Blade, Fan WPL 587096 Contact Us For Availability
5
Bracket WPL 560817 Contact Us For Availability
5
Evaporator WPL 757028 Contact Us For Availability
5
Bracket, Control WPL 756341 Contact Us For Availability
6
Strip, Tapping (2) WPL 593104 Contact Us For Availability
6
Motor, Pump WPL 756950 Contact Us For Availability
7
Trim, Door (R.S.) WPL 755675 Contact Us For Availability
7
Trim, Door (L.S.) WPL 755676 Contact Us For Availability
7
Washer WPL 593060 Contact Us For Availability
7
Compressor WPL 485780 Contact Us For Availability
8
Rail, R.S. WPL 593184 Contact Us For Availability
8
Rail, L.S. WPL 593185 Contact Us For Availability
8
Bracket, Pump WPL 756122 Contact Us For Availability
8
Screw (4) WPL 680233 Contact Us For Availability
9
Screw, 8-32 x 5/8 (6) WPL 681459 Contact Us For Availability
9
Grommet (2) WPL 596016 Contact Us For Availability
9
Washer (4) WPL 595230 Contact Us For Availability
9
Escutcheon WPL 593503 Contact Us For Availability
10
Sleeve WPL 593229 Contact Us For Availability
10
Sleeve (4) WPL 585564 Contact Us For Availability
10
Bracket, Grid Mounting (2) WPL 756564 Contact Us For Availability
10
Decal, Escutcheon WPL 757610 Contact Us For Availability
11
Thermostat, Evaporator WPL 598235 Contact Us For Availability
11
Grommet (4) WPL 596355 Contact Us For Availability
11
Thumbscrew WPL 681611 Contact Us For Availability
12
Liner (Includes Illus. 17, 18, 19, 20 & 21) WPL 756350 Contact Us For Availability
12
Harness, Cabinet WPL 756657 Contact Us For Availability
12
Bracket, Water Valve WPL 756343 Contact Us For Availability
12
Thermostat, Bin Control WPL 593141 Contact Us For Availability
13
Gasket, Bottom WPL 756347 Contact Us For Availability
13
Pump, Assembly WPL 583518 Contact Us For Availability
13
Clamp (Used W/Original Compressor) WPL 727045 Contact Us For Availability
13
Shelf, Water Pan WPL 585853 Contact Us For Availability
14
Clamp (2) WPL 596023 Contact Us For Availability
14
Impeller (Includes Retaining Ring 15) WPL 569513 Contact Us For Availability
14
Clamp, Coil Retainer WPL 564234 Contact Us For Availability
14
Nut, Acorn (3) WPL 681770 Contact Us For Availability
14
Washer, WPL 681245 Contact Us For Availability
15
Gasket WPL 756663 Contact Us For Availability
15
Ring, Retaining WPL 681301 Contact Us For Availability
15
Coil, Solenoid WPL 587970 Contact Us For Availability
15
Hose, Overflow WPL 593369 Contact Us For Availability
15
Holder, Fuse WPL 757055 Contact Us For Availability
16
Valve, Body WPL 598086 Contact Us For Availability
16
Screw, 10-32 x 1/2 WPL 596037 Contact Us For Availability
16
Fuse WPL 596009 Contact Us For Availability
17
Nut, Molly WPL 680982 Contact Us For Availability
17
Screw, 1/4 x 20 x 1/2 WPL 681305 Contact Us For Availability
17
Overload (Used W/Original Compressor) WPL 753505 Contact Us For Availability
18
Washer WPL 680902 Contact Us For Availability
18
Overload (Used W/Service Compressor) WPL 589231 Contact Us For Availability
18
Insulator (38) WPL 598277 Contact Us For Availability
19
Nut, 1/4 Hex WPL 681542 Contact Us For Availability
19
Spring (Used W/Service Compressor) WPL 549086 Contact Us For Availability
19
Cord, Grid WPL 587639 Contact Us For Availability
19
Harness, Grid WPL 756336 Contact Us For Availability
20
Relay (Used W/Service Compressor) WPL 549337 Contact Us For Availability
20
Clamp WPL 587662 Contact Us For Availability
20
Knob WPL 756881 Contact Us For Availability
21
Stud (2) WPL 758220 Contact Us For Availability
21
Case (Used W/Service Compressor) WPL 549336 Contact Us For Availability
21
Nut, Wing WPL 595188 Contact Us For Availability
21
Latch WPL 593179 Contact Us For Availability
22
Well, Bin Thermostat WPL 593183 Contact Us For Availability
22
Strap, Bale (Used W/Service Compressor) WPL 549342 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 595142 Contact Us For Availability
23
Clip, Panel (16) WPL 596772 Contact Us For Availability
24
Pull, Door WPL 756662 Contact Us For Availability
24
Condenser WPL 756299 Contact Us For Availability
24
Cup, Escutcheon WPL 758430 Contact Us For Availability
25
Panel, Exterior (White & Black) WPL 755364 Contact Us For Availability
25
Panel, Exterior (Almond & Harvest Gold) WPL 755371 Contact Us For Availability
25
Panel, Exterior (Toast & Platinum) WPL 758584 Contact Us For Availability
25
Screw, WPL 680811 Contact Us For Availability
26
Grille (Item 39 Included) WPL 758449 Contact Us For Availability
26
Harness, Coil WPL 587971 Contact Us For Availability
27
Deflector, Front WPL 593519 Contact Us For Availability
28
Connector, Hose WPL 593577 Contact Us For Availability
28
Washer WPL 595385 Contact Us For Availability
28
Frame, Grid (Not A Service Item) WPL 758458 Contact Us For Availability
29
Pin (17) WPL 587111 Contact Us For Availability
30
Base, Unit WPL 756345 Contact Us For Availability
30
Pin (4) WPL 587112 Contact Us For Availability
31
Insert, Handle WPL 757611 Contact Us For Availability
31
Plug, Fan Motor WPL 585219 Contact Us For Availability
32
Strip, Gasket WPL 587960 Contact Us For Availability
32
Washer, Conical (Included With Fan Motor) WPL 681650 Contact Us For Availability
33
Screw, 8-36 x 1/2 (Included With Fan Motor) WPL 681656 Contact Us For Availability
33
Clip (19) WPL 564072 Contact Us For Availability
34
Cover, Terminal (Used W/Original Compressor) WPL 727044 Contact Us For Availability
35
Well Nut (3) WPL 596715 Contact Us For Availability
35
Relay, Start (Used W/Original Compressor) WPL 753316 Contact Us For Availability
36
Trim, Door (Lower) WPL 755677 Contact Us For Availability
36
Accumulator WPL 756298 Contact Us For Availability
37
Insulation, Door WPL 756655 Contact Us For Availability
38
Screw WPL 681196 Contact Us For Availability
38
Adapter (Supplied In Literature Package) WPL 533238 Contact Us For Availability
39
Ice Deflector Kit WPL 702354 Contact Us For Availability
39
Instructions, Owner`s WPL 756637 Contact Us For Availability
39
Instructions, Installation WPL 756638 Contact Us For Availability
39
Overlay, Grille WPL 758453 Contact Us For Availability
39
Tech Sheet WPL 758459 Contact Us For Availability
39
Grid Assembly Complete (Standard Cube) WPL 758469 Contact Us For Availability
39
Grid Assembly Complete (Cubelets 3/4 x 3/4) WPL 758470 Contact Us For Availability
39
Leg Kit WPL 876649 Contact Us For Availability
39
List, Parts WPL 877402 Contact Us For Availability
39
Kit (Includes 9 Grid Cutter Wires) WPL 588048 Contact Us For Availability
40
Kit (Includes 10 Grid Cutter Wires) WPL 588109 Contact Us For Availability
41
Panel, Grid WPL 593171 Contact Us For Availability
42
Thumbscrew 10-32 x 5/8 WPL 680930 Contact Us For Availability
43
Pan WPL 756659 Contact Us For Availability
44
Thumbscrew, 10 x 1/2 WPL 681419 Contact Us For Availability
45
Stopper, Water Pan WPL 593572 Contact Us For Availability
× ![]()
