Model Whirlpool CCG2520W GAS COOK-TOP – Common Parts & Diagrams
02 - TOP ASSEMBLY

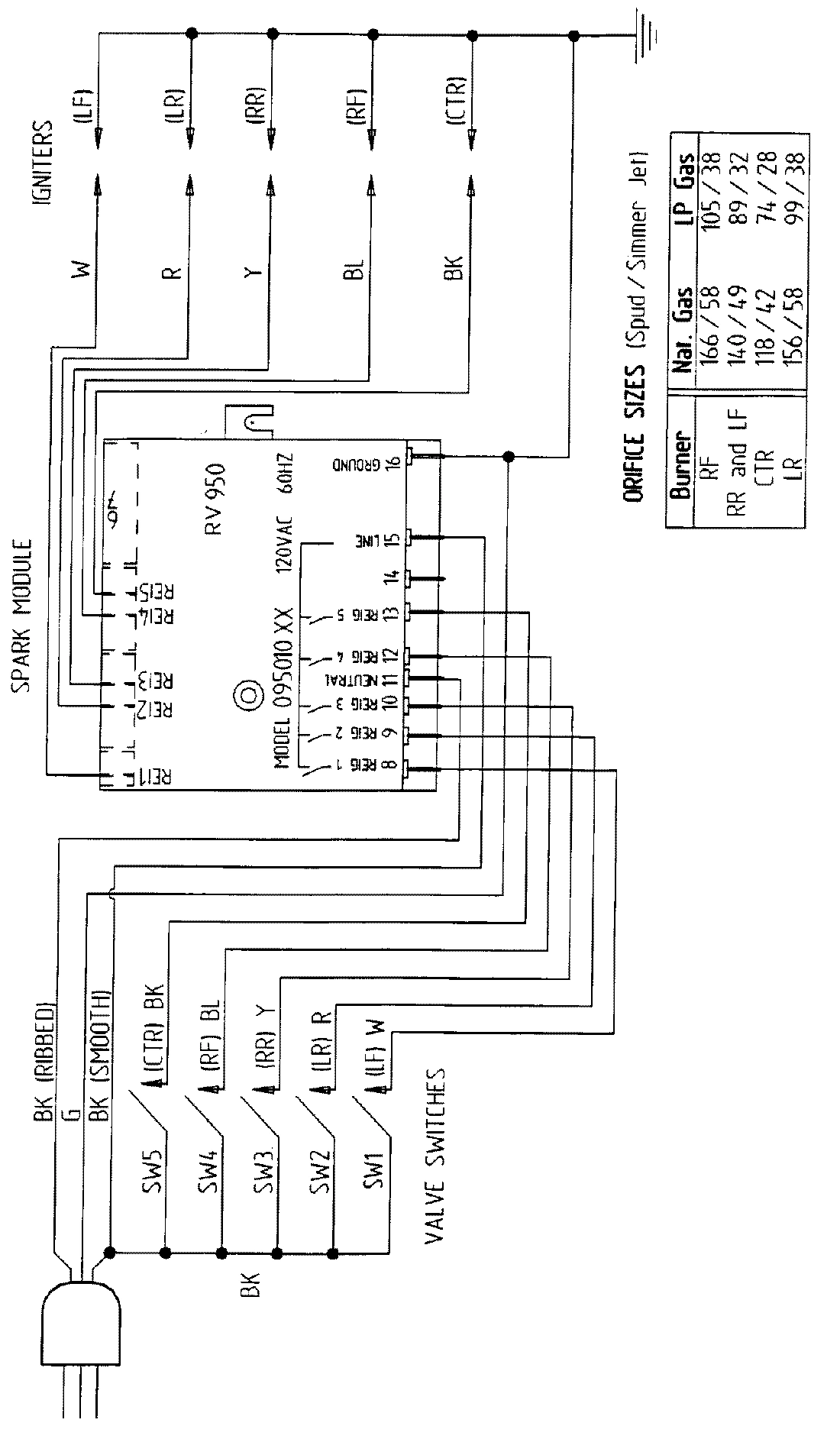

03 - WIRING INFORMATION
01 - BODY
Common parts from model Whirlpool CCG2520W GAS COOK-TOP
1
BOX, BURNER WPL 71001730 Contact Us For Availability
2
CORD, POWER WPL Y705805 Contact Us For Availability
3
CAP (RR-GRY) WPL 71001663 Contact Us For Availability
3
RELIEF, STRAIN WPL 705833 Contact Us For Availability
4
CAP (LG-GRY) WPL 71001075 Contact Us For Availability
4
MODULE, SPARK WPL Y04100284 Contact Us For Availability
5
SCREW WPL 708765 Contact Us For Availability
6
PAN, BURNER (SM/WHT) WPL 71001685 Contact Us For Availability
7
PAN, BURNER (LG/WHT) WPL 71001671 Contact Us For Availability
7
TUBE, BURNER (RT FT) WPL 71001699 Contact Us For Availability
7
TUBE, BURNER (LF) WPL 71001731 Contact Us For Availability
7
TUBE, BURNER (RR) WPL 71001732 Contact Us For Availability
7
TUBE, BURNER (C/LG) WPL 71001735 Contact Us For Availability
7
TUBE, BURNER (LR) WPL 71001743 Contact Us For Availability
8
HEAD, BURNER (SM) WPL 71001664 Contact Us For Availability
8
HOLDER, ORIFICE (12K) WPL 71001086 Contact Us For Availability
8
HOLDER, ORIFICE (6.5K) WPL 71001087 Contact Us For Availability
8
HOLDER, ORIFICE (10.5K) WPL 71001088 Contact Us For Availability
8
ORIFICE (12K) WPL 71001089 Contact Us For Availability
8
ORIFICE (10.5K) WPL 71001090 Contact Us For Availability
8
ORIFICE (6.5K) WPL 71001091 Contact Us For Availability
8
HOLDER, ORIFICE (9.1) WPL 71002448 Contact Us For Availability
8
ORIFICE (9.1K) WPL 71002863 Contact Us For Availability
9
HEAD, BURNER (LG) WPL 71001079 Contact Us For Availability
9
SUPPORT, CROSS WPL 71001667 Contact Us For Availability
10
WASHER, LOCK WPL 715910 Contact Us For Availability
11
NUT WPL 71001697 Contact Us For Availability
11
TUBE, KEEPER (LG) WPL Y04100375 Contact Us For Availability
12
SEAL, RING----NA WPL 71001237 Contact Us For Availability
12
GROMMET, SPILL (GRY) WPL 71001691 Contact Us For Availability
12
TUBE, SUPPLY WPL 71001703 Contact Us For Availability
13
SWITCH, VALVE WPL 71001083 Contact Us For Availability
13
KNOB (GRY) WPL 705845 Contact Us For Availability
14
GLASS, COOKTOP (WHT) WPL 71001728 Contact Us For Availability
14
SCREW, SWITCH WPL 71001153 Contact Us For Availability
15
VENTURI WPL 71001082 Contact Us For Availability
15
SEAL, VALVE WPL 705858 Contact Us For Availability
15
VALVE, BURNER (RF) WPL 71001704 Contact Us For Availability
15
VALVE, BURNER (LR) WPL 71001705 Contact Us For Availability
15
VALVE, BURNER (RR) WPL 71001706 Contact Us For Availability
15
VALVE, BURNER (CTR) WPL 71001733 Contact Us For Availability
15
VALVE, BURNER (LF) WPL 71001734 Contact Us For Availability
16
O-RING, BASE (SMR) WPL 71001076 Contact Us For Availability
16
BASE, BURNER (SM) WPL 71001080 Contact Us For Availability
16
PIPE, GAS MANIFOLD ASSY. WPL 71001744 Contact Us For Availability
17
O-RING, BASE (SM) WPL 71001672 Contact Us For Availability
17
BASE, BURNER (SM) WPL 71001696 Contact Us For Availability
18
HEAD, BURNER (LF) WPL 71001078 Contact Us For Availability
18
TAPE, SEAL SILICONE WPL 705829 Contact Us For Availability
19
CAP (SMR-GRY) WPL 71001073 Contact Us For Availability
19
BRACKET, VALVE WPL 705859 Contact Us For Availability
20
PAN, BURNER (SMR/WHT) WPL 71001687 Contact Us For Availability
20
SCREW, VALVE WPL 705860 Contact Us For Availability
21
IGNITER WPL 71001694 Contact Us For Availability
21
CLIP, IGNITER WPL 71001695 Contact Us For Availability
22
O-RING, BASE (LG) WPL 71001077 Contact Us For Availability
22
BASE, BURNER (LG) WPL 71001081 Contact Us For Availability
23
HEAD, BURNER ASSY. (LG/GRY) WPL 71001070 Contact Us For Availability
24
HEAD, BURNER ASSY. (SMR/GRY) WPL 71001067 Contact Us For Availability
25
HEAD, BURNER ASSY. (SM/GRAY) WPL 71002586 Contact Us For Availability
NI
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71001729 Contact Us For Availability
NI
KIT, ORIFICE (LP) (5 BURNER) WPL 71001742 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001437 Contact Us For Availability
NI
WIRE, HV (WHT) WPL 71001736 Contact Us For Availability
NI
WIRE, WHT (14``) WPL 71001737 Contact Us For Availability
NI
WIRE, WHT (LR-27``) WPL 71001738 Contact Us For Availability
NI
WIRE, HV (29``) WPL 71001739 Contact Us For Availability
NI
WIRE WHT (25``) WPL 71001740 Contact Us For Availability
× ![]()
