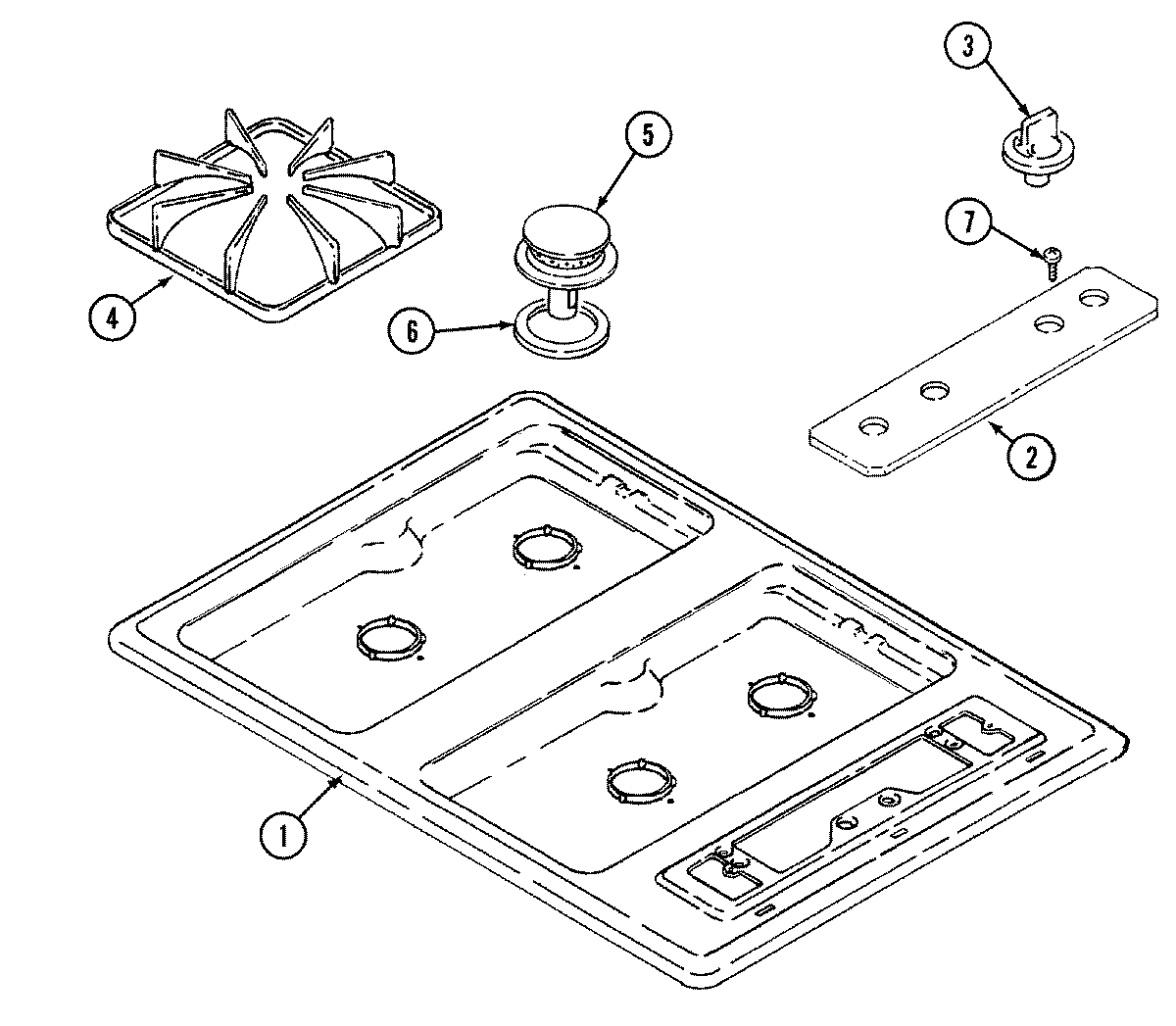

Model Whirlpool CCG2421W GAS COOK-TOP – Common Parts & Diagrams

1
TOP, MAIN (WHT)
TOP, MAIN (WHT) WPL 2001W09181 Contact Us For Availability
View on Model
2
SWITCH, BURNER
SWITCH, BURNER WPL 7403P36760 Contact Us For Availability
View on Model
2
TRIM, CONTROL PANEL (WHT)
TRIM, CONTROL PANEL (WHT) WPL 74001763 Contact Us For Availability
View on Model
3
VALVE, BURNER
VALVE, BURNER WPL 74001382 Contact Us For Availability
View on Model
3
KNOB, TOP BURNER (WHT)
KNOB, TOP BURNER (WHT) WPL 74001766 Contact Us For Availability
View on Model
4
SCREW, VALVE
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
View on Model
4
GRATE, BURNER (GRAY)
GRATE, BURNER (GRAY) WPL 74001770 Contact Us For Availability
View on Model
4
GRATE (GRAY)
GRATE (GRAY) WPL 74005301 Contact Us For Availability
View on Model
5
MODULE, SPARK
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
View on Model
5
SEALED BURNER ASSY. (GRY)
SEALED BURNER ASSY. (GRY) WPL 3412D01826 Contact Us For Availability
View on Model
5
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
View on Model
6
BRACKET, SPARK MODULE
BRACKET, SPARK MODULE WPL 3801F35745 Contact Us For Availability
View on Model
6
GASKET, BURNER
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
View on Model
7
BOX, BURNER
BOX, BURNER WPL 74001208 Contact Us For Availability
View on Model
7
SCREW (6ABX38-ZN)
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
View on Model
8
ORIFICE ASSY.
ORIFICE ASSY. WPL 74001369 Contact Us For Availability
View on Model
8
ORIFICE ASSY.
ORIFICE ASSY. WPL 74001370 Contact Us For Availability
View on Model
8
ORIFICE ASSY.
ORIFICE ASSY. WPL 74001371 Contact Us For Availability
View on Model
8
ORIFICE ASSY.
ORIFICE ASSY. WPL 74001372 Contact Us For Availability
View on Model
8
FITTING, ORIFICE (LT/FRT)
FITTING, ORIFICE (LT/FRT) WPL 74007258 Contact Us For Availability
View on Model
9
COVER, ACCESS
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
View on Model
9
PALNUT
PALNUT WPL 7103P11960 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL 7101P00460 Contact Us For Availability
View on Model
10
BUSHING, SNAP
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
View on Model
11
CORD, POWER
CORD, POWER WPL 7402P01460 Contact Us For Availability
View on Model
13
BRACKET, MAIN TOP
BRACKET, MAIN TOP WPL 3801F29845 Contact Us For Availability
View on Model
13
SCREW (10ABX1.0-ZN)
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
View on Model
16
BRACKET, TIE DOWN
BRACKET, TIE DOWN WPL 3801F19245 Contact Us For Availability
View on Model
17
TAPE BURNER BOX SEAL 107``
TAPE BURNER BOX SEAL 107`` WPL 12400021 Contact Us For Availability
View on Model
18
CAP, DISCONNECT 2 CIRCUIT
CAP, DISCONNECT 2 CIRCUIT WPL 74002109 Contact Us For Availability
View on Model
18
BLOCK, DISCONNECT (MALE)
BLOCK, DISCONNECT (MALE) WPL 74002230 Contact Us For Availability
View on Model
NI
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 74001760 Contact Us For Availability
View on Model
NI

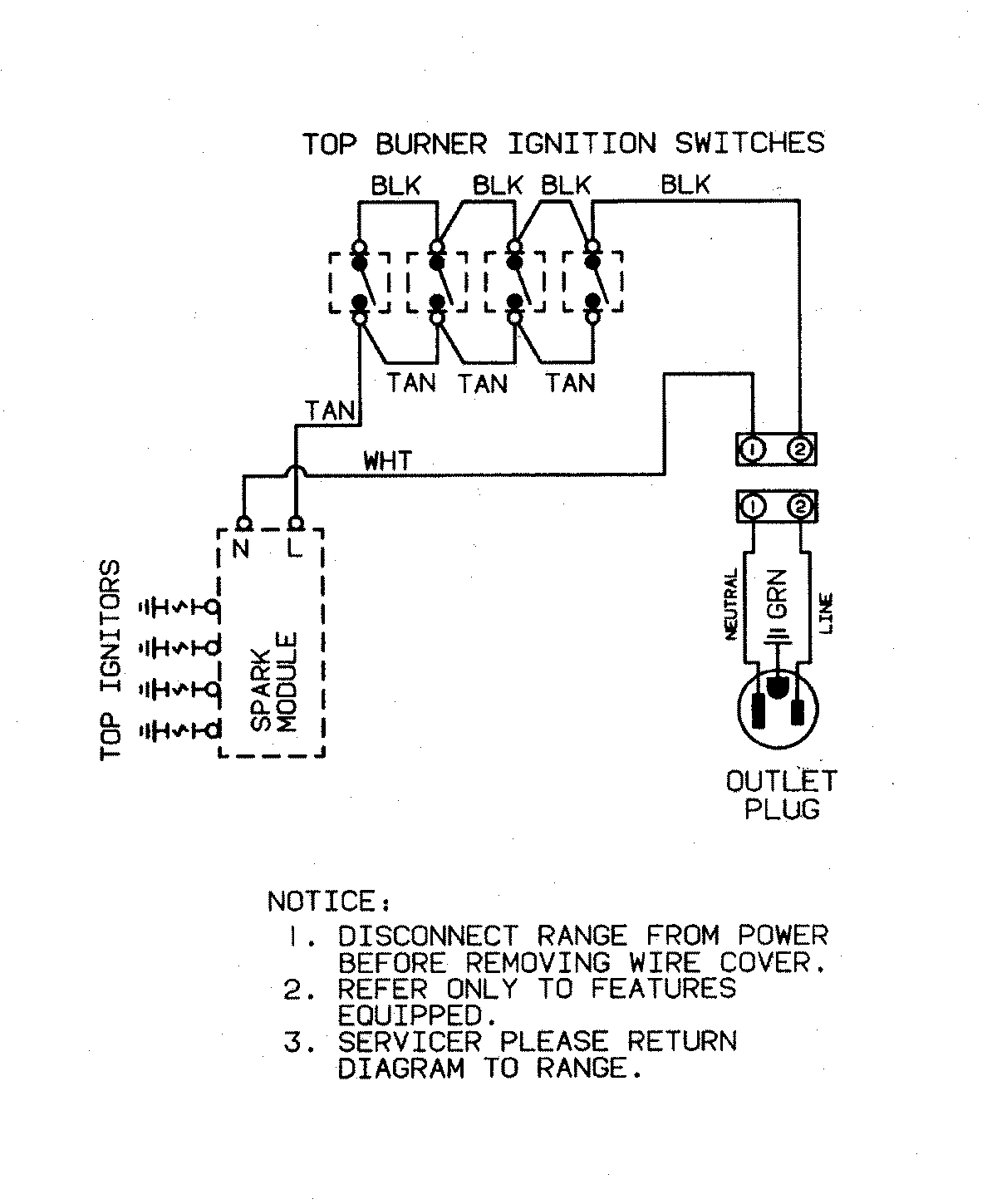

WIRING INFORMATION
WIRING INFORMATION WPL 15001312 Contact Us For Availability
View on Model
