Model Whirlpool CCE3531B ELECTRIC COOK-TOP – Common Parts & Diagrams

Common parts from model Whirlpool CCE3531B ELECTRIC COOK-TOP

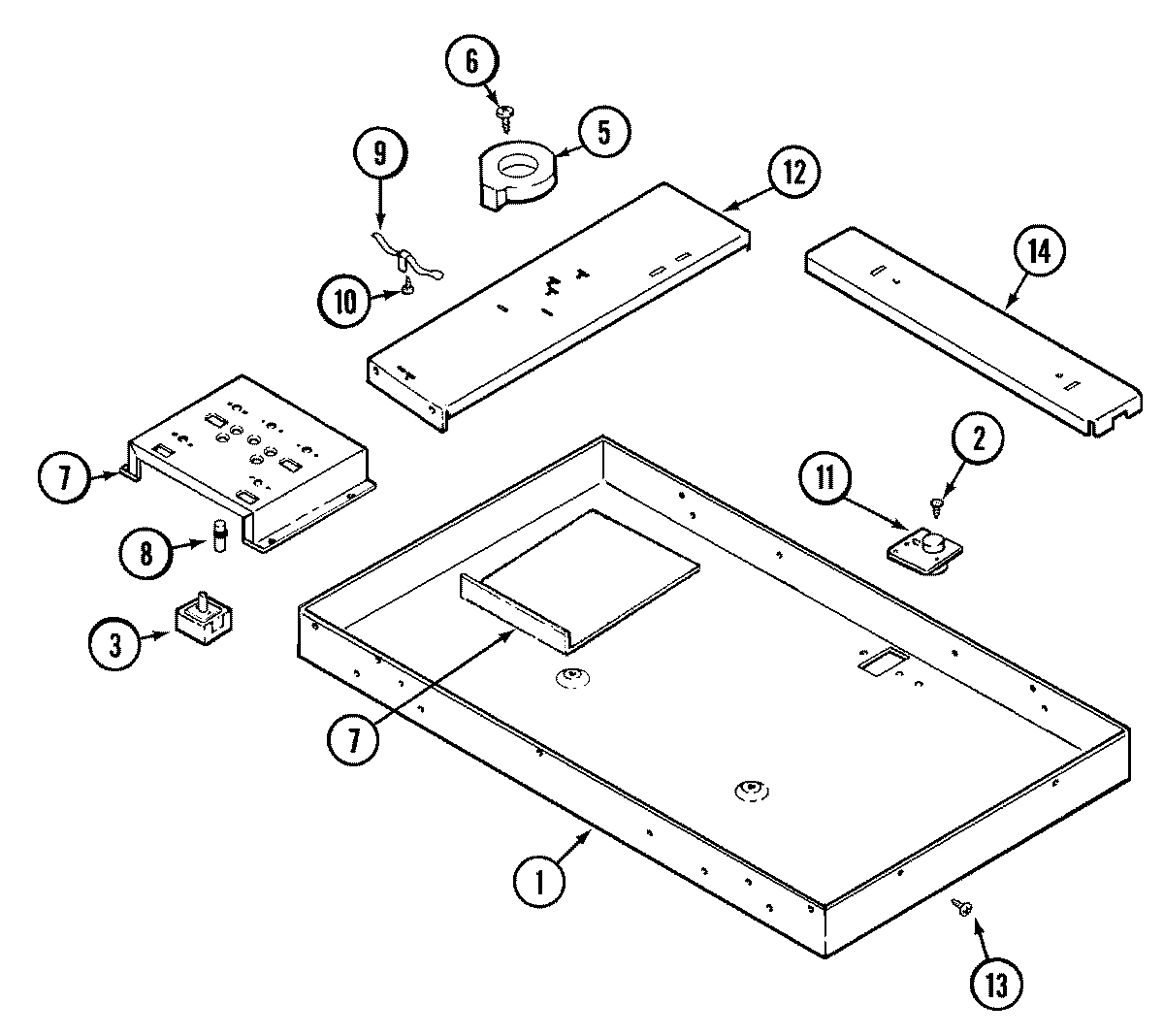

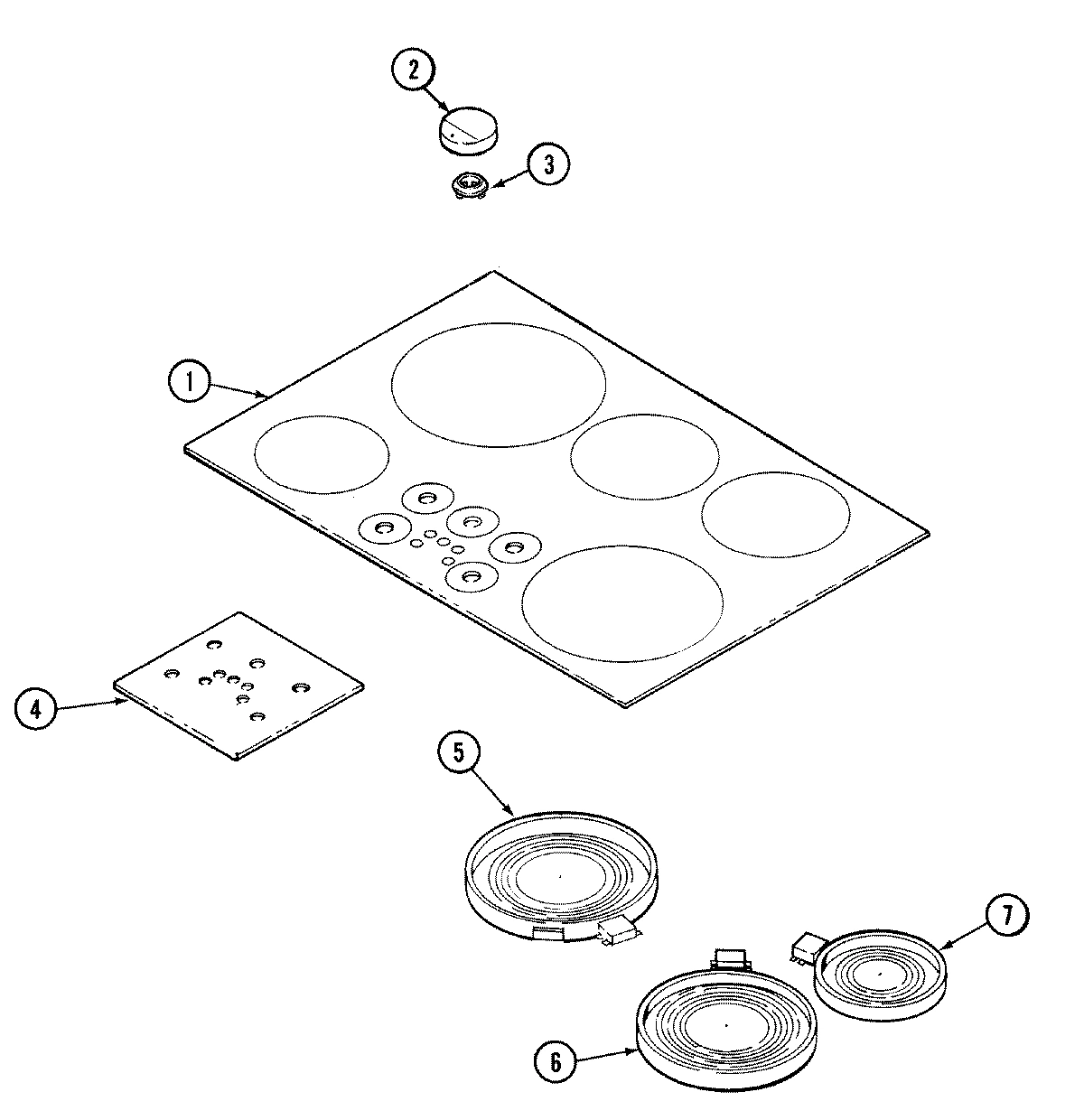

02 - TOP ASSEMBLY

Print

• This Diagram
• All Diagrams

1

GLASS, FRAME ASSY. (BLK) WPL 71002557 Contact Us For Availability

View on Model

1

BOX, BURNER WPL 71002467 Contact Us For Availability

View on Model

1

BOX, BURNER WPL 74006975 Contact Us For Availability

View on Model

2

WP71001171 Whirlpool Screw Backorder WPL WP71001171 View Details $2.60

View on Model

2

KNOB, INFINITE (BLK) WPL Y04100366 Contact Us For Availability

View on Model

3

12002125 Whirlpool Range Oven Cooktop Dual In In Stock WPL 12002125 View Details $45.03

View on Model

3

W11088181 Whirlpool Surface Element Switch In Stock WPL W11088181 View Details $50.99

View on Model

5

W10823694 Whirlpool Surface Element Backorder WPL W10823694 View Details $171.53

View on Model

5

LIGHT BOX WPL Y04100416 Contact Us For Availability

View on Model

6

WP7101P309-60 Whirlpool Screw In Stock WPL WP7101P309-60 View Details $2.60

View on Model

6

ELEMENT, HALOGEN 2200W WPL Y04100448 Contact Us For Availability

View on Model

7

W10823693 Whirlpool Surface Element Backorder WPL W10823693 View Details $133.07

View on Model

7

W10823704 Whirlpool Range Cooktop Radiant Sur In Stock WPL W10823704 View Details $104.98

View on Model

7

PLATE, SWITCH MTG WPL 04100441 Contact Us For Availability

View on Model

7

SUPPORT, SWITCH PLATE WPL 71001616 Contact Us For Availability

View on Model

7

SUPPORT, SWITCH PLATE WPL 74006921 Contact Us For Availability

View on Model

7

PLATE, SWITCH (36``) WPL 74006972 Contact Us For Availability

View on Model

8

WIRE, PILOT LIGHT WPL Y706091 Contact Us For Availability

View on Model

8

LIGHT, INDICATOR WPL Y706125 Contact Us For Availability

View on Model

9

74007134 Whirlpool Oven Spring Element Suppor Backorder WPL 74007134 View Details $5.34

View on Model

10

WP74004005 Whirlpool Screw Backorder WPL WP74004005 View Details $2.60

View on Model

11

WIRE CABLE ASSY. WPL 71001627 Contact Us For Availability

View on Model

12

CROSSBAR, ELEM SUPPORT WPL 74006920 Contact Us For Availability

View on Model

12

CROSSBAR, ELEM SUPPORT WPL Y04100419 Contact Us For Availability

View on Model

13

WP90767 Whirlpool Screw In Stock WPL WP90767 View Details $2.60

View on Model

14

CROSSBAR, ELEM SUPPORT WPL 04100443 Contact Us For Availability

View on Model

14

PLATE, ELEMENT SUPPORT (CNTR) WPL 74006977 Contact Us For Availability

View on Model

NI

MANUAL, SERVICE WPL 16010241 Contact Us For Availability

View on Model

NI

MANUAL, USE & CARE WPL 71002424 Contact Us For Availability

View on Model

NI

SHIELD, INF WPL 71001613 Contact Us For Availability

View on Model

×
