Model Whirlpool CC13E ELECTRIC CARTRIDGE – Common Parts & Diagrams

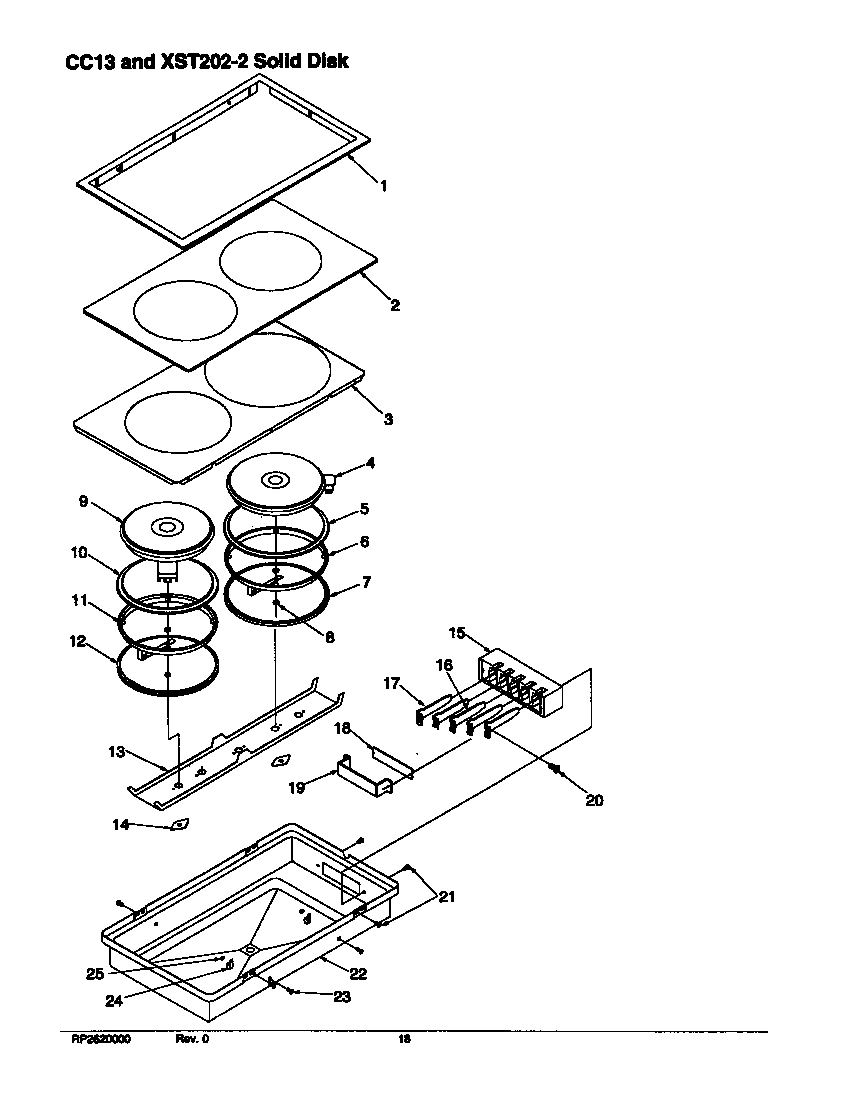

01 - CC13 AND XST202-2 SOLID DISK
Common parts from model Whirlpool CC13E ELECTRIC CARTRIDGE
1
MODULE TOP-ELECT (BLK ENAMEL) WPL 300983B Contact Us For Availability
2
GLASS, TOP WPL Y0061576 Contact Us For Availability
3
SUPPORT GLASS WPL 061494B Contact Us For Availability
4
ELEMENT 8`` 2600W WPL Y0305236 Contact Us For Availability
5
RING LARGE TRIM (BLACK) WPL 061612B Contact Us For Availability
6
GASKET, RING WPL 0061609 Contact Us For Availability
7
GASKET WPL Y0059632 Contact Us For Availability
8
NUT, HEX M6 X 1 WPL 31750109 Contact Us For Availability
9
ELEMENT 6`` 1500W WPL Y0305257 Contact Us For Availability
10
RING SMALL TRIM (BLACK) WPL C2740301 Contact Us For Availability
11
GASKET, RING WPL 0061608 Contact Us For Availability
12
GASKET WPL Y0059631 Contact Us For Availability
13
BRACKET, ELEM. MTG. WPL Y0061495 Contact Us For Availability
14
SPRING, LEAF WPL 0061614 Contact Us For Availability
15
MODULE, PLUG BLOCK WPL Y0314569 Contact Us For Availability
16
CONTACT, SPADE-GROUND WPL Y0052041 Contact Us For Availability
17
CONTACT, SPADE-POWER WPL Y0052040 Contact Us For Availability
18
INSULATOR-COOKTOP MODULE WPL Y0041994 Contact Us For Availability
19
BRACKET, PLUG BLK. MTG. WPL 0061496 Contact Us For Availability
21
SCREW, No.6-20 X .375 PAN HD WPL 31750309 Contact Us For Availability
22
PAN, MODULE (GALV) WPL 31745301 Contact Us For Availability
23
SCREW 8-32X.375 DK GL DR HDL WPL 0041833 Contact Us For Availability
24
WIRE CLAMP, INSULATED WPL Y0074685 Contact Us For Availability
NI
ELECTRIC HARNESS WPL 0061423 Contact Us For Availability
NI
RTV (BLK) WPL Y0308058 Contact Us For Availability
× ![]()
