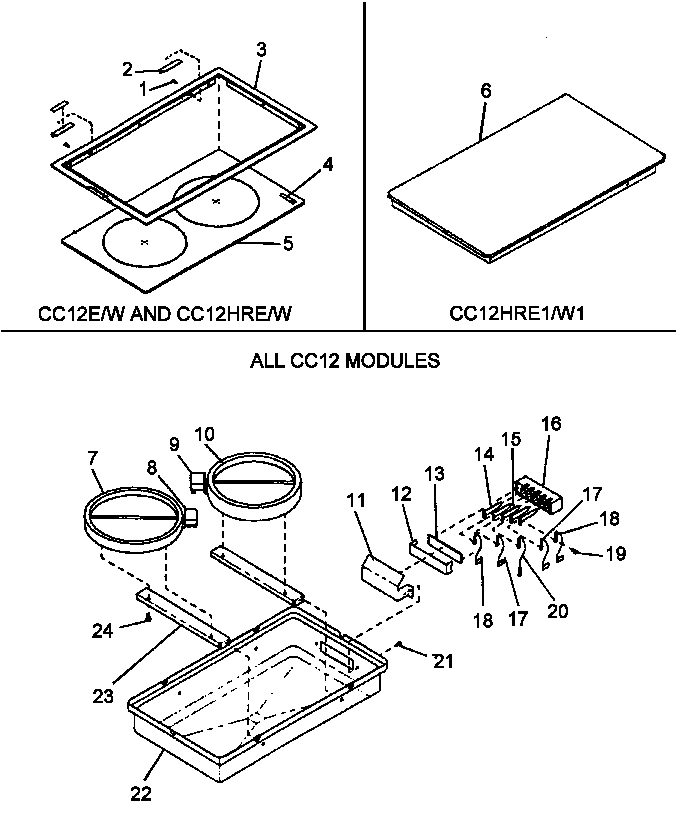

Model Whirlpool CC12HRE1 ELECTRIC CARTRIDGE – Common Parts & Diagrams

6
ASSY, FRAME& GLASS
ASSY, FRAME& GLASS WPL 315187B Contact Us For Availability
View on Model
7
ASSY, HALORING HEATER ELEMENT
ASSY, HALORING HEATER ELEMENT WPL Y0307265 Contact Us For Availability
View on Model
8
LIMITER, HALOGEN ELEMENT
LIMITER, HALOGEN ELEMENT WPL 10061010 Contact Us For Availability
View on Model
9
LIMITER
LIMITER WPL 0316685 Contact Us For Availability
View on Model
10
ELEMENT, RIBBON 1500W
ELEMENT, RIBBON 1500W WPL Y0315184 Contact Us For Availability
View on Model
11
BRACKET, PLUG BLK. MTG.
BRACKET, PLUG BLK. MTG. WPL 0061496 Contact Us For Availability
View on Model
13
INSULATOR-COOKTOP MODULE
INSULATOR-COOKTOP MODULE WPL Y0041994 Contact Us For Availability
View on Model
14
CONTACT, SPADE-POWER
CONTACT, SPADE-POWER WPL Y0052040 Contact Us For Availability
View on Model
15
CONTACT, SPADE-GROUND
CONTACT, SPADE-GROUND WPL Y0052041 Contact Us For Availability
View on Model
16
MODULE, PLUG BLOCK
MODULE, PLUG BLOCK WPL Y0314569 Contact Us For Availability
View on Model
17
HARNESS, WIRE
HARNESS, WIRE WPL 0043578 Contact Us For Availability
View on Model
18
HARNESS, WIRE
HARNESS, WIRE WPL 0043579 Contact Us For Availability
View on Model
20
5644044 JUMPER WIRE
5644044 JUMPER WIRE WPL 0043666 Contact Us For Availability
View on Model
22
BURNER PAN, MODULE
BURNER PAN, MODULE WPL 300747E Contact Us For Availability
View on Model
23
BRKT, ELEMENT MTG
BRKT, ELEMENT MTG WPL Y0315186 Contact Us For Availability
View on Model
24
SCREW, SHOULDER
SCREW, SHOULDER WPL 0306212 Contact Us For Availability
View on Model
NI
SPRING, ELEMENT
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
View on Model
NI
SCREW, No.8-18 X 3/8 P HEX WSH T
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
View on Model
