Model Whirlpool CC12H ELECTRIC CARTRIDGE – Common Parts & Diagrams

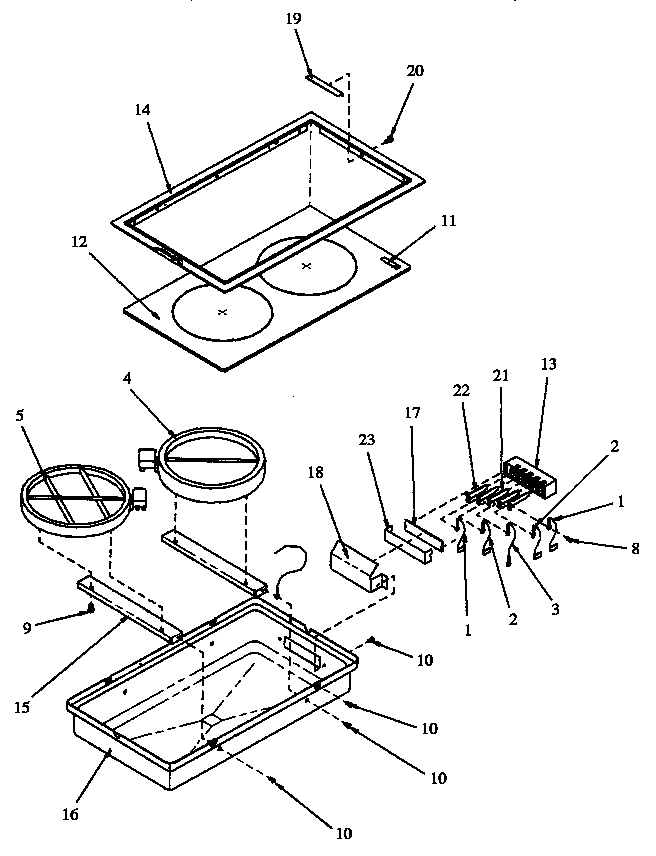

01 - HALOGEN MODULE
Common parts from model Whirlpool CC12H ELECTRIC CARTRIDGE
1
JUMPER WIRE WPL 0312317 Contact Us For Availability
2
JUMPER WIRE WPL 0312318 Contact Us For Availability
3
JUMPER WIRE WPL Y0312319 Contact Us For Availability
4
QUICK STAR ASSY WPL YD8603105 Contact Us For Availability
5
ASSY, HALOGEN WPL Y0307396 Contact Us For Availability
9
SCREW, SHOULDER WPL 0306212 Contact Us For Availability
10
SCREW, No.6-20 X .375 PANHD(BLK) WPL Y0092373 Contact Us For Availability
11
TAPE, VINYL FOAM, ROLL WPL Y0307330 Contact Us For Availability
12
COOKTOP, CERAMIC WPL 307740B Contact Us For Availability
13
MODULE, PLUG BLOCK WPL Y0042211 Contact Us For Availability
14
FRAME, CHROME MOD. WPL 300752R Contact Us For Availability
14
MODULE TOP-ELECT (BLK ENAMEL) WPL 300983B Contact Us For Availability
15
ELEMENT MTG. BRKT WPL 0040970 Contact Us For Availability
16
BURNER PAN, MODULE (BLK) WPL 300747B Contact Us For Availability
17
INSULATOR SHIELD WPL 0312330 Contact Us For Availability
18
PLUG BLOCK MTG BRKT WPL Y0040964 Contact Us For Availability
19
SUPPORT GLASS WPL 0312338 Contact Us For Availability
20
SCREW A-K WPL Y0090431 Contact Us For Availability
21
CONTACT, SPADE-GROUND WPL Y0052041 Contact Us For Availability
22
CONTACT, SPADE-POWER WPL Y0052040 Contact Us For Availability
23
TAPE, GLASS CLOTH, 1/2`` X 60 Y WPL Y0078470 Contact Us For Availability
NI
LIMITER WPL 0312936 Contact Us For Availability
NI
RTV (BLK) WPL Y0043430 Contact Us For Availability
NI
LIMITER, HALOGEN ELEMENT WPL Y0312334 Contact Us For Availability
× ![]()
