Model Electrolux CAW12EHQ23 AIR CONDITIONER – Common Parts & Diagrams

Common parts from model Electrolux CAW12EHQ23 AIR CONDITIONER

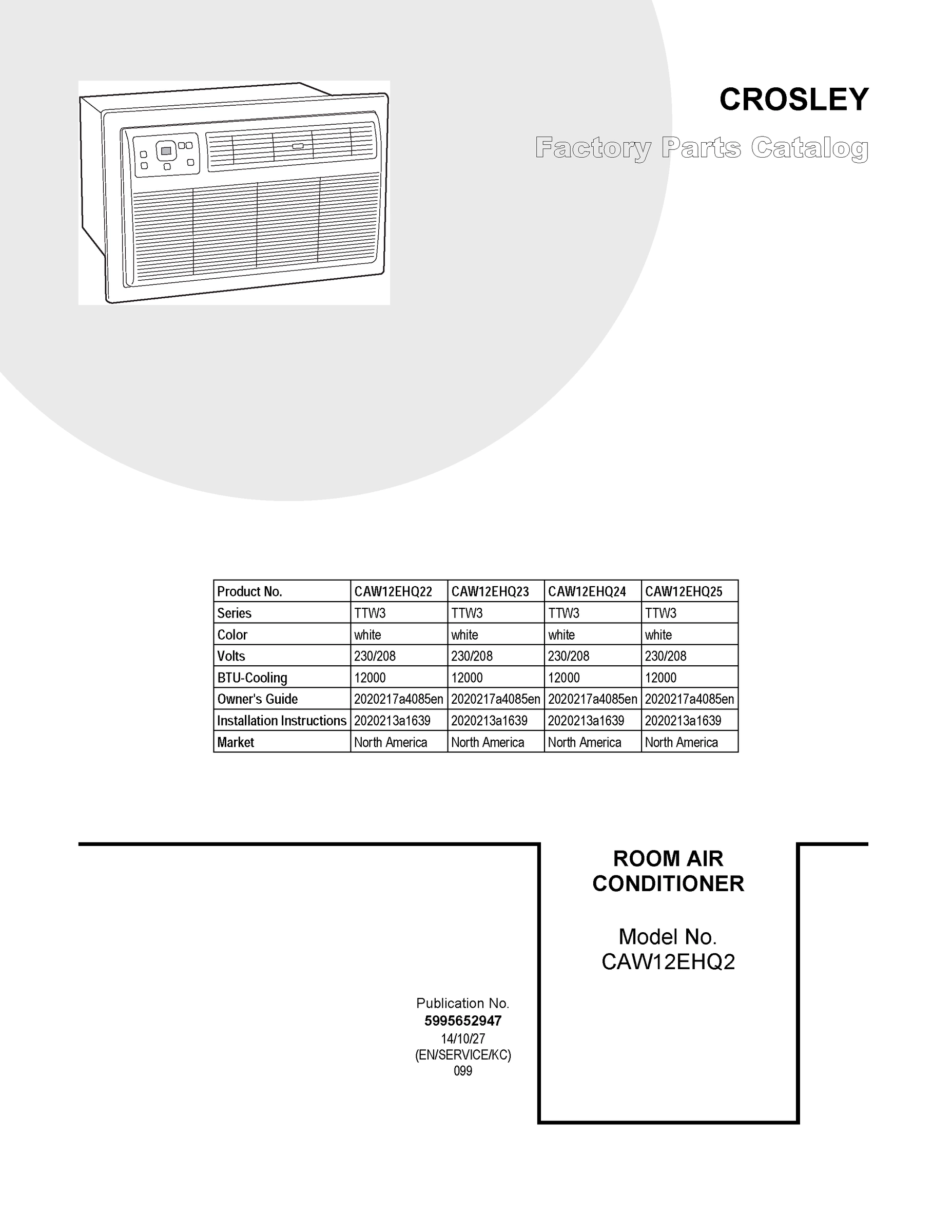

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

FRONT ASSEMBLY, COMPLETE PANEL WCI 5304476434 Contact Us For Availability

View on Model

3

5304528926 Frigidaire Air Conditioner Filter In Stock WCI 5304528926 View Details $10.70

View on Model

6

5304471193 Frigidaire Air Conditioner Blower Backorder WCI 5304471193 View Details $52.92

View on Model

11

5304470971 Frigidaire Air Conditioner Fan Bla Backorder WCI 5304470971 View Details $50.26

View on Model

16

5304535826 Frigidaire Trim Backorder WCI 5304535826 View Details $20.75

View on Model

17

SEAL, STUFFER, FOAM, WALL/SLEEVE WCI 5304470974 Contact Us For Availability

View on Model

18

5304470975 Frigidaire Grill Backorder WCI 5304470975 View Details $12.44

View on Model

19

GRILLE, AIR INLET, RIGHT REAR WCI 5304482547 Contact Us For Availability

View on Model

20

GRILLE, AIR INLET, LEFT REAR WCI 5304482548 Contact Us For Availability

View on Model

21

GRILLE, SLEEVE, ALUMINUM, REAR WCI 5304482549 Contact Us For Availability

View on Model

22

FASTENER KIT, REAR GRILLE, SCREWS WCI 5304470978 Contact Us For Availability

View on Model

23

WCI 5304470979 WCI 5304470979 Contact Us For Availability

View on Model

24

5304495514 Frigidaire Tube Backorder WCI 5304495514 View Details $49.81

View on Model

25

5304495515 Frigidaire Tube Backorder WCI 5304495515 View Details $49.36

View on Model

26

5304476367 Frigidaire Air Conditioner Filter In Stock WCI 5304476367 View Details $28.07

View on Model

27

WCI 5304482555 WCI 5304482555 Contact Us For Availability

View on Model

29

5304493238 Frigidaire Compressor Backorder WCI 5304493238 View Details $557.68

View on Model

30

WCI 5304495516 WCI 5304495516 Contact Us For Availability

View on Model

31

WCI 5304483571 WCI 5304483571 Contact Us For Availability

View on Model

32

WCI 5304483572 WCI 5304483572 Contact Us For Availability

View on Model

33

5304480400 Frigidaire Air Conditioner Wire Backorder WCI 5304480400 View Details $17.37

View on Model

34

COVER, CONTROL BOX WCI 5304476448 Contact Us For Availability

View on Model

35

5304471063 Frigidaire Air Conditioner Transfo Backorder WCI 5304471063 View Details $55.53

View on Model

36

5304471103 Frigidaire Air Conditioner Capacit Backorder WCI 5304471103 View Details $37.02

View on Model

37

5304493239 Frigidaire Air Conditioner Capacit Backorder WCI 5304493239 View Details $90.04

View on Model

38

WCI 5304476616 WCI 5304476616 Contact Us For Availability

View on Model

39

WCI 5304476617 WCI 5304476617 Contact Us For Availability

View on Model

40

5304495510 Frigidaire Air Conditioner PC Boar Backorder WCI 5304495510 View Details $117.01

View on Model

41

WCI 5304495029 WCI 5304495029 Contact Us For Availability

View on Model

42

5304495518 Frigidaire Sensor Backorder WCI 5304495518 View Details $15.15

View on Model

43

5304512374 Frigidaire Air Conditioner Sensor Backorder WCI 5304512374 View Details $19.59

View on Model

44

WCI 5304482751 WCI 5304482751 Contact Us For Availability

View on Model

45

WCI 5304476451 WCI 5304476451 Contact Us For Availability

View on Model

46

WCI 5304487624 WCI 5304487624 Contact Us For Availability

View on Model

×
