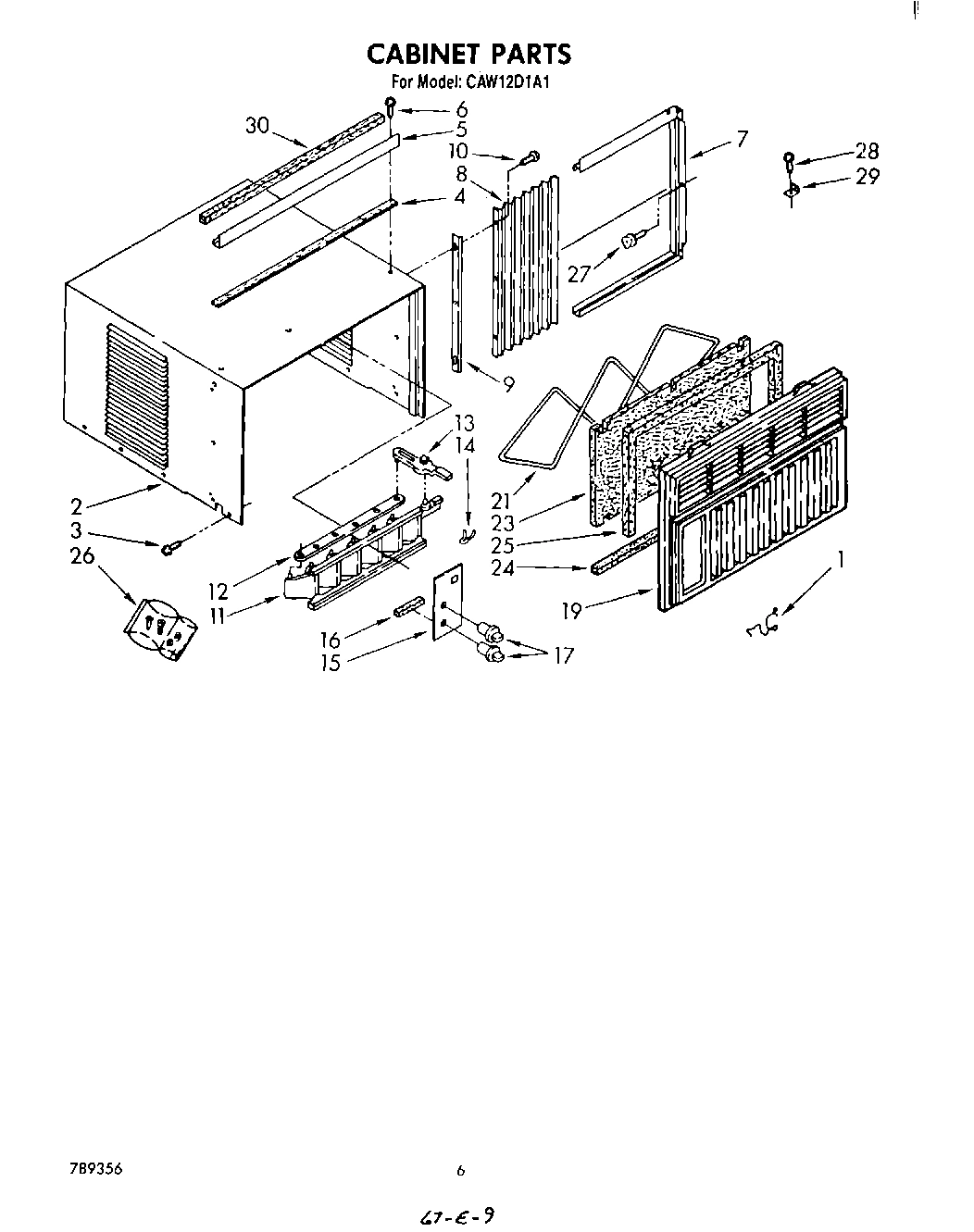

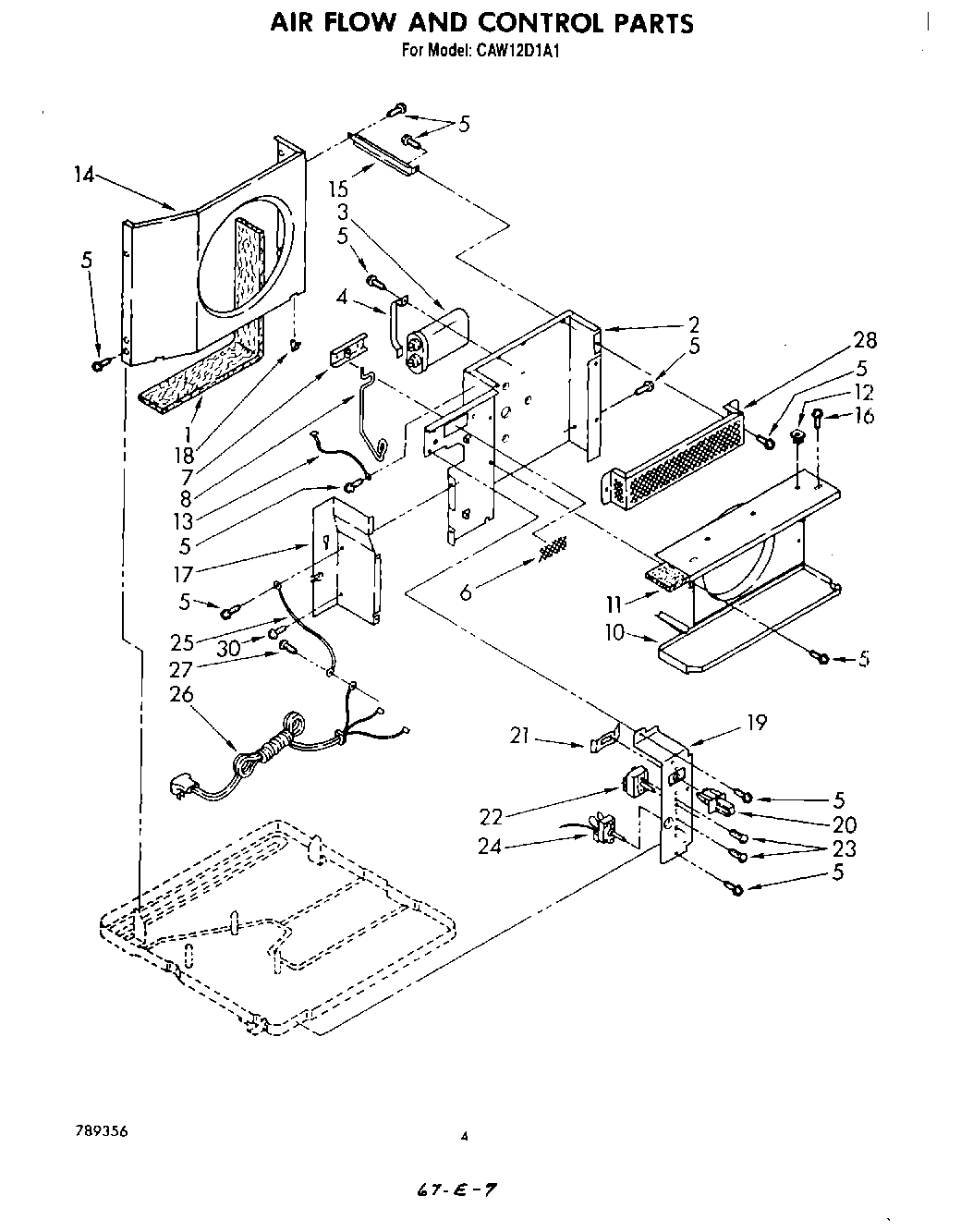

Model Whirlpool CAW12D1A1 ROOM AIR CONDITIONER – Common Parts &amp; Diagrams

1

Clip, Cabinet Front Mounting (2) WPL 949634 Contact Us For Availability

2

Wall, Dividing (Requires Insulation Part No. WPL 951968 Contact Us For Availability

2

WPL 856686 WPL 856686 Contact Us For Availability

3

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

3

WPL 950030 WPL 950030 Contact Us For Availability

4

Bracket, Running Capacitor WPL 475844 Contact Us For Availability

4

WPL 856989 WPL 856989 Contact Us For Availability

5

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

5

Screw (Repair) No.10 x 3/8 WPL 488481 Contact Us For Availability

5

Channel, Top Mounting WPL 993786 Contact Us For Availability

6

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

6

Screen, Exhaust Door WPL 856929 Contact Us For Availability

7

WPL 644206 WPL 644206 Contact Us For Availability

7

Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability

7

Housing, Curtain L.S. WPL 855573 Contact Us For Availability

8

Arm, Exhaust Door WPL 856042 Contact Us For Availability

8

WPL 947160 WPL 947160 Contact Us For Availability

9

Nut, Lock (3) WPL 858121 Contact Us For Availability

9

WPL 644224 WPL 644224 Contact Us For Availability

10

WP950035 Whirlpool Cover Gasket Backorder WPL WP950035 $26.21

10

$Shro\ud,\ Evaporator (Includes Item 11)$

Shro\ud,\ Evaporator (Includes Item 11) WPL 948219 Contact Us For Availability

10

Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability

11

WP950036 Whirlpool Cover Assembly Backorder WPL WP950036 $4.90

11

WPL 948220 WPL 948220 Contact Us For Availability

11

WPL 641481 WPL 641481 Contact Us For Availability

12

WP950027 Whirlpool Mounting Nut Backorder WPL WP950027 $2.38

12

WPL 487808 WPL 487808 Contact Us For Availability

12

Link, Vertical Louver WPL 641482 Contact Us For Availability

13

WPL 947852 WPL 947852 Contact Us For Availability

13

Wire, Capacitor Ground WPL 998010 Contact Us For Availability

13

Handle, Vertical Louver WPL 645887 Contact Us For Availability

14

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

14

WPL 856037 WPL 856037 Contact Us For Availability

14

Spring, Dent WPL 641484 Contact Us For Availability

15

Clamp, Cable WPL 852451 Contact Us For Availability

15

WPL 858663 WPL 858663 Contact Us For Availability

15

WPL 953001 WPL 953001 Contact Us For Availability

16

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

16

WPL 947533 WPL 947533 Contact Us For Availability

16

Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability

17

Blade, Fan (Condenser) WPL 997904 Contact Us For Availability

17

Extension, Dividing Wall WPL 994560 Contact Us For Availability

17

WPL 953054 WPL 953054 Contact Us For Availability

18

WPL 950023 WPL 950023 Contact Us For Availability

18

WPL 644401 WPL 644401 Contact Us For Availability

19

WPL 947611 WPL 947611 Contact Us For Availability

19

WPL 996966 WPL 996966 Contact Us For Availability

19

WPL 953019 WPL 953019 Contact Us For Availability

20

WPL 951015 WPL 951015 Contact Us For Availability

20

WPL 953066 WPL 953066 Contact Us For Availability

21

Bend, Return (16) WPL 854624 Contact Us For Availability

21

Retainer, Detent Spring WPL 858765 Contact Us For Availability

21

WPL 646963 WPL 646963 Contact Us For Availability

22

Bend, Return (12) WPL 855199 Contact Us For Availability

22

WPL 950283 WPL 950283 Contact Us For Availability

23

WPL 950037 WPL 950037 Contact Us For Availability

23

Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability

23

WPL 855246 WPL 855246 Contact Us For Availability

24

Tube, 90o Connect WPL 947612 Contact Us For Availability

24

WPL 949431 WPL 949431 Contact Us For Availability

24

Seal, Cabinet Front WPL 852923 Contact Us For Availability

25

tube, strainer assembly (includes part no. 49 WPL 484230 Contact Us For Availability

25

WPL 856094 WPL 856094 Contact Us For Availability

25

Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability

26

WPL 49599 WPL 49599 Contact Us For Availability

26

Cable, Appliance WPL 646306 Contact Us For Availability

26

WPL 476180 WPL 476180 Contact Us For Availability

27

WPW10141604 Whirlpool Screw Backorder WPL WPW10141604 $3.90

27

Screw, Thumb WPL 475581 Contact Us For Availability

28

WPL 996773 WPL 996773 Contact Us For Availability

28

WPL 856912 WPL 856912 Contact Us For Availability

28

Screw, Round Head Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability

29

Clip, Temperature Anticipator WPL 475577 Contact Us For Availability

29

Bracket, Window Lock WPL 644228 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

Clamp, Tube WPL 642684 Contact Us For Availability

WPL 469938 WPL 469938 Contact Us For Availability

WPL 47261 WPL 47261 Contact Us For Availability

WPL 47262 WPL 47262 Contact Us For Availability

WPL 47263 WPL 47263 Contact Us For Availability

WPL 485426 WPL 485426 Contact Us For Availability

Screw, S.M. No.8 x 3/8A WPL 488624 Contact Us For Availability

Insulation, Cabinet (5/8`` x 13`` x 25-11/16` WPL 649939 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

Seal, Meeting Rail WPL 469877 Contact Us For Availability

31

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

33

WPL 595085 WPL 595085 Contact Us For Availability

34

Clip, Fan Balancing WPL 485334 Contact Us For Availability

484184 Whirlpool Air Conditioner Winter Cover Backorder WPL 484184 $38.05

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability

WPL 10943 WPL 10943 Contact Us For Availability

Harness, Wiring WPL 484136 Contact Us For Availability

WPL 484220 WPL 484220 Contact Us For Availability

WPL 484310 WPL 484310 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
